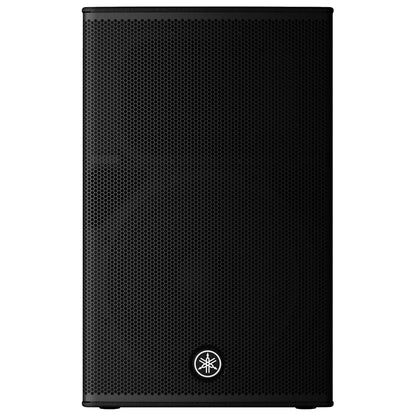

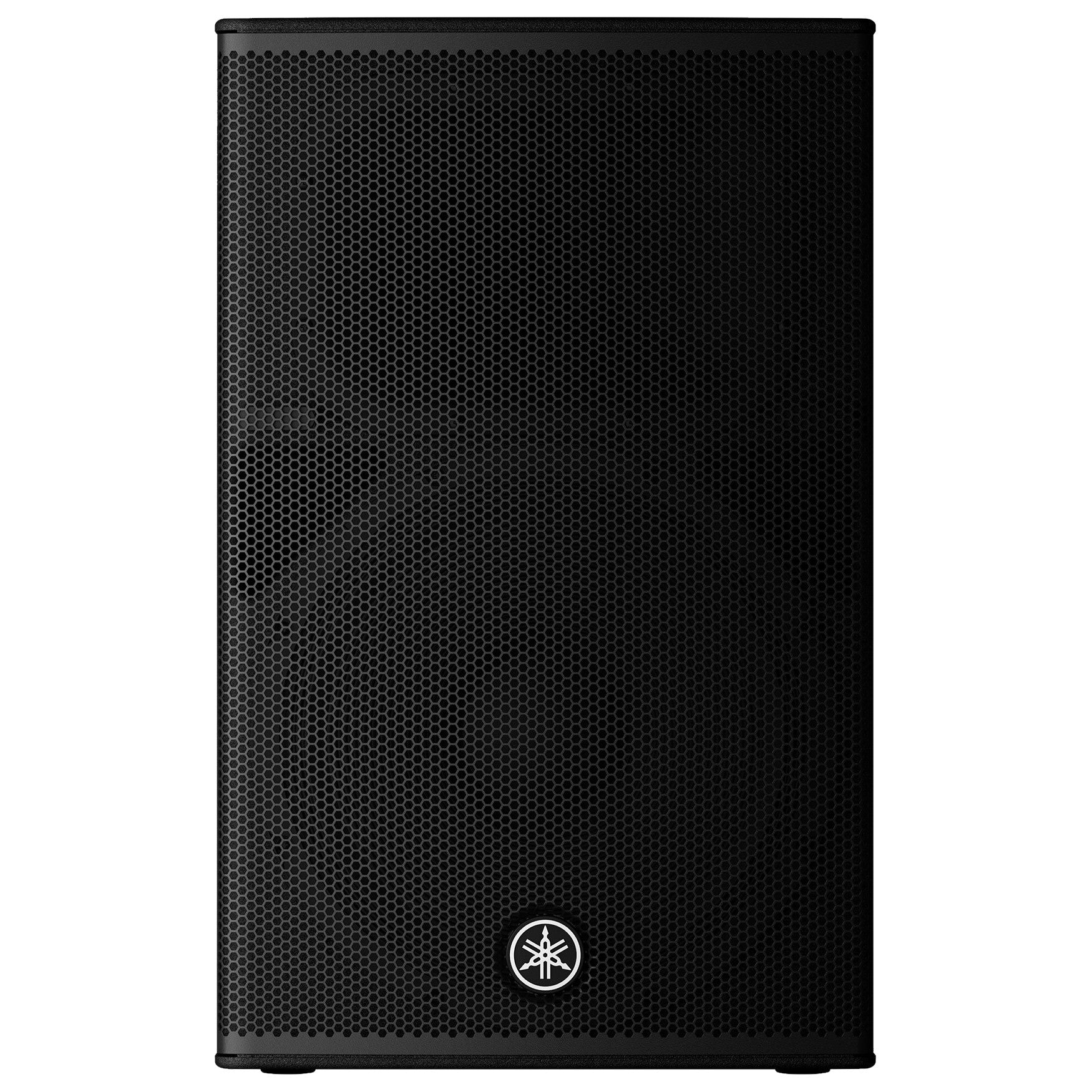

• Yamaha DHR15 15" 2-Way Powered Speaker

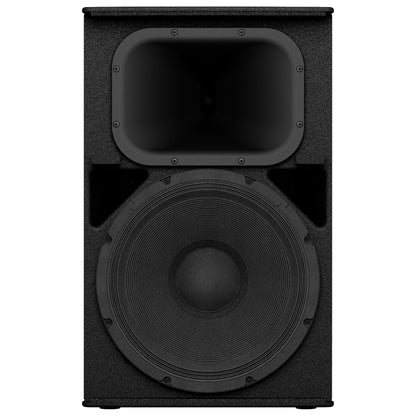

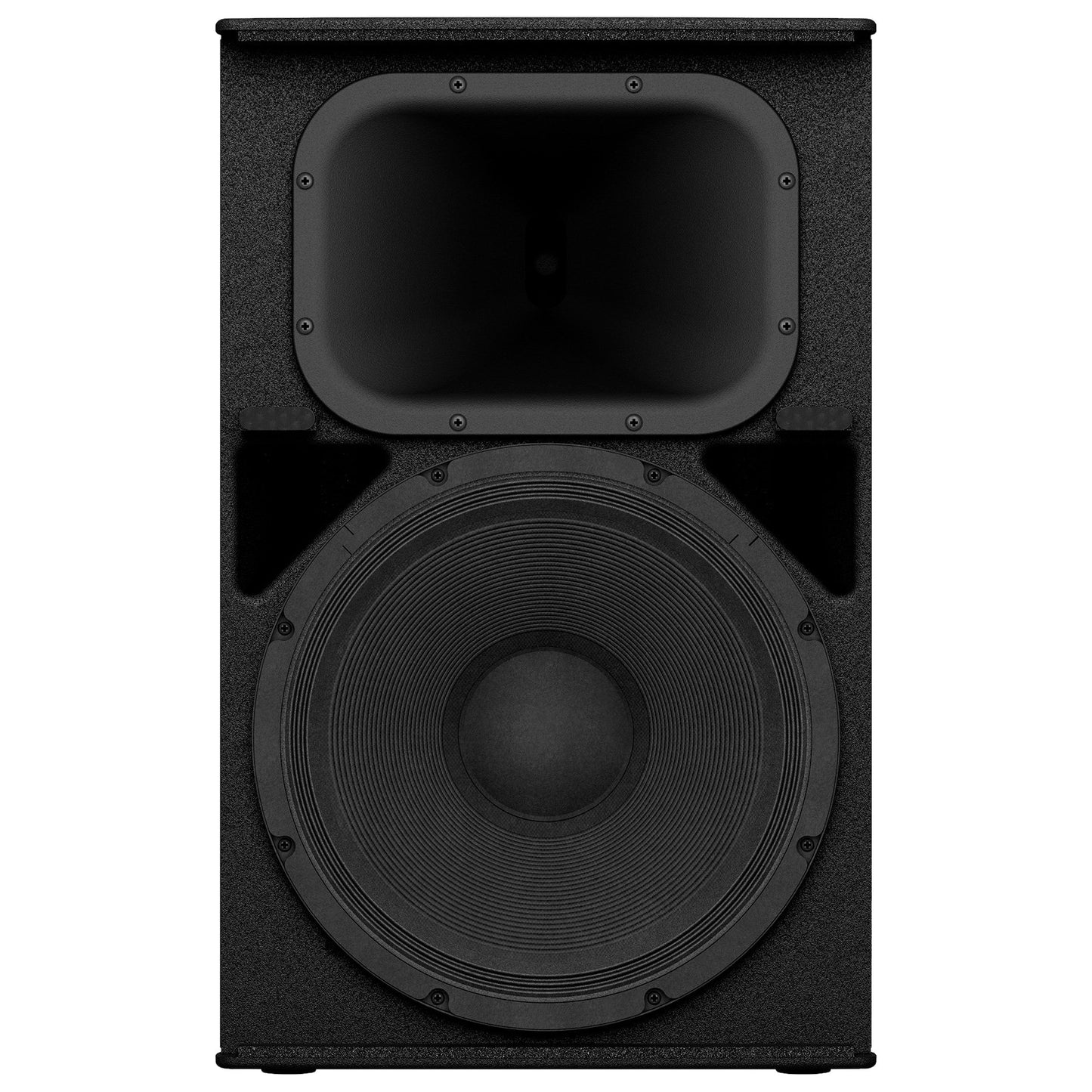

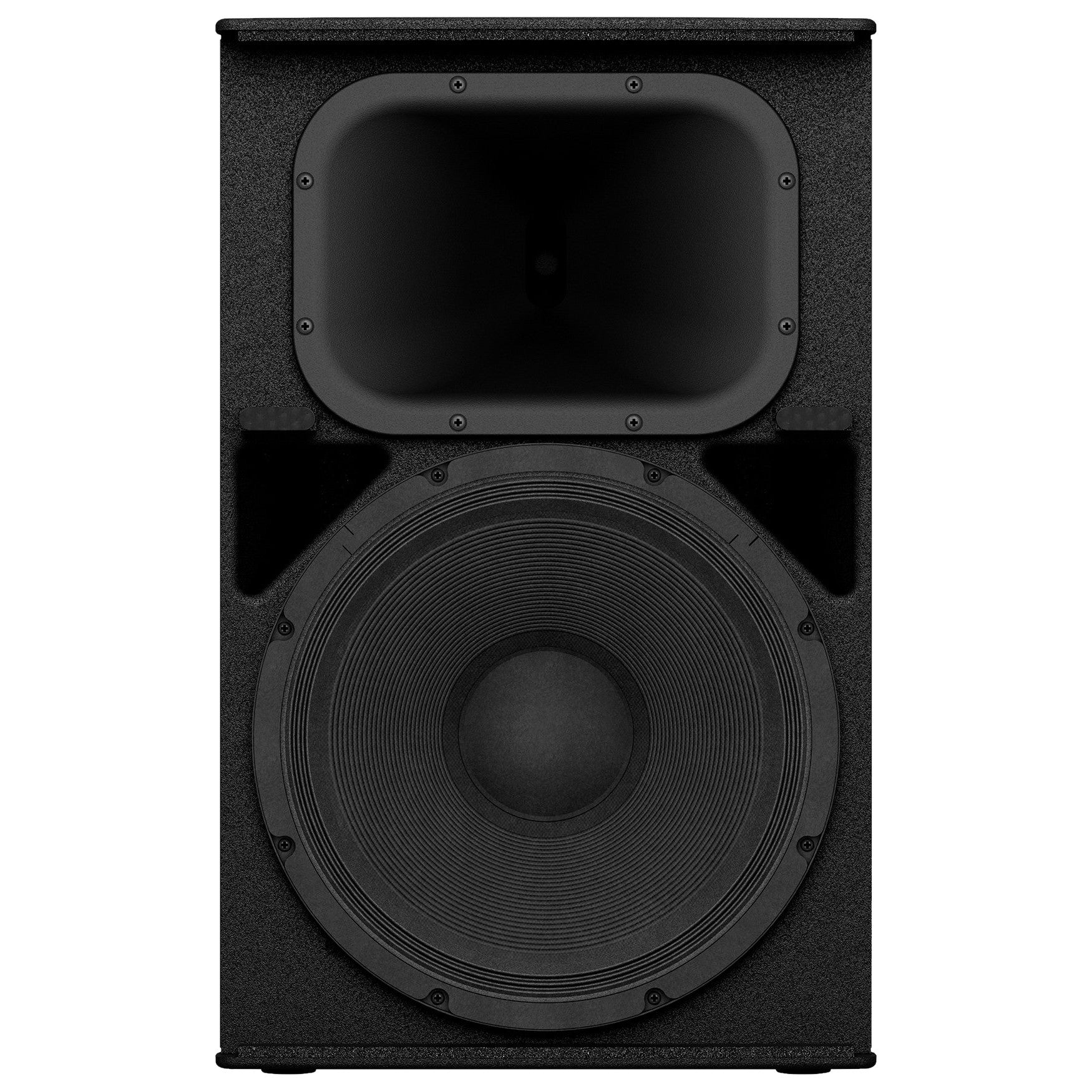

  • Yamaha DHR15 15 2-Way Powered Speaker uncovered

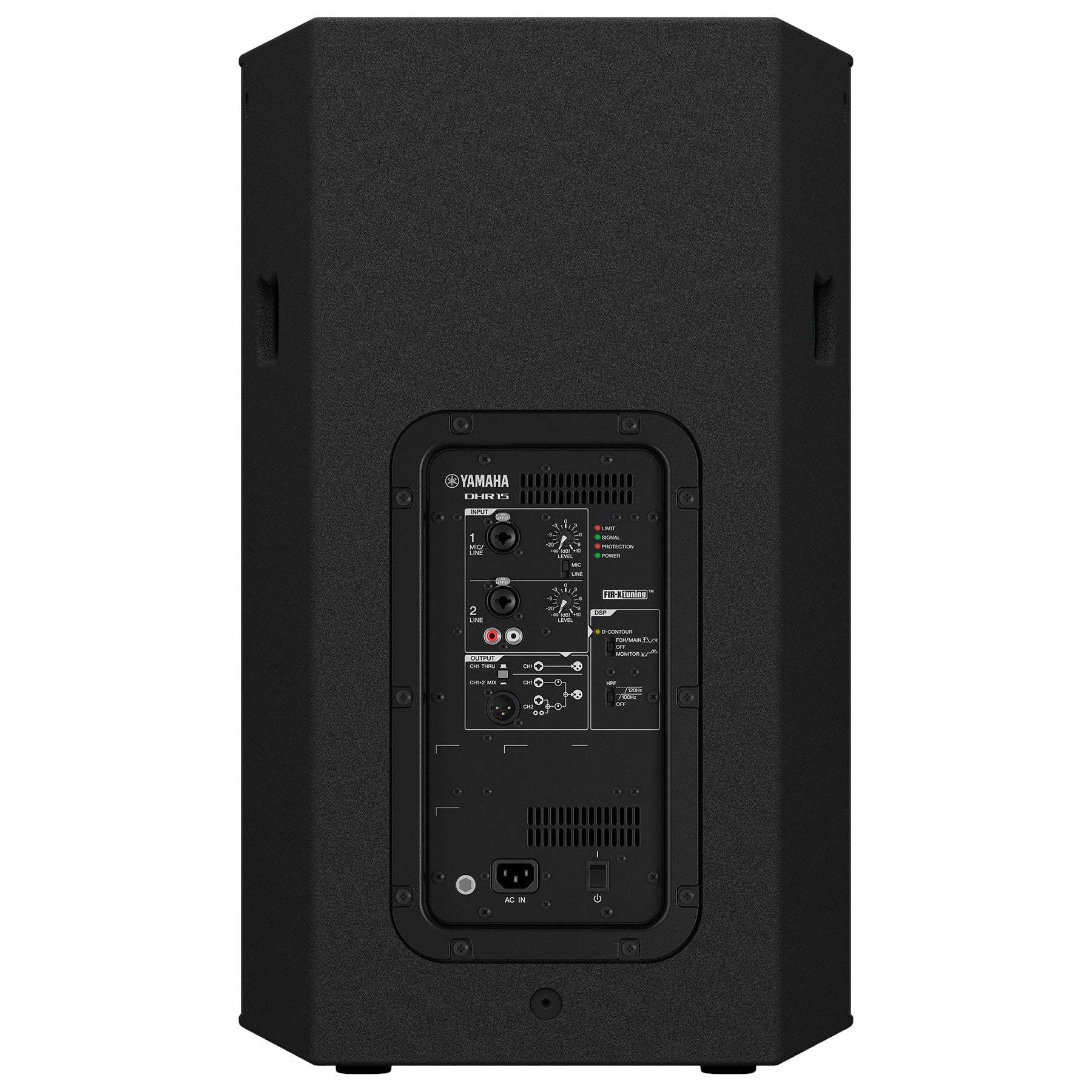

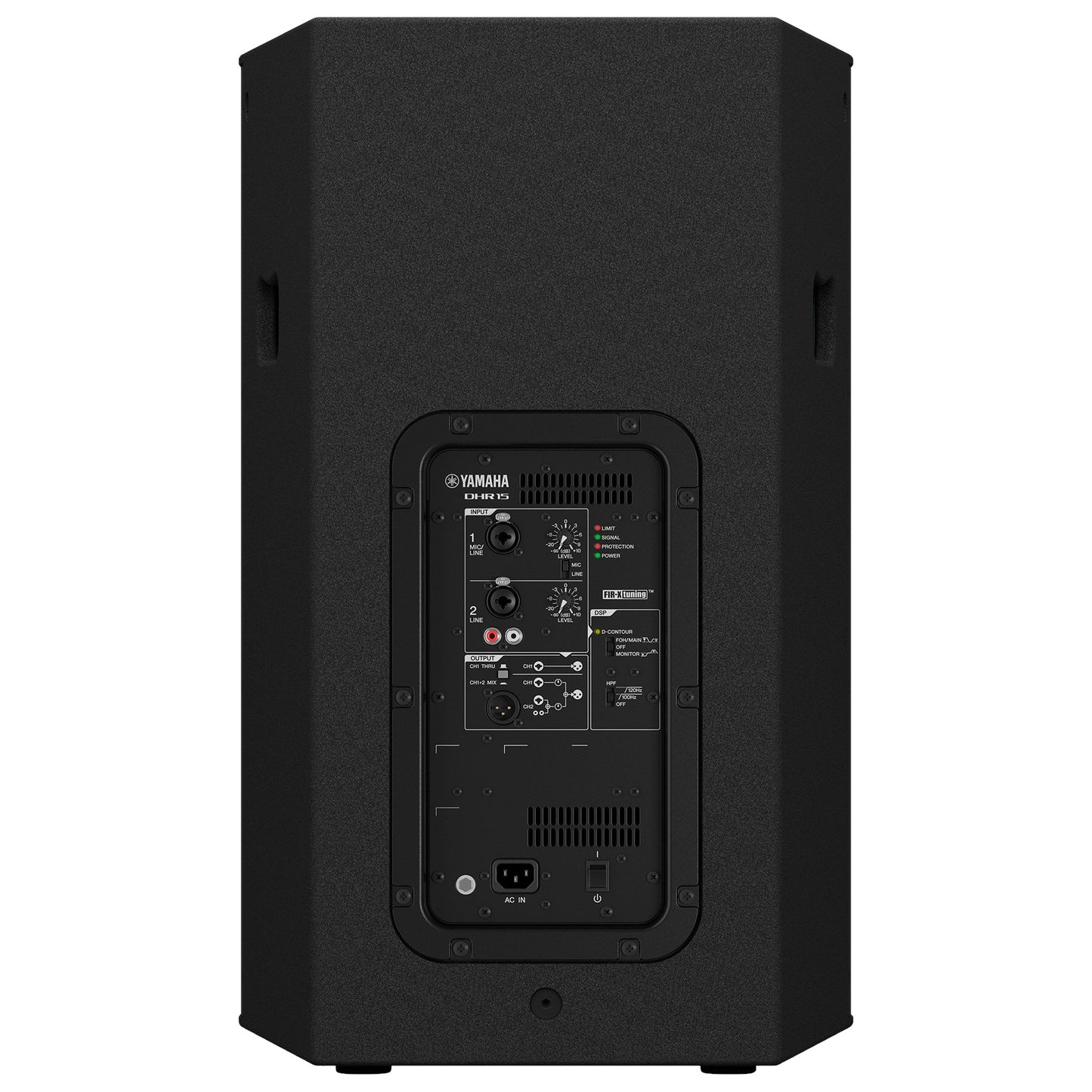

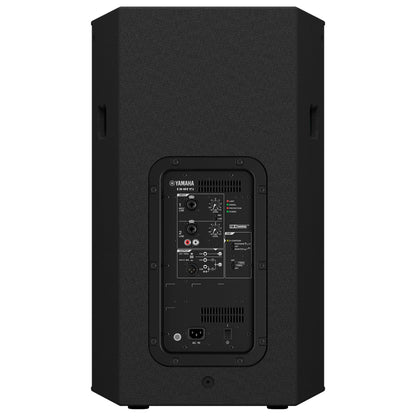

  • Yamaha DHR15 15 2-Way Powered Speaker back
1 3

Yamaha DHR15 15-Inch Powered Speaker

Yamaha DHR15 15-Inch Powered Speaker

SoundPro Item: 122973 | Part Number: DHR15

$739.49
$1,065.00 $739.49
Your Price Sold out
MSRP: $1,065.00 | MAP: $739.49

Usually ships in 5-7 business days

  • Plywood cabinet that delivers a clear sound with minimal vibration
  • Compact size despite the 15" LF driver that provides excellent low frequency response
  • Dual-angle pole sockets offer both 0° or a -7° down tilt
  • Rigging points for use with eye bolts
  • Propitiatory FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
Log in or register for YOUR best price

Part of the Yamaha DHR series, the DHR15 loudspeaker was designed for front-of-house applications. The DHR15 is a 2-way biamp-powered loudspeaker housing a 15” woofer and 1.4” driver. 1000W amplifier and high-performance DSP are critical to ensuring the quality the DHR15 is known for. One benefit unique to the DHR15 is its dual-angle pole sockets, which offer both 0° or a -7° down tilt.

View full details
  • Speaker Type2-way, Bi-amped Powered Speaker, Bass-reflex
  • Frequency Range (-10dB)44Hz - 20,000Hz
  • Coverage Area (HxV)90° x 60°
  • Crossover1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
  • Max. Output Level (measured peak, IEC noise @1m)131 dB SPL
  • Components
    • LF
      • Diameter: 15" cone
      • Voice Coil: 2.5"
      • Magnet: ferrite
    • HF
      • Diaphragm: 1.4"
      • Type: 1" throat compression driver
      • Magnet: ferrite
  • Amplifier ClassClass D
  • Power Rating
    • Dynamic: 1,000 W (LF: 800 W, HF: 200 W)
    • Continuous: 465 W (LF: 400 W, HF: 65 W)
  • Coolingfan cooling, 4 speeds
  • Power Consumption74 W (1/8power), 18 W (Idle)
  • Power Requirements100 V, 100-120 V, 220-240 V, 110/127/220 V (Brazil), 50/60 Hz
  • A/D D/A Converters24 bit 48 kHz Sampling
  • Processors
    • HPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct
    • D-CONTOUR: FOH/MAIN, MONITOR, OFF
  • I/O Connectors
    • INPUT1: Combo x1
    • INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced)
    • OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
  • Cabinet Materialplywood
  • Finishdurable polyurea painting, black
  • Handleside (2)
  • Pole SocketΦ35 mm x2 (Bottom, 0° or -7°)
  • RiggingTop x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
  • Dimensions (WxHxD)17x27.2x15.9"
  • Weight52.9 pounds
