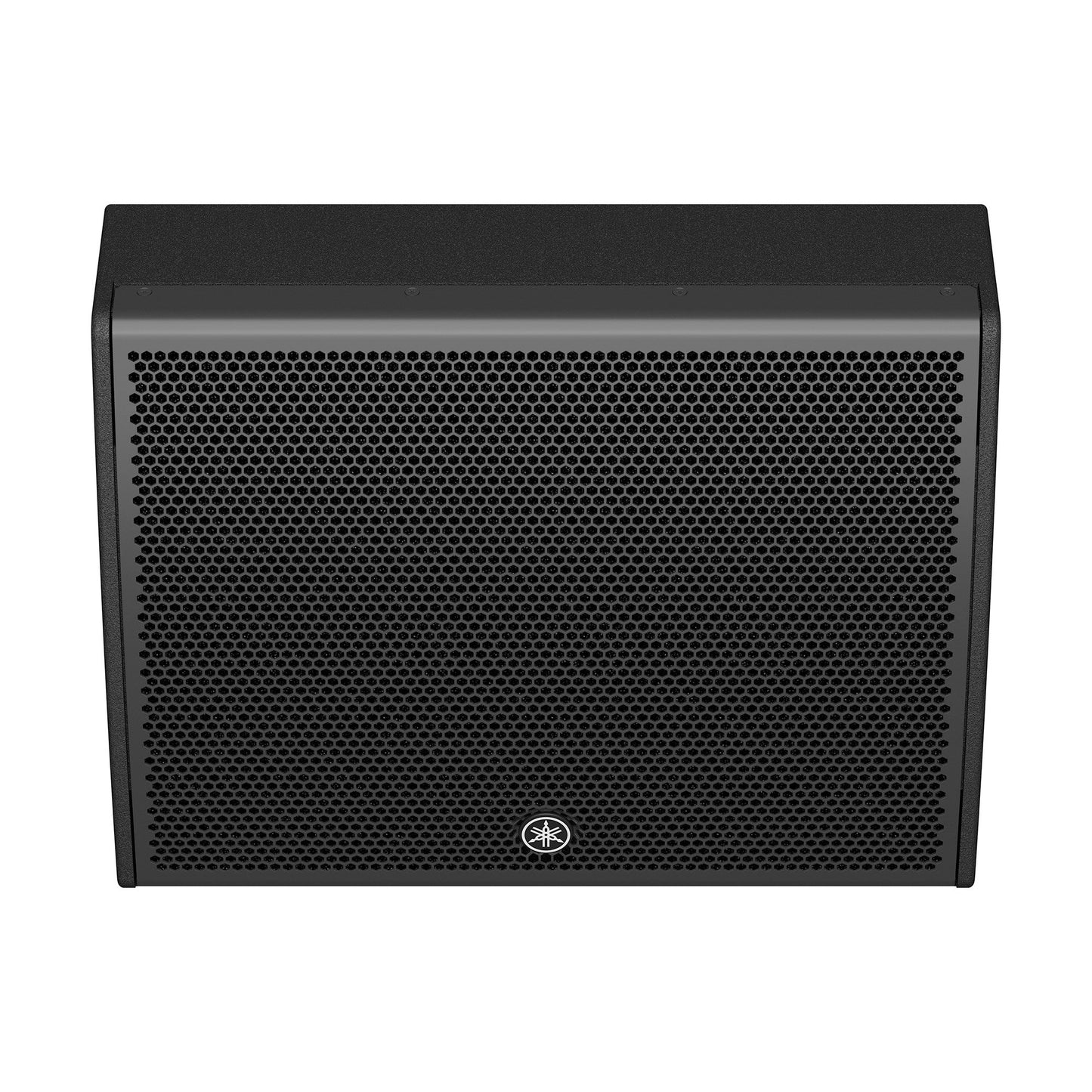

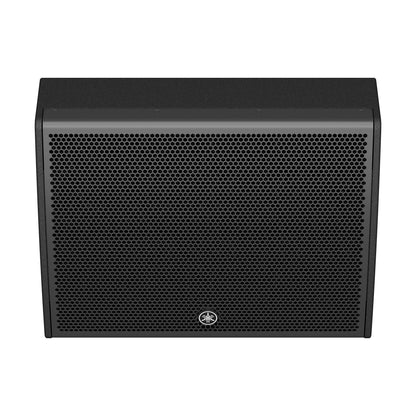

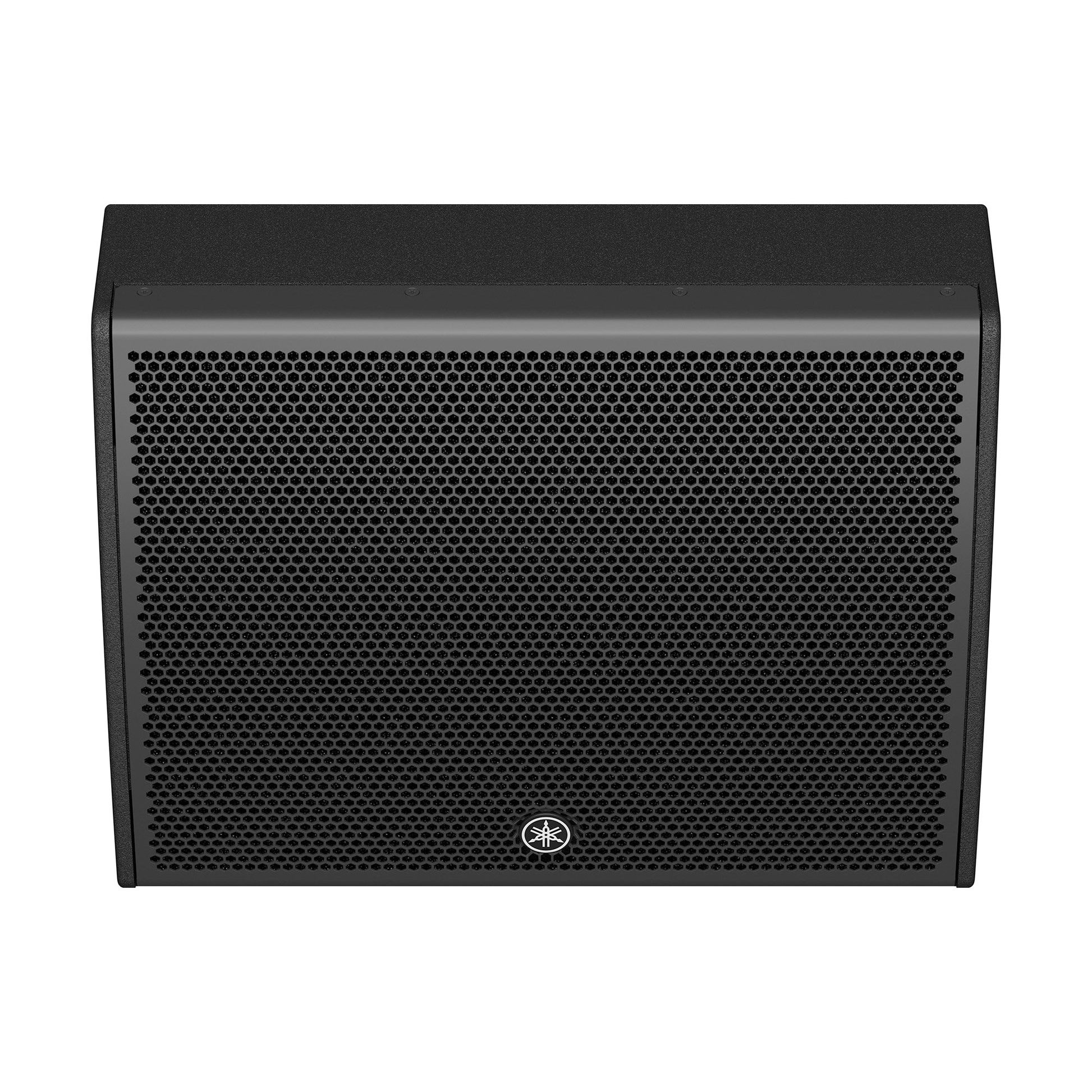

  • Yamaha DHR15M 15-Inch Powered Stage Monitor top

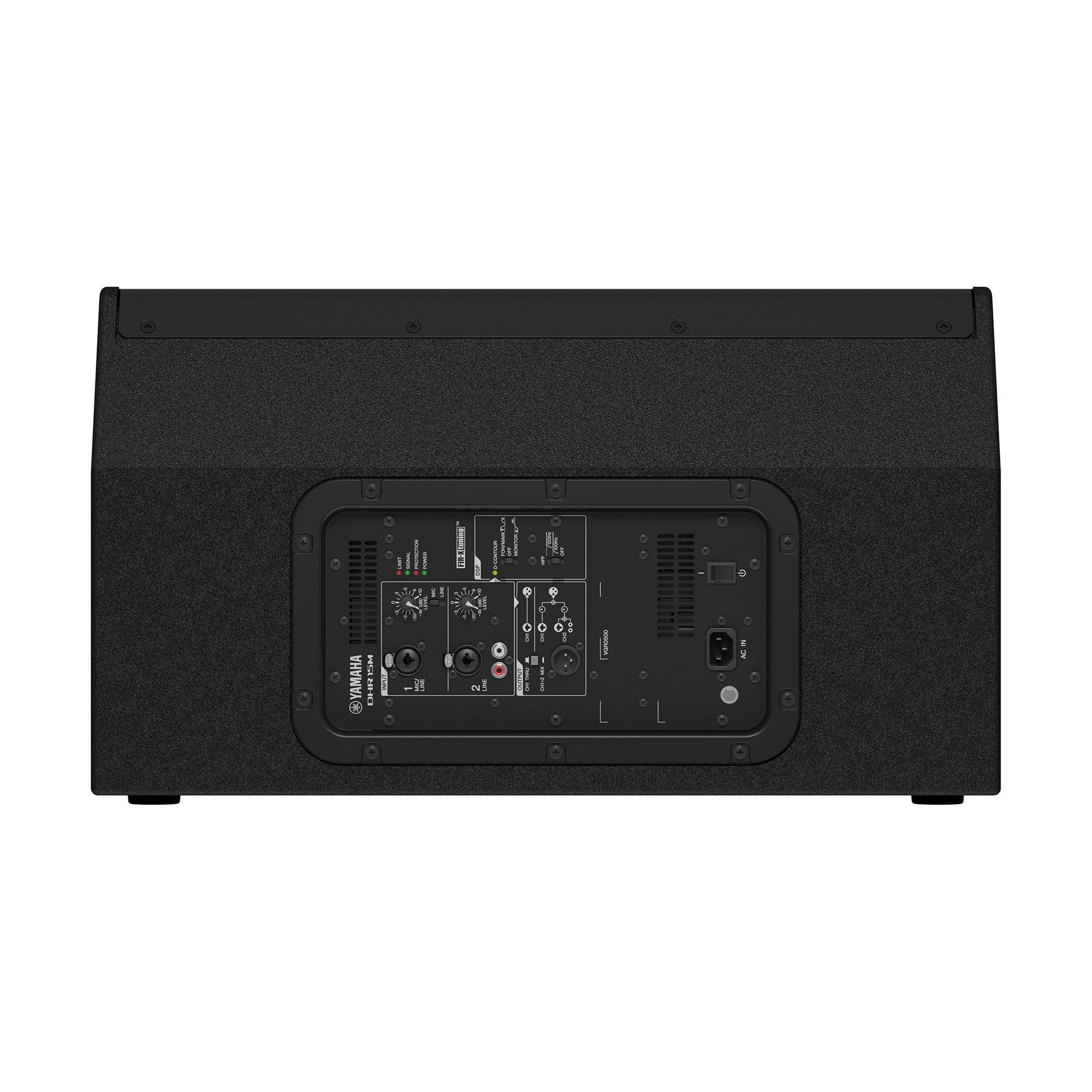

  • Yamaha DHR15M 15-Inch Powered Stage Monitor back

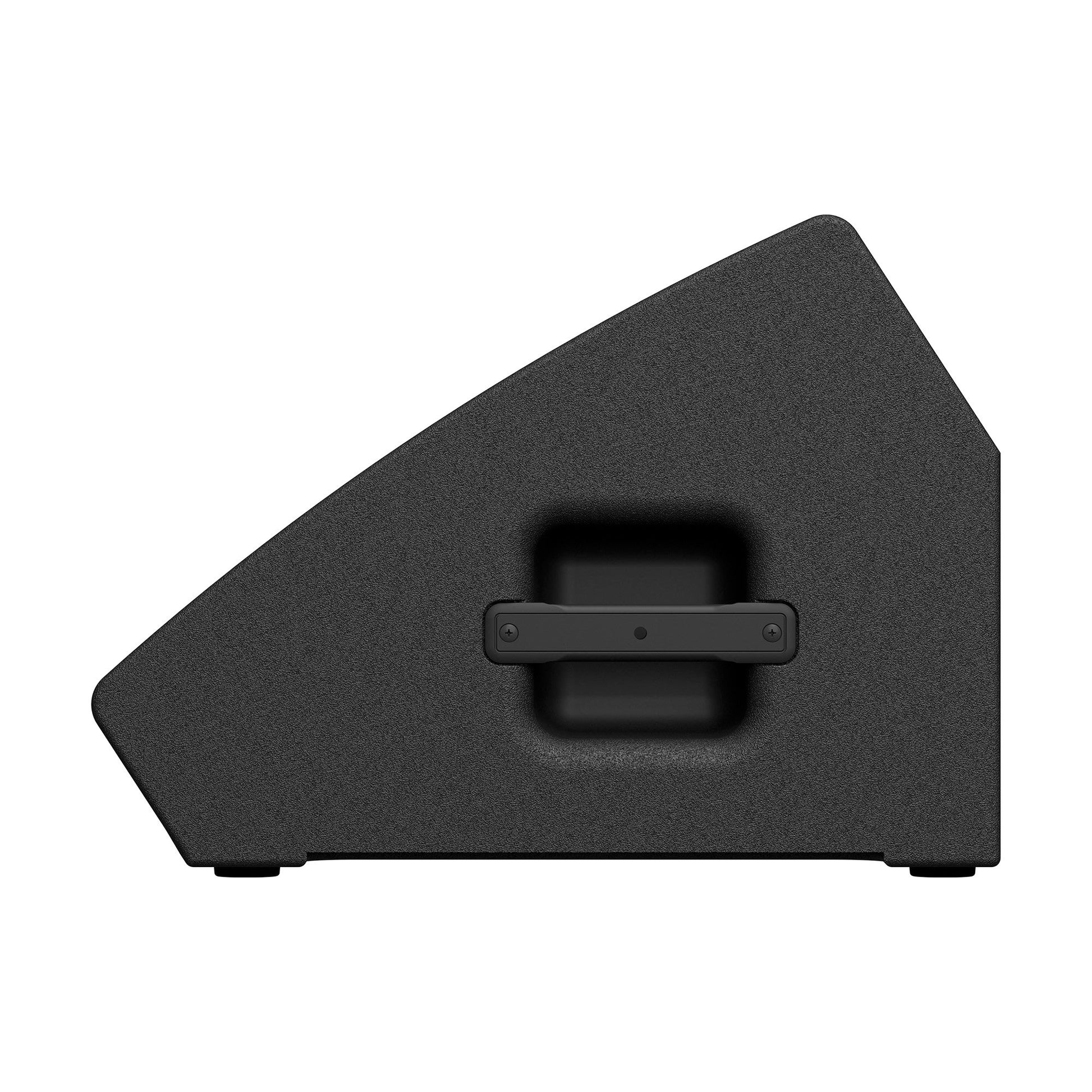

  • Yamaha DHR15M 15-Inch Powered Stage Monitor left

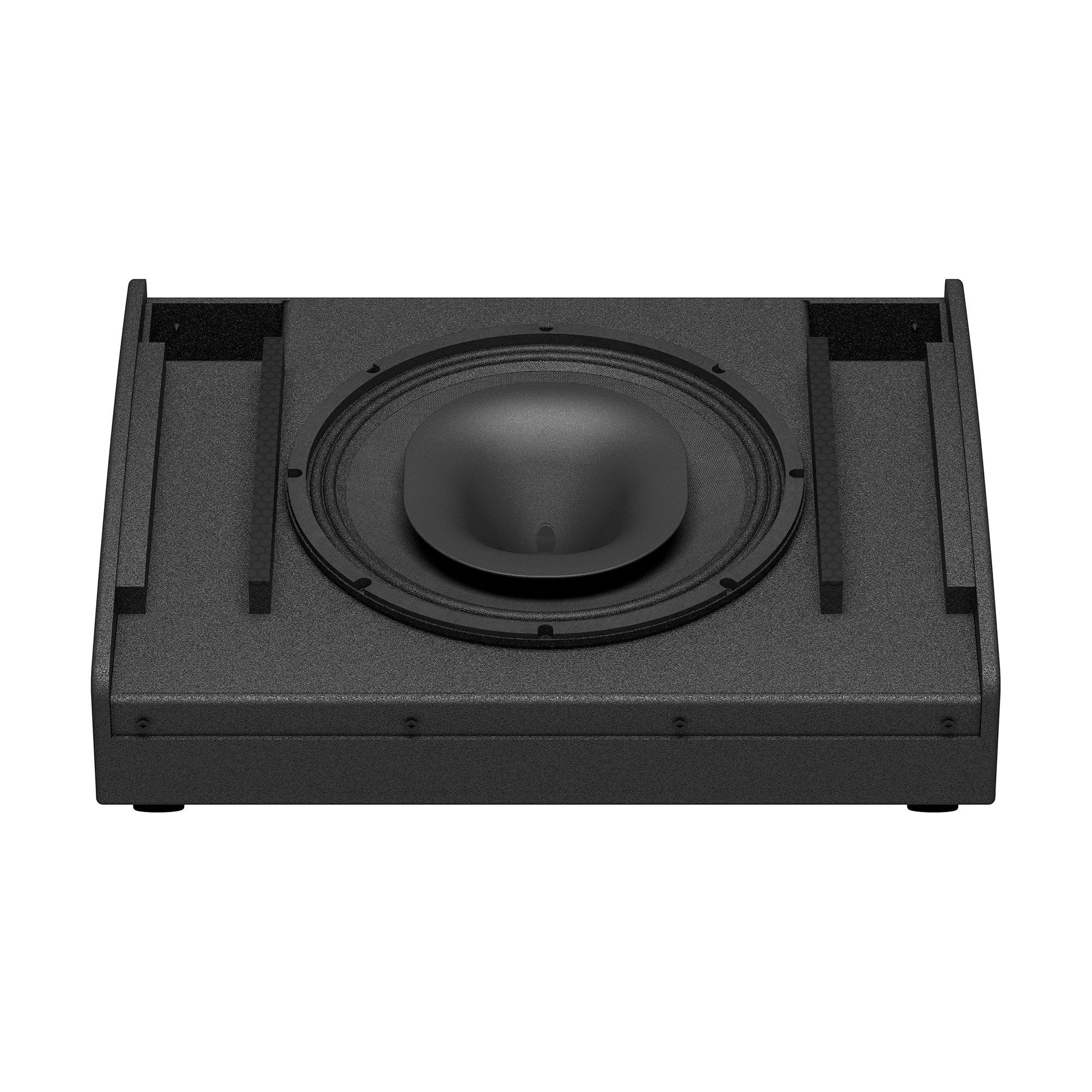

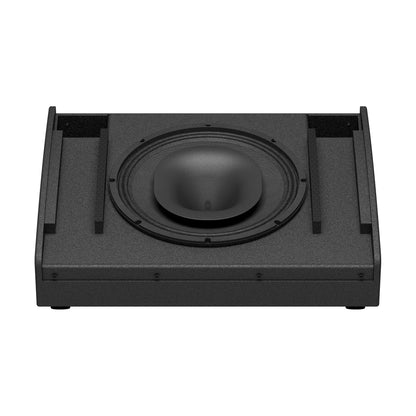

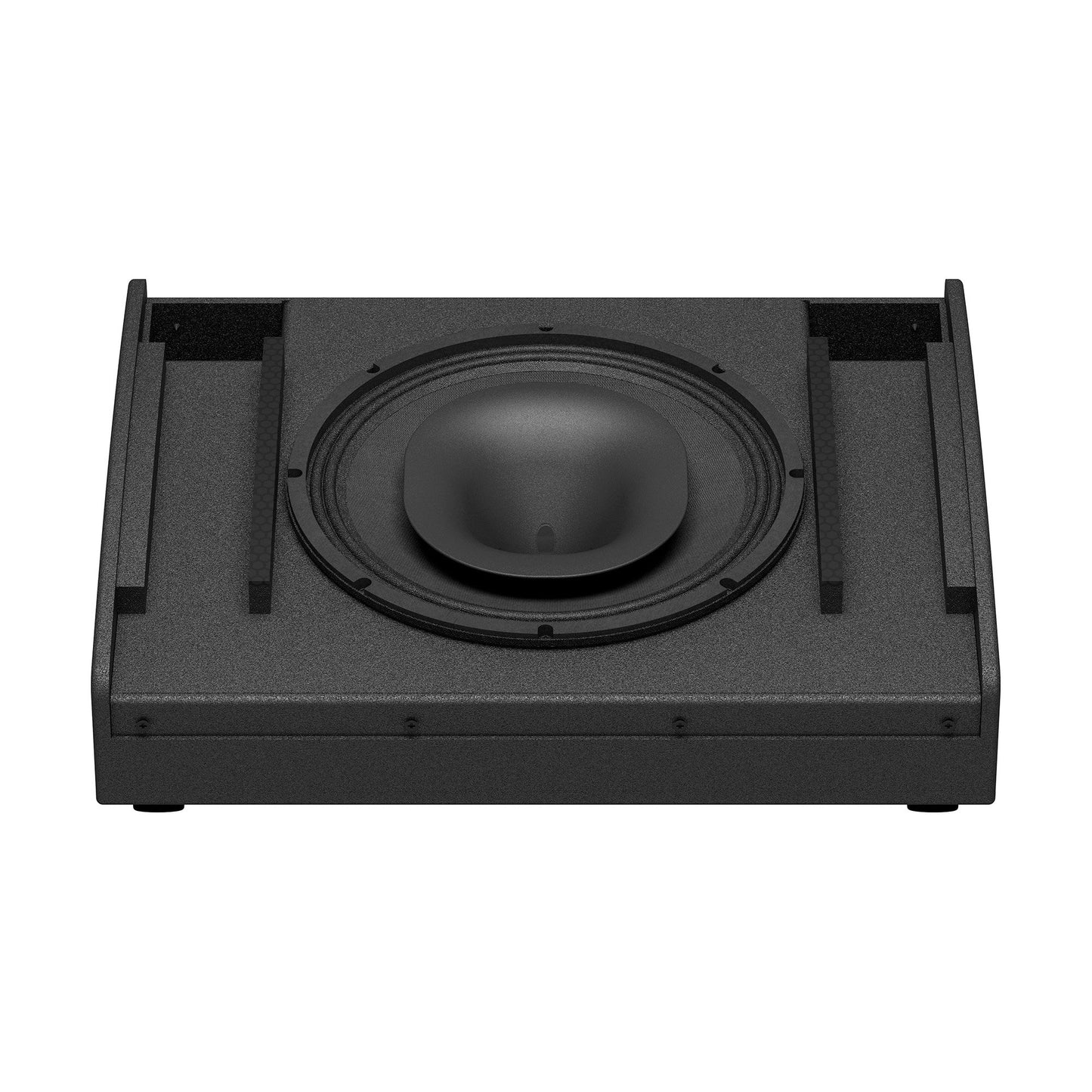

  • Yamaha DHR15M 15-Inch Powered Stage Monitor without grille

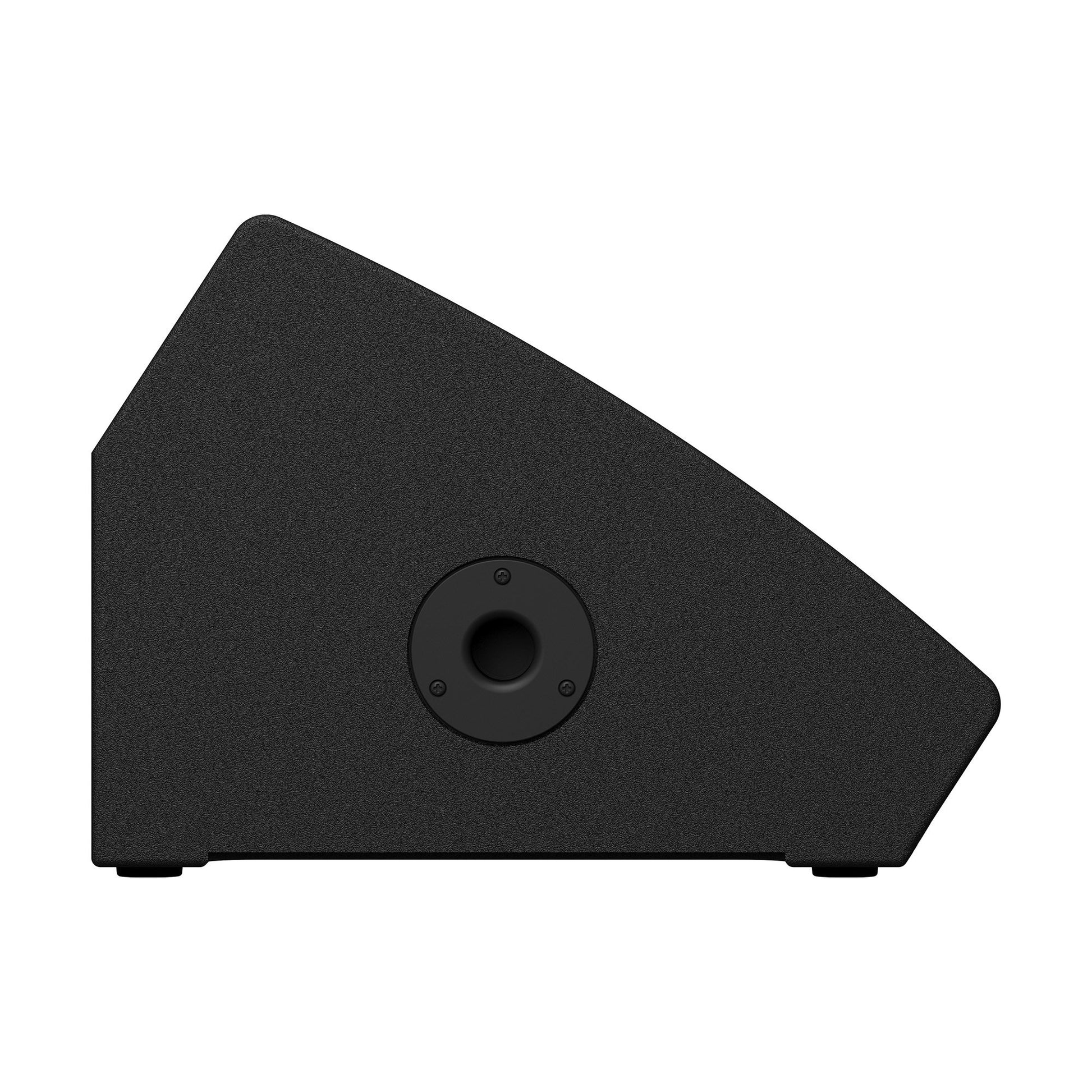

  • Yamaha DHR15M 15-Inch Powered Stage Monitor right
1 6

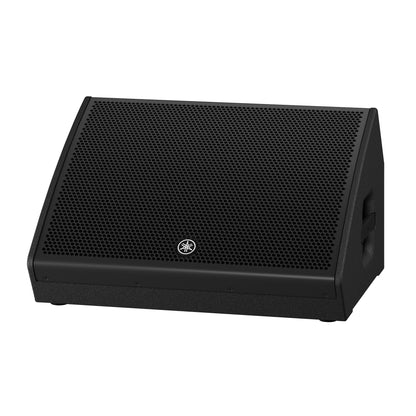

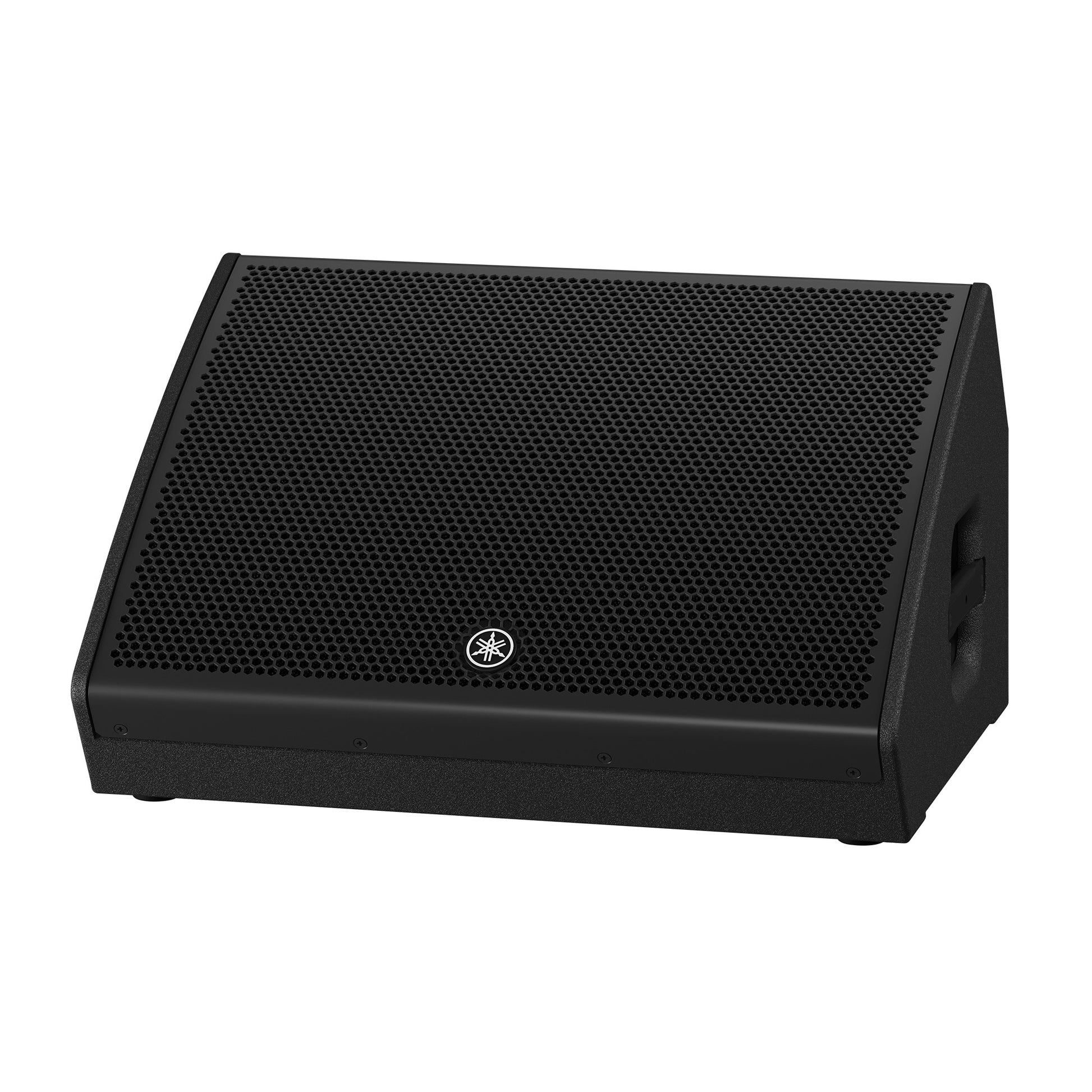

Yamaha DHR15M 15-Inch Powered Stage Monitor

Yamaha DHR15M 15-Inch Powered Stage Monitor

SoundPro Item: 144451 | Part Number: DHR15M

$871.24
$1,323.00 $871.24
Your Price Sold out
MSRP: $1,323.00 | MAP: $871.24

In stock and ready to ship

  • The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
  • Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
  • A pole socket for use on a stand
  • Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
Log in or register for YOUR best price

The DHR15M is a 2-way bi-amp powered loudspeaker featuring a 15-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration with a custom-designed constant directivity horn, perfect for use as a floor monitor. Combining a 1000W amplifier and high performance DSP with the same plywood construction found on our high-end DZR Series, the DHR15M offers best-in-class sound quality and durability.

View full details
  • Speaker type2-way, Bi-amped Powered Speaker, Bass-reflex
  • Frequency range (-10dB)50 Hz - 20 kHz
  • Coverage areaH65° x V75°
  • Crossover1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
  • Maximum Output Level (Measured peak, IEC noise@1m)131 dB SPL
  • Components
    • LF: Diameter:15" cone, Voice Coil: 3", Magnet: Ferrite
    • HF: Diaphragm: 1.75", Type: 1" throat compression driver Coaxial, Magnet: Ferrite
  • AmplifierClass-D
  • Power Rating
    • Dynamic: 1,000W (LF: 800W, HF: 200W) *1
    • Continuous: 465W (LF: 400W, HF: 65W)
  • CoolingFan cooling, 4 speeds
  • Power consumption74W (1/8power), 18W (Idle)
  • Power requirements100V, 100-120V, 220-240V, 110/127/220V (Brazil), 50/60 Hz
  • A/D D/A Converters24 bit 48 kHz Sampling
  • ProcessorsOFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF
  • I/O connectorsINPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
  • Cabinet materialPlywood
  • FinishDurable Polyurea Painting, Black
  • HandleSide x1
  • Pole socketΦ35 mm x1 (Side)
  • Floor Monitor Angle57°
  • Dimensions (WxHxD)25.3x14.5x19.9" (642x369x505mm) (height includes rubber feet)
  • Net weight50.7 lbs (23kg)
