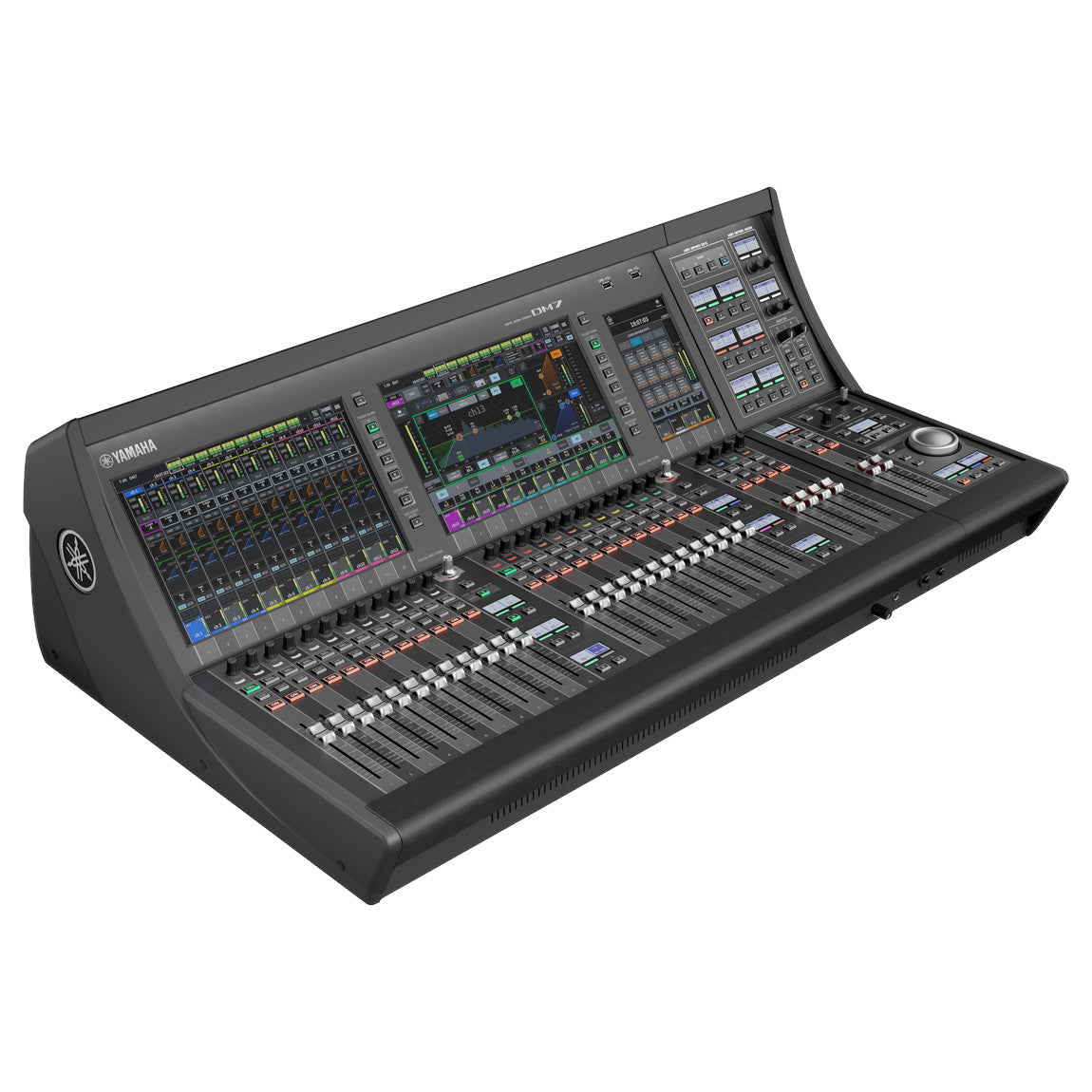

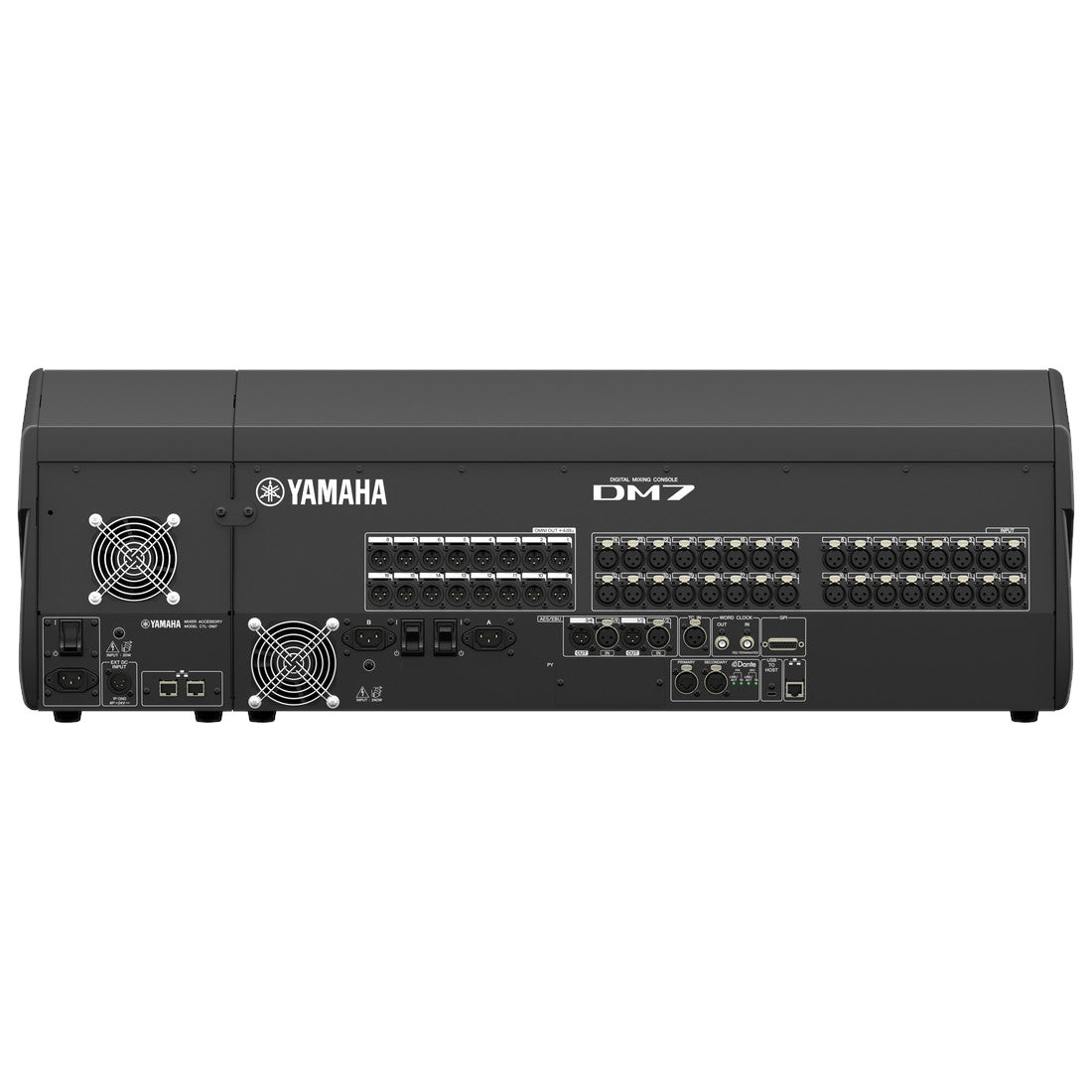

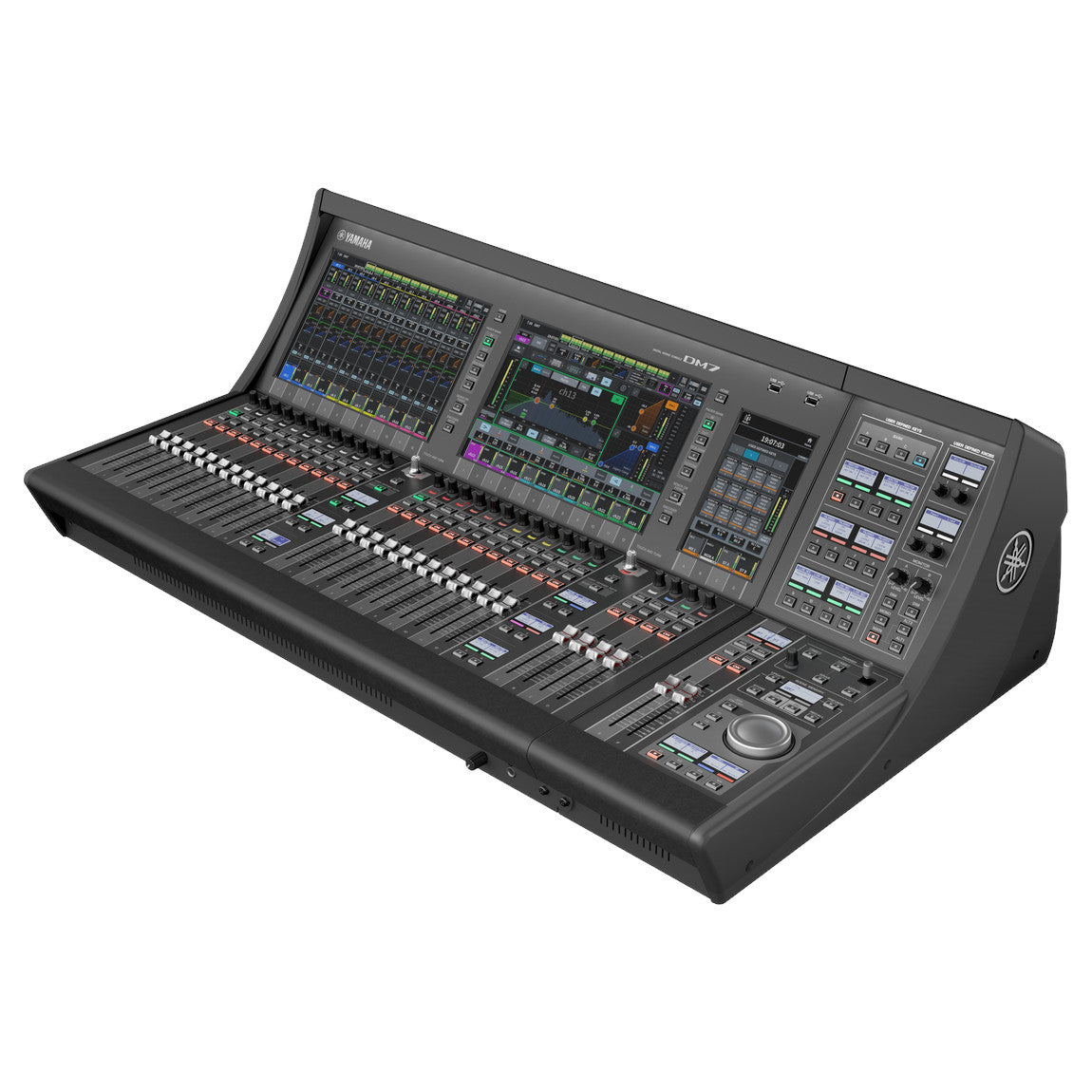

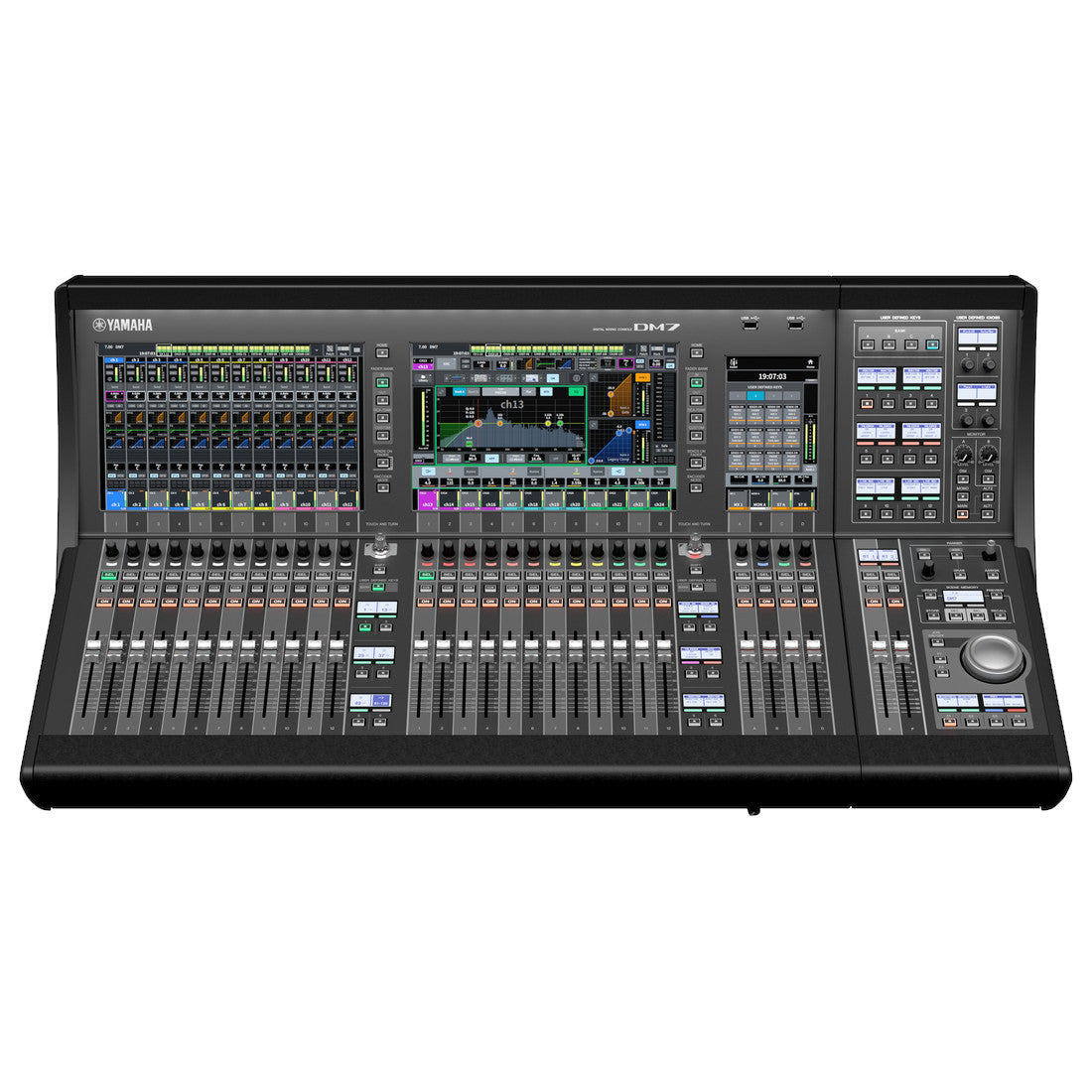

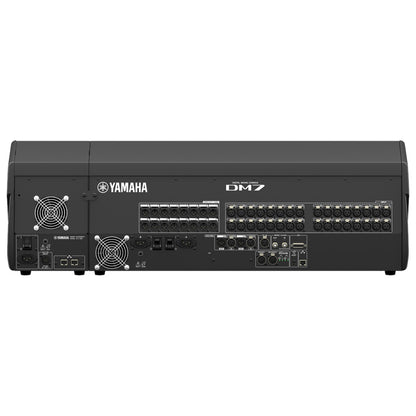

Yamaha DM7-EX 120-Channel Digital Mixer + CTL-DM7
Yamaha DM7-EX 120-Channel Digital Mixer + CTL-DM7
SoundPro Item: 139802 | Part Number: DM7-EX
Usually ships in 5-7 business days
- 120 channel digital mixer
- Designed to meet the demands of audio professionals such as Front-of-House engineers
- Perfect for live sound, theater, broadcast, and corporate AV
- Renowned Yamaha Sound with 96kHz sample rate
- Screens: 2 x High-Res Multi-touch 12” + 1 x High-Res 7”
- Faders: 12+ 12 + 4 + 2
- Mixable Channels: 120 inputs
- Mixes: 48 Mono + 12 Matrixes + 2 ST Bus + 2 Cue
- Analog i/o: 32 x 16
- Digital: 2 x AES In/Out
- PY Slot i/o: 64x64 @96k
- Dante: 144 x 144@96k
- USB-C: 18x18 Audio Interface – Works with VST RACK
- Time Code In
- Internal Dual Power Supply
- DAW Remote Function
- Split mode
- First-of-its-kind AI Assist Functions
The DM7-EX from Yamaha is a Dante-enabled 120-channel dual-bay digital console with control expansion that adapts to the engineer’s workflow. It provides new tools that allow the user to reliably curate the perfect mix, no matter how short your soundcheck is.
Capable of 96kHz sample rates, the DM7-EX utilizes 30 faders, an internal dual power supply, and 12" high-res multi-touch screens combined with an additional 7" screen.
It includes an 18x18 audio interface that works with Yamaha's VST RACK.
Equipped with a DAW remote function and AI assist functions, the DM7-EX is the perfect console for live sound, theater, broadcast, and corporate AV.
- Mixing Capacity120 Inputs, 48 MIX + 12 Matrix + 2 Stereo
- Sampling Frequency
- External Clock Frequency Range: 48 kHz / 96 kHz ±200 ppm
- Internal Clock Frequency: 48 kHz / 96 kHz
- Signal DelayLess than 1.5 ms, Input to Omni Out @Fs=96 kHz
- Screen12.1" multi-touch screen × 2, 7" multi-touch screen × 1
- Fader 3.94" touch-sensitive motorized fader × 28
- Power Requirements100-240V, 50/60 Hz
- Power Consumption 240W
- Dimensions (WxHxD)31.2×12.75×22.2" (including the rubber feet)
- Weight50.7 lbs
- NC Value
- Fan Speed LOW: NC=15
- Fan Speed HIGH: NC=25
- Operating Temperature RangeMin: 0°C, Max: 40°C
- Storage Temperature RangeMin: −20°C, Max: 60°C
- Software
- DM7 Editor
- DM7 StageMix
- Console File Converter
- MonitorMix
- ProVisionaire Control/Touch
- CTL-DM7 Control ExpansionIncluded
