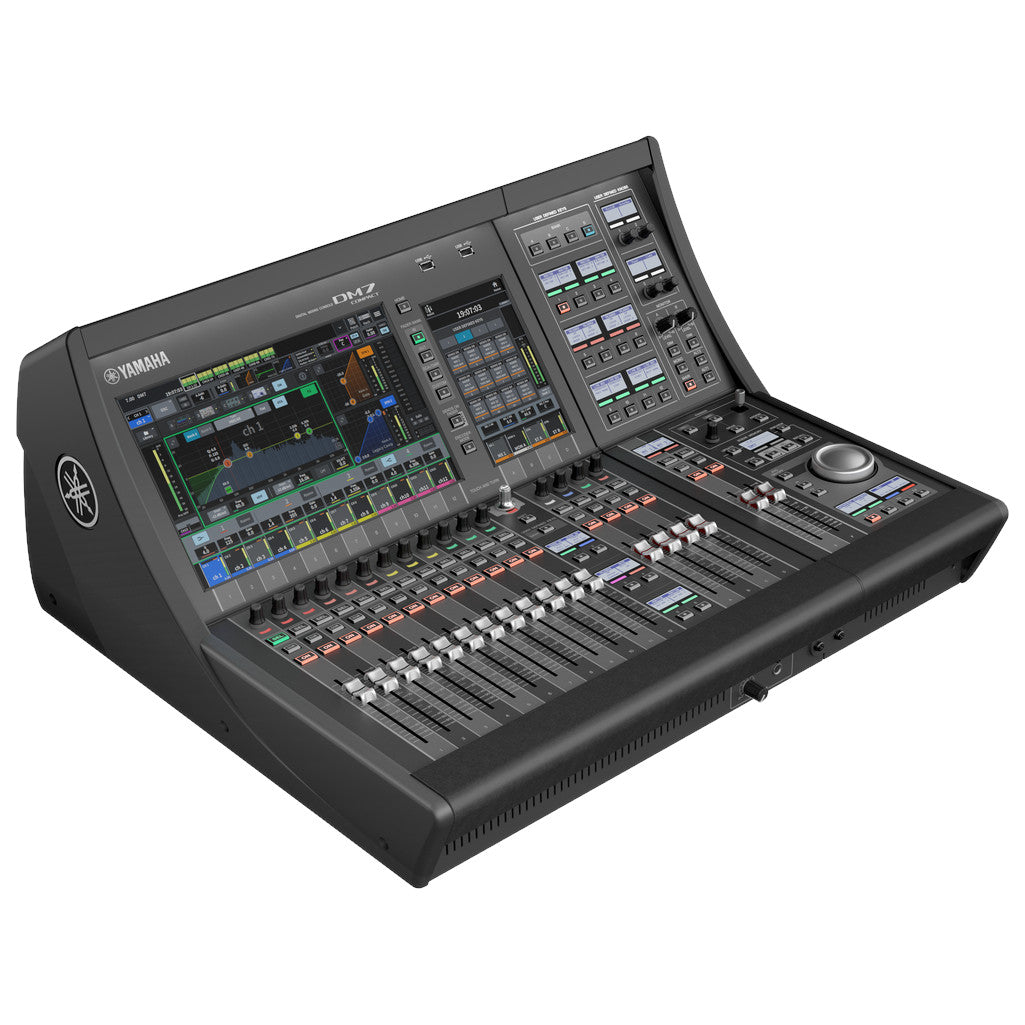

• Yamaha DM7C-EX 72-Channel Digital Mixer + CTL-DM7 right

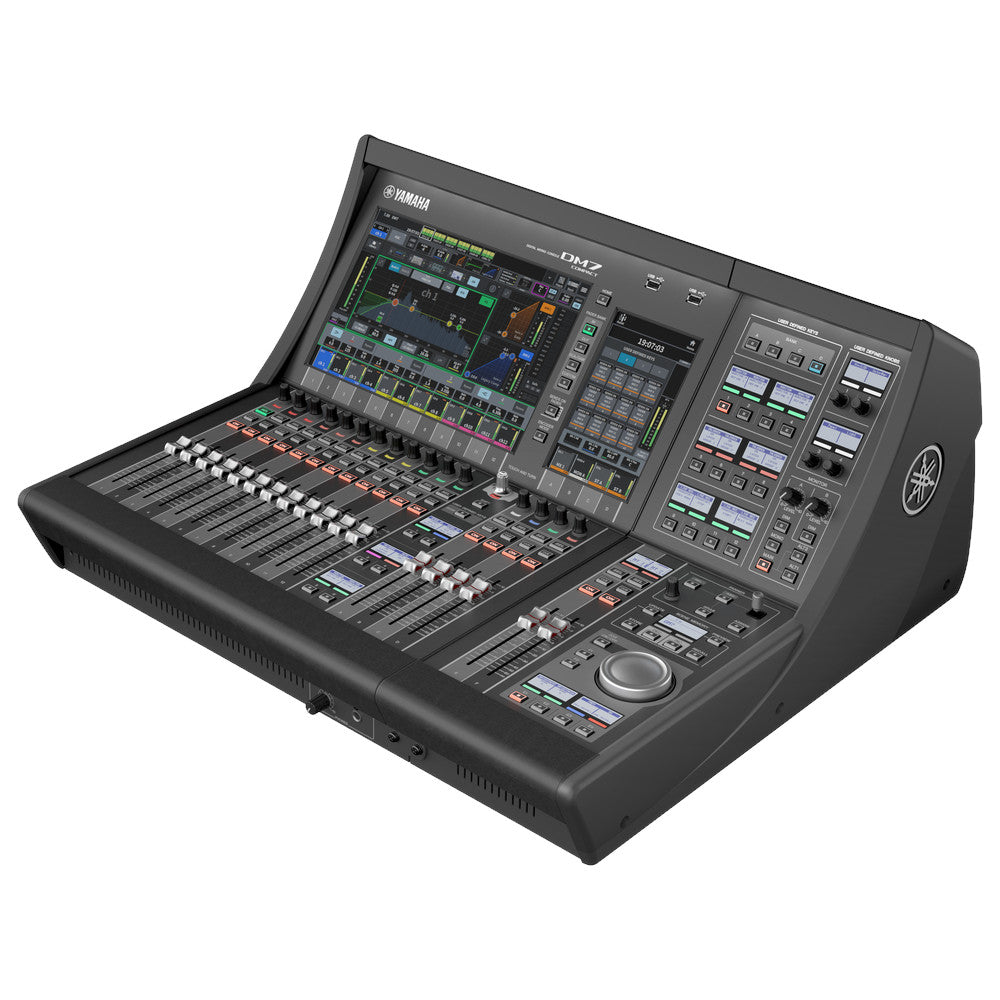

  • Yamaha DM7C-EX 72-Channel Digital Mixer + CTL-DM7 left

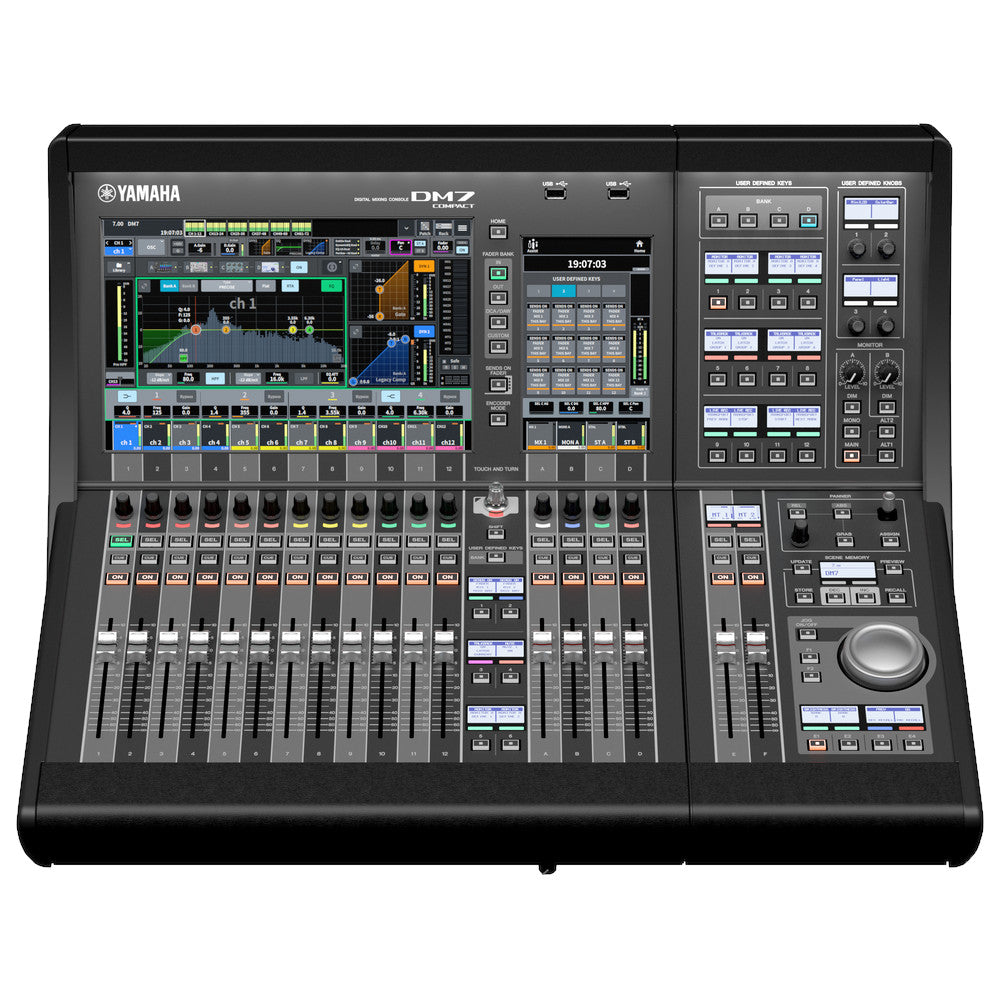

  • Yamaha DM7C-EX 72-Channel Digital Mixer + CTL-DM7 front

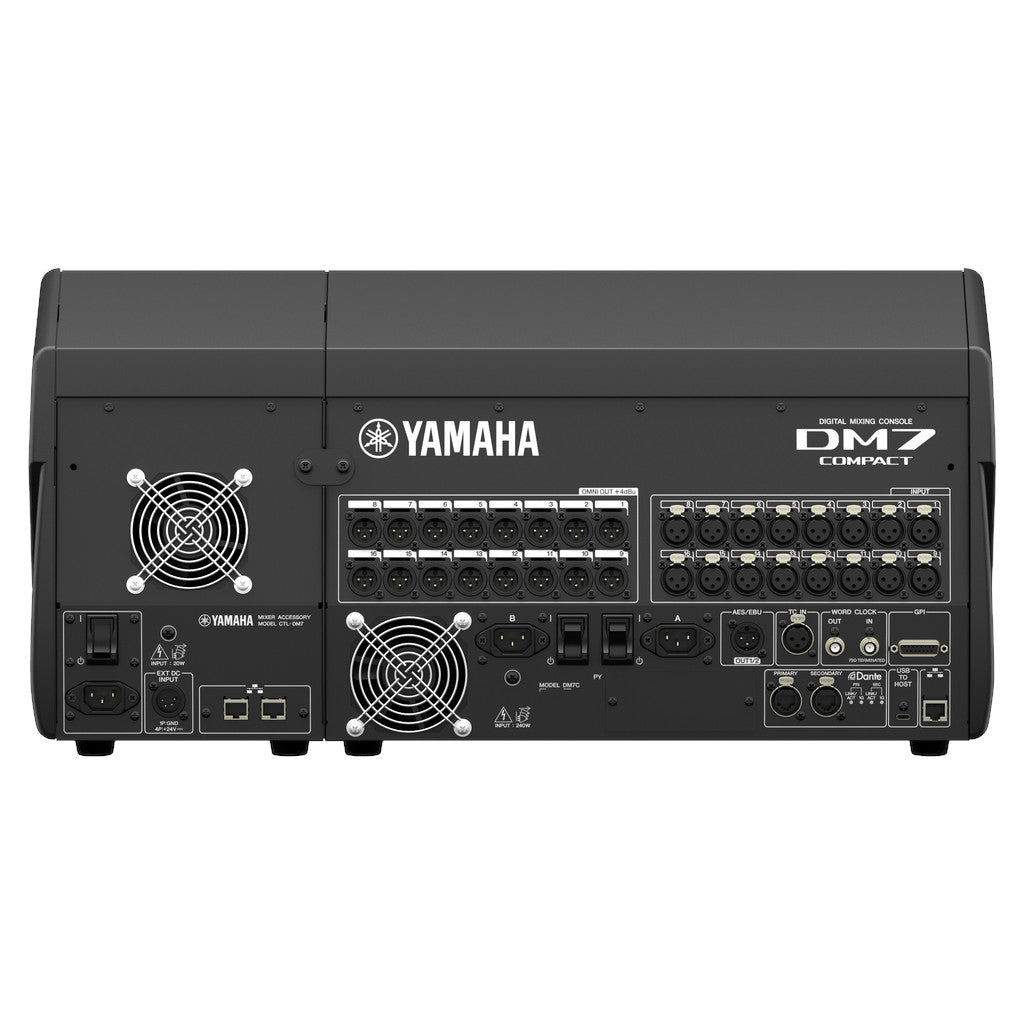

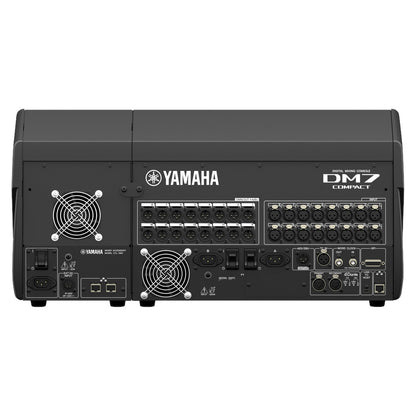

  • Yamaha DM7C-EX 72-Channel Digital Mixer + CTL-DM7 back
1 4

Yamaha DM7C-EX 72-Channel Digital Mixer + CTL-DM7

Yamaha DM7C-EX 72-Channel Digital Mixer + CTL-DM7

SoundPro Item: 139803 | Part Number: DM7C-EX

$20,299.99
$24,360.00 $20,299.99
Your Price Sold out
MSRP: $24,360.00 | MAP: $20,299.99

Usually ships in 5-7 business days

  • Compact, Dante-enabled 72-channel single-bay digital console with control expansion
  • Perfect for live sound, theater, broadcast, and corporate AV
  • Rack-mountable using RK1
  • First-of-its-kind AI Assist Functions
  • Renowned Yamaha Sound with 96kHz sample rate
  • Screens: 1 x High-Res Multi-touch 12” + 1 x High-Res 7”
  • Faders: 12 + 4 + 2
  • Mixable Channels: 72 inputs
  • Mixes: 48 Mono + 12 Matrixes + 2 ST Bus + 2 Cue
  • Analog i/o: 16 x 16
  • Digital: 1 AES Out
  • PY Slot i/o: 64x64 @96k
  • Dante: 144 x 144@96k
  • USB-C: 18x18 Audio Interface – Works with VST RACK
  • Time Code In
  • Internal Dual Power Supply
  • DAW Remote Function
  • Split mode
Log in or register for YOUR best price

The DM7-EX from Yamaha is a compact, Dante-enabled 72-channel single-bay digital console with control expansion. It is rack mountable using RK1. It provides tools that allow the user to reliably curate the perfect mix, no matter how short your soundcheck is.

Capable of 96kHz sample rates, the DM7-EX Compact utilizes 18 faders, a 12" high-res multi-touch screen, and an additional 7" screen. It includes an internal dual power supply and an 18x18 audio interface that works with Yamaha's VST RACK.

Equipped with DAW remote and AI assist functions, the DM7-EX Compact is the perfect console for live sound, theater, broadcast, and corporate AV.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
18.42x12.75x22.2" (including the rubber feet)
Electrical
Power Requirements
100-240V, 50/60 Hz
Power Consumption
240W
Environmental
Operating Temperature Range
Min: 0°C, Max: 40°C
Storage Temperature Range
Min: −20°C, Max: 60°C
Shipping
Weight
35.27 lbs
General
Mixing Capacity
72 Inputs, 48 MIX + 12 Matrix + 2 Stereo
External Clock Frequency Range
48 kHz / 96 kHz ±200 ppm
Internal Clock Frequency
48 kHz / 96 kHz
Signal Delay
Less than 1.5 ms, Input to Omni Out @Fs=96 kHz
Screen
12.1" multi-touch screen × 1, 7" multi-touch screen × 1
Fader
3.94" touch-sensitive motorized fader × 16
Fan Speed LOW
NC=15
Fan Speed HIGH
NC=25
Software
DM7 Editor, DM7 StageMix, Console File Converter, MonitorMix, ProVisionaire Control/Touch
CTL-DM7 Control Expansion
Included
