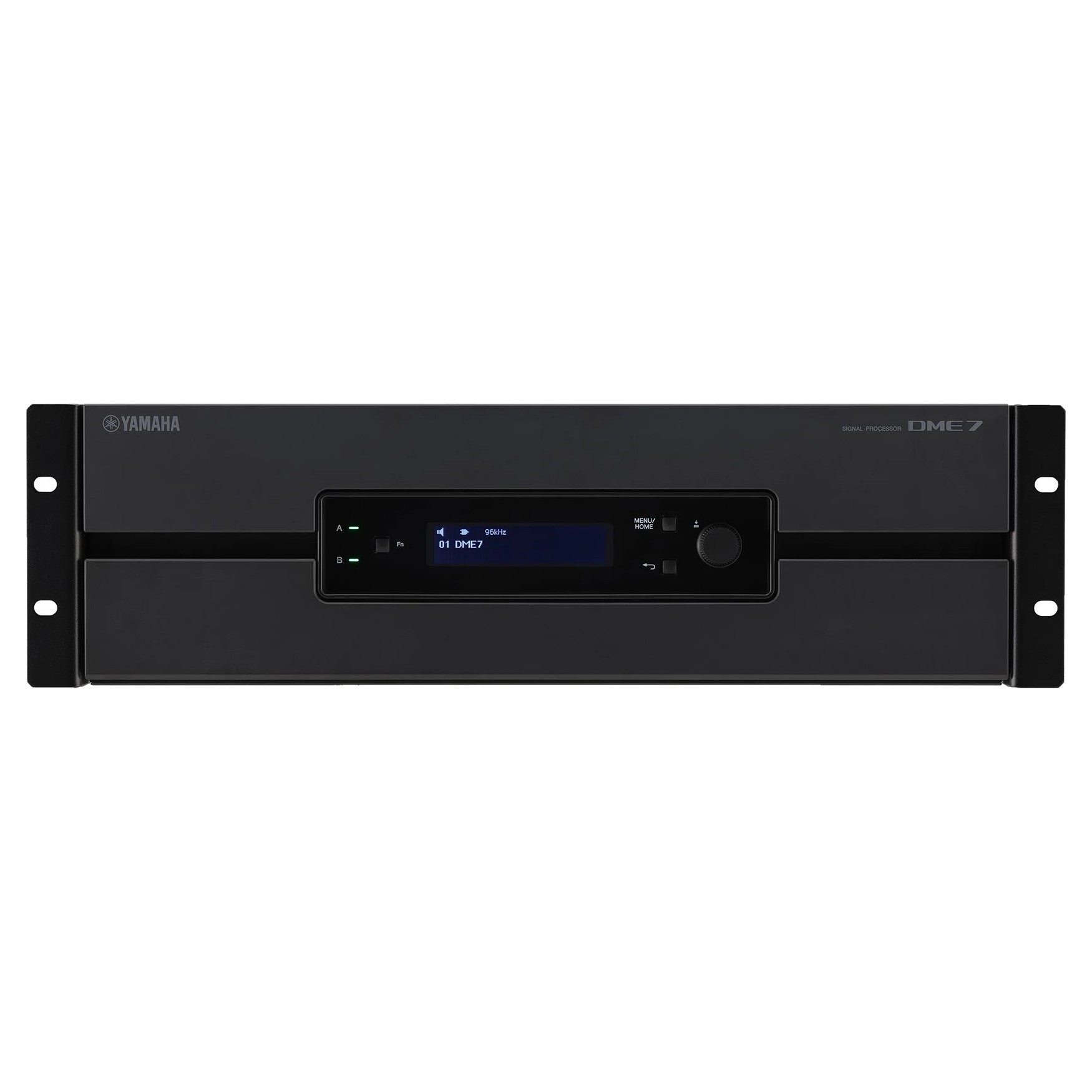

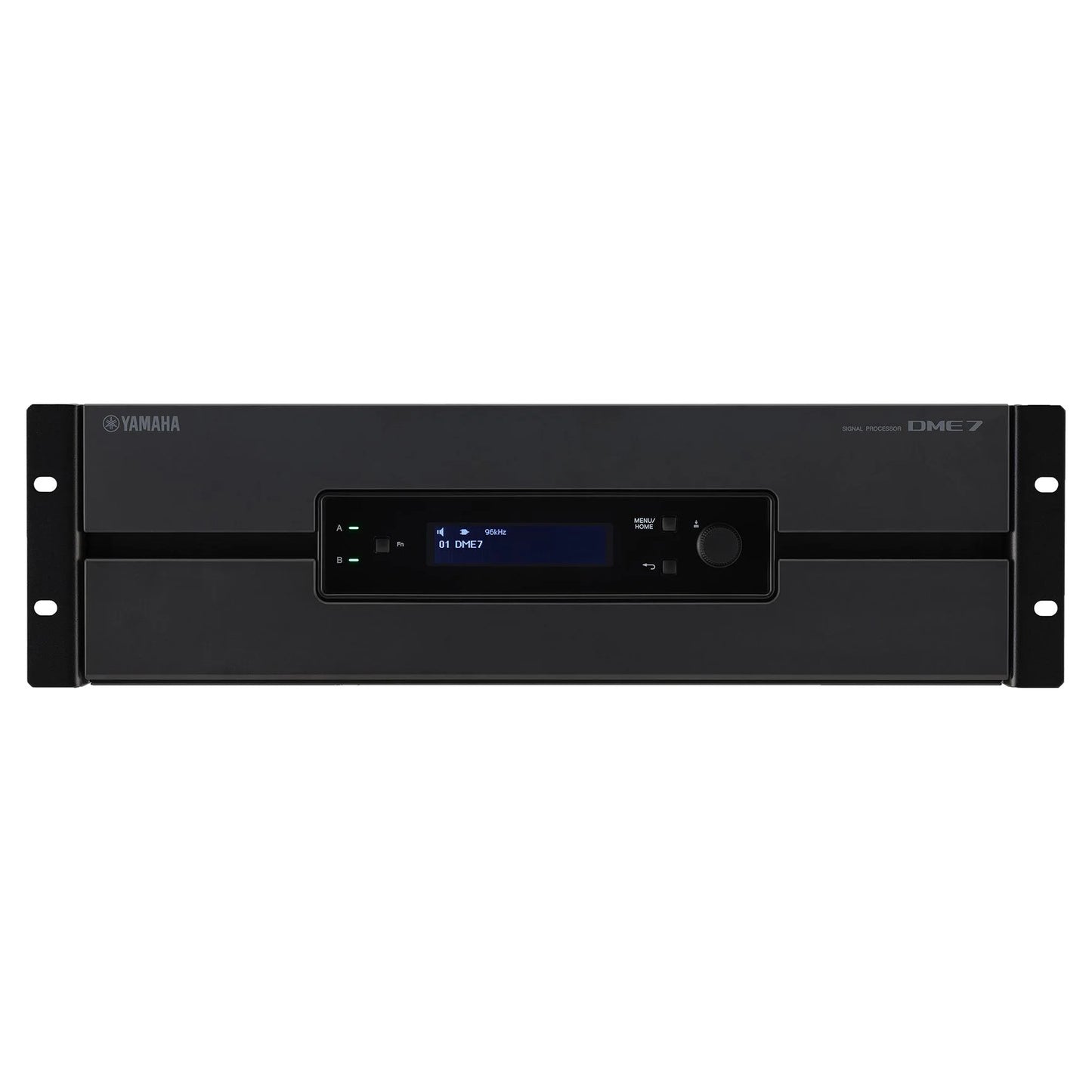

• Yamaha DME7 Digital Signal Processor

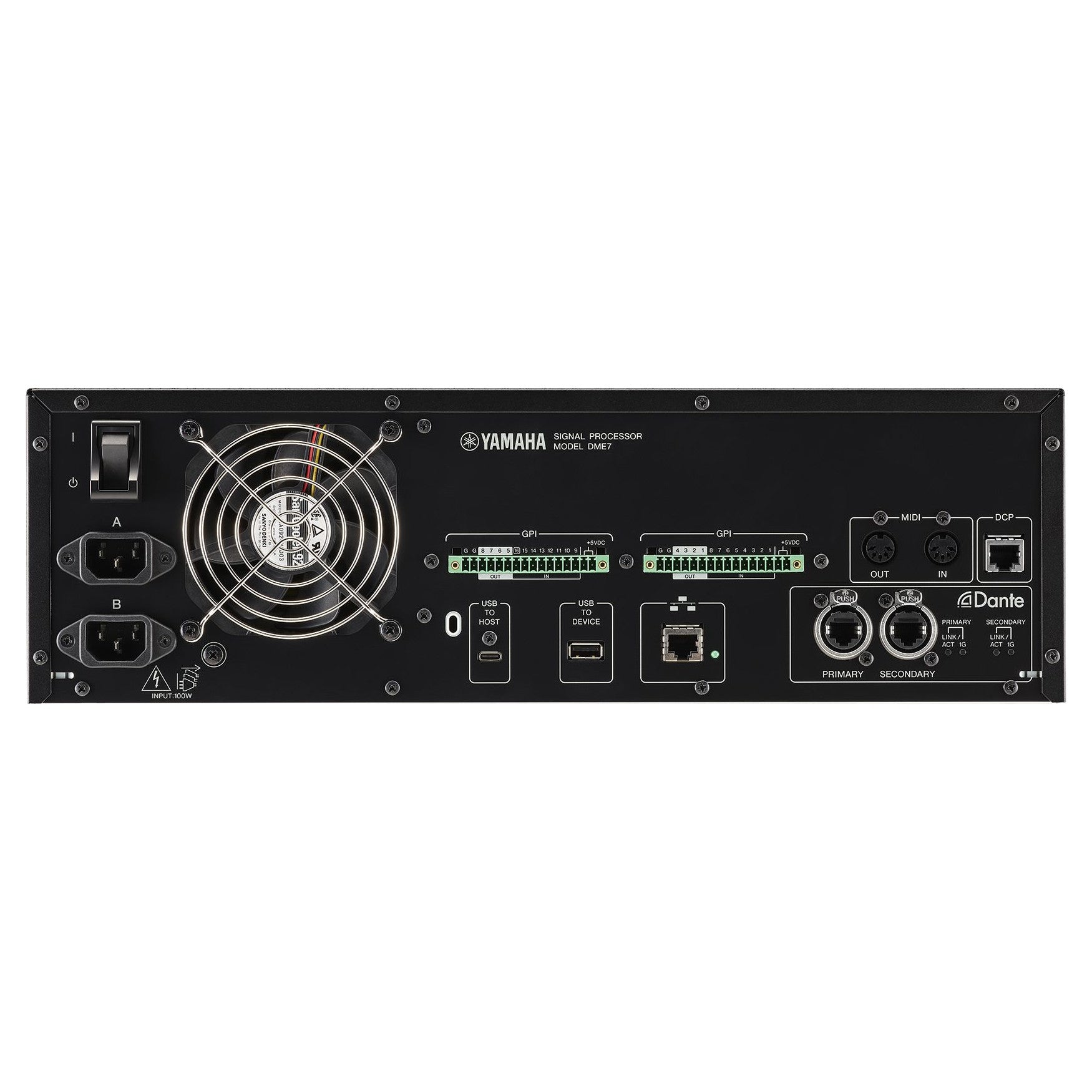

  • Yamaha DME7 Digital Signal Processor back

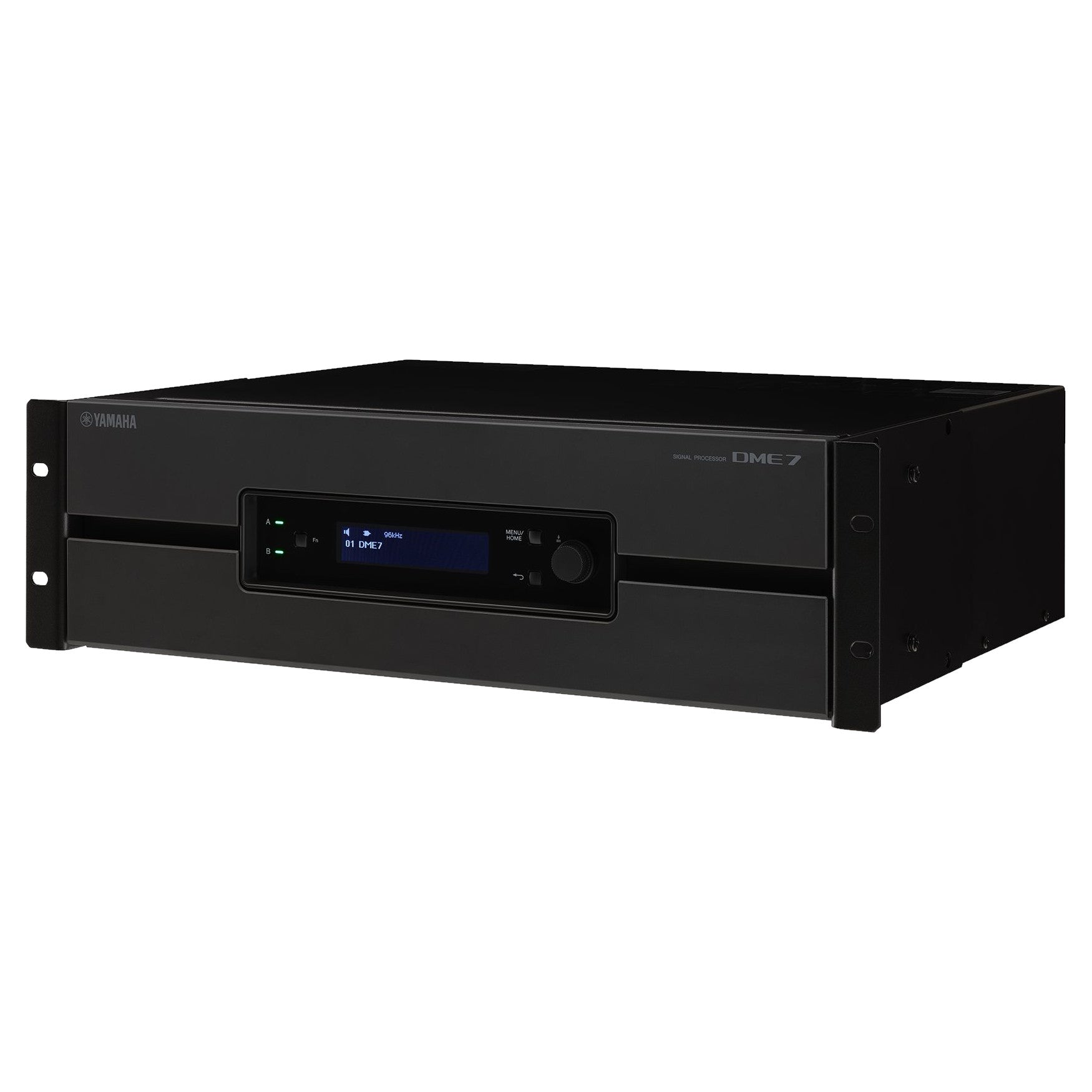

  • Yamaha DME7 Digital Signal Processor left

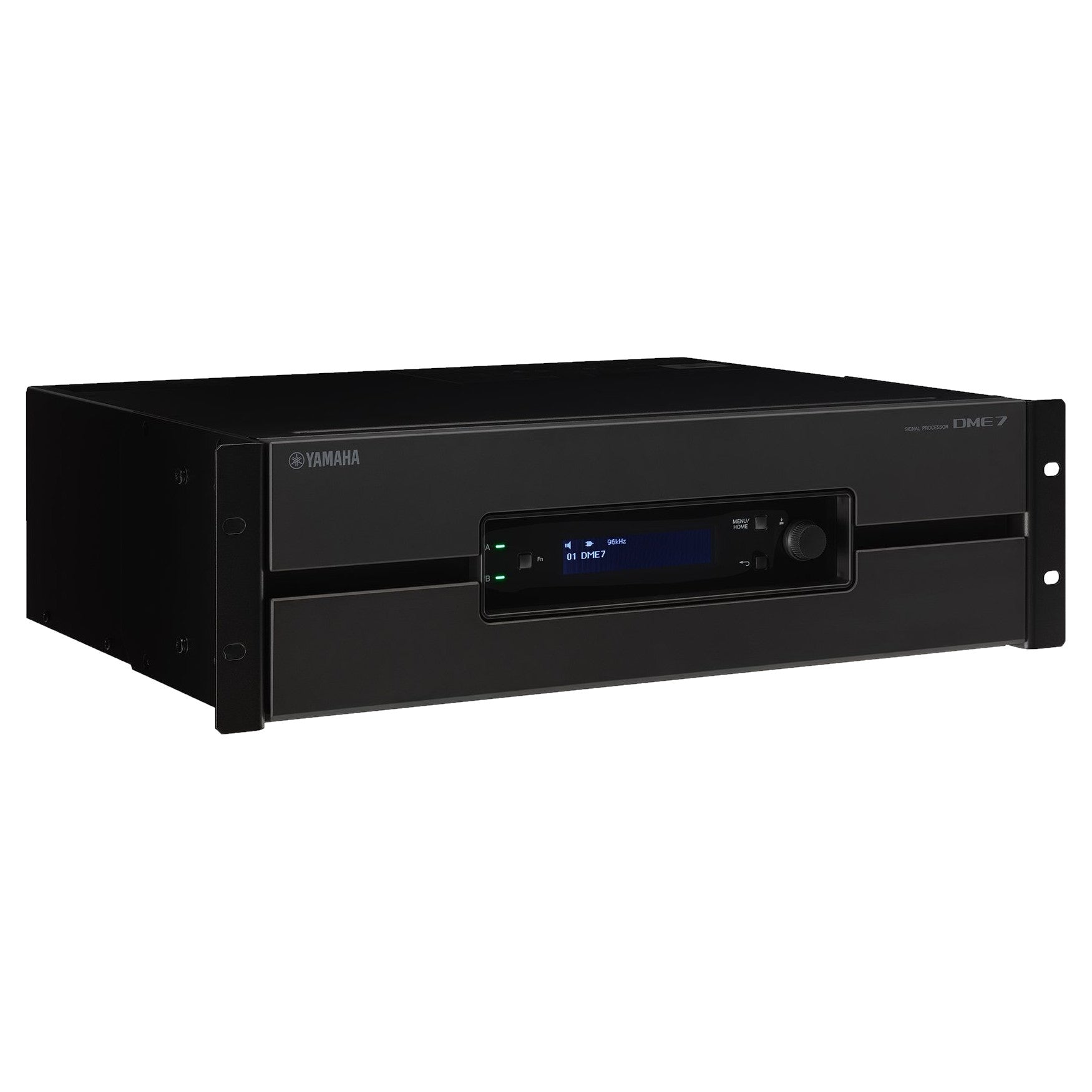

  • Yamaha DME7 Digital Signal Processor right

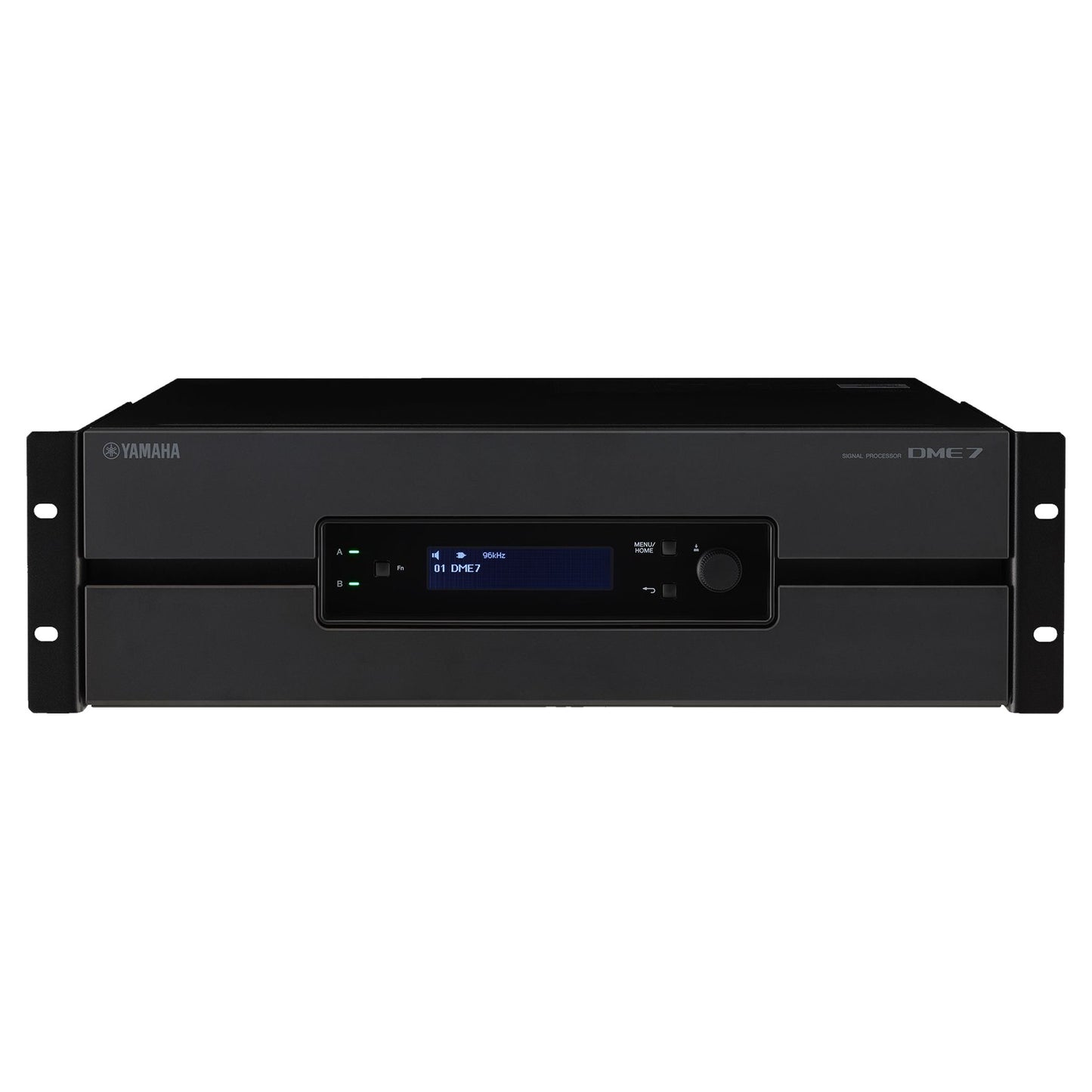

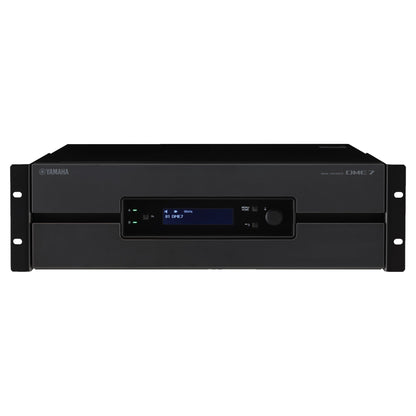

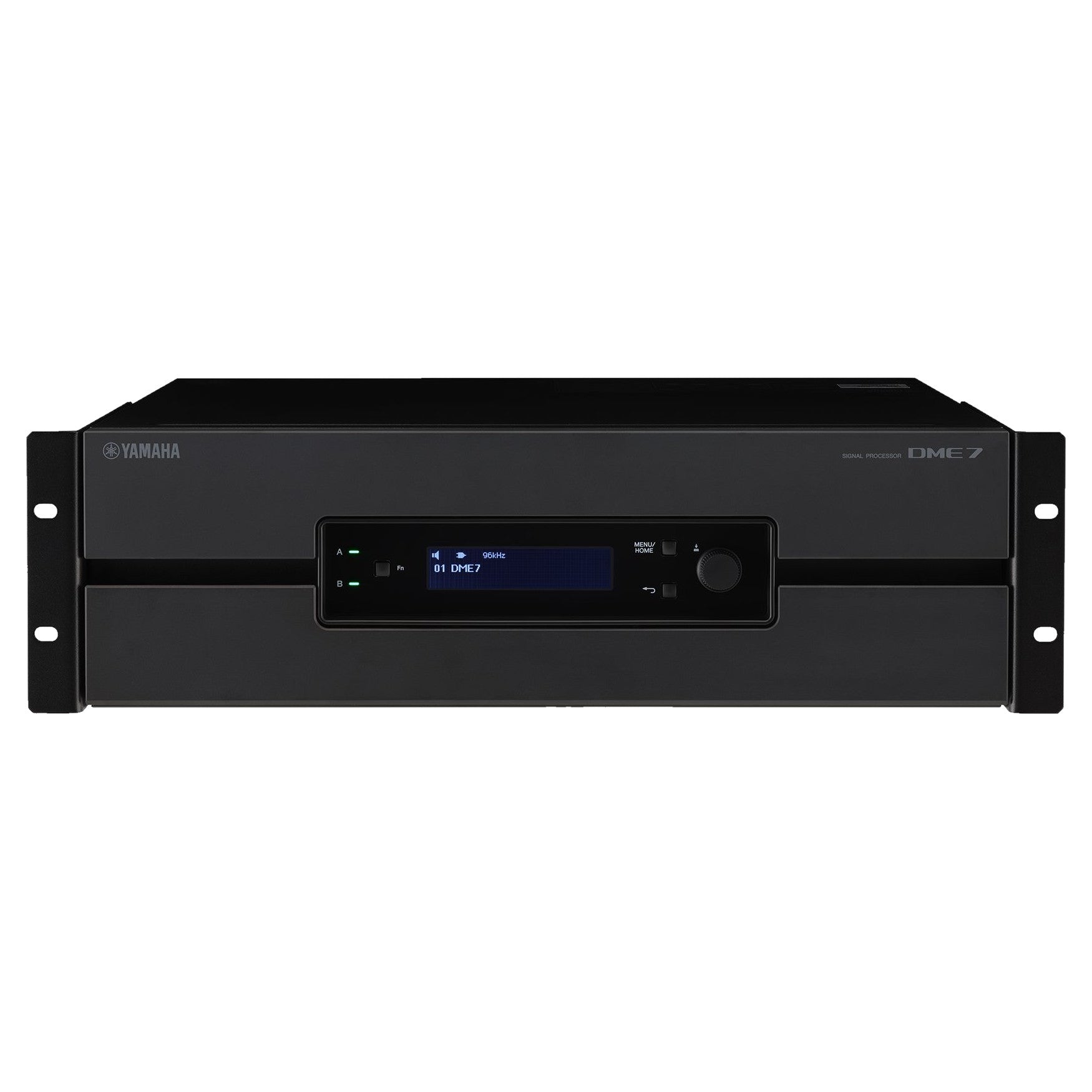

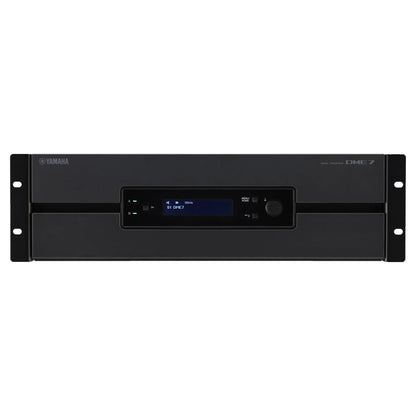

  • Yamaha DME7 Digital Signal Processor front
1 5

Yamaha DME7 Digital Signal Processor

Yamaha DME7 Digital Signal Processor

SoundPro Item: 139897 | Part Number: DME7

$10,499.99
$12,600.00 $10,499.99
Your Price Sold out
MSRP: $12,600.00 | MAP: $10,499.99

Usually ships in 5-7 business days

  • Open architecture-type digital signal processor
  • Designed for musical expression and sound field generation
  • A great solution for theaters, concert halls, and other venues
  • Boasts 96-kHz processing and supports up to 256 input/output channels
  • Flexible Control
  • USB Audio Interface
  • SD memory card slot
  • Informative LCD display
  • Super Quiet - NC 20
Log in or register for YOUR best price

The DME7 from Yamaha is an open architecture-type digital signal processor designed specifically for musical expression and sound field generation. Boasting 96-kHz processing and supporting up to 256 input/output channels*, the DME7 is a great solution for theaters, concert halls, and other venues.

View full details

Specifications

Dimensions
Bit Depth
24/32 bit
Maximum File Size
FAT16: 2 GB, FAT32: 4 GB
Dimensions (WxHxD)
480x132x363 mm (3U) (18.90x5.20x14.29")
Electrical
Power Requirements
100V-240V, 50Hz/60Hz
Power Consumption
100W
Connectivity
USB TO HOST
USB 2.0 Type-C connector for USB audio
USB TO DEVICE
USB 2.0 Standard-A Connector for Save/Load
Network
RJ45 x 1, 100Base-TX
Construction
Finish
Front panel: Aluminum (black anodized) Munsell approximate value N2.5, Handle: Metal (black paint)
Compatibility
Compatible Formats
File format: FAT32, FAT16
Environmental
Operating Temperature
0°C to +40°C
Storage Temperature
-20°C to +60°C
Shipping
Weight
9.5 kg (20.94 lbs)
General
Internal Processing
44.1/48/88.2/96 kHz
Memory
Parameter sets: 1000, Snapshots: 10000
Cooling
Constant-speed fan x1
NC Value
NC20 (1m from front panel)
Sampling Frequency
44.1/48/88.2/96 kHz
Dante
etherCON x 2 (PRIMARY / SECONDARY), 1000Base-T
DCP
RJ45 x 1
GPI Euroblock
16 terminals (mini) x2 (GPI x16, GPO x8, +5V power supply x4)
MIDI
DIN 5 pin ×2 (IN, OUT)
AC
AC inlet (IEC, V-Lock) x 2
Supported Capacity
Maximum media capacity: SDHC: 32 GB, SD: 2 GB
User Interface
Front panel: Rotary encoder and buttons for GUI control, Operation lock feature (Full lock or Lock except volume and mute), Display: 224 × 48 pixels, mono color with brightness adjustment
Heat Dissipation
86.3 kcal/h
Note
DEK-DME7-DX64, the license to expand I/O channels and matrix mixer, and ProVisionaire Cloud service will be provided in the future.
Audio Performance
Latency
2.7 msec (at Rio-D2 Analog In/Out with Dante latency at 0.25 msec, Dante through out on DME7)
Configuration
Channel Count
64 IN, 64 OUT, redundant (expandable to 256 IN, 256 OUT)*
