• Yamaha DUGAN-MY16 Automatic Mixing Controller Card
1 1

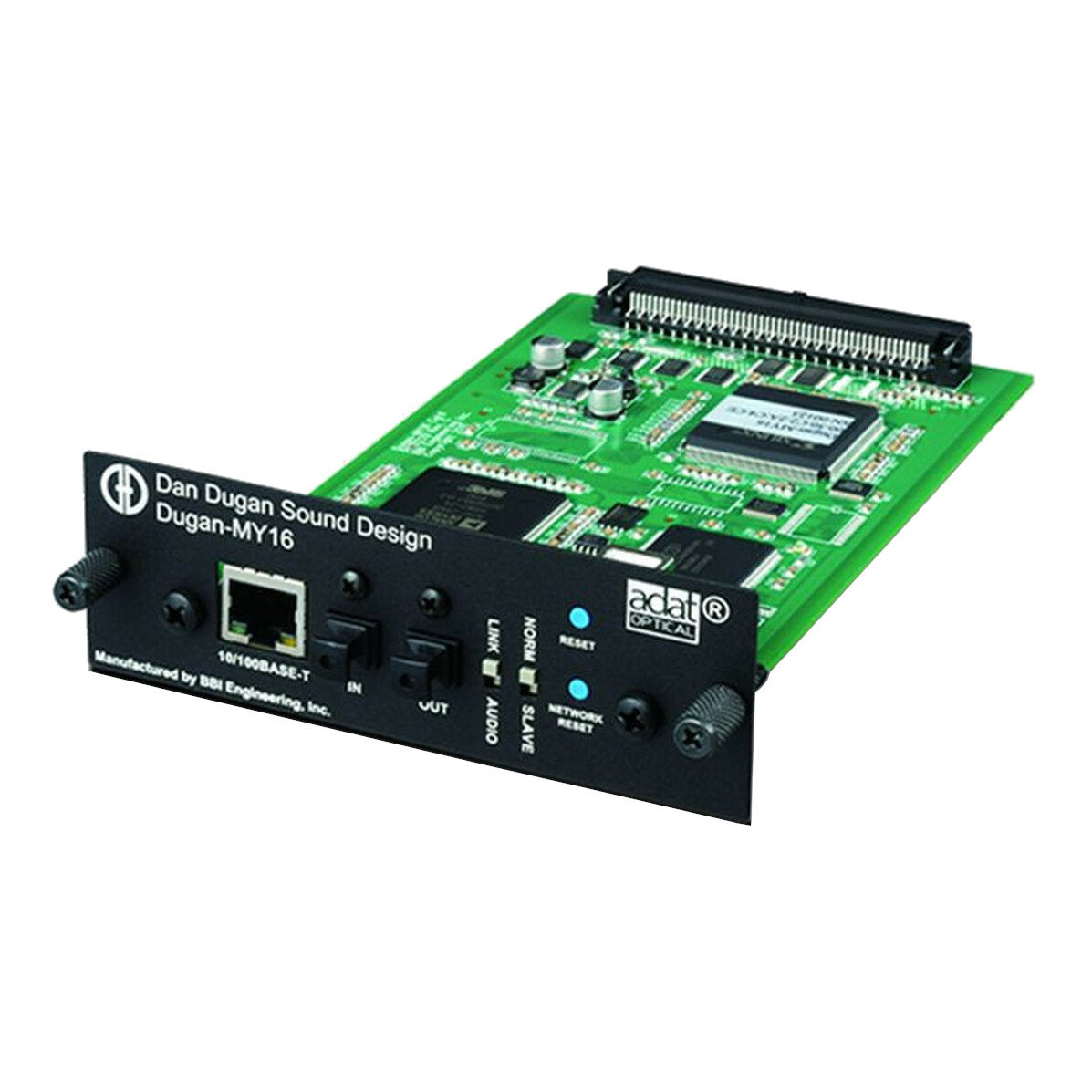

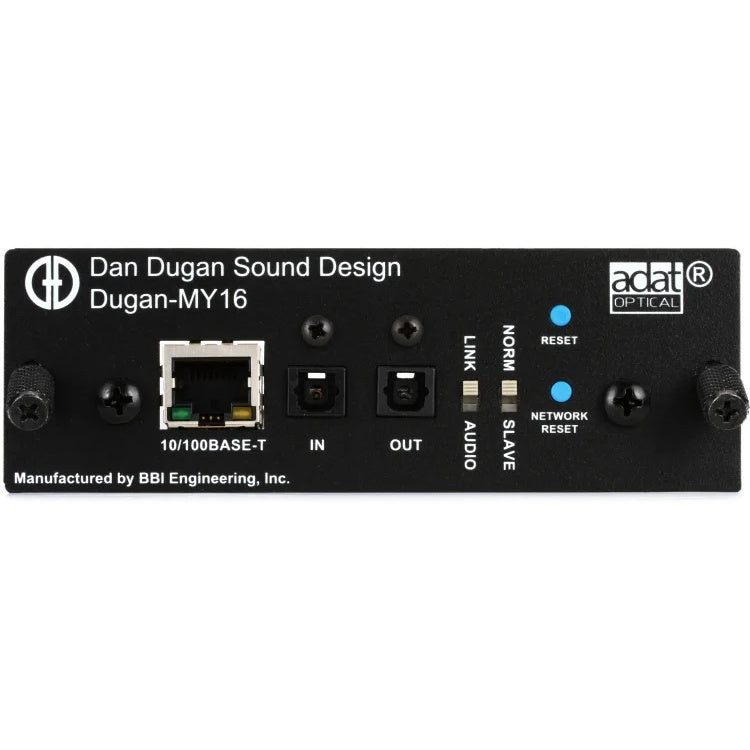

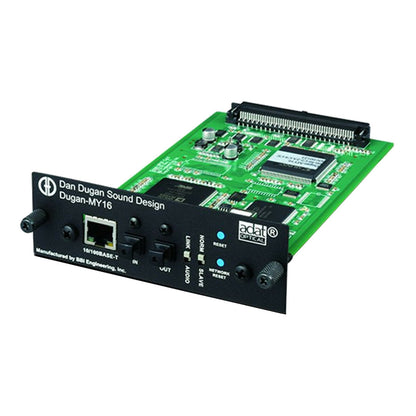

Yamaha DUGAN-MY16 Automatic Mixing Controller Card

Yamaha DUGAN-MY16 Automatic Mixing Controller Card

SoundPro Item: 47247 | Part Number: DUGAN-MY16

$2,457.00
$2,457.00 $2,457.00
Your Price Sold out
MSRP: $2,457.00 | MAP: $2,457.00

Usually ships in 5-7 business days

  • 24bit resolution, 16-in/16-out automatic mixing (8-in/8-out at 96 kHz)
  • 2x Optical connectors, 1x RJ-45 connector
  • Up to 8 cards can be used simultaneously to handle up to 128 channels at 48 kHz, or 64 channels at 96 kHz
  • Automatic detection of active mics with automatic control of individual channel and overall gain
  • No speech cutoff due to late fader activation, for smooth, uninterrupted sound
  • Effective background noise and feedback suppression without the need for noise-gate type threshold level settings
  • Easy setup: simply insert on the appropriate mixer input channels and raise the faders
  • Channels can be grouped to make up to three independent automatic mixers
  • Dugan Control Panel software application provides remote control and level monitoring capability
  • Can also function as an 8-channel auto-mixer + 8-channel ADAT interface
Log in or register for YOUR best price

Add enhanced functionality to your audio with the Yamaha DUGAN-MY16 Automatic Mixing Controller Card. The Dugan-MY16 is a 16-channel automatic mixing controller that plugs into a slot on Yamaha consoles. Sound engineers can now manage multiple live mics without continually riding individual faders.

Boasting advanced technology renowned by Dan Dugan Sound Design, this mixing controller card delivers the high-quality performance and reliable audio coveted by myriad professional audio applications, including broadcast studios, conferences, houses of worship, and more.

The Dugan-MY16 automatically detects the active mics and makes fast, transparent cross-fades without the distracting sonic artifacts common to noise gates. It tracks unscripted dialogue perfectly and maintains consistent system gain for up to 16 open mics. With the Dugan-MY16, cueing mistakes and late fade-ups are a thing of the past!

View full details
  • Operating Modes
    • Standard: 16 channels of Dugan mixing at 44.1 or 48kHz, ADAT connectors link multiple Dugan units
    • High-rate: 8 channels of Dugan mixing at 88.2 or 96kHz sample rate, ADAT connectors link multiple Dugan units
    • Shared: 8 channels of Dugan mixing and 8 channels of general purpose ADAT I/O
  • Digital I/OADAT optical, 24 bit, 44.2/48kHz (Shared mode only)
  • GainUnity
  • Audio Latency0.2ms
  • Optical LinkingUp to 8 units may be linked in a ring; links with Models D-2, D-3 , E, E-1 and Dugan-MY16
  • Connectors
    • 10/100 BASE T: RJ-45
    • Linking and Digital I/O: ADAT optical
  • Recommended Yamaha MixersCL5/3/1, PM5D/-RH, DSP5D, M7CL-48ES/-48/-32, LS9-32/-16, DM2000, DM1000, 02R96, 01V96/96i, DME64N/24N, MTX5-D
  • Dimensions (HxWxD)1.57x4.72x6.91" (4x12x17.6cm)
  • Weight5.6oz (160g); 1lb 5oz (0.6kg) in shipping box
