Specifications
Dimensions
LF Diameter
10" coneVoice
Dimensions (W X H X D)
12x19 3/4 x 12 1/4" (305x502x310 mm)
Weight
Net Weight
30.6 lbs (13.9 kg)
Electrical
Power Requirements
100V - 240V, 50Hz/60Hz
Power Consumption
90W
Audio
Speaker Type
10" 2-way, Bi-amp powered speaker, Bass-reflex type
Crossover
FIR-X tuning™ (linear phase FIR filter)
Output Power
Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
Connectivity
Maximum Output Level (1m; on axis)
132dB SPL

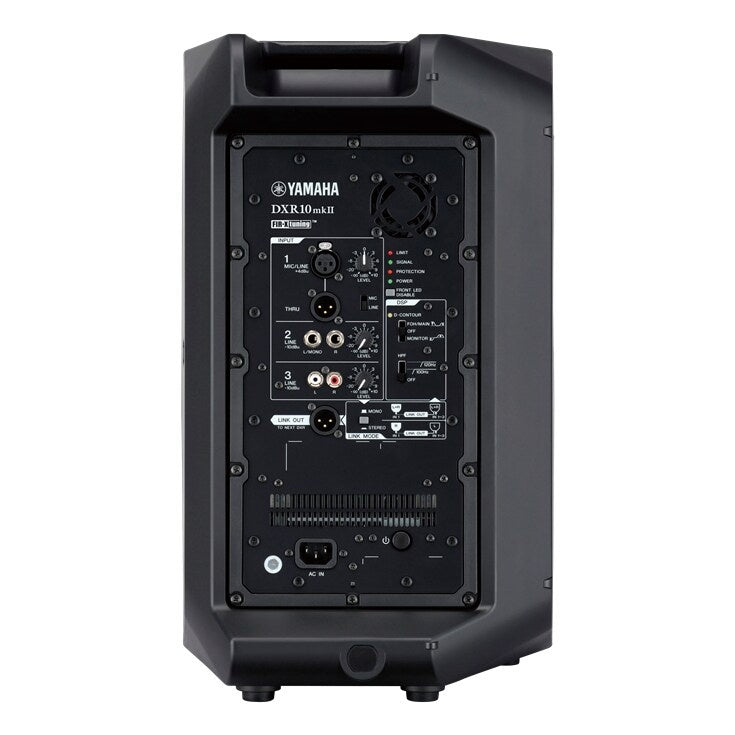

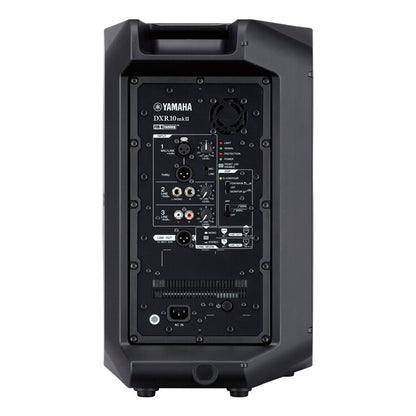

I/O Connectors
INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 (Parallel with INPUT 1 ), LINK OUT: XLR x 1
Pole Socket
35mm with 2-way features (0 or 7 degrees)
Construction
Material
ABS (Matte Finish, Black)
General
H
90°
L
60°
Coil
2"Magnet: Ferrite
HF Diaphragm
1.75"Type: 1" throat compression driverMagnet: Neodymium
Processors
D-CONTOUR: FOH/MAIN, MONITOR, OFF
Flying and Mounting Hardware
Top x2, Rear x1 (Fits for M8 x 15mm eyebolts)
RF
Frequency Range
56Hz - 20kHz
