Specifications
Dimensions
Dimensions (WxHxD)
14.2x23.6x13.75"
Electrical
Power Requirements
100V-240V, 50Hz/60Hz
Power Consumption
110W
Audio
Speaker Type
12" 2-way, bi-amp powered speaker, bass-reflex type
Crossover
FIR-X tuning™ (linear phase FIR filter)
Connectivity
Max. Output Level (1m; on axis)
134 dB SPL

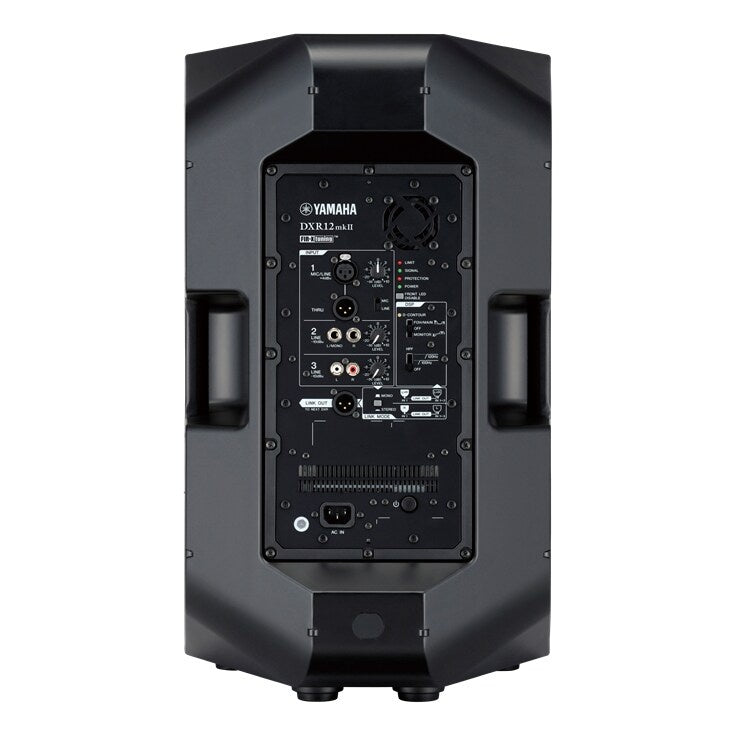

Input
XLR-3-31 x1
Pole Socket
35mm with 2-way features (0 or 7 degrees)
Included Items
Components
LF, HF
Shipping
Weight
41 lbs
General
Frequency Range (-10 dB)
52Hz - 20,000Hz
Nominal Coverage (HxV)
90° x 60°
Dynamic
1100W (LF: 950W
HF
150W)
Continuous
700W (LF: 600W
Input2
Phone x2
Input3
RCA PIN x 2
Thru
XLR3-32 x 1 (Parallel with INPUT 1 )
Link Out
XLR x 1
Processors
D-CONTOUR: Foh/Main, Monitor, Off
Flying and Mounting Hardware
top x2, rear x1 (fits for M10 x 18mm eyebolts)
