Specifications
Dimensions
Dimensions (WxHxD)
17 4/8 x 27 4/8 x 15" (445x700x380mm)
Weight
Net Weight
48.1lbs (21.8kg)
Electrical
Power Requirements
100V - 240V, 50Hz/60Hz
Power Consumption
110W
Audio
Speaker Type
15" 2-way, Bi-amp powered speaker, Bass-reflex type
Crossover
FIR-X tuning™ (linear phase FIR filter)
Output Power
Dynamic:1100W (LF: 950W HF: 150W) / Continuous: 700W (LF: 600W HF: 100W)
Connectivity
Maximum Output Level (1m; on axis)
134dB SPL

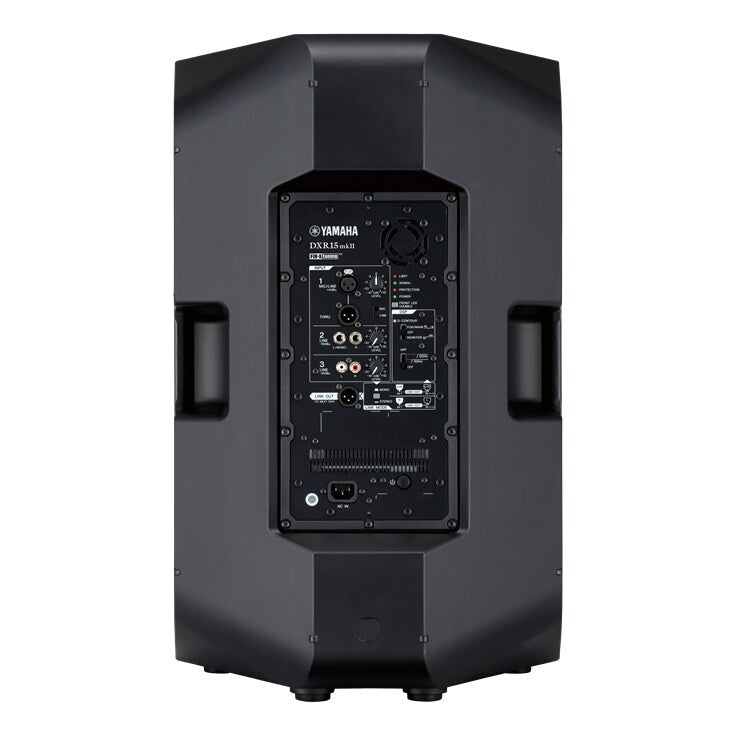

I/O Connectors
INPUT: XLR-3-31 x1 , INPUT2: Phone x2, INPUT3: RCA PIN x 2, THRU: XLR3-32 x 1 ( Parallel with INPUT 1 ), LINK OUT: XLR x 1
Pole Socket
35mm with 2-way features (0 or 7 degrees)
Construction
Material/Finish
Material: ABS (Matte Finish, Black)
General
Frequency Range (-10dB)
49Hz - 20kHz
H
90°
V
60°
LF
Diameter:15" cone, Voice Coil:2.5", Magnet:Ferrite
HF
Diaphragm:1.75"
Type
1" throat compression driver, Magnet:Neodymium
Processors
D-CONTOUR: FOH/MAIN, MONITOR, OFF
Flying and Mounting Hardware
Top x2, Rear x1 (Fits for M10 x 18mm eyebolts)
