• Yamaha DXR8mkII 8" 2-Way Powered Speaker
1 1

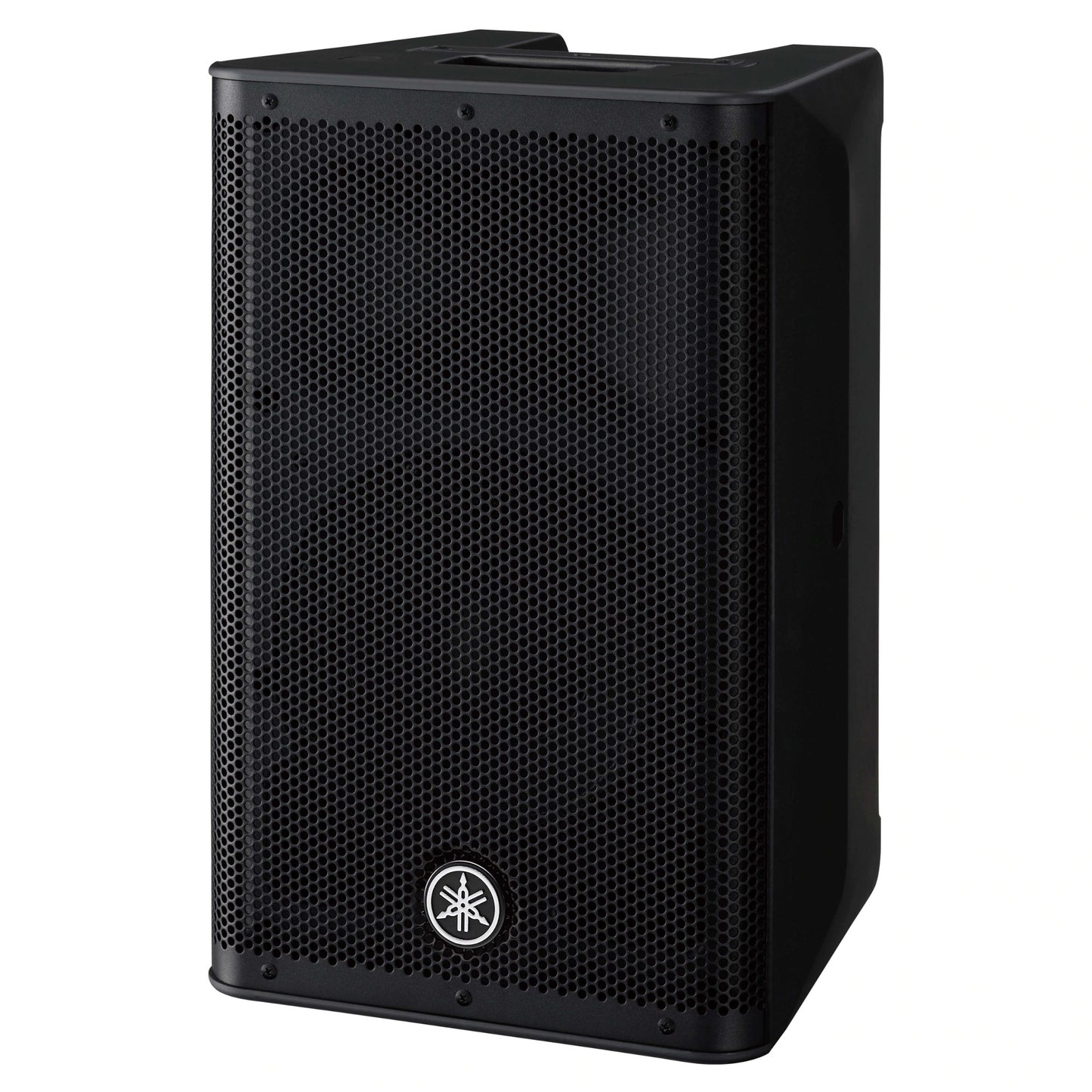

Yamaha DXR8mkII 8-Inch Powered Speaker

Yamaha DXR8mkII 8-Inch Powered Speaker

SoundPro Item: 43188 | Part Number: DXR8MKII

$654.49
$1,158.00 $654.49
Your Price Sold out
MSRP: $1,158.00 | MAP: $654.49

Usually ships in 5-7 business days

  • 8" Powered Speaker for live sound applications
  • Yamaha ingenuity and NEXO expertise combine for a new lineup of DXRs
  • Low weight, high power
  • Ultra-precise 48bit DSP processing for high-definition sound
  • Intelligent dynamic control for consistent clarity at any output level
  • Extensive DSP protection functions for maximum output
  • High-efficiency 1100W Class D amplifiers
  • Intelligent onboard 3-channel mixer
  • Durable, compact ABS enclosure
  • Symmetrical enclosure design for mirror-mode floor monitoring
  • Dual-angle pole mount socket
  • Rigging points for standard eye-bolts and optional u-brackets
Log in or register for YOUR best price

Packing plenty of power into a compact model, the DXR8mkII is the smallest member of Yamaha’s DXR mkII Series powered loudspeakers.

Don’t be fooled by its small size: this speaker gets extremely high output and outstanding resolution from its 1100W of power. Add a DXS12mkII subwoofer (sold separately) to achieve an ultra-compact SR system with plenty of power for live sound needs.

View full details
  • Speaker Type8" 2-way, bi-amp powered speaker, bass-reflex type
  • Frequency Range (-10 dB)57Hz - 20,000Hz
  • Nominal Coverage (HxV)90° x 60°
  • Components
    • LF
      • Diameter: 8" cone
      • Voice Coil: 2"
      • Magnet: ferrite
    • HF
      • Diaphragm: 1.75"
      • Type: 1" throat compression driver
      • Magnet: neodymium
  • CrossoverFIR-X tuning™ (linear phase FIR filter)
  • Output Power
    • Dynamic: 1100W (LF: 950W, HF: 150W)
    • Continuous: 700W (LF: 600W, HF: 100W)
  • Max. Output Level (1m; on axis)130 dB SPL
  • I/O Connectors
    • Input: XLR-3-31 x1
    • Input2: Phone x2
    • Input3: RCA PIN x 2
    • Thru: XLR3-32 x 1 (Parallel with INPUT 1 )
    • Link Out: XLR x 1
  • ProcessorsD-CONTOUR: Foh/Main, Monitor, Off
  • Power Requirements100V-240V, 50Hz/60Hz
  • Power Consumption90W
  • Flying and Mounting Hardwaretop x2, rear x1 (fits for M10 x 15mm eyebolts)
  • Pole Socket35mm with 2-way features (0 or 7 degrees)
  • Dimensions (WxHxD)11x18x11"
  • Weight28.2 lbs
