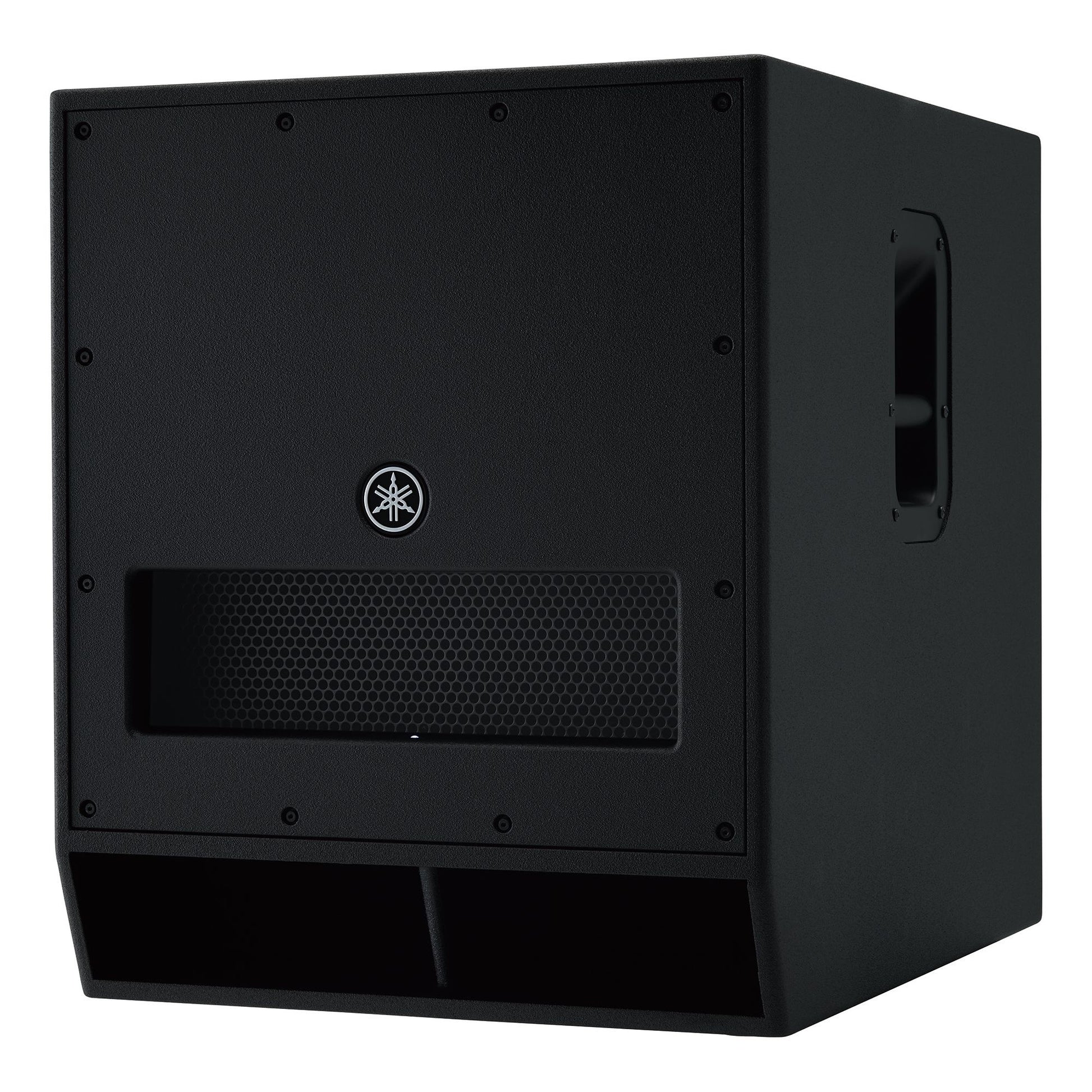

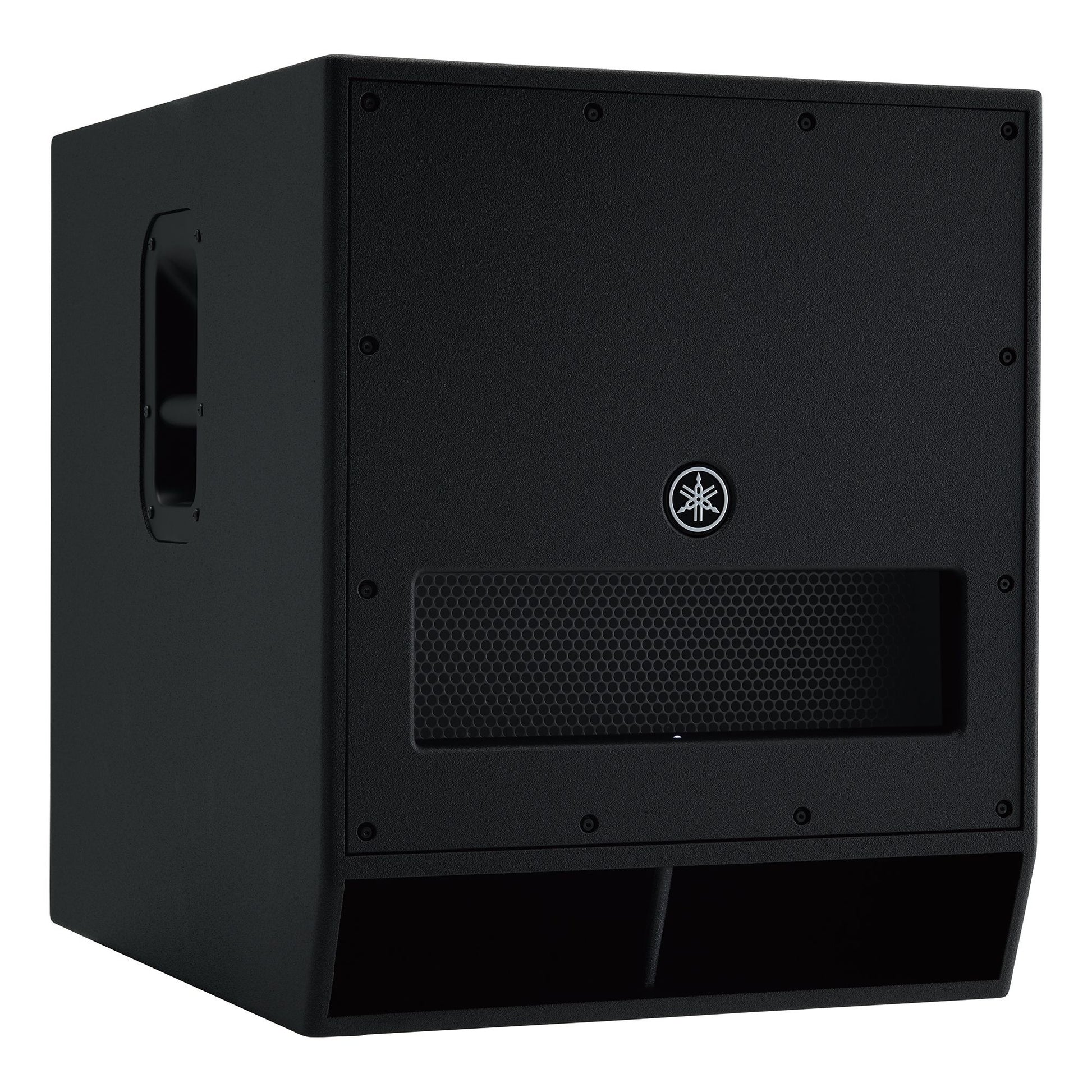

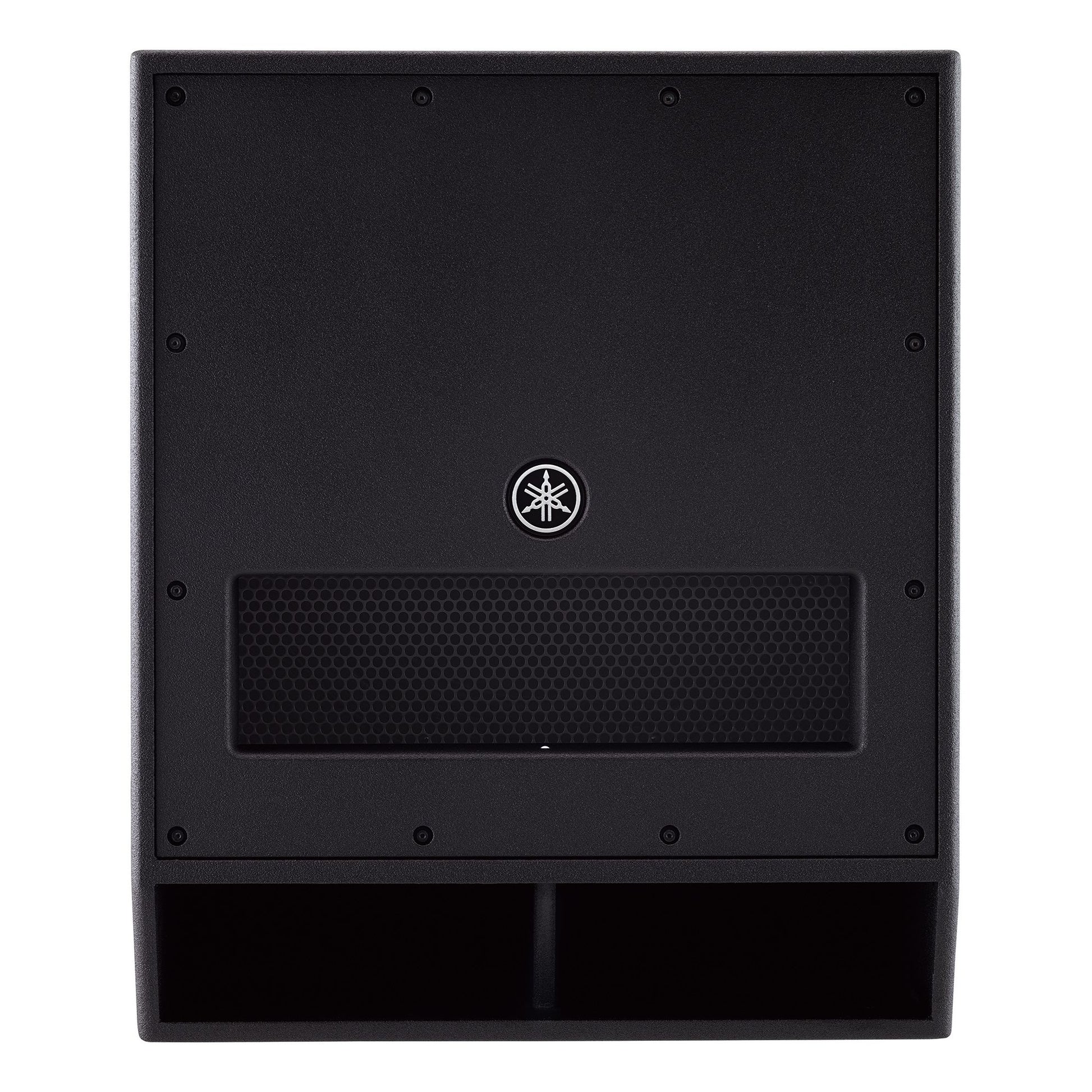

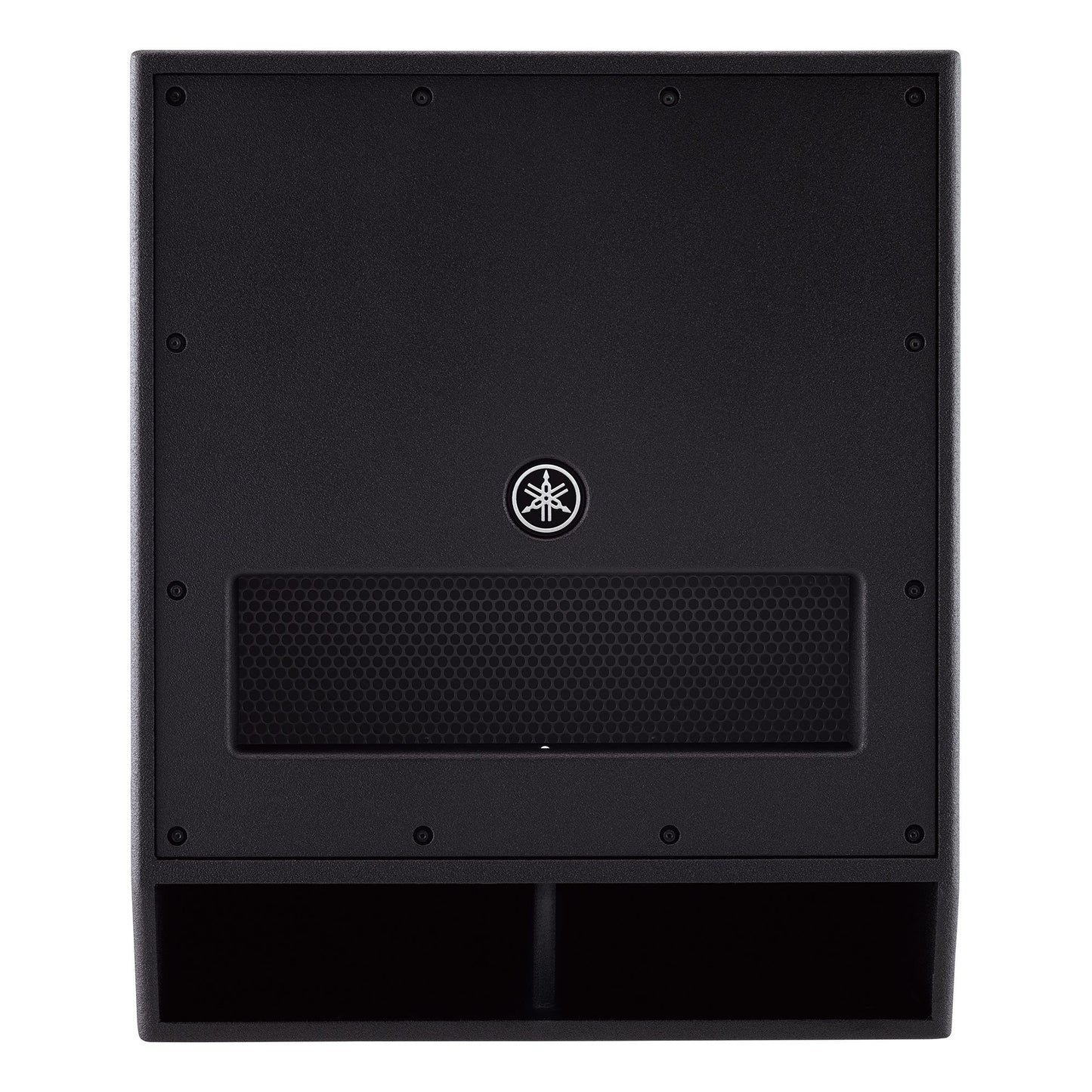

Yamaha DXS18 18-Inch Powered Subwoofer

Yamaha DXS18 18-Inch Powered Subwoofer

SoundPro Item: 63559 | Part Number: DXS18

Regular price $1,534.99
Regular price $2,300.00 Sale price $1,534.99
Your Price Sold out
MSRP: $2,300.00 | MAP: $1,534.99

Usually ships in 5-7 business days

  • 18" powered subwoofer with 1020W class-D power amplifier
  • High-output 18" woofer with a 4" voice coil unit combines with a band-pass design cabinet for superior bass response and a maximum 136dB SPL.
  • 32Hz-120Hz frequency range is ideal for small- to medium-sized rooms
  • Built-in D-XSUB processing allows you to extend the frequency response even lower
  • Plywood cabinet is durable and acoustically optimized for maximum sound quality
  • Cardioid mode for bass management onstage
  • Selectable X-OVER (80/100/120 Hz)
  • M20 and Ø35 mm dual pole sockets

The DXS18 from Yamaha is an 18” powered subwoofer capable of up to 136dB SPL and offering down to 32Hz low-frequency response for exceptional audio clarity and accuracy. It boasts a custom-built 18" driver with a large 4-inch voice coil and a Class-D amplifier that delivers 1020W of power—all housed in a sturdy band-pass enclosure.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
22.2x26.8x287.4” (563x683x721 mm)
Weight
Net Weight
110 lbs (49.7kg)
Electrical
Power Requirements
100V – 240V, 50Hz/60Hz
Power Consumption
100W
Audio
Speaker Type
18" powered subwoofer, Band-pass type
Output Power
Dynamic:1020W / Continuous: 800W
Connectivity
Maximum Output Level (1m; on axis)
136dB SPL

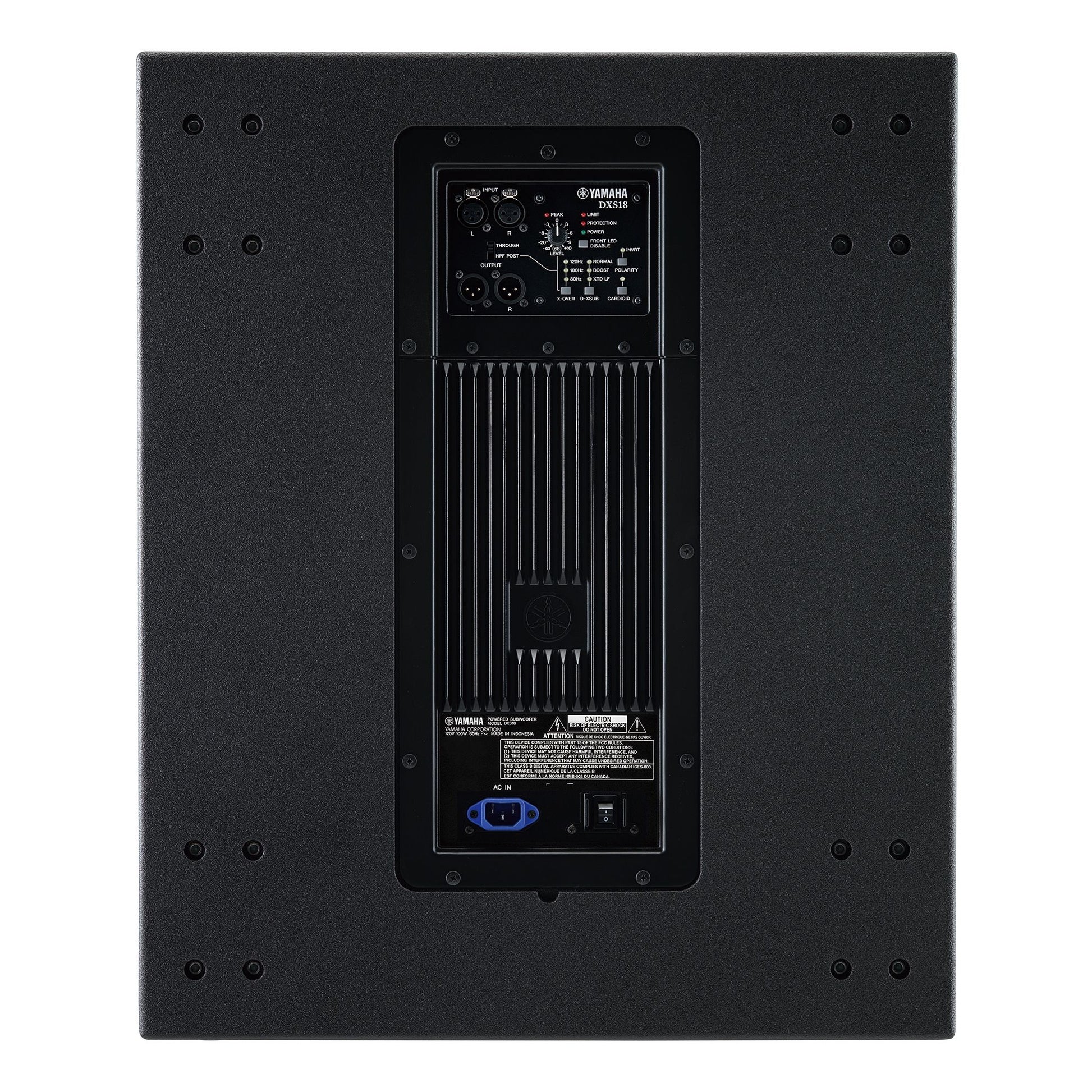

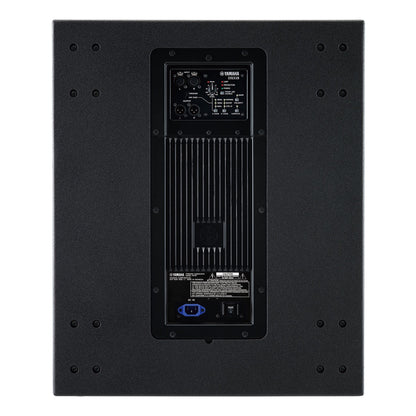

I/O Connectors
INPUT: XLR3-31 x2 , THRU: XLR-3-32 x 2(THROUGH or HPF POST)
Pole Socket
35 mm (depth 80 mm) & M20 (threaded depth 25 mm)
Construction
Material
Plywood (LINE-X®, Black)
General
Frequency Range (-10dB)
32Hz – 120Hz
Components (LF)
18" cone, Voice Coil:4"
Processors
D-XSUB: BOOST, XTD LF, NORMAL
Cooling
Natural convection
