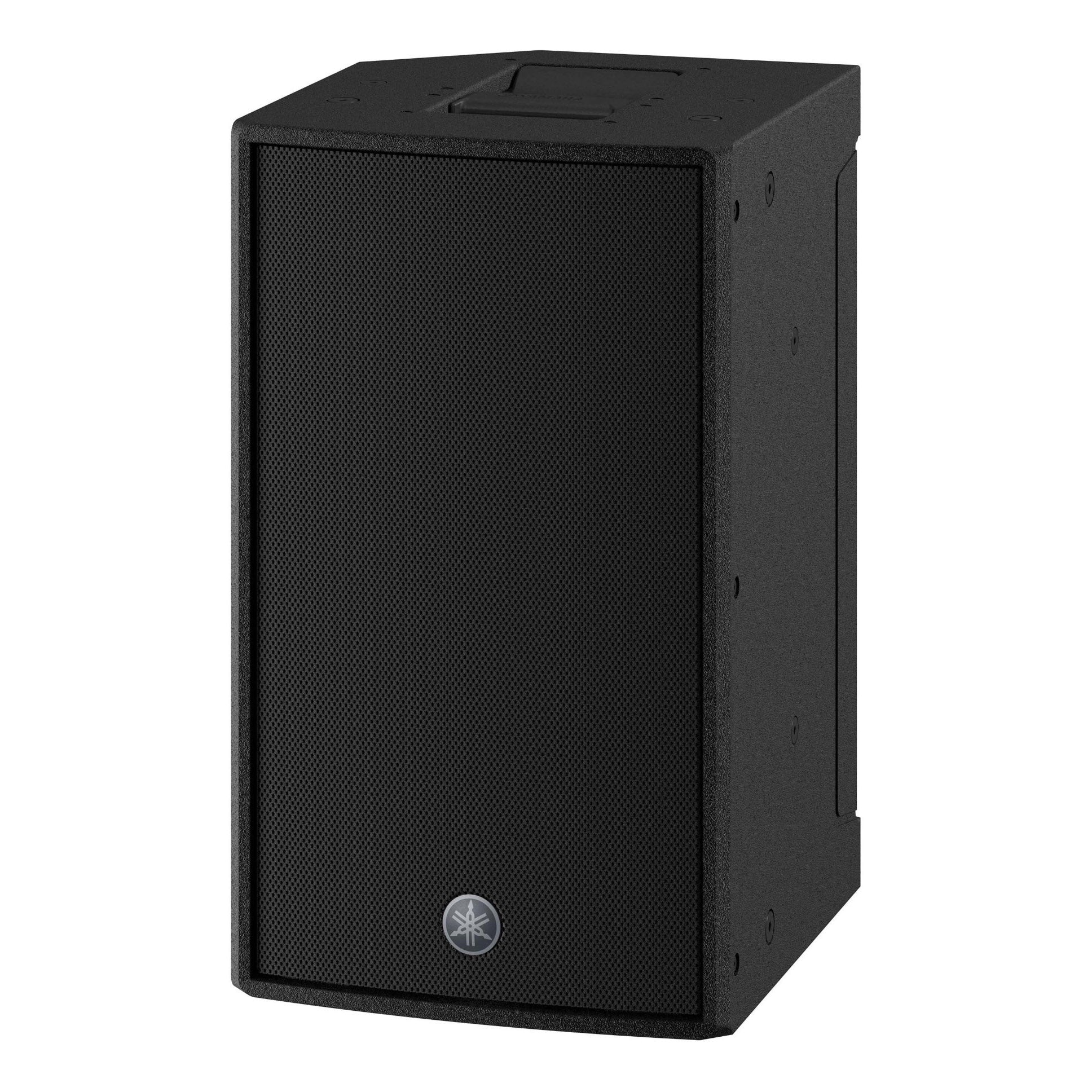

Yamaha DZR10-D 10-Inch Powered Speaker with Dante
Yamaha DZR10-D 10-Inch Powered Speaker with Dante
SoundPro Item: 34555 | Part Number: DZR10-D
Usually ships in 5-7 business days
- 10", 2-way powered biamped loudspeaker with a 2" HF and a 10" LF
- Compact, lightweight design perfect for applications where you need flexibility as well as power
- Ideal for portable performances, or choose from black or white finish to blend into permanent installation environments
- Maximum 137dB SPL and 44Hz-20kHz frequency range is ideal for today's audio engineering demands
- High power 2000W Class-D amplifier module
- 96kHz DSP and FIR filter for true high-resolution sound with super low latency
- Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
- Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
- Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
- D-Contour and highly reliable protection circuits
- Floor monitoring setting
- Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
The Yamaha DZR10-D is a 10-inch, 2-way bi-amped powered speaker that delivers excellent clarity with a maximum SPL of 137dB. Dante integration allows you to seamlessly incorporate this speaker in your audio network.
- Speaker Type2-way, bi-amped powered speaker, bass reflex
- Frequency Range (-10 dB)44Hz - 20,000Hz
- Coverage Angle (HxV)90° x 60° (rotatable)
- Components
- LF: 10" cone, 3" voice coil, neodymium magnet
- HF: 2" voice coil, 1" throat compression driver, titanium diaphragm, neodymium magnet
- Crossover1.8 kHz (FIR-X)
- Sampling Frequency Rate (internal)96kHz and FIR filter
- A/D D/A Converters96kHz AD/DA
- Max. Output Level (1m; on axis)137 dB SPL
- SRCyes
- Power Rating
- Dynamic: 2000W (LF: 1000W, MF/HF: 1000W)
- Burst (20ms): 1100W (LF: 1000W, MF/HF: 100W)
- Continuous: 950W (LF: 850W, MF/HF: 100W)
- I/O Connectors
- Analog I/O: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
- Digital I/O: Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
- Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
- Amplifier ClassClass D
- Coolingfan cooling, variable speeds
- Power Consumption45W (idle), 150W (1/8)
- Handlealuminum die-cast, top x1, side x1
- RiggingM10 x8, M8 x2
- Dimensions (WxHxD)12.4x21.1x13.6"
- Weight39.5 lbs
- Floor Monitor Angle50°
- Pole SocketΦ35 mm x2 (0° or -7°)
