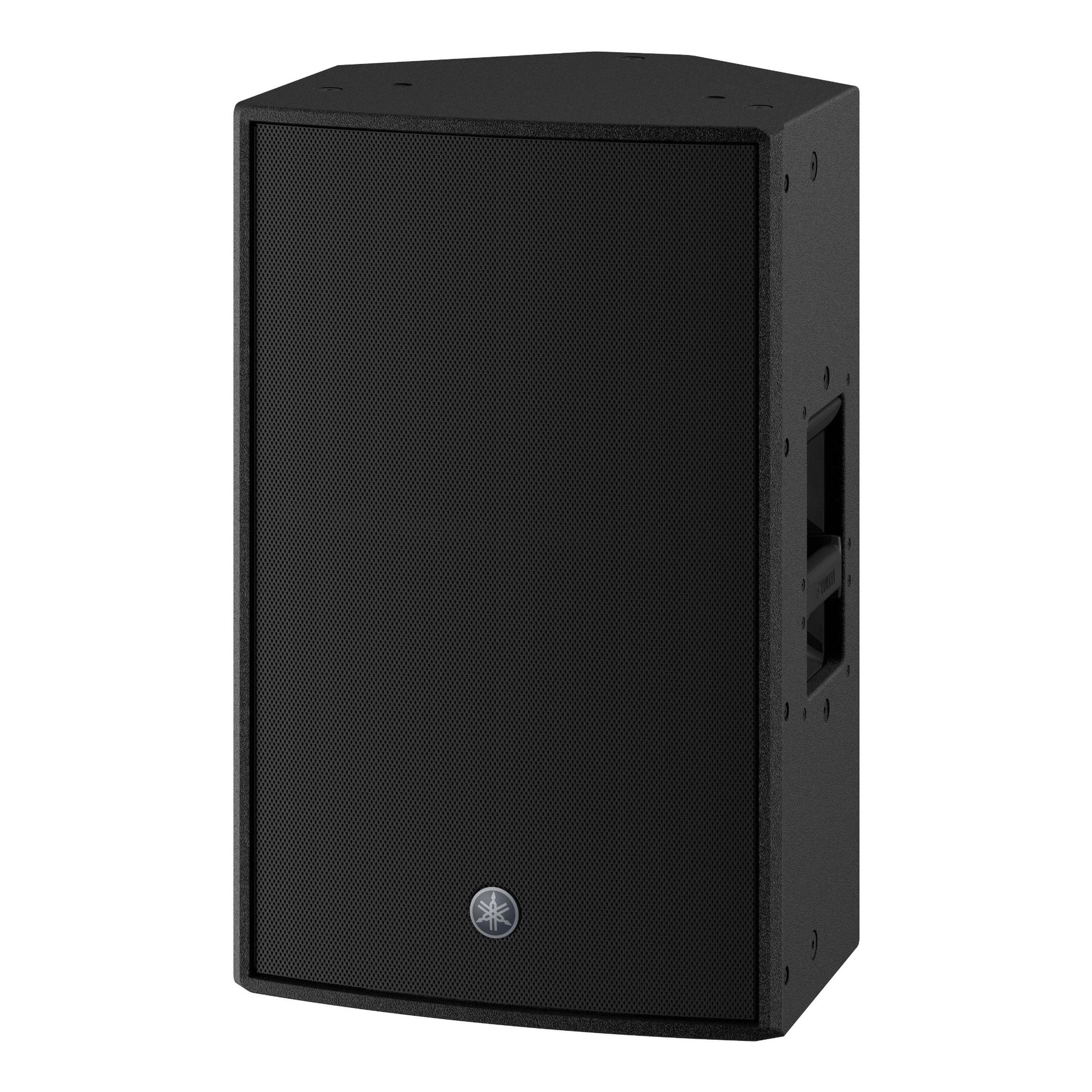

• Yamaha DZR12-D 12" 2-Way Powered Dante Speaker, Black
1 1

Yamaha DZR12-D 12-Inch Powered Speaker with Dante

Yamaha DZR12-D 12-Inch Powered Speaker with Dante

SoundPro Item: 34556 | Part Number: DZR12-D

$1,385.49
$2,245.00 $1,385.49
Your Price Sold out
MSRP: $2,245.00 | MAP: $1,385.49

Usually ships in 5-7 business days

  • 2-way powered loudspeaker with a 2" HF and a 12" LF
  • Maximum 139dB SPL and 39Hz-20kHz frequency range is ideal for today's professional audio demands
  • High power 2000W Class-D amplifier module
  • 96kHz DSP and FIR filter for true high-resolution sound with super low latency
  • Features Advanced FIR-X tuning, the combination of FIR filtering and correct EQ for minimizing phase distortion
  • Equipped with Dante I/O (2in/2out) and features SRC (sample rate conversion) allowing 48kHz device compatibility
  • Access a variety of DSP functions and load presets, or make precise adjustments to PEQ, delay and routing etc. via the intuitive LCD display
  • D-Contour and highly reliable protection circuits
  • Floor monitoring setting enables mirroring configuration
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
Log in or register for YOUR best price

The Dante-equipped 2-way bi-amped powered DZR12-D from Yamaha provides excellent clarity and reaches best-in-class SPL levels of 139dB. Like all the DZR models, the DZR12-D uses sophisticated DSP processing and has unparalleled low-frequency sound reproduction down to 39Hz. A rotatable coverage angle (H90° x V60°) ensures proper sound dispersion in different environments. With the DZR12 you’ll get a professional sound solution that brings an impressive 2,000W of power, beyond what you’d expect from a compact design that weighs in under 50 pounds.

View full details
  • Speaker type2-way, bi-amped powered speaker, bass-reflex
  • Frequency range (-10dB)39Hz - 20kHz
  • Coverage area (HxV)90° x 60° (rotatable)
  • LF12" cone, 3" voice coil, neodymium magnet
  • HF2" voice coil, 1" throat compression driver, titanium diaphragm, neodymium magnet
  • Crossover1.8kHz (FIR-X)
  • Internal sampling frequency96kHz and FIR filter
  • A/D D/A converters96kHz AD/DA
  • Max output level139dB SPL (1m, on axis)
  • Dynamic power rating2000W (LF 1000W, HF 1000W)
  • Burst power rating (20ms)1100W (LF 1000W, HF 100W)
  • Continuous power rating:950W (LF 850W, HF 100W)
  • I/O connectors
    • Analog I/O in: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ
    • Analog I/O out: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
    • AC: 1 IEC AC inlet (V-Lock)
    • USB 2.0 Host 5V 500mA for USB memory DATA storage/load
  • Amplifier classClass-D
  • Coolingfan cooling, variable speeds<
  • Power consumption45W (idle), 150W (1/8)
  • Floor monitor angle50° symmetrical
  • Pole socketΦ35 mm x2 (0° or -7°)
  • RiggingM10 x12
  • Dimensions (WxHxD)16.1x25.4x15.5"
  • Weight47.2 lbs (21.4 kg)
