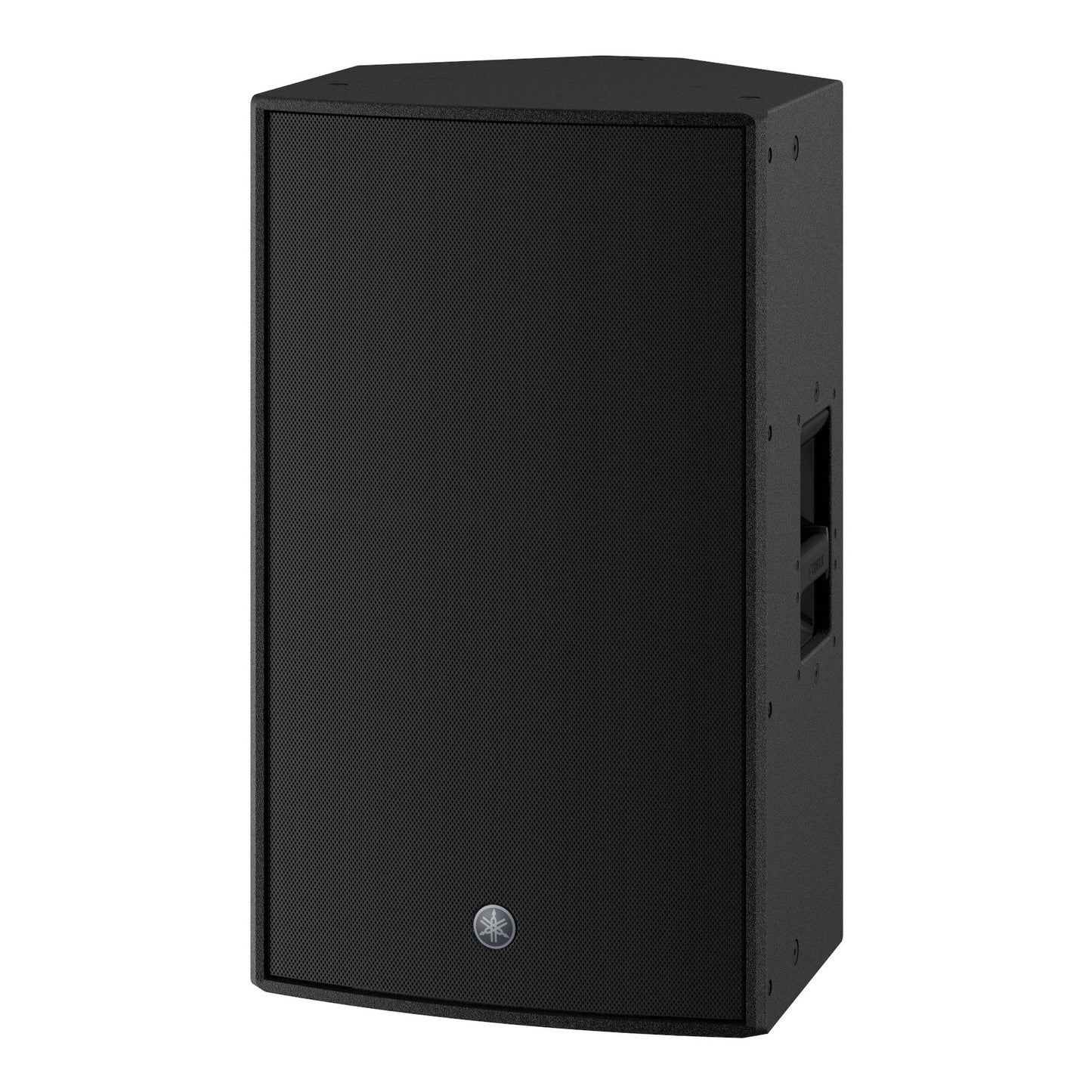

Yamaha DZR15-D 15-Inch Powered Speaker with Dante
Yamaha DZR15-D 15-Inch Powered Speaker with Dante
SoundPro Item: 34557 | Part Number: DZR15-D
In stock and ready to ship
- 15" 2-way bi-amped powered loudspeaker
- Offers superb clarity at an impressive maximum SPL of 139dB
- Dante integration allows you to seamlessly incorporate this speaker in your audio network
- Compact, lightweight design perfect for applications where you need flexibility as well as power
- Choose from black or white finish to better blend into your setup
- Advanced FIR-X Tuning
- D-Contour
- DSP protection functions for maximum output and component longevity
- Dante-equipped professional SR loudspeakers
- Power in flexibility with rotatable coverage angle
- Variety of rigging points for vertical or horizontal mounting
The DZR15-D from Yamaha is a 15" 2-way bi-amped powered loudspeaker that offers superb clarity at an impressive maximum SPL of 139dB.
Dante integration allows you to seamlessly incorporate this speaker in your audio network.
- Speaker Type2-way, bi-amped powered speaker, bass-reflex
- Frequency Range (-10dB)34Hz - 20,000Hz
- Coverage Area (HxV)90° x 50° (rotatable)
- Components
- LF: 15" cone, 3" voice coil, neodymium magnet
- HF: 2" voice coil, 1" throat compression driver, titanium diaphragm, neodymium magnet
- Crossover1.7kHz (FIR-X)
- Sampling Frequency Rate (internal)96kHz and FIR Filter
- A/D D/A Converters96kHz AD/DA
- Max. Output Level (1m; on axis)139 dB SPL
- Power Rating
- Dynamic: 2000W (LF: 1000W, MF/HF: 1000W)
- Burst (20ms): 1100W (LF: 1000W, MF/HF: 100W)
- Continuous: 950W (LF: 850W, MF/HF: 100W)
- I/O Connectors
- Analog I/O: Analog IN: Combo x2, Line level (Maximum +24dBu), Input impedance 20kΩ, Analog OUT: XLR3-32 x2, CH1: THRU (fix), CH2: THRU or DSP OUT
- Digital I/O: Dante: etherCON CAT5e x2 (Daisy Chain), 2 IN / 2 OUT (Fs: 44.1k, 48k, 88.2k, 96k) and Remote Control, 1000BASE-T
- Others: USB2.0 Host 5V 500mA for USB memory DATA storage/load
- AC: IEC AC inlet x1 (V-Lock)
- Amplifier ClassClass-D
- Coolingfan cooling, variable speeds
- Power Consumption45W (idle), 150W (1/8)
- Handlealuminum die-cast, side x2
- RiggingM10 x 12
- Dimensions (WxHxD)17.7x30x18.1"
- Weight55.6 lbs
