Specifications
Performance
Maximum SPL
139 dB
Frequency Range
34 Hz to 20 kHz (-10 dB)
Coverage Angle (FOH)
90° H x 50° V
Coverage Angle (Monitor)
50° H x 90° V
Crossover Frequency
1700 Hz
Audio
Configuration
2-Way
LF Driver
15" Neodymium Woofer
LF Voice Coil
3"
HF Driver
Rotatable-Horn Titanium Compression Driver
HF Throat
1"
HF Voice Coil
2"
Power
Total Output Power
950 W RMS / 2000 W Peak
LF Amplifier Power
850 W RMS / 1000 W Peak
MF Amplifier Power
100 W RMS / 1000 W Peak
Amplifier Class
Class-D
AC Input
100 to 240 VAC, 50 / 60 Hz
Power Consumption (Idle)
45 W
Power Consumption (1/8 Power)
150 W

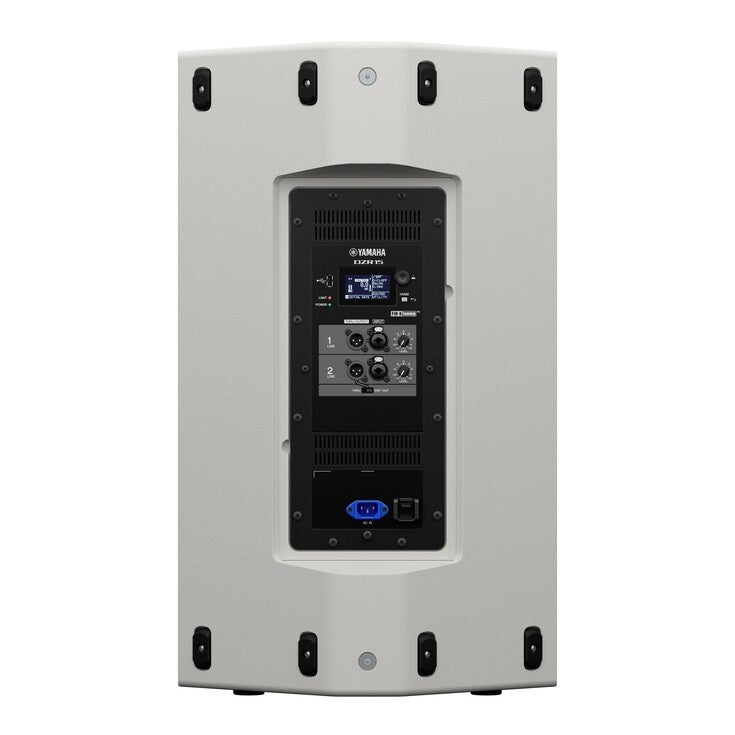

Connectivity
Audio Inputs
2x Combo XLR-1/4" TRS
Audio Outputs
2x XLR 3-Pin
USB
1x USB-A (External Memory, Host Connection)
AC Power Input
1x IEC (Locking)
Construction
Enclosure Type
Bass-Reflex
Material
Plywood
Color
White
Handles
1x Each Side
Mounting
Pole Sockets
2x 1.38" Dual-Angle (Bottom)
Fly Points
12x M10
Dimensions
Dimensions (W x H x D)
17.7" x 30" x 18.1"
Weight
Weight
55.6 lbs
