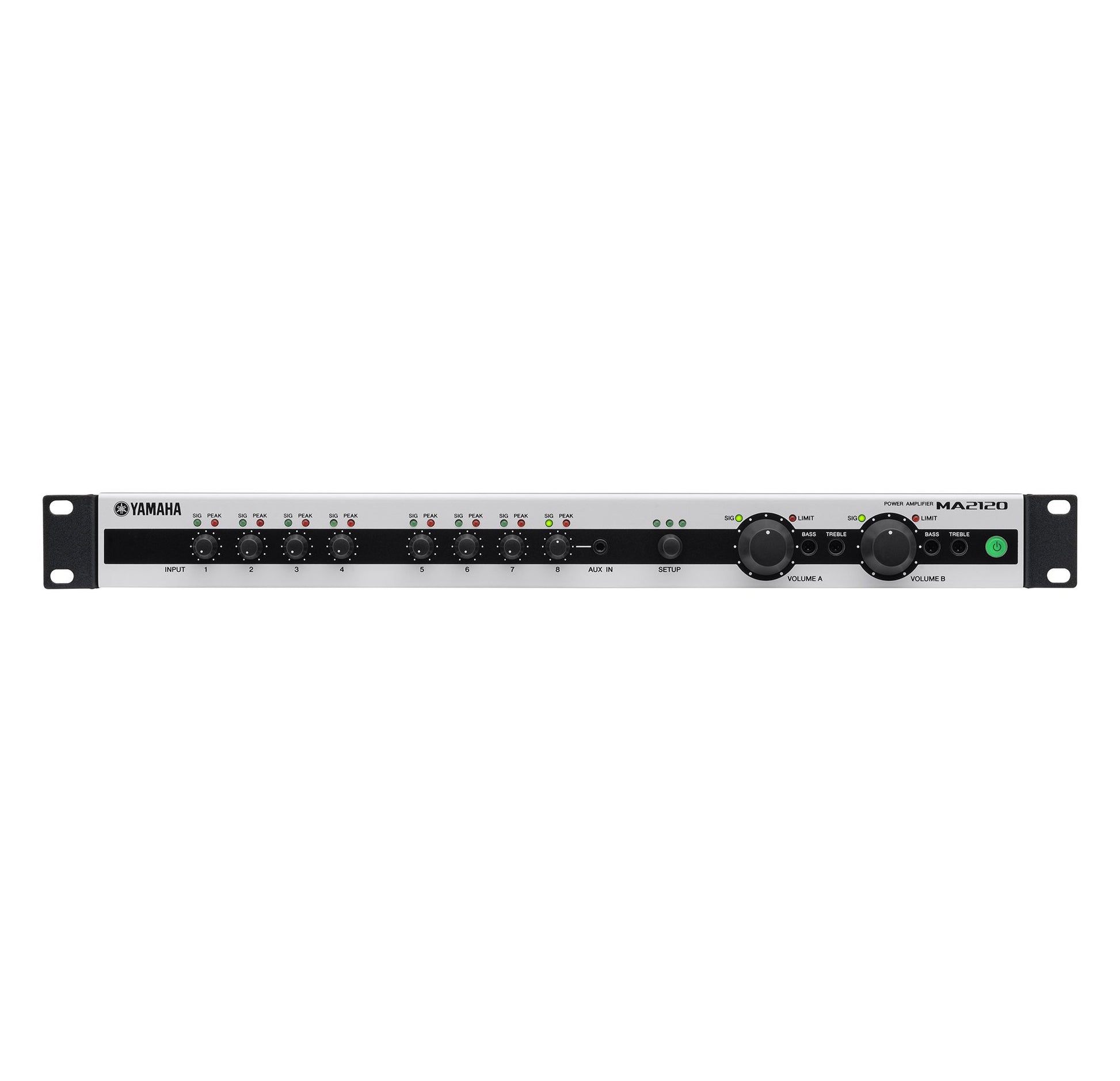

• Yamaha MA2120 2-Channel Mixer Amplifier

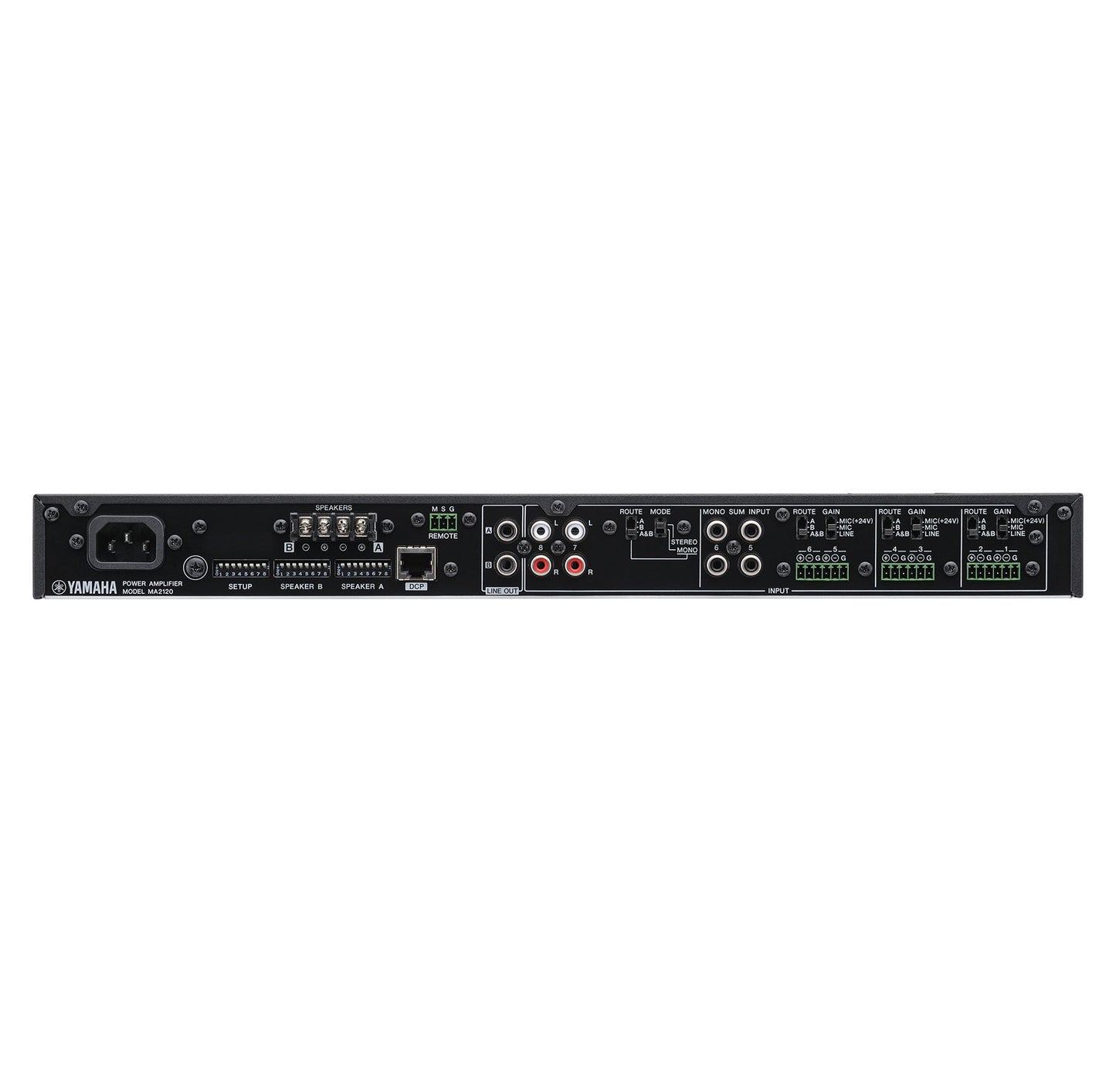

  • Yamaha MA2120 Mixer Amplifier back
1 2

Yamaha MA2120 2-Channel Mixer Amplifier

Yamaha MA2120 2-Channel Mixer Amplifier

SoundPro Item: 76120 | Part Number: MA2120

$1,009.99
$1,187.00 $1,009.99
Your Price Sold out
MSRP: $1,187.00 | MAP: $1,009.99

Usually ships in 5-7 business days

  • Easy setup, and a user-friendly interface for effortless operation
  • Supporting Lo-Z (120W x2ch @4 or 100W x2ch @3/8) and Hi-Z (120W x2ch or 200W x1ch, 70V/100V) speaker systems
  • Flexible 6 mic/line inputs and 2 stereo inputs, with all 6 mic inputs featuring a 24V settings
  • DSP functions for music playback and microphone use (Feedback Suppressor, Priority Ducker, Leveler, Compressor, Reverb & Echo)
  • Bass and treble stereo source EQ with an enhancer function
  • Output EQ for optimizing the sound of each Output channel
  • Built-in speaker EQ optimum for Yamaha VXC/VXS series speakers, as well as HPF and selectable LPF settings
  • Capable of controlling sources and volumes separately in two areas (Source/volume zoning)
  • Service areas or zoning areas can be expanded by adding a PA2120
  • Remote volume control and microphone on/off switching via optional DCP control panels (DCP4V4S, DCP1V4S, DCP4S, max 2 units)
  • Intelligent protection function ensures safe, reliable operation
  • Certified by ENERGY STAR
  • Certified as Yamaha Eco Products
  • Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling)
Log in or register for YOUR best price

The MA2120 from Yamaha is a 2-channel, Class-D mixer amplifier designed to provide high-quality audio in music playback and microphone use. It’s equipped with six flexible mic/line inputs and two stereo inputs, with all mic inputs featuring a 24V setting. Its powerful DSP functions include Feedback Suppressor, Priority Ducker, Leveler, Compressor, and Reverb & Echo.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
18.9x1.8x14.9"
Electrical
High Impedance (100V Line)
120W x 2 or 200W x 1
High Impedance (70V Line)
120W x 2 or 200W x 1
Power Supply Protection
Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Limit the output* →Power supply shutdown (*Restored automatically)
Power Requirements
100V, 120V, 230V - 240V, 50Hz / 60Hz
Power Consumption
60W (1/8 max power, 4Ω, AC100V, pink noise at all channels)
Audio
Output Power
1kHz (THD+N=1%: 3Ω): 100W x 2 (20ms Burst), 1kHz (THD+N=1%: 4Ω): 120W x 2 (20ms Burst), 1kHz (THD+N=1%: 8Ω): 100W x 2 (20ms Burst)
THD
≤0.2% (Line in to Speaker out, Half power @1kHz, 3Ω/4Ω/8Ω), ≤0.2% (Line in to Speaker out, Half Power @1kHz, 70V/100V, 120W/200W)
Frequency Response
0dB, -2.5dB, +1.0dB (Line in to Line out, 20Hz to 20kHz), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 50Hz to 20kHz, 1W, 3Ω/4Ω/8Ω), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 90Hz to 20kHz, 1W, 70V/100V, 120W/200W)
Crosstalk
≤ -70dB (MIC/LINE input to other MIC/LINE input)
Speaker Output
Barrier strip x 2 pairs
Connectivity
Mic/Line Input
Input 1-6: 3.5mm Euroblock (6-pin, balanced) x 3
Line Input
Input 7-8: Stereo RCA pin (unbalanced) x 2, Input 8: 3.5mm Stereo mini phone (unbalanced), Input 5-6: RCA pin (MONO SUM, unbalanced) x 4
Control Ports
RJ-45 (for DCP4V4S, DCP1V4S , DCP4S), Remote (3.5mm Euro block 3-pin)
Input Level
Mic input: -56dBu (Sensitivity), -36dBu (Nominal), -8dBu (Max before clip) / Line input (unbalanced): -30dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip) / Line input (balanced): -24dBu (Sensitivity), -4dBu (Nominal), +24dBu (Max before clip)
Output Level
-10dBV (LINE OUT, Nominal)
Shipping
Weight
10.8 lbs
General
Line Out
MONO RCA pin x2 (unbalanced)
Processors
Speaker EQ (VXS:Full Range, VXC, VXS10S/ST), HPF (150Hz), LPF (150Hz, 200Hz)
Load Protection
Power switch on/off: Mute the output*, Output voltage protection: Compress the output*, DC-fault: Power supply shutdown (*Restored automatically)
Amplifier Protection
Thermal: Limit the output* → Mute* → Shutdown, Over current: Mute the output*, Integrated power limit: Compress the output* (*Restored automatically)
Amplifier
Class D
Cooling
conventional cooling, bottom to up airflow
