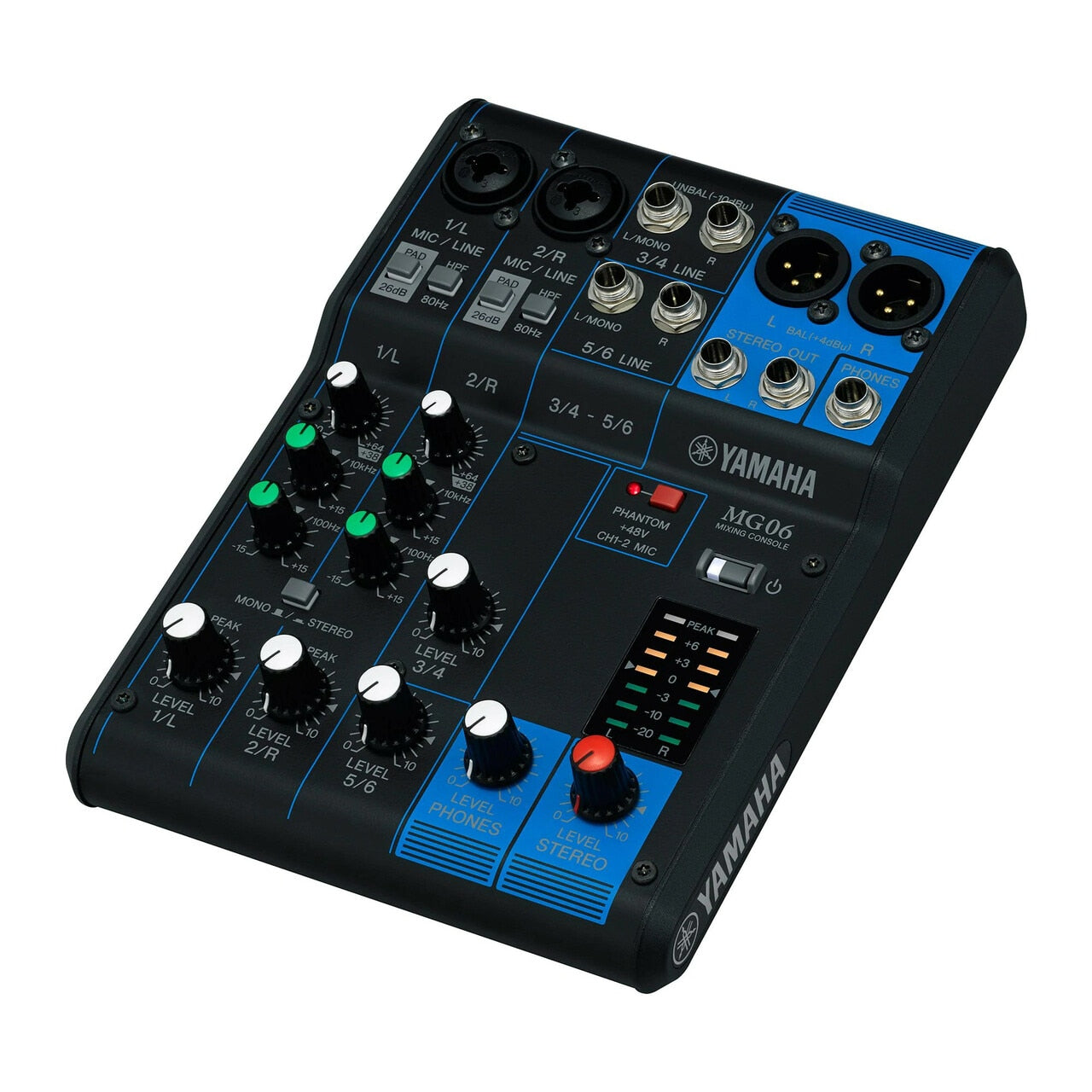

Yamaha MG06 6-Channel Compact Analog Mixer
Yamaha MG06 6-Channel Compact Analog Mixer
SoundPro Item: 58831 | Part Number: MG06
In stock and ready to ship
- 6-channel mixing console
- Max. 2 Mic / 6 Line Inputs (2 mono + 2 stereo)
- 1 stereo bus
- "D-PRE" mic preamps with an inverted Darlington circuit
- XLR balanced outputs
- PAD switch on mono inputs
- +48V phantom power
- Metal chassis
The MG06 is a compact analog mixing console in Yamaha’s MG series. This 6-channel console provides a maximum of 2 mic / 6 line inputs (2 mono + 2 stereo) and 1 stereo bus.
- Input channels2 mono [mic/line], 2 stereo [line]
- Output channels2 stereo out, 1 phones
- Bus1 stereo
- Input channel function
- Pad: 26dB (mono)
- HPF: 80Hz, 12dB/oct (mono)
- EQ high: mono gain +15dB/-15dB; frequency 10kHz shelving
- EQ low: mono gain +15dB/-15dB; frequency 100Hz shelving
- Peak LED: LED turns on when post EQ signal reaches 3dB below clipping
- Level meter: 2 x 7 -segment LED meter [PEAK, +6, +3, 0, -3, -10, -20 dB]
- THD<0.01%
- Frequency response20Hz - 20kHz +/-0.5dB
- Equivalent input noise-128dBu
- Residual output noise-102dBu
- Crosstalk-88dB
- Power consumption12W
- Dimensions (WxHxD)5.9x2.4x7.9"
- Weight1.98 lbs (0.9 kg)
