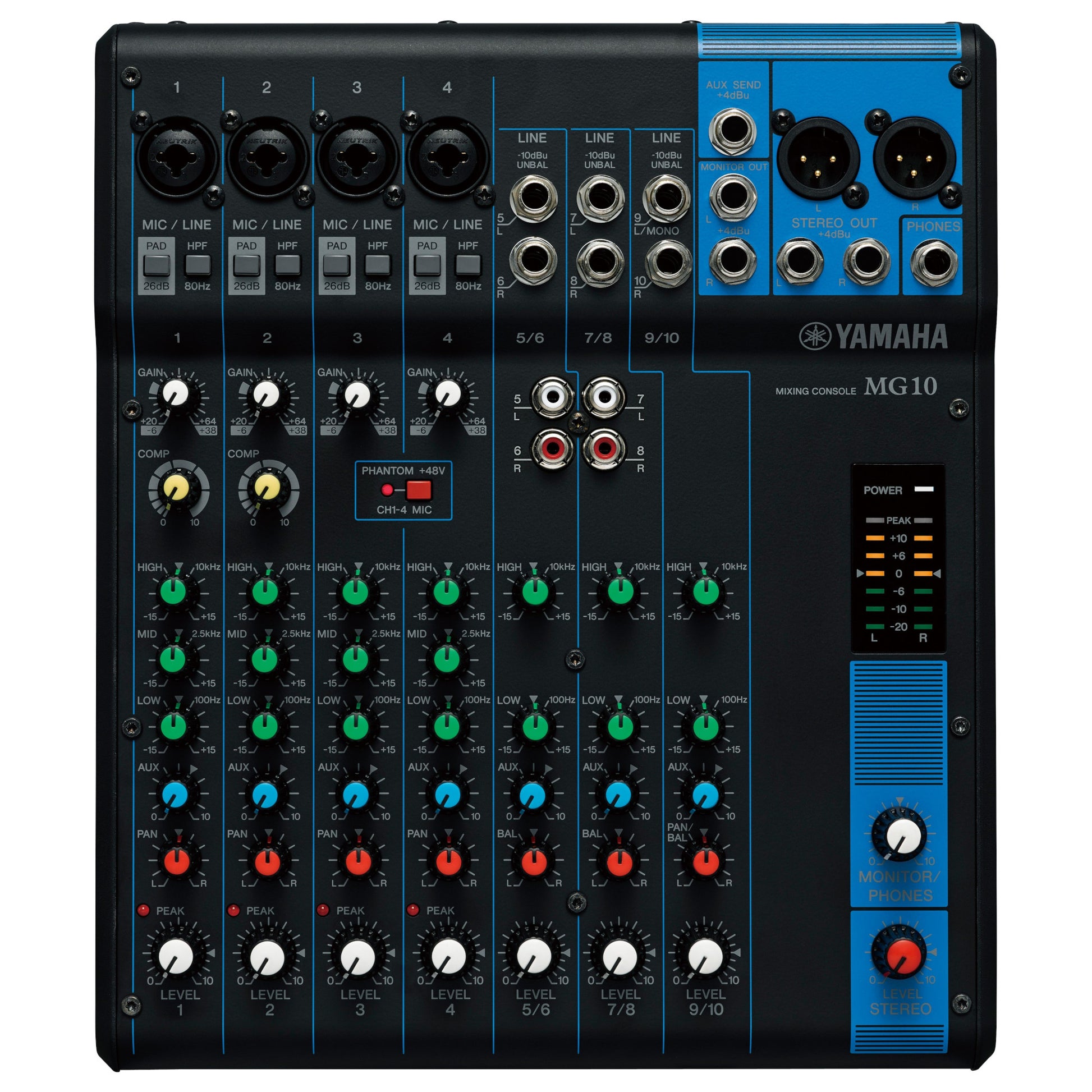

Yamaha MG10 10-Channel Analog Mixer
Yamaha MG10 10-Channel Analog Mixer
SoundPro Item: 58833 | Part Number: MG10
In stock and ready to ship
- 10-channel analog mixing console
- Intuitive for both professional and novice users
- Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
- 1 Stereo Bus
- 1 AUX (incl. FX)
- "D-PRE" mic preamps with an inverted Darlington circuit
- 1-Knob compressors
- PAD switch on mono inputs
- +48V phantom power
- XLR balanced outputs
- Metal chassis
The MG10 from Yamaha is a 10-channel analog mixer that features +48V phantom power, XLR balanced outputs, a sturdy metal chassis, and more. Part of Yamaha's MG series of analog mixers, the MG10 is intuitive and user-friendly, making it a great fit for professional and novice operators alike.
- Frequency Characteristics (ST OUT) 20 Hz–20 kHz +1 dB, –3 dB @+4 dBu, 10 kΩ (with gain control at minimum level)
- Total Harmonic Distortion (ST OUT) 0.1 % (THD+N) @+14 dBu, 20 Hz–20 kHz, 10 kΩ (with gain control at maximum level) (CHs 1 and 2)
- Hum and Noise (1)
- –128 dBu Equivalent input noise (CHs 1 and 2)
- –100 dBu Residual output noise (ST OUT)
- –87 dBu (91 dB S/N) ST, Master fader at nominal level and all Ch at minimum level.
- –85 dBu (89 dB S/N) All channel AUX controls at minimum level.
- –64 dBu (68 dB S/N) ST, Master fader and one Ch fader at nominal level. (CHs 1 and 2)
- Maximum Voltage Gain (2)
- 60 dB CH MIC INPUT → CH INSERT OUT
- 76 dB CH MIC INPUT → ST OUT
- 64.2 dB CH MIC INPUT → REC OUT
- 70 dB CH MIC INPUT → AUX SEND1 (PRE)
- 76 dB CH MIC INPUT → AUX SEND2 (POST)
- 76 dB ST CH MIC INPUT → ST OUT
- 50 dB ST CH LINE INPUT → ST OUT
- 41 dB ST CH LINE INPUT → AUX SEND1 (PRE)
- 47 dB ST CH LINE INPUT → AUX SEND2 (POST)
- 26 dB ST CH INPUT → ST OUT
- 12 dB AUX RETURN → ST OUT
- 23.8 dB 2TR INPUT → ST OUT
- Monaural/Stereo Input Gain Control 44 dB variable
- Monaural/Stereo High Pass Filter 80 Hz 12 dB/octave
- Crosstalk (1 kHz)
- –70 dB between input channels
- –70 dB between input/output channels (CHs 1 to 6)
- Monaural/Stereo Input Channel Equalization: Max. Variation (3)
- ±15 dB
- HIGH 10 kHz shelving
- MID 2.5 kHz peaking
- LOW 100 Hz shelving
- Monaural/Stereo Input Peak Indicator On each channel: red indicator lights if post-EQ signal (on ST channels, if either post-EQ signal or post-mic-amp signal) comes within 3 dB of the clipping level.
- Level Meters
- Two 12-point LED meters [Stereo (L, R)]
- Peak point: red indicator
- +5, +3, +1, and 0 points: yellow indicators
- –1, –3, –5, –7, –10, –15, –20: green indicators
- Phantom +48 VDC Power (Balanced input) Supplied when Phantom +48 V switch is ON.
- Power Supply
- USA and Canada: 120 V AC, 60 Hz
- Europe: 230 V AC, 50 Hz
- Australia: 240 V AC, 50 Hz
- Korea: 220 V AC, 60 Hz
- Power Consumption 19 W
- Max. Dimensions (W × H × D) 251 × 65 × 290.5 mm
- Weight 1.8 kg
- Notes
- Where 0 dBu = 0.775 V and 0 dBV = 1 V
- 1 Measured with 12.7 kHz, –6 dB/oct. low pass filter (equivalent to 20 kHz, –∞ filter). (CH MIC INPUT to ST, AUX, EFFECT SEND)
- 2 Turning PAN/BAL to left or right
- 3 Shelving turnover/rolloff frequency: 3 dB before maximum cut or boost
