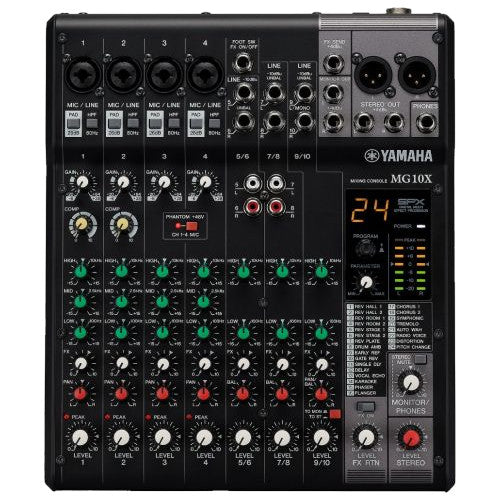

  • Yamaha MG10X CV 10-Channel Analog Mixer with Effects top

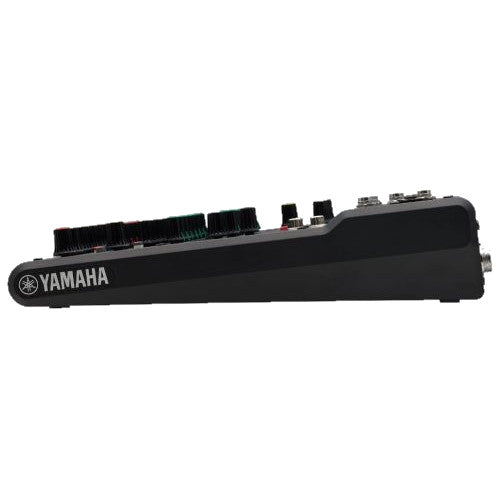

  • Yamaha MG10X CV 10-Channel Analog Mixer with Effects side

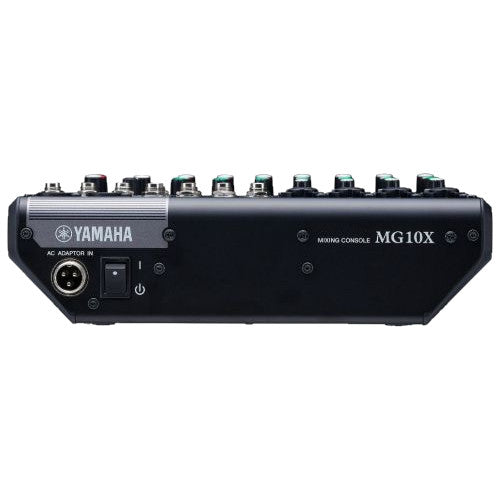

  • Yamaha MG10X CV 10-Channel Analog Mixer with Effects back
1 4

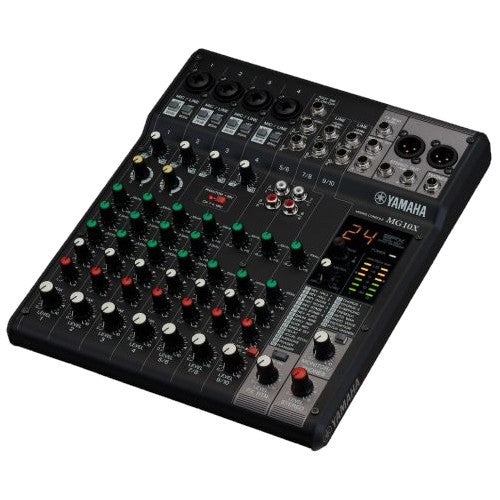

Yamaha MG10X CV 10-Channel Analog Mixer with Effects

Yamaha MG10X CV 10-Channel Analog Mixer with Effects

SoundPro Item: 131167 | Part Number: MG10X CV

$264.99
$337.00 $264.99
Your Price Sold out
MSRP: $337.00 | MAP: $264.99

Usually ships in 5-7 business days

  • Max. 4 Mic / 10 Line Inputs (4 mono + 3 stereo)
  • 1 Stereo Bus
  • 1 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Metal chassis
Log in or register for YOUR best price

The MG10X CV from Yamaha is a 10-channel analog mixer with effects.

View full details
  • MIXING CAPABILITY On-board processors: SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
  • I/O Phantom power: +48V
  • INPUT CHANNELS
    • Mono[MIC/LINE]: 4
    • Stereo[LINE]: 3
  • OUTPUT CHANNELS
    • STEREO OUT: 2
    • MONITOR OUT: 1
    • PHONES: 1
    • AUX SEND: 1
  • BUS Stereo: 1, AUX[FX]: 1
  • INPUT CHANNEL FUNCTION
    • PAD: 26 dB (Mono)
    • HPF: 80 Hz, 12 dB/oct (Mono)
    • COMP: 1-knob compressor Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB, Attack time: approx. 25 msec, Release time: approx. 300 msec
    • EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
    • EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5kHz peaking
    • EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
    • PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
    • Level Meter: 2 x 7 -segment LED meter [PEAK, +10, +6, 0, -6, -10, -20 dB]
  • TOTAL HARMONIC DISTORTION 0.02 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.003 % @ +24dBu (1kHz), GAIN knob: Min
  • FREQUENCY RESPONSE +0.5 dB/-1.0 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
  • HUM & NOISE LEVEL
    • Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
    • Residual output noise: -102 dBu (STEREO OUT, STEREO LEVEL knob: Min)
  • CROSSTALK
  • -83 dB
  • POWER REQUIREMENTS
  • PA-10 (AC 38 VCT, 0.62A, Cable length = 3.6 m) or equivalent recommended by Yamaha
  • POWER CONSUMPTION
  • 22.9 W
  • DIMENSIONS (WxHxD): 9.6x2.8x11.6” (244x71x294mm)
  • NET WEIGHT 2.1 kg (4.63 lbs.)
  • Operating Temperature0 to +40°C
