• Yamaha MG12 12-Channel Analog Mixer
1 4

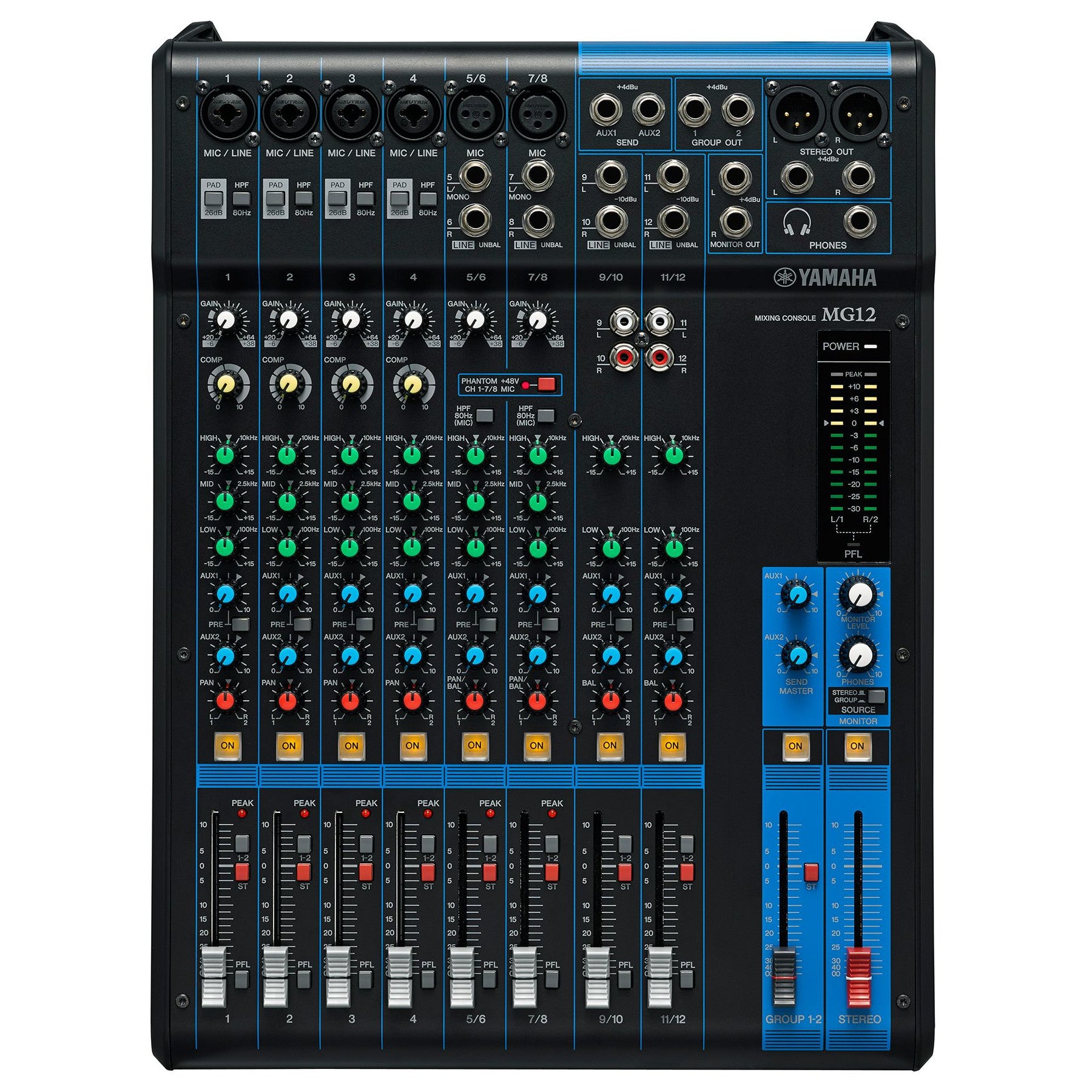

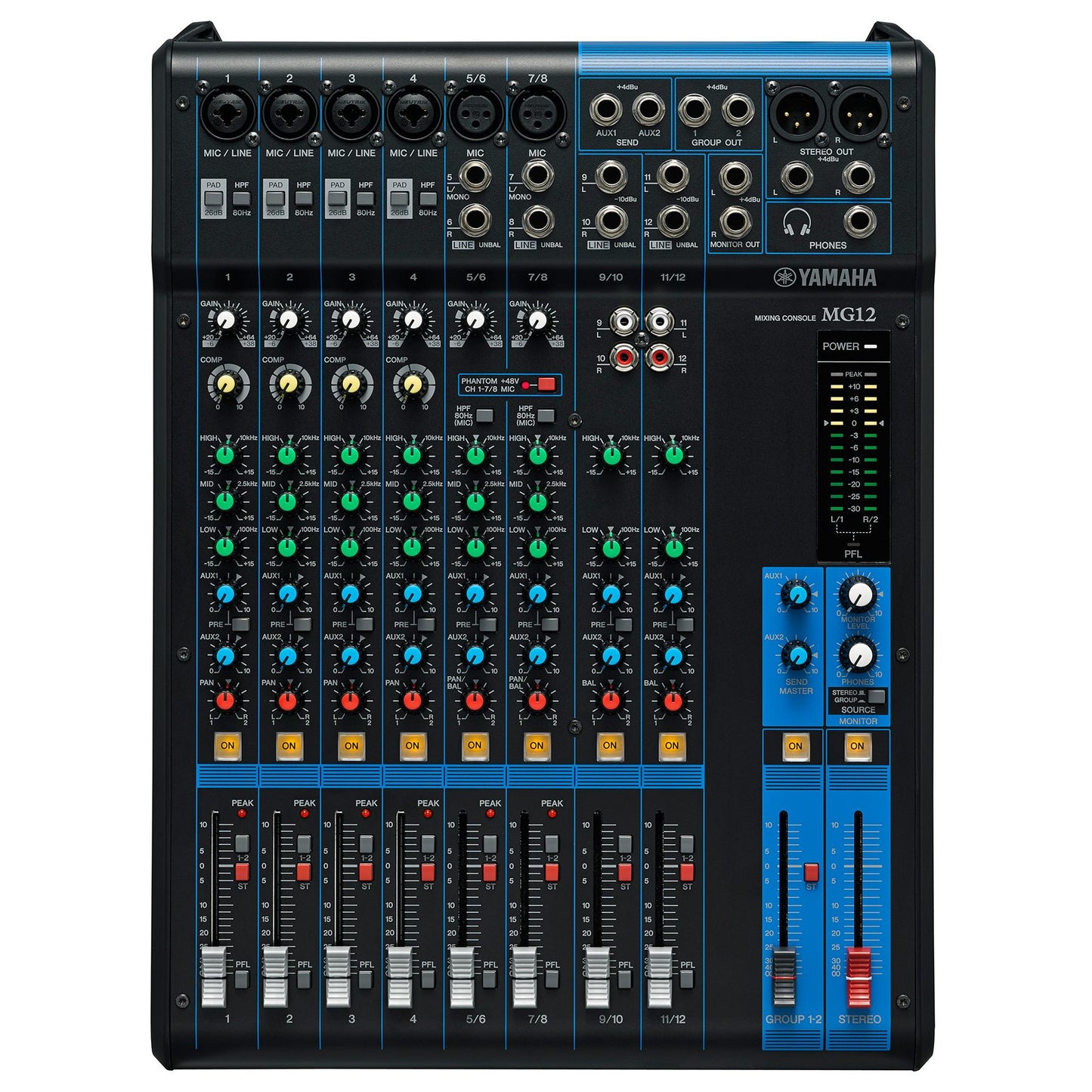

Yamaha MG12 12-Channel Analog Mixer

Yamaha MG12 12-Channel Analog Mixer

SoundPro Item: 58835 | Part Number: 58835

$324.99
$421.00 $324.99
Your Price Sold out
MSRP: $421.00 | MAP: $324.99

Usually ships in 5-7 business days

  • 12-Channel analog mixing console
  • Internal universal power supply for world-wide use
  • Optional Rack Mount Kit RK-MG12 Available
  • Metal chassis takes a beating from heavy-duty wear
  • Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
  • 2 GROUP Buses + 1 Stereo Bus
  • 2 AUX (incl. FX)
  • "D-PRE" mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
Log in or register for YOUR best price

The MG12 from Yamaha is a 12-channel analog mixer that features +48V phantom power, XLR balanced outputs, a sturdy metal chassis, an internal universal power supply, and much more!

View full details

Specifications

Dimensions
Dimensions (W × H × D)
322 mm × 108 mm × 416.6 mm
Electrical
Power Consumption
36 W
Audio
Phantom Power
Supplied when Phantom +48 V switch is ON. (XLR-type input jacks)
Connectivity
Monaural/Stereo Input
PEAK Indicator On each channel: red indicator lights if post-EQ signal (on ST channels, if either post-EQ signal or post-mic-amp signal) comes within 3 dB of the clipping level.
Shipping
Weight
5 kg
General
Monaural/Stereo CH High Pass Filter
80 Hz 12 dB/octave
Monaural/Stereo CH Equalization (Turn Over /roll-off Frequency of Shelving, 3 Db Below Maximum Variable level)
±15 dB (Max. Variation)
HIGH
10 kHz (shelving)
MID
2.5 kHz (peaking)
LOW
100 Hz (shelving)
Internal Digital Effect
16 programs, Parameter control, FOOT switch (ON/OFF)
Level Meters
Two 12-points LED level meters [ST (L, R)]
Peak Point
red indicator
+5, +3, +1, 0
yellow indicators
–1, –3, –5, –7, –10, –15, –20
green indicators
Options
Footswitch (FC5)
