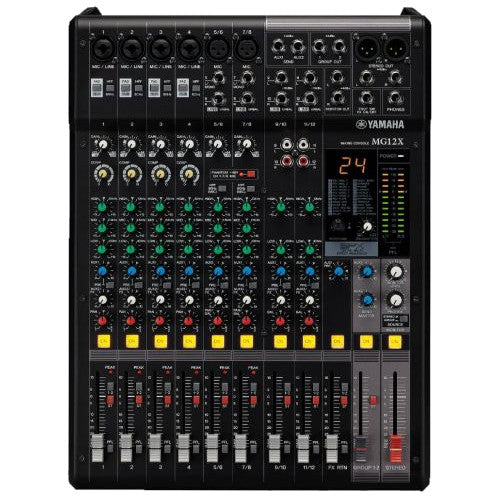

  • Yamaha MG12X CV 12-Channel Analog Mixer with Effects front

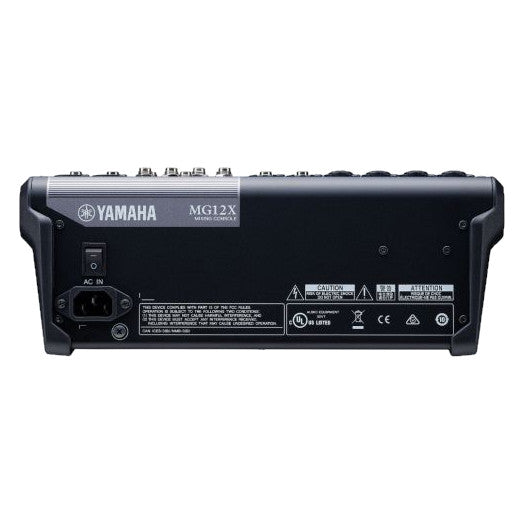

  • Yamaha MG12X CV 12-Channel Analog Mixer with Effects back

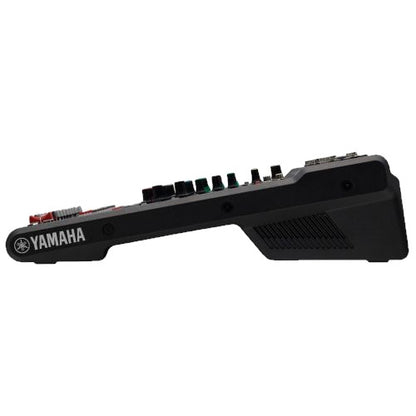

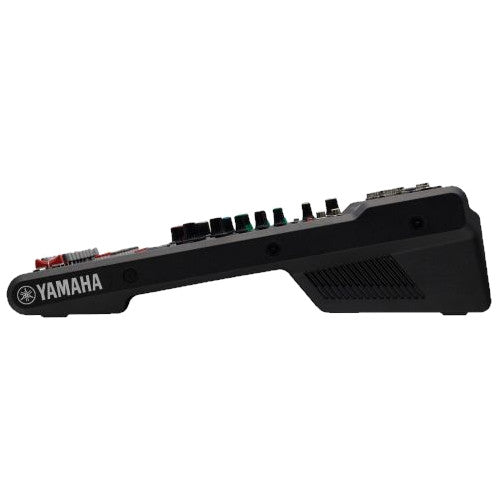

  • Yamaha MG12X CV 12-Channel Analog Mixer with Effects side
1 4

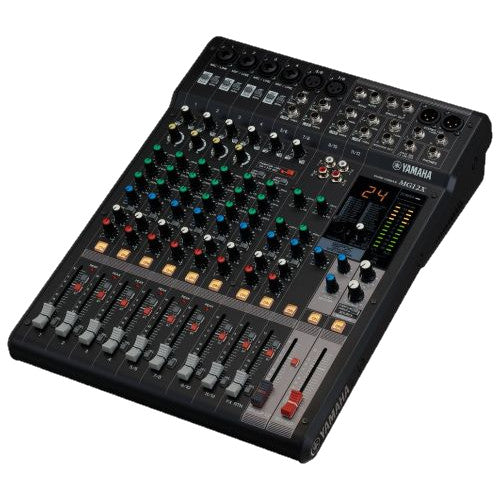

Yamaha MG12X CV 12-Channel Analog Mixer with Effects

Yamaha MG12X CV 12-Channel Analog Mixer with Effects

SoundPro Item: 131168 | Part Number: MG12X CV

$344.24
$524.00 $344.24
Your Price Sold out
MSRP: $524.00 | MAP: $344.24

Usually ships in 5-7 business days

  • Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo)
  • 2 GROUP Buses + 1 Stereo Bus
  • 2 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • nternal universal power supply for world-wide use
  • Optional Rack Mount Kit RK-MG12 Available
  • Metal chassis
Log in or register for YOUR best price

The MG12X CV from Yamaha is a 12-channel analog mixer with effects.

View full details
  • MIXING CAPABILITYOn-board processors: SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
  • I/OPhantom power: +48V
  • INPUT CHANNELS
    • Mono[MIC/LINE]: 4
    • Mono/Stereo[MIC/LINE]: 2
    • Stereo[LINE]: 2
  • OUTPUT CHANNELS
    • STEREO OUT: 2
    • MONITOR OUT: 1
    • PHONES: 1
    • AUX SEND: 2
    • GROUP OUT: 2
  • BUSStereo: 1, GROUP: 2, AUX: 2 (incl. FX)
  • INPUT CHANNEL FUNCTION
    • PAD: 26 dB (Mono)
    • HPF: 80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
    • COMP
      • 1-knob compressor (Gain/Threshold/Ratio) Threshold: +22 dBu to -8 dBu, Ratio: 1:1 to 4:1, Output level: 0 dB to 7 dB
      • Attack time: approx. 25 msec, Release time: approx. 300 msec
    • EQ HIGH: Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
    • EQ MID: Gain: +15 dB/-15 dB, Frequency: 2.5 kHz peaking
    • EQ LOW: Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
    • PEAK LED: LED turns on when post EQ signal reaches 3 dB below clipping
    • Level Meter: 2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
  • TOTAL HARMONIC DISTORTION 0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
  • FREQUENCY RESPONSE+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
  • HUM & NOISE LEVEL
    • Equivalent input noise: -128 dBu (Mono Input Channel, Rs: 150Ω, GAIN knob: Max)
    • Residual output noise: -102 dBu (STEREO OUT, STEREO master fader: Min)
  • CROSSTALK-78 dB
  • POWER REQUIREMENTSAC 100 – 240 V, 50 / 60 Hz
  • POWER CONSUMPTION22W
  • DIMENSIONS(WxHxD): 12.1x4.6x16.6” (308x118x422mm)
  • NET WEIGHT4.2 kg (9.3 lbs.)
  • Operating Temperature0 to +40°C
