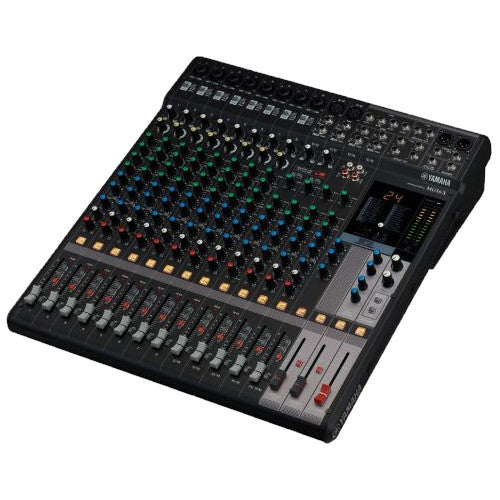

• Yamaha MG16X CV 16-Channel Analog Mixer with Effects

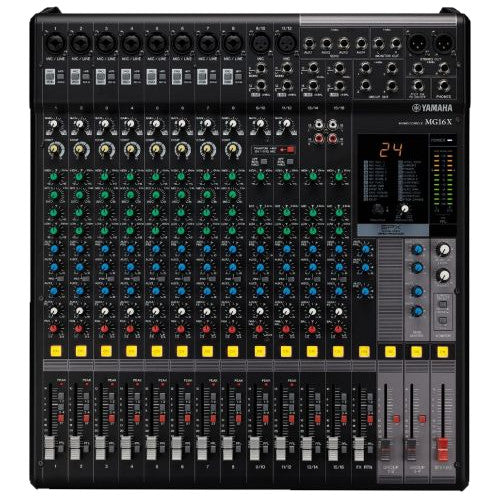

  • Yamaha MG16X CV 16-Channel Analog Mixer with Effects top

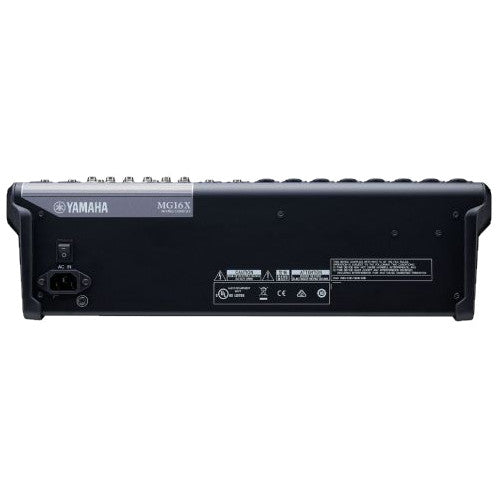

  • Yamaha MG16X CV 16-Channel Analog Mixer with Effects back

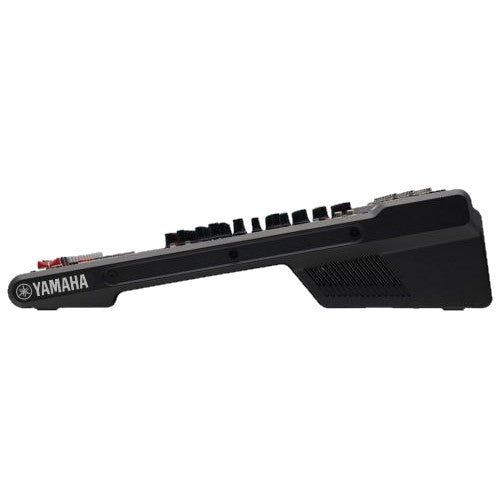

  • Yamaha MG16X CV 16-Channel Analog Mixer with Effects side
1 4

Yamaha MG16X CV 16-Channel Analog Mixer with Effects

Yamaha MG16X CV 16-Channel Analog Mixer with Effects

SoundPro Item: 131169 | Part Number: MG16X CV

$619.99
$804.00 $619.99
Your Price Sold out
MSRP: $804.00 | MAP: $619.99

Usually ships in 5-7 business days

  • Max. 10 Mic / 16 Line Inputs (8 mono + 4 stereo)
  • 4 GROUP Buses + 1 Stereo Bus
  • 4 AUX (incl. FX)
  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Rack Mount Kit Included
  • Metal chassis
Log in or register for YOUR best price

The MG16X CV from Yamaha is a 16-channel analog mixer with effects.

View full details

Specifications

Dimensions
DIMENSIONS (WxHxD)
17.5x5.1x19.7” (444x130x500mm)
Weight
NET WEIGHT
15 lbs (6.8 kg)
Electrical
POWER REQUIREMENTS
AC 100 – 240 V, 50 / 60 Hz
POWER CONSUMPTION
30W
Audio
TOTAL HARMONIC DISTORTION
0.03 % @ +14dBu (20 Hz to 20kHz), GAIN knob: Min, 0.005 % @ +24dBu (1kHz), GAIN knob: Min
FREQUENCY RESPONSE
+0.5 dB/-1.5 dB (20 Hz to 48 kHz) , refer to the nominal output level @ 1 kHz, GAIN knob: Min
GAIN Knob
Max)
CROSSTALK
-78 dB
Connectivity
Output Level
0 dB to 7 dBAttack time: approx. 25 msec
Equivalent Input Noise
-128 dBu (Mono Input Channel
Residual Output Noise
-102 dBu (STEREO OUT
Environmental
Operating Temperature
0 to +40°C
General
MIXING CAPABILITY
On-board processors: SPX algorithm: 24 programs, PARAMETER control:1, FOOT SW:1 (FX RTN CH on/off)
I/O
Phantom power: +48V
Mono[MIC/LINE]
8
Mono/Stereo[MIC/LINE]
2
Stereo[LINE]
2
STEREO OUT
2
MONITOR OUT
1
PHONES
1
AUX SEND
4
GROUP OUT
4
BUS
Stereo: 1, GROUP: 4, AUX: 4 (incl. FX)
PAD
26 dB (Mono)
HPF
80 Hz, 12 dB/oct (Mono/Stereo: MIC only)
Threshold
+22 dBu to -8 dBu
Ratio
1:1 to 4:1
Release Time
approx. 300 msec
EQ HIGH
Gain: +15 dB/-15 dB, Frequency: 10 kHz shelving
EQ MID
Gain: +15 dB/-15 dB, Frequency: Mono 250 Hz – 5 kHz peaking, Stereo 2.5 kHz peaking
EQ LOW
Gain: +15 dB/-15 dB, Frequency: 100 Hz shelving
PEAK LED
LED turns on when post EQ signal reaches 3 dB below clipping
Level Meter
2x12 -segment LED meter [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB]
Rs
150Ω
STEREO Master Fader
Min)
