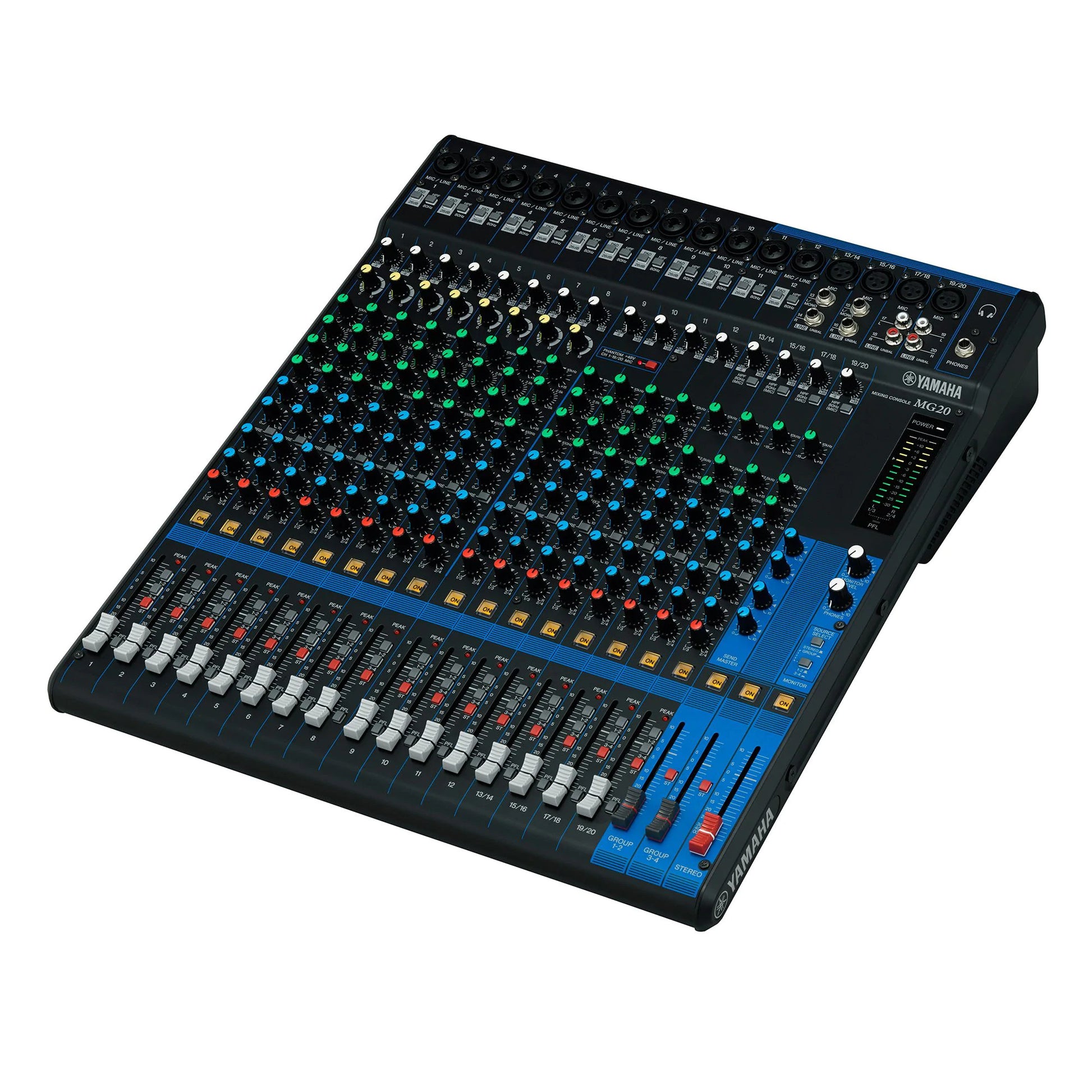

Yamaha MG20 20-Channel Analog Mixer

Yamaha MG20 20-Channel Analog Mixer

SoundPro Item: 58840 | Part Number: MG20

$657.89
$1,097.00 $657.89
Your Price Sold out
MSRP: $1,097.00 | MAP: $657.89

Usually ships in 5-7 business days

  • 20-channel analog mixing console
  • Max. 16 mic / 20 line inputs (12 mono + 4 stereo)
  • 4 GROUP Buses + 1 Stereo Bus
  • 4 AUX (incl. FX)
  • "D-PRE" mic preamps with an inverted Darlington circuit
  • 1-knob compressors
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Rack Mount Kit Included
  • Metal chassis
Log in or register for YOUR best price

The MG20 from Yamaha is a 20-channel analog mixer that features +48V phantom power, XLR balanced outputs, “D-PRE” mic preamps with an inverted Darlington circuit, a sturdy metal chassis, an internal universal power supply, and more!

A rack mount kit is included with this mixer for convenient installation right out of the box.

View full details
  • Input Channels
    • Line Input: 20 (12 mono + 4 stereo)
    • Mic Input: 16
    • Mono Input (mic/line): 12 (CH1-12)
    • Mono/Stereo Input (mic/line): 4 (CH13-20)
    • Stereo Input (Line): 0
  • Output Channels
    • Stereo Out: 2
    • Monitor Out: 1
    • Aux Send: 4
    • Group Out: 4
    • Phones Out: 1
  • Bus
    • Stereo: 1
    • Group: 4
    • Aux: 4
  • Phantom Power+48V
  • Power Requirements100-240V 50Hz/60Hz
  • Power Supply Typeinternal universal power supply
  • Power Consumption36W
  • THD
    • +14dBu (20Hz to 20kHz) Gain Knob, Min: 0.03%
    • +24dBu (1kHz) Gain Knob, Min: 0.005%
  • Frequency Response+0.5/-1.5dB (20Hz - 48kHz), refer to the nominal output level @1kHz, GAIN knob: Min
  • Hum and Noise Level
    • Equivalent Input Noise: -128 dBu (20Hz–20 kHz, Rs: 150Ω, Gain knob: Max)
    • Residual Output Noise: -102 dBu (STEREO OUT, STEREO master fader: Min)
  • Crosstalk (@1kHz)-78dB
  • Input Channel Function
    • Pad: 26dB
    • HPH: 80Hz, 12dB/oct, (mono/stereo: mic only)
    • COMP
      • 1 knob compressor (gain/threshold/ratio)
      • Threshold: +22dBu to -8dBu, Ratio 1:1 to 4:1
      • Output Level: 0dB to 7dB
      • Attack Time: approx. 25msec
      • Release Time: approx. 300msec
  • Input Channel EQ
    • High: ±15dB (10kHz shelving)
    • Mid: ±15dB (mono 250Hz - 5kHz peaking, stereo 2.5kHz peaking)
    • Low: ±15dB (100Hz shelving)
  • LED Level Meter (pre monitor level)2 x 12 points LED meter (PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30dB)
  • Peak LEDLED turns on when post EQ signal reaches 3dB below clipping level
  • Dimensions (WxDxH)17.5x19.7x5.1"
  • Weight15.2 pounds
