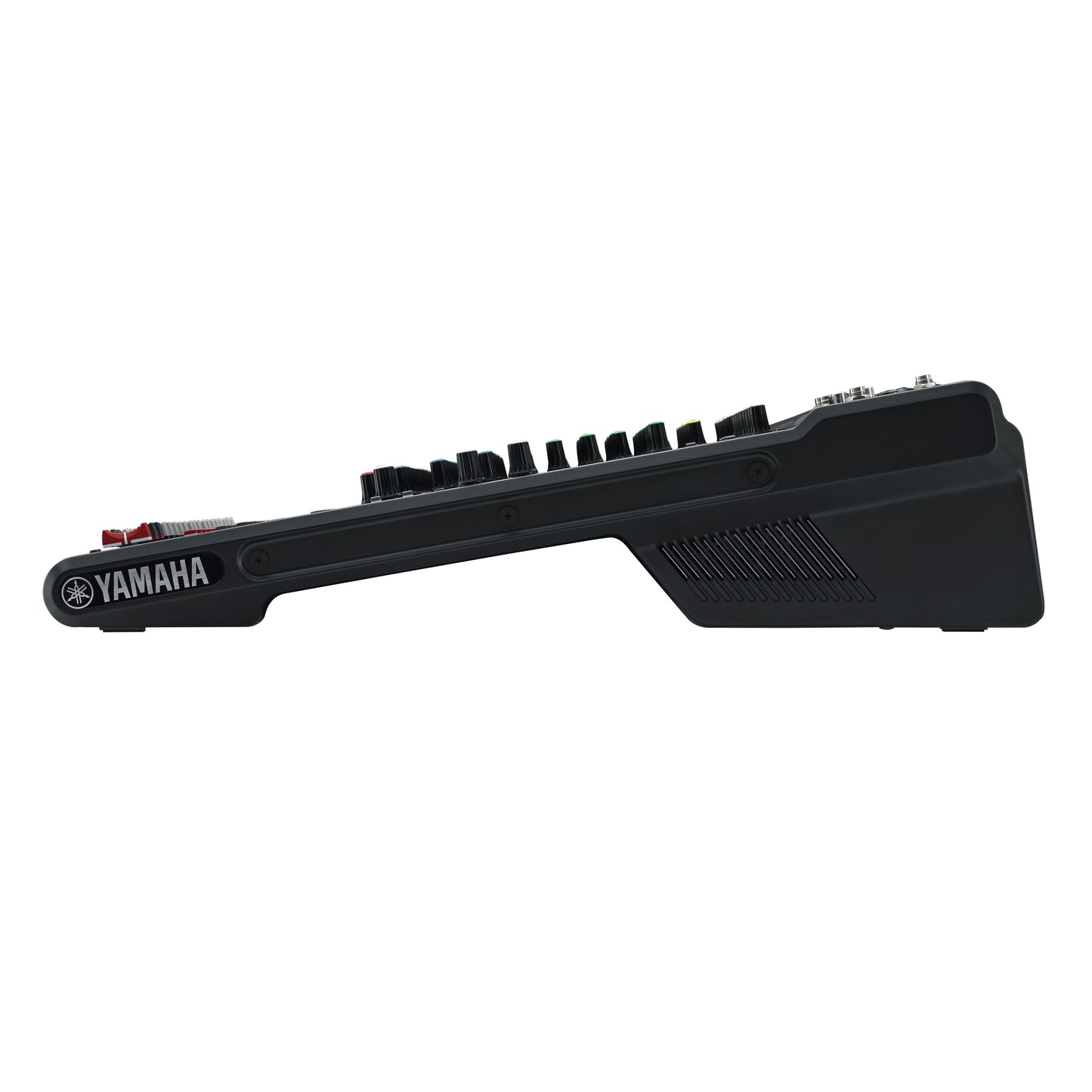

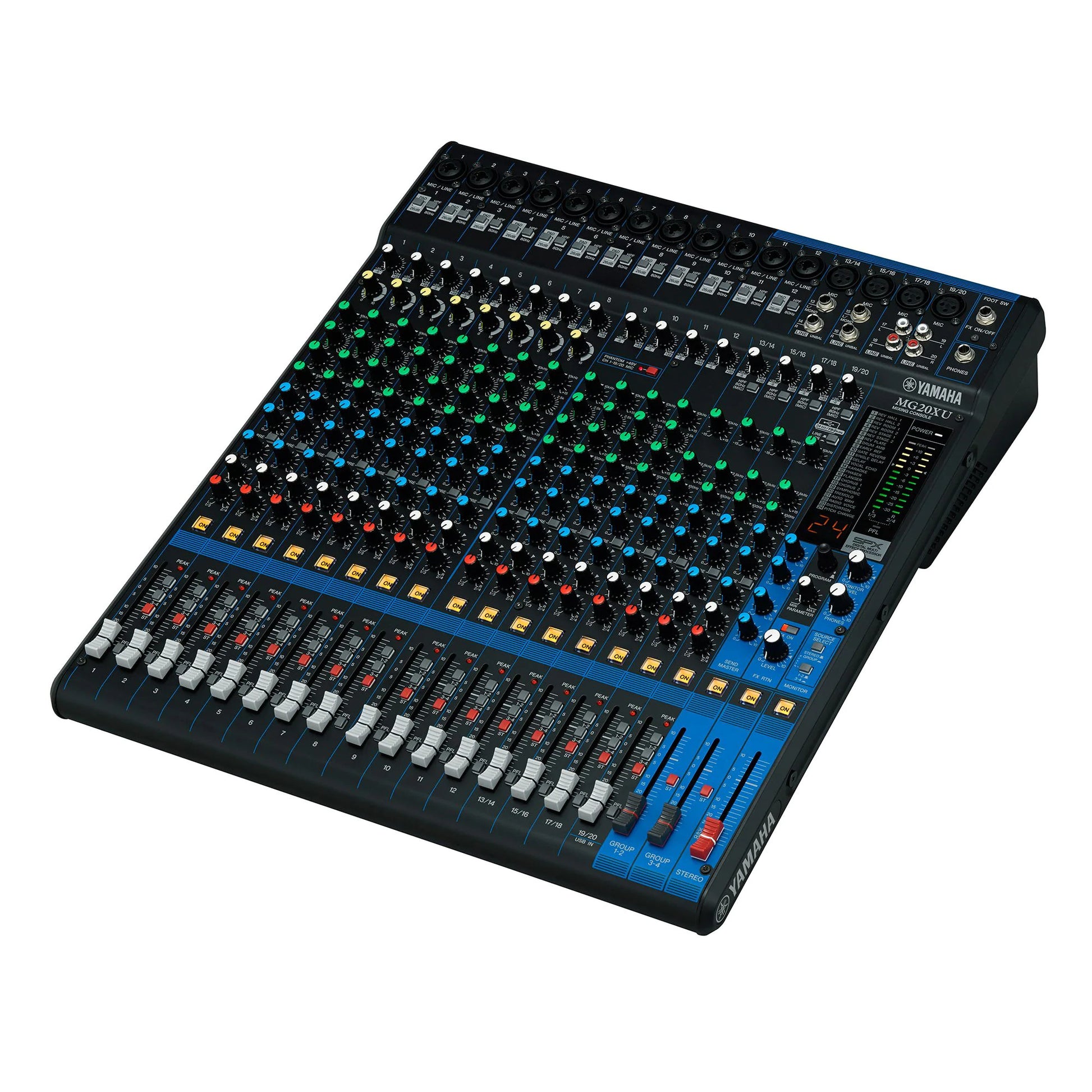

Yamaha MG20XU 20-Channel Analog Mixer with Effects and USB

Yamaha MG20XU 20-Channel Analog Mixer with Effects and USB

SoundPro Item: 58841 | Part Number: MG20XU

$869.99
$1,150.00 $869.99
Your Price Sold out
MSRP: $1,150.00 | MAP: $869.99

In stock and ready to ship

  • 20-channel analog mixing console with built-in effects and USB
  • Works with the iPad (2 or later) through the Apple iPad Camera Connection Kit / Lightning to USB Camera Adapter
  • Internal universal power supply for world-wide use
  • Metal chassis
  • Max. 16 mic / 20 line inputs (12 mono + 4 stereo)
  • 4 GROUP Buses + 1 Stereo Bus
  • 4 AUX (incl. FX)
  • "D-PRE" mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • 24-bit/192kHz 2in/2out USB Audio functions
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
Log in or register for YOUR best price

The MG20XU from Yamaha is a 20-channel analog mixer with effects and USB. Ideal for portable or installed applications alike, this mixer is a great solution for enhancing the audio for a wide range of projects and events.

Features include “D-PRE” mic preamps with an inverted Darlington circuit, high-grade SPX effects with 24 programs, 24-bit/192kHz 2in/2out USB Audio functions, +48V phantom power, and much more! Also included with the MG20XU is a Cubase AI DAW software download, and Rack Mount Kit for convenient installation.

View full details

Specifications

Dimensions
Dimensions (WxDxH)
17.5x19.7x5.1"
Electrical
Power Requirements
100-240V 50Hz/60Hz
Power Consumption
36W
Audio
USB Audio - USB In/Out
yes (2 IN / 2 OUT, USB Audio Class 2.0 compliant, Sampling Frequency: Max 192kHz, Bit Depth: 24-bit)
Phantom Power
+48V
+14dBu (20Hz to 20kHz) Gain Knob, Min
0.03%
+24dBu (1kHz) Gain Knob, Min
0.005%
Frequency Response
+0.5/-1.5dB (20Hz - 48kHz), refer to the nominal output level @1kHz, GAIN knob: Min
Gain Knob
Max)
Connectivity
Line Input
20 (12 mono + 4 stereo)
Mic Input
16
Mono Input (mic/line)
12 (CH1-12)
Mono/Stereo Input (mic/line)
4 (CH13-20)
Stereo Input (Line)
0
Equivalent Input Noise
-128 dBu (20Hz–20 kHz
Residual Output Noise
-102 dBu (STEREO OUT
Input Channel Function
COMP
Shipping
Weight
15.7 lbs
General
Stereo Out
2
Monitor Out
1
Aux Send
4
Group Out
4
Phones Out
1
Stereo
1
Group
4
Aux
4
Rs
150Ω
STEREO Master Fader
Min)
Crosstalk (@1kHz)
-78dB
Pad
26dB
HPH
80Hz, 12dB/oct, (mono/stereo: mic only)
High
±15dB (10kHz shelving)
Mid
±15dB (mono 250Hz - 5kHz peaking, stereo 2.5kHz peaking)
Low
±15dB (100Hz shelving)
LED Level Meter (pre Monitor level)
2 x 12 points LED meter (PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30dB)
Peak LED
LED turns on when post EQ signal reaches 3dB below clipping level
Power
Power Supply Type
internal universal power supply
