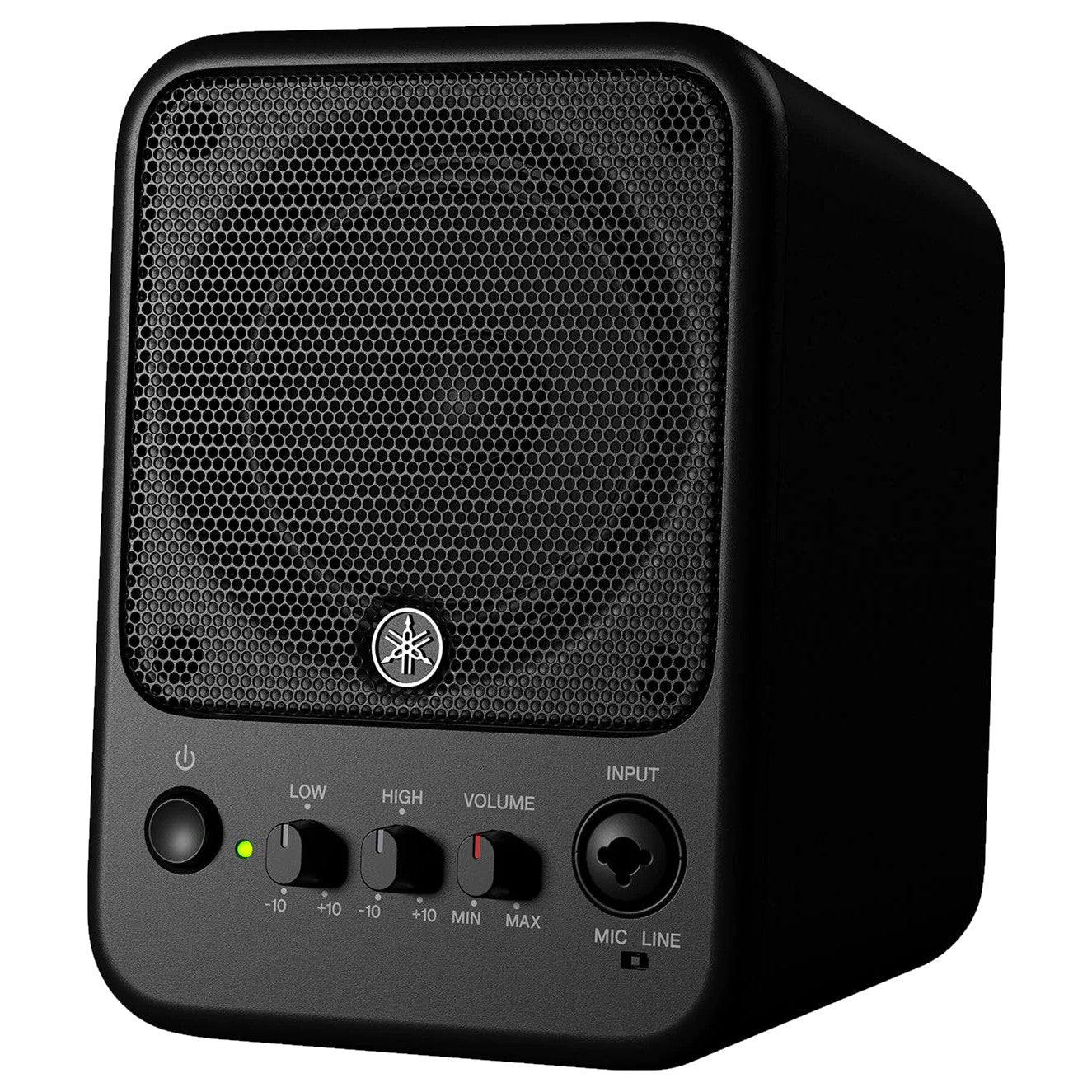

• Yamaha MS101-4 Powered Studio Monitor

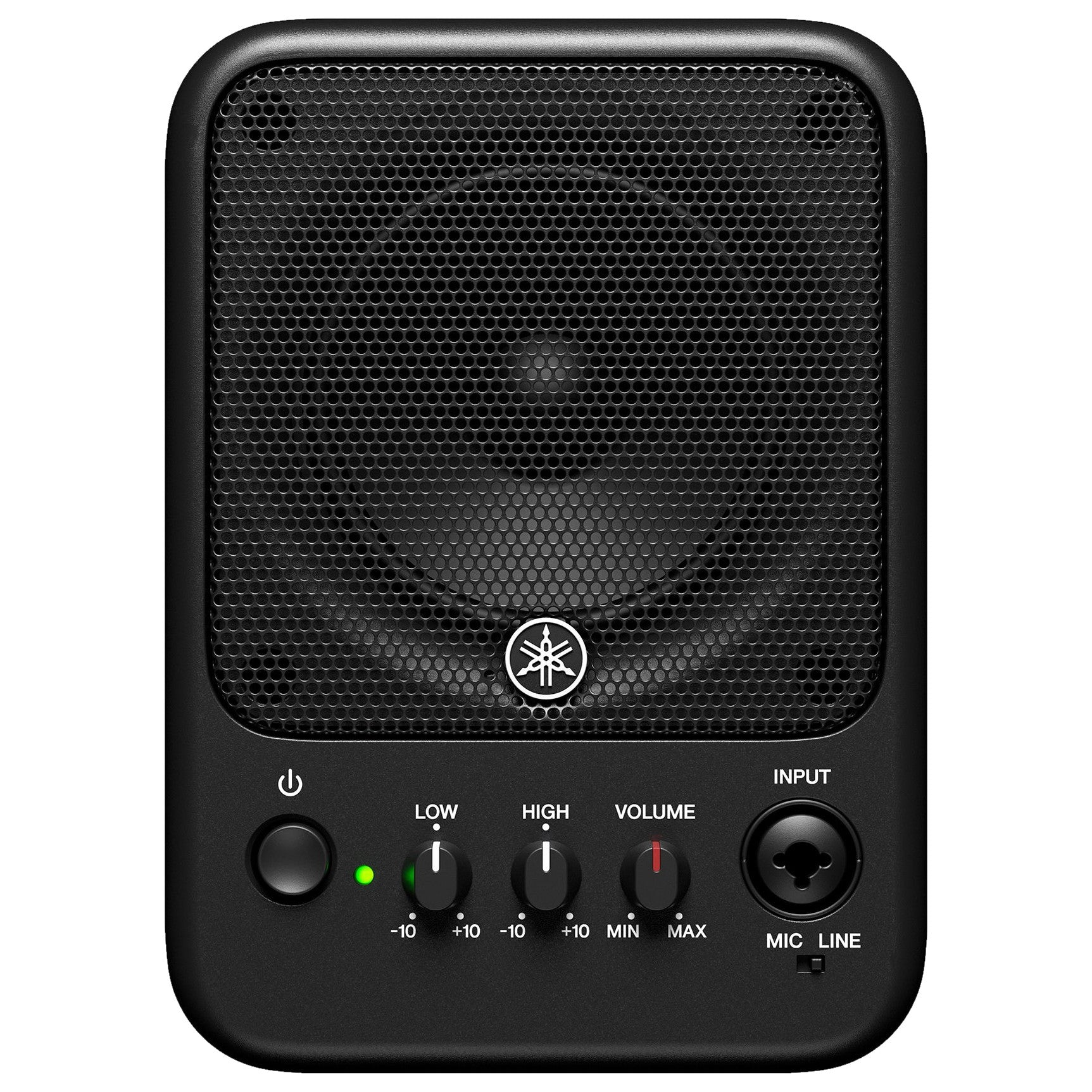

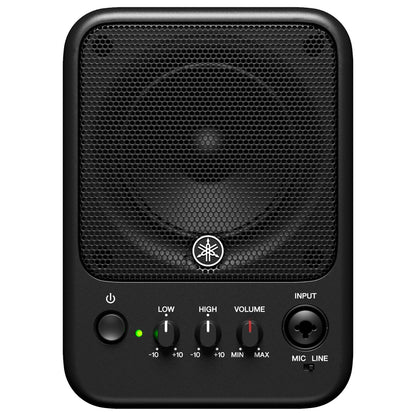

  • Yamaha MS101-4 Powered Studio Monitor front

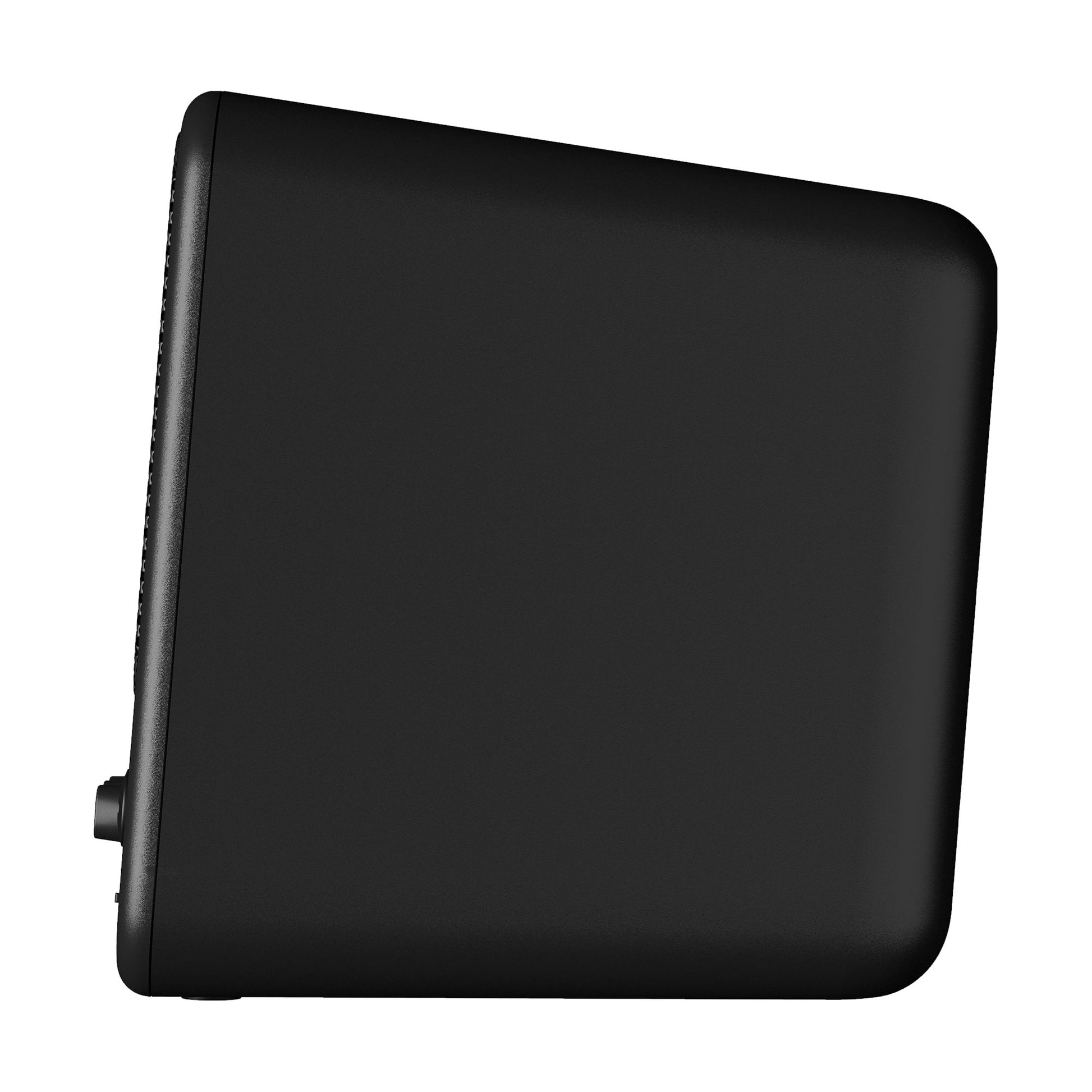

  • Yamaha MS101-4 Powered Studio Monitor side

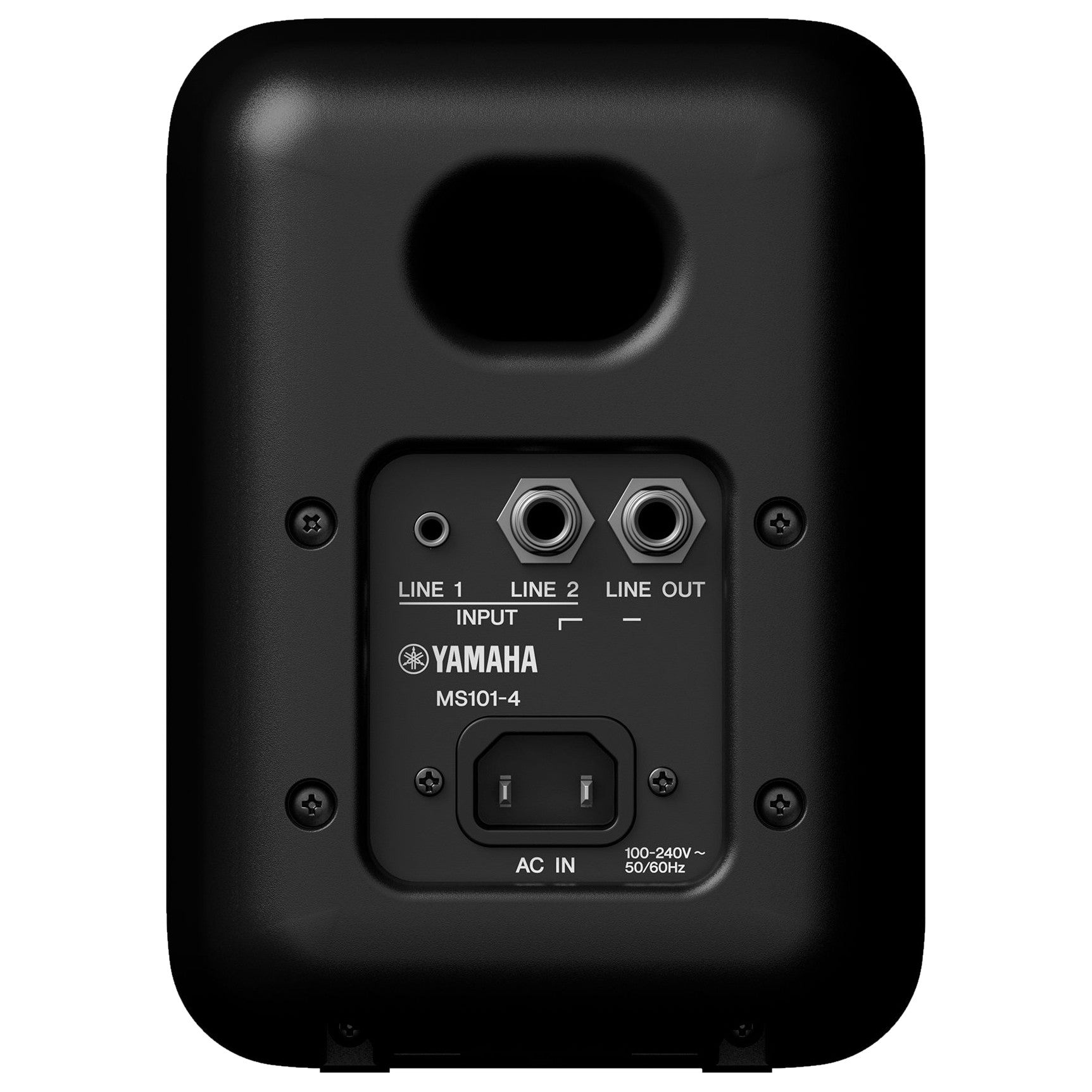

  • Yamaha MS101-4 Powered Studio Monitor back

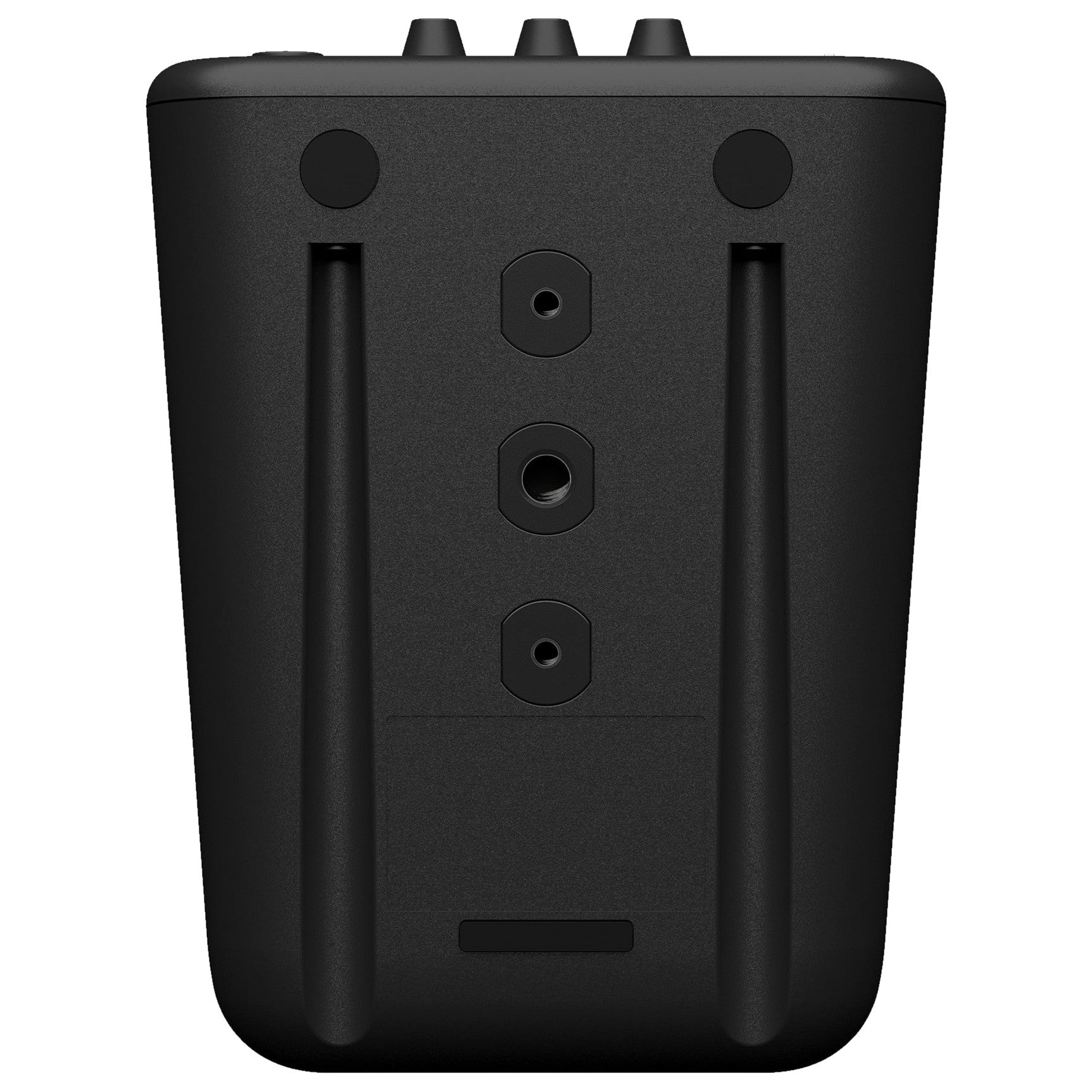

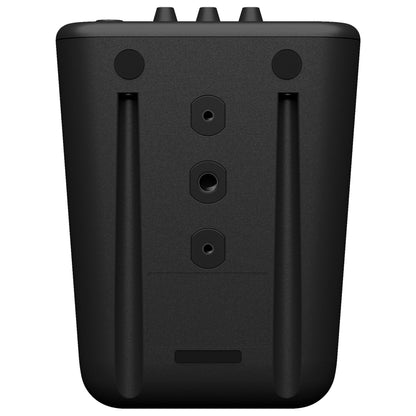

  • Yamaha MS101-4 Powered Studio Monitor top
1 5

Yamaha MS101-4 Powered Studio Monitor

Yamaha MS101-4 Powered Studio Monitor

SoundPro Item: 131170 | Part Number: MS101-4

$169.99
$199.00 $169.99
Your Price Sold out
MSRP: $199.00 | MAP: $169.99

In stock and ready to ship

  • 30W of amplifier power provides clean, high output sound
  • Redesigned enclosure for an even lower profile
  • Combo Input jack accepts both XLR and 1/4" connectors
  • Directly mountable on Euro microphone stands (optional mic stand adaptor BMS-10A is available for adjusting tilt angle)
Log in or register for YOUR best price

13The standard model in our range of desktop utiility powered monitors, the MS101-4 offers portability in a simple, compact design, with comprehensive functions for outstanding usability. The MS101-4 comes with a 3/8-16 threaded female mounting for direct attachment to a Euro microphone stand. Optional accessories can also be added for use in a wide range of applications.

With the controls (power switch, volume and tone controls) and the combo jack input on the lower front panel, you'll find the MS101-4 is easy to operate. The sturdy metal grill offers complete protection for the four-inch cone driver, while the rear panel is equipped with one stereo mini and a TRS Phone input connector, along with an output jack. An AC inlet for a removeable power cord provides excellent portability. The bass reflex port is also located on the rear surface, resulting in a more compact chassis.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
142x196x187mm
Weight
Net Weight
2.1 kg (4.6 lbs)
Electrical
Power Consumption
1/8 Power Consumption: 10 W, Idle Power Consumption: 3 W
Power Requirements
100 V - 240 V, 50/60 Hz
Audio
Speaker Type
Full range Powered Speaker, Bass-reflex Type
Input Impedance
[Front] INPUT: LINE=5.4 kΩ / MIC= 5.4 kΩ, [Rear] INPUT LINE 1,2: 10 kΩ
Input Sensitivity
[Front] INPUT: LINE=-10 dBu / MIC=-40 dBu, [Rear] INPUT LINE 1, 2: -10 dBu (VOLUME: Maximum)
Connectivity
Maximum Output Level (1m; on axis)
115 dB SPL *1
Mic Input
[Front]
INPUT
Combo, [Rear] INPUT LINE 1: Stereo Mini, INPUT LINE 2: Phone (TRS)
Input Level
[Front] INPUT: LINE=+5 dBu / MIC=-25 dBu, [Rear] INPUT LINE 1, 2: +5 dBu (Nominal Input Level / VOLUME: Center), [Front] INPUT: LINE=+20 dBu / MIC=-10 dBu, [Rear] INPUT LINE 1, 2: +20 dBu (Maximum Input Level)
Construction
Amplifier Class
Class-D
General
Frequency Range (-10dB)
77 Hz–20 kHz
Components (LF-HF)
4" Cone, 1" Voice coil, Ferrite magnet
Flying and Mounting Hardware
Screw threads (bottom): 2 x M5 depth 11 mm pitch 60 mm (for 2, M5 x 6-10 mm screws), 1 x 3/8" depth 12 mm (for 1 x 3/8" x 9-11 mm screw)
Dynamic
30 W
Continuous
20 W
Cooling
Natural cooling (no fan)
Line Out
1 x Phone (TRS)
AC
1 x AC inlet
Others
Controls: 1 x VOLUME, 1 x LOW CONTROL, 1 x HIGH CONTROL, POWER
Indicators
POWER (Green LED)
Options
Mic stand adaptor BMS-10A, Free-angle clamp BAS-10, Wall mounting bracket BWS20-190, Ceiling bracket BCS20-150 / BCS20-210
