Yamaha MY4-AD Analog Input Expansion Card

Yamaha MY4-AD Analog Input Expansion Card

SoundPro Item: 47260 | Part Number: MY4AD

$409.99
$447.00 $409.99
Your Price Sold out
MSRP: $447.00 | MAP: $409.99

Usually ships in 5-7 business days

  • 24bit resolution, 4-in analog audio interface
  • 4 x XLR3-31 connectors (balanced)
  • Max input level before clip: +24dBu (default)/+18dBu/+4dBV
  • Dimensions: 120x40x176mm (4.7x1.6x6.9")
Log in or register for YOUR best price

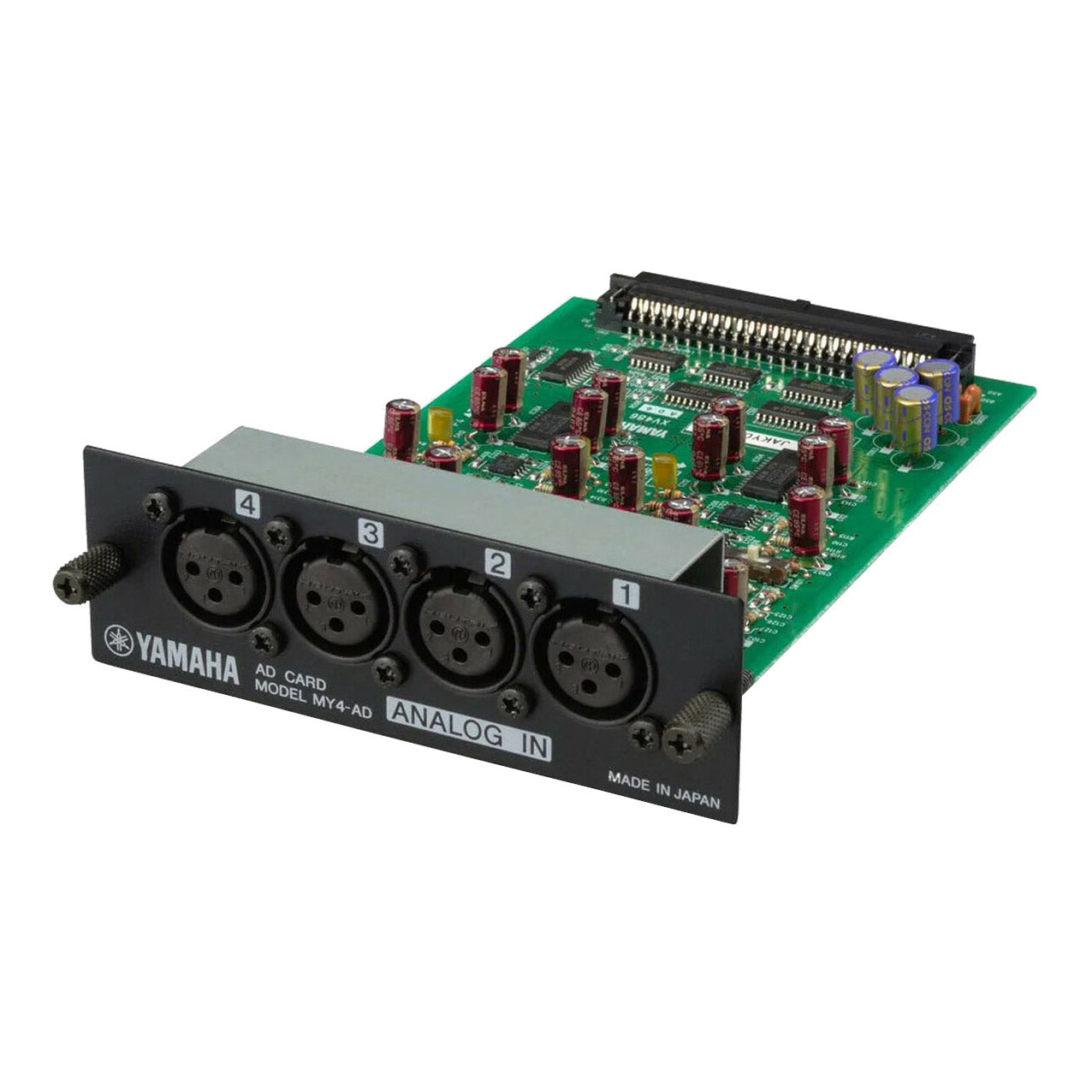

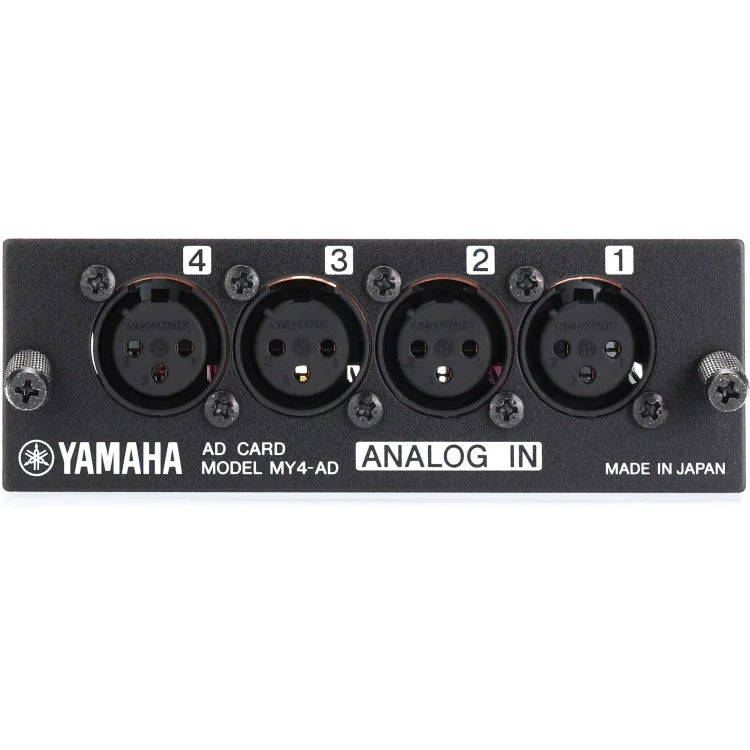

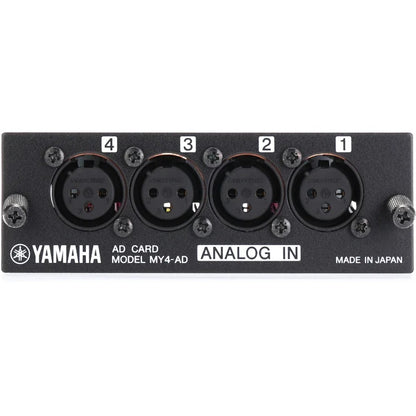

The Yamaha MY4-AD is an optional analog-to-digital input card for compatible Yamaha digital mixing consoles and signal processors. It provides four analog inputs via four balanced XLR3-31 type connectors. Its max input level before clip is +24dBu (default)/+18dBu/+4dBV.

View full details
  • Channel Count 4IN
  • Format Analog
  • Sampling Frequency 44.1/48kHz
  • Resolution 24bit
  • Connector 4 x XLR-3-31 type connectors (balanced)
  • Analog Input Characteristics
    • Input Terminals: ANALOG INPUT 1-4
    • GAIN Switch
      • +24dB
      • +18dB
      • +4dB
    • Actual Load Impedance: 10kΩ
    • For Use with Nominal: 600Ω Lines
    • Input Level
      • Nominal
        • +10dB (2.45V)*
        • +4dB (1.23V)*
        • 10dBV (316mV)**
      • Max. before Clip
        • +24dB (12.3V)*
        • +18dB (6.16V)*
        • +4dBV (1.58V)**
      • Connector: XLR3-31 type Balanced***
      • Notes
        • * 0 dB is referenced to 0.775 Vrms.
        • ** 0 dBV is referenced to 1.00 Vrms.
        • *** 1=GND, 2=HOT, 3=COLD
        • Sampling rate: 30.08kHz - 50.88kHz
