• Yamaha MY8-LAKE Lake Processing Expansion Card
1 1

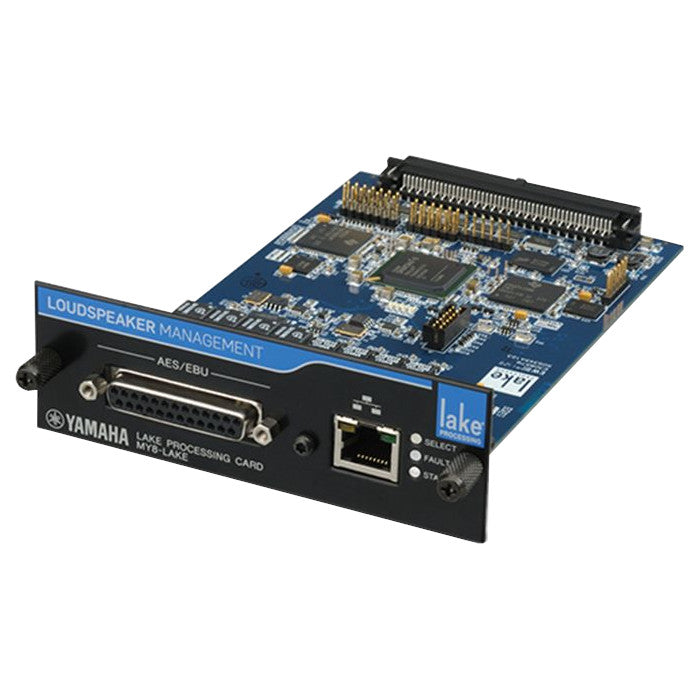

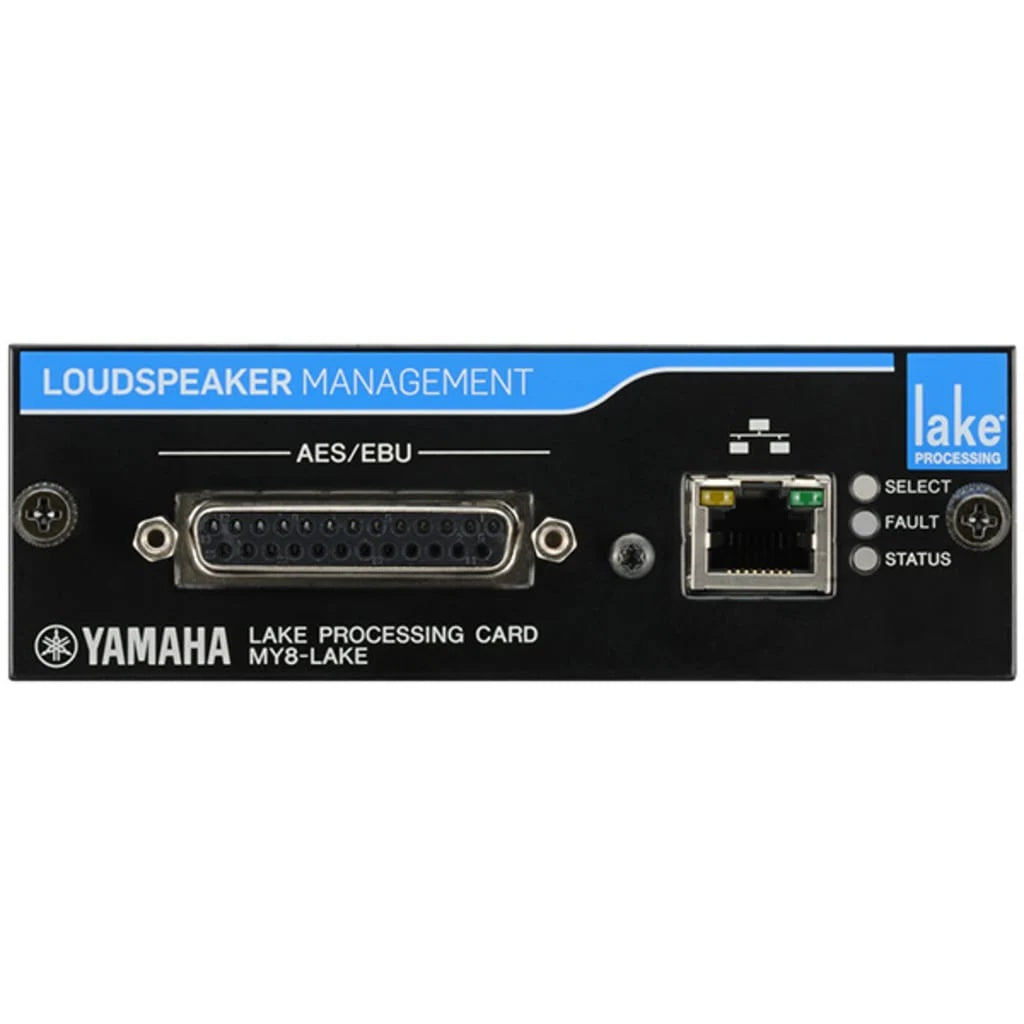

Yamaha MY8-LAKE Lake Processing Expansion Card

Yamaha MY8-LAKE Lake Processing Expansion Card

SoundPro Item: 47262 | Part Number: MY8-LAKE

$3,991.00
$4,190.00 $3,991.00
Your Price Sold out
MSRP: $4,190.00 | MAP: $3,991.00

Usually ships in 5-7 business days

  • 8-in/8-out Mesa mode (system EQ), 4-in/12-out Contour mode (crossover), or a combination of both for versatile processing
  • 96 kHz internal processing, supporting 44.1 kHz, 48 kHz, and 88.2 kHz sample rates
  • Compatible with Smart sound system measurement software for efficient, effective speaker tuning
  • Flexible system setup via Yamaha digital mixer insert points and MY8-LAKE card AES/EBU connectors
  • Lake Controller software application allows comprehensive overall management of all Lake devices in the system
  • Over 1,000 speaker presets included for fast, accurate tuning with a wide range of systems
Log in or register for YOUR best price

The MY8-LAKE is a DSP card for Yamaha digital mixing consoles, developed through close technological cooperation between Yamaha and Lake.

Lake Processing has become the de-facto standard for speaker processing in live sound applications. With the Yamaha MY8-LAKE Lake Processing Expansion Card delivers the full power of Mesa EQ, Ideal Graphic EQ, and Linear Phase Crossover functions are packed into one compact card, providing immense processing capability and precise, intuitive control right at your fingertips.

Note: When using MY8-LAKE with the PM5D/PM5D-RH, a hardware upgrade for the PM5D/PM5D-RH is necessary. Please note that a fee will be charged for this upgrade.

View full details
  • Sampling Frequency
    • Mini-YGDAI I/F
    • AES/EBU Input/Output: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
    • Internal Operating Frequency: 96 kHz
  • Signal DelayBest case (synchronous 96 kHz to synchronous 96 kHz) from AES input to AES output via module (Contour or Mesa): 0.7185 ms
  • Power Requirementsmaximum 3W
  • Temperature range
    • Operating: 0 to 40 °C (32 to 104 °F)
    • Storage: -20 to 60 °C (-4 to 140 °F)
  • I/O Characteristics
    • AES/EBU (In/Out Ch 1-8)
      • Format: AES/EBU
      • Datalength: 24 bit
      • Sampling Frequency: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz (I/O individually selectable per Ch)
      • Level: RS422
      • Connector: D-sub 25 pin
  • NETWORK (Ethernet)
    • Format: 10Base-T/100Base-T
    • Connector: RJ-45
