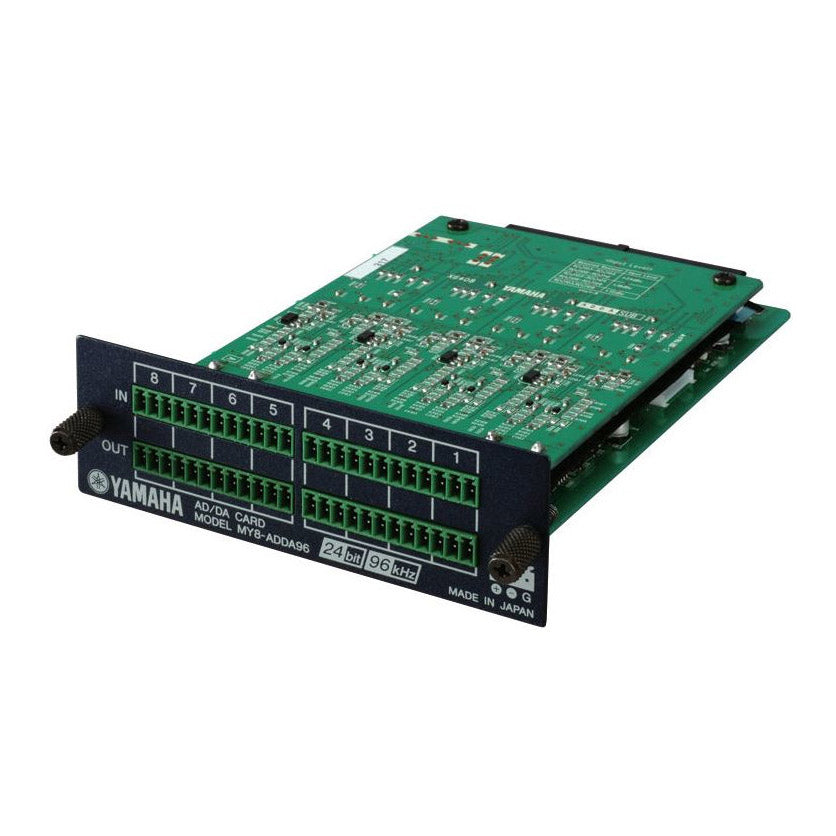

Yamaha MY8ADDA96 8-Channel Analog I/O Expansion Card

Yamaha MY8ADDA96 8-Channel Analog I/O Expansion Card

SoundPro Item: 47265 | Part Number: MY8ADDA96

$999.99
$1,122.00 $999.99
Your Price Sold out
MSRP: $1,122.00 | MAP: $999.99

Usually ships in 5-7 business days

  • 24bit resolution, 96kHz compatible 8-in/8-out analog audio interface

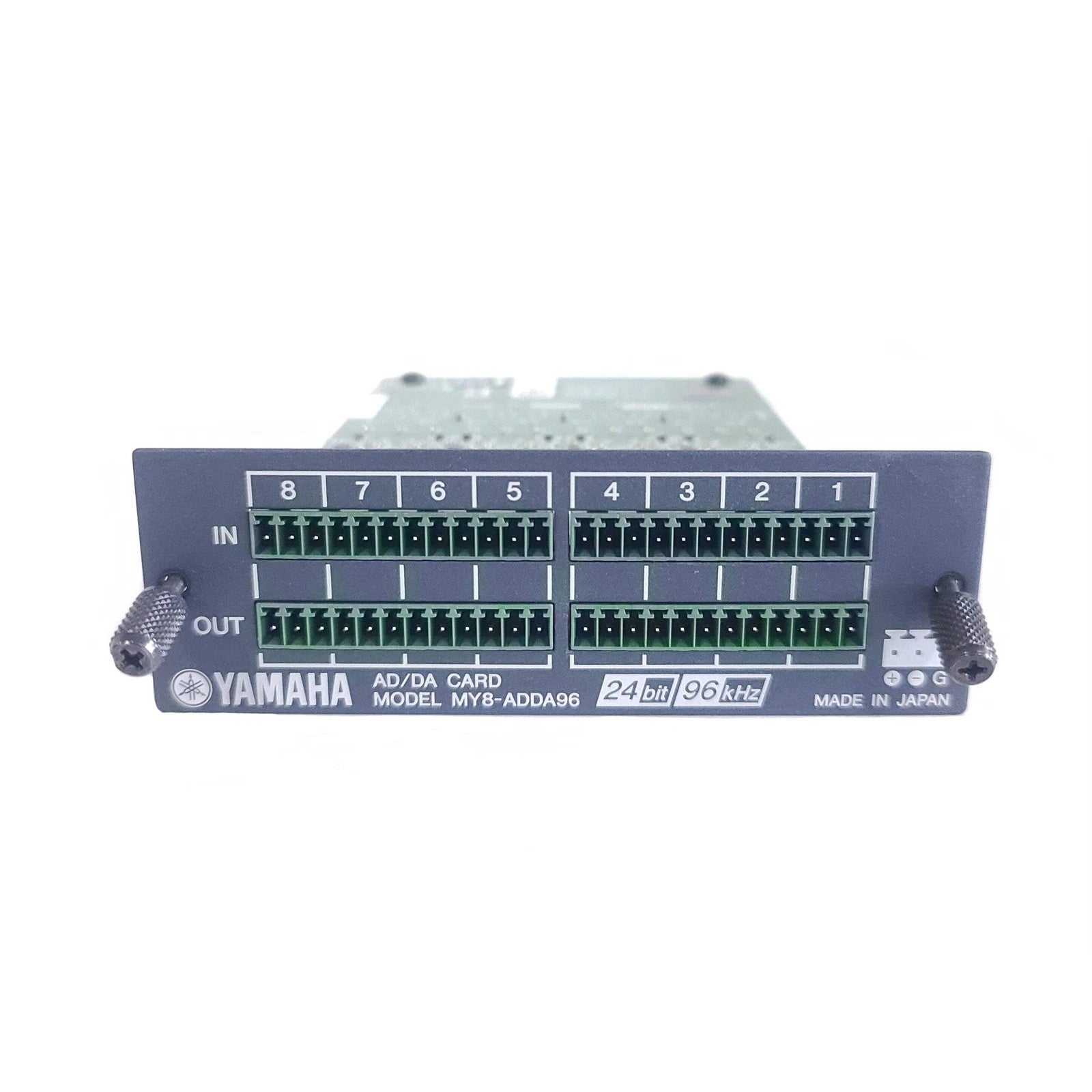

  • EuroBlock connectors
  • Max input/output level before clip: +24dBu
  • Dimensions: 120x40x176mm (4.7x1.6x6.9")
Log in or register for YOUR best price

In addition to full 96 kHz support, the MY8-ADDA96 features Euroblock connectors for optimum reliability and connection ease in a wide variety of installations.

Offering 8 channels of analog input plus 8 channels of analog output in a single-slot card, the MY8-ADDA96 has been specifically designed for use with Yamaha's DME24N or DME64N Digital Mixing Engines, but is also an excellent I/O expansion choice for Yamaha digital mixing consoles.

Another advantage is low power consumption that allows up to four of these cards to be installed in one DME64N unit providing a total of 32 analog inputs and outputs without placing excessive power load on the system. And, of course, the MY8-ADDA96 employs high-performance A/D and D/A converters that deliver superior sound for any application.

View full details

Specifications

Electrical
Actual Load Impedance
10kΩ
Actual Source Impedance
10kΩ
Connectivity
Connector
EuroBlock connectors (balanced)
Input Terminals
In 1-8
Input Level (Max. Before Clip)
+24dBu (12.28V)
Analog Input Characteristics
*1. In these specifications, when dBu represents are specific voltage, 0 dBu is referenced to 0.775 Vrms., *2.AD converters are 24bit linear, 128 times oversampling. (Fs=44.1kHz, 48kHz)/64 times oversampling. (Fs=88.2kHz, 96kHz
Output Terminals
Out 1-8
Output Level (Max. Before Clip)
+24dBu (12.28V)
Analog Output Characteristics
*1. In these specifications, when dBu represents are specific voltage, 0 dBu is referenced to 0.775 Vrms., *2.DA converters are 24bit linear, 128 times oversampling. (Fs=44.1kHz, 48kHz)/64 times oversampling. (Fs=88.2kHz, 96kHz)
General
Format
Analog
Resolution
24bit
For Use with Nominal
6000Ω Lines
Configuration
Channel Count
96kHz compatible 8IN / 8OUT
