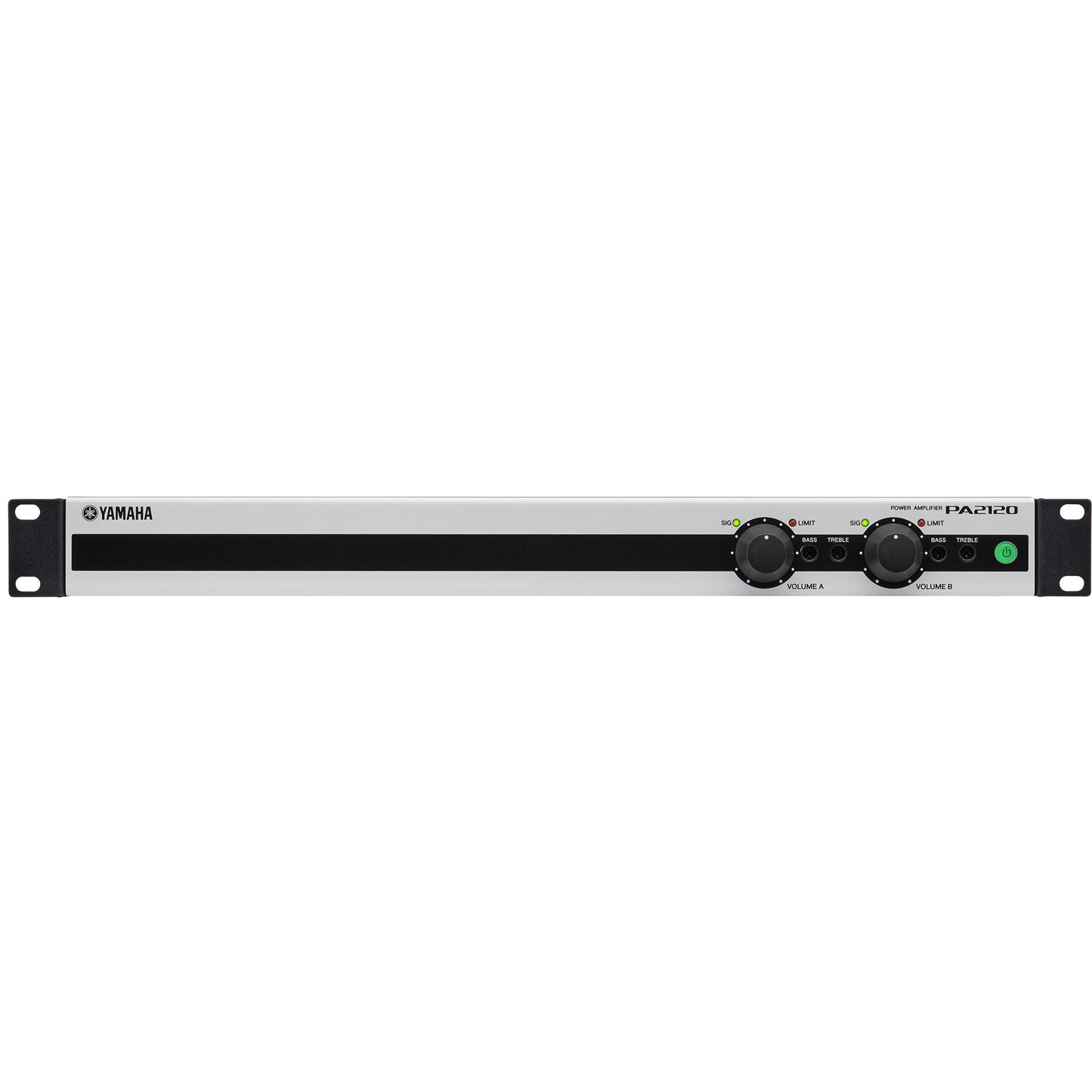

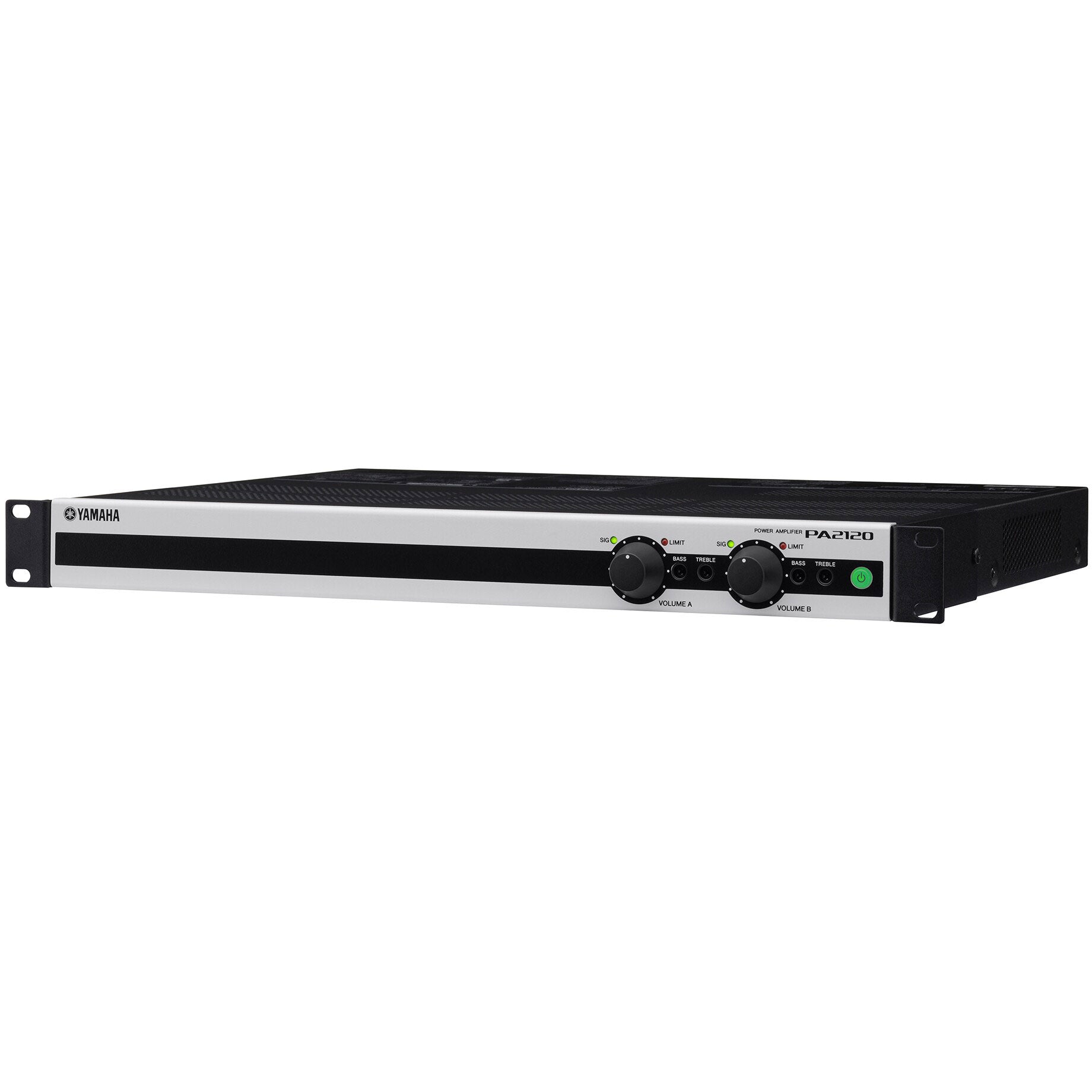

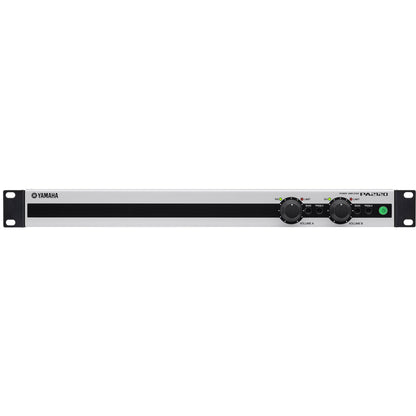

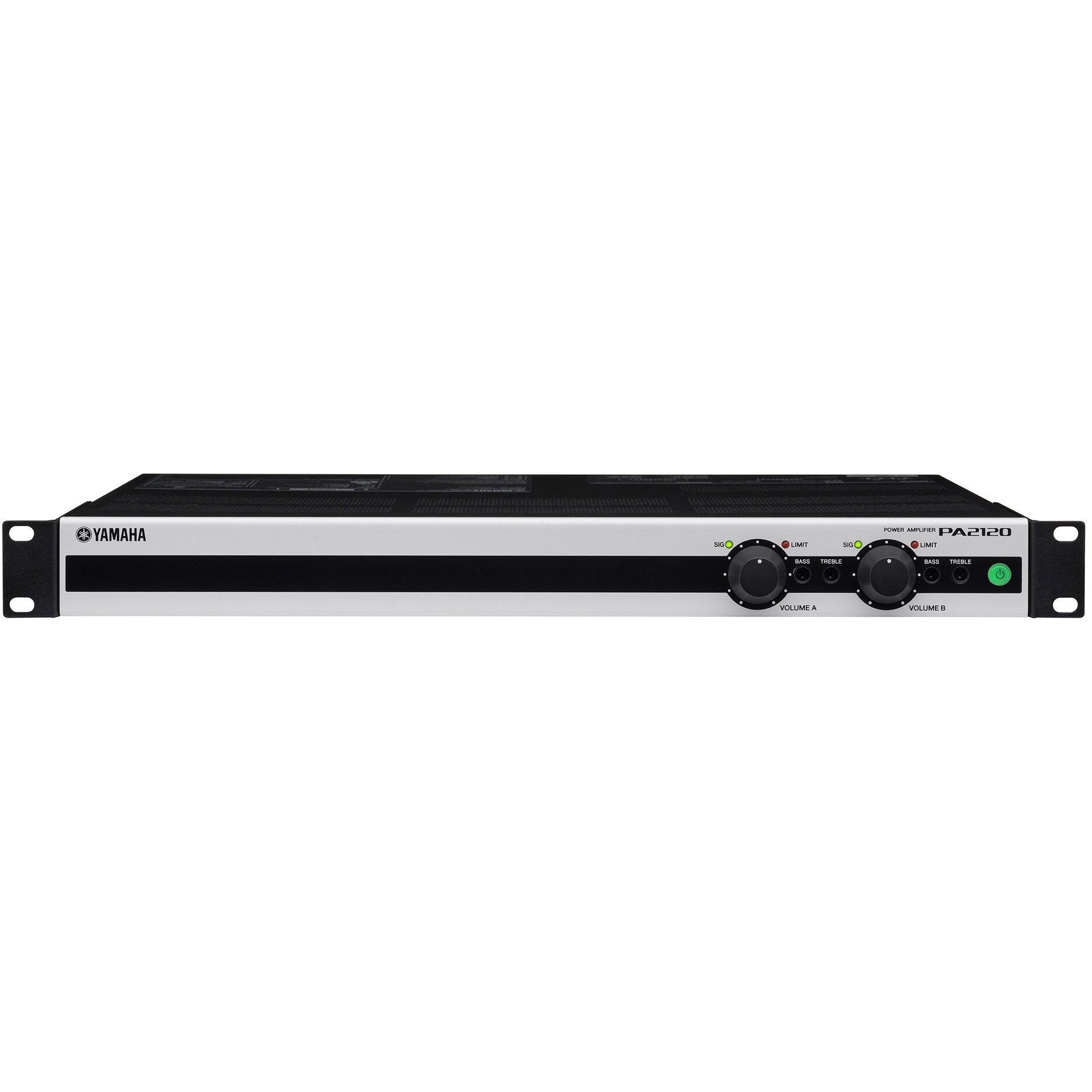

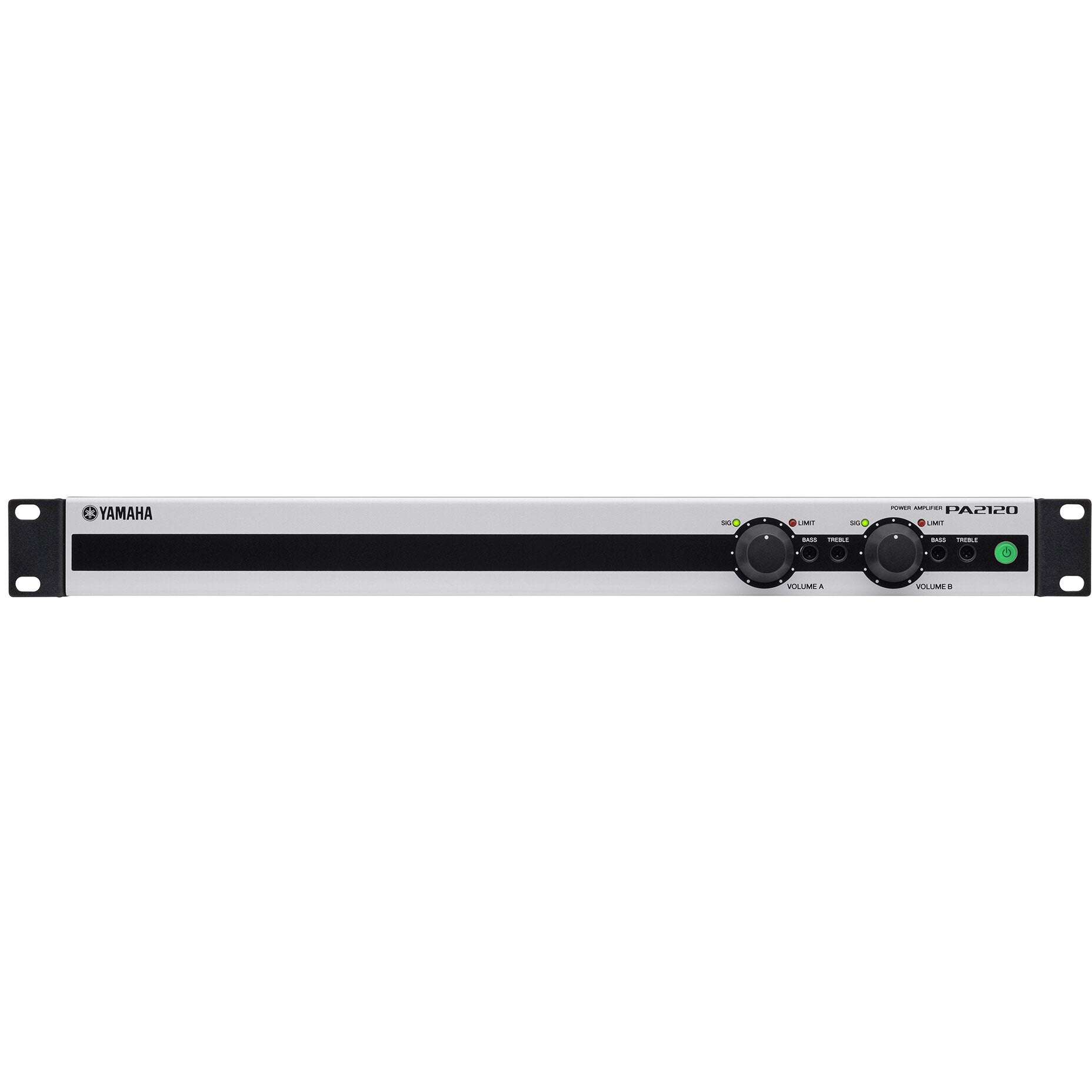

Yamaha PA2120 2-Channel Mixer Amplifier

Yamaha PA2120 2-Channel Mixer Amplifier

SoundPro Item: 76121 | Part Number: PA2120

$745.99
$877.00 $745.99
Your Price Sold out
MSRP: $877.00 | MAP: $745.99

Usually ships in 5-7 business days

  • Easy setup, and a user-friendly interface for effortless operation
  • Supporting Lo-Z (120W x2ch @4Ω or 100W x2ch @3Ω/8Ω) and Hi-Z (120W x2ch or 200W x1ch, 70V/100V) speaker systems
  • 1 stereo/2 mono line inputs
  • Output EQ for optimizing the sound of each Output channel
  • Built-in speaker EQ optimum for Yamaha VXC/VXS series speakers, as well as HPF and selectable LPF settings
  • Capable of controlling sources and volumes seperately in two areas (Source/volume zoning)
  • Service areas or zoning areas can be expanded by adding a PA2120
  • Remote volume control and microphone on/off switching via optional DCP control panels (DCP4V4S, DCP1V4S, DCP4S, max 2 units)
  • Intelligent protection function ensures safe, reliable operation
  • Certified by ENERGY STAR
  • Certified as Yamaha Eco Products
  • Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling.)
Log in or register for YOUR best price

Lo-Z/Hi-Z switchable Class-D amplifier (Lo-Z: 120W x2 @4Ω, 100W x2ch @3Ω/8Ω, Hi-Z: 120W x2ch or 200W x1ch, 70V/100V) equipped with 1 stereo/2 mono line inputs; can be combined with the MA2120 mixer amplifier.

View full details

Specifications

Output power
1kHz (THD+N=1%: 3Ω)
100W x 2 (20ms Burst)
1kHz (THD+N=1%: 4Ω)
120W x 2 (20ms Burst)
1kHz (THD+N=1%: 8Ω)
100W x 2 (20ms Burst)
High impedance: 100V line
120W x 2 or 200W x 1
High impedance: 70V line
120W x 2 or 200W x 1
Total harmonic distortion
≤0.2% (Line in to Speaker out, Half power @1kHz, 3Ω/4Ω/8Ω), ≤0.2% (Line in to Speaker out, Half Power @1kHz, 70V/100V, 120W/200W)
Frequency response
0dB, -2.5dB, +1.0dB (Line in to THRU OUT, 20Hz to 20kHz), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 50Hz to 20kHz, 1W, 3Ω/4Ω/8Ω), 0dB, -3.0dB, +1.0dB (Line in to Speaker out, 90Hz to 20kHz, 1W, 70V/100V, 120W/200W)

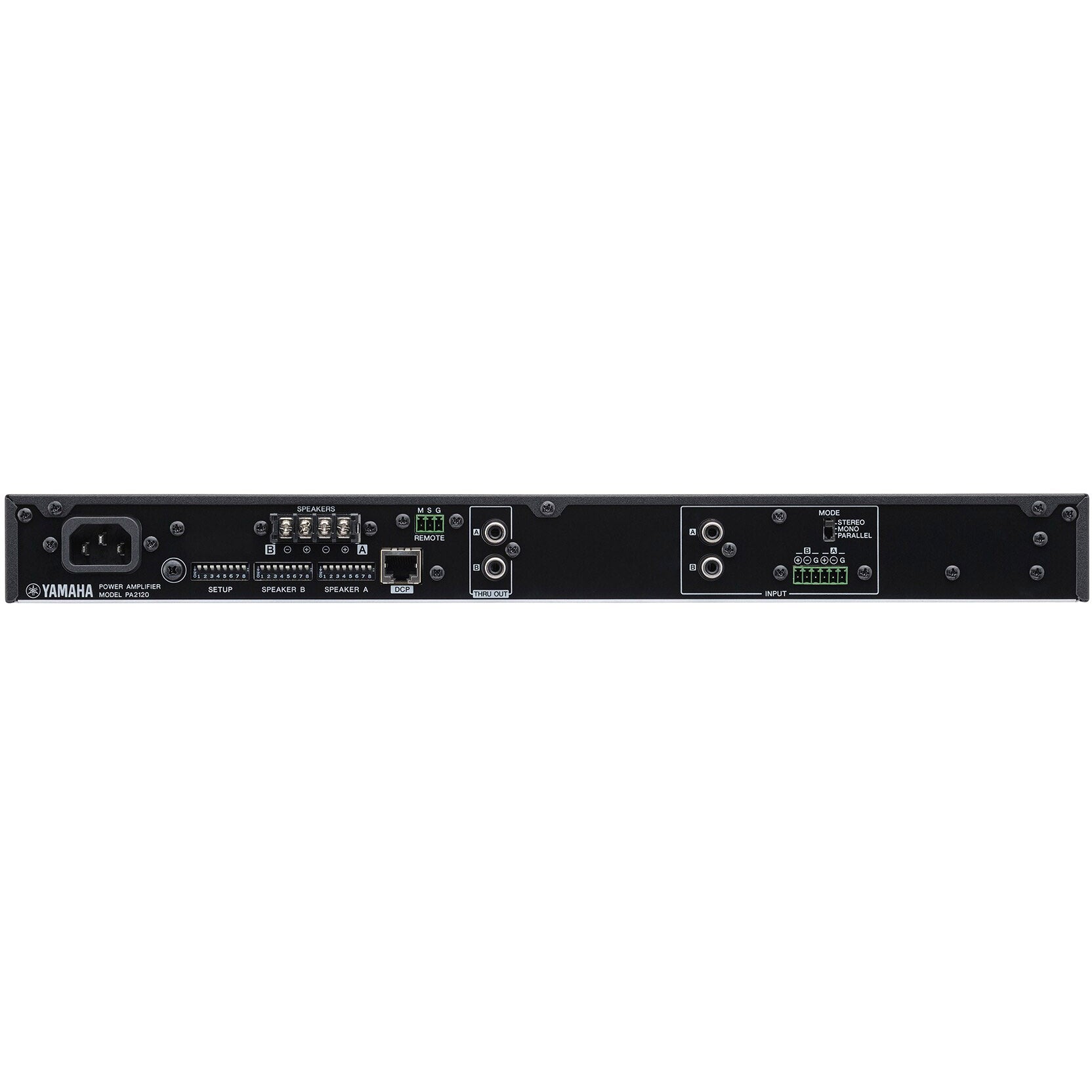

I/O Connectors
Line Input
Input A-B:MONO RCA pin x 2 (unbalanced) or 3.5mm Euro block (6-pin, balanced)
Speaker Output
Barrier strip x 2 pairs
Line Out
THRU OUT: MONO RCA pin (unbalanced) x2
Control ports
RJ-45 (for DCP4V4S, DCP1V4S , DCP4S), Remote (3.5mm Euro block 3-pin)
Input Level
Line input (unbalanced): -10dBV (Sensitivity), -10dBV (Nominal), +10dBV (Max before clip) / Line input (balanced): +4dBu (Sensitivity), +4dBu (Nominal), +24dBu (Max before clip)
Output Level
-10dBV (THRU OUT, Nominal)
Processors
Speaker EQ (VXS:Full Range, VXC, VXS10S/ST), HPF (150Hz), LPF (150Hz, 200Hz)
Protection circuit
Load protection
Power switch on/off: Mute the output*, Output voltage protection: Compress the output*, DC-fault: Power supply shutdown (*Restored automatically)
Amplifier protection
Thermal: Limit the output* → Mute* → Shutdown, Over current: Mute the output*, Integrated power limit: Compress the output* (*Restored automatically)
Power supply protection
Thermal: Power supply shutdown, Over voltage: Power supply shutdown, Over current: Limit the output* →Power supply shutdown (*Restored automatically)
Amplifier class
Class D
Cooling
Conventional cooling, bottom to up airflow
Power requirements
100V, 120V, 230V - 240V, 50Hz / 60Hz
Power consumption
60W (1/8 max power, 4Ω, AC100V, pink noise at all channels)
Dimensions (WxHxD)
480mm (18.9”) x 45mm (1.8”) x 379mm (14.9”)
Net weight
4.8kg (10.6lbs)
Accessories
AC power cable, 3.5mm Euroblock plug (6-pin) x 1, Euroblock pulg (3-pin) x 1, Owner's manual, Specification sheet
Options
DCP4V4S, DCP1V4S, DCP4S (Digital Control Panel)
Certificate
ENERGY STAR
Others
Operating Temperature: 0°C to + 40°C, Storage Temperature: -20°C to + 60°C, Rack-mountable when ensuring sufficient ventilation above and below the unit
