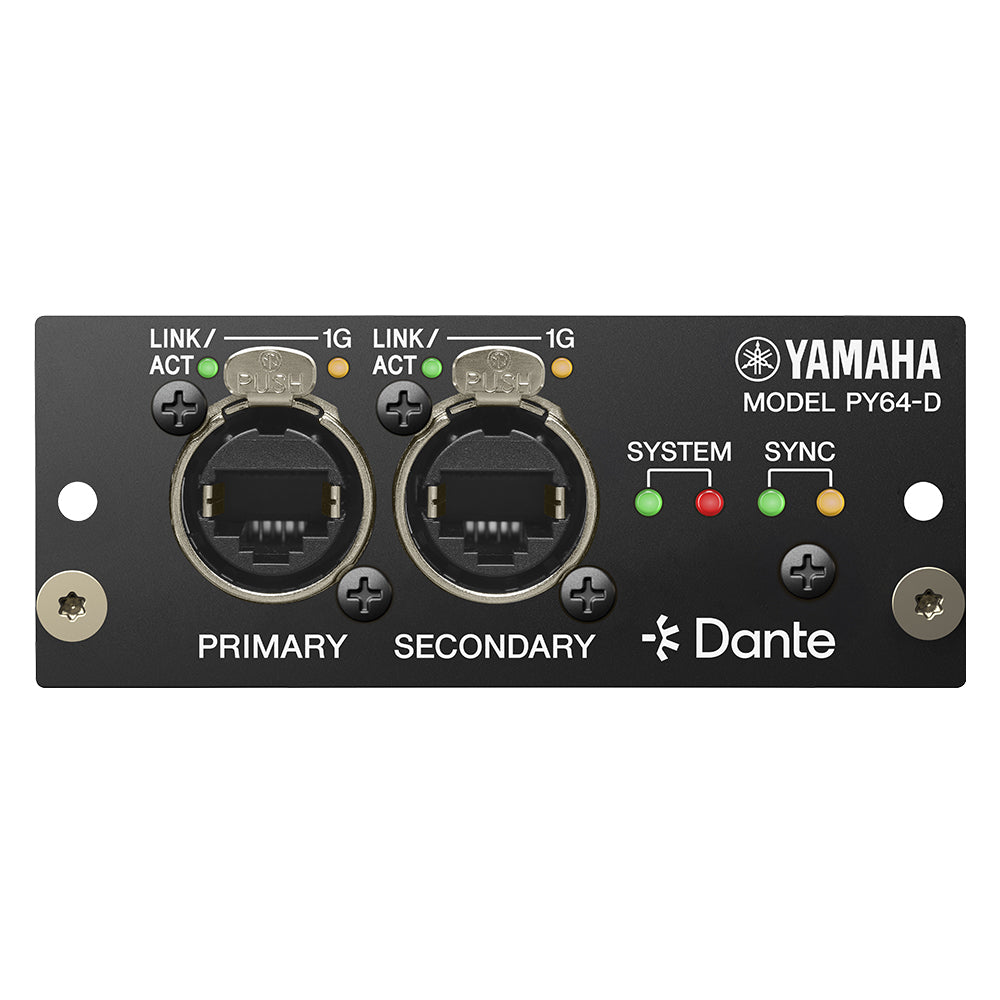

Yamaha PY64-D Dante Interface Card with SRC

Yamaha PY64-D Dante Interface Card with SRC

SoundPro Item: 146487 | Part Number: PY64-D

$1,889.99
$2,205.00 $1,889.99
Your Price Sold out
MSRP: $2,205.00 | MAP: $1,889.99

Usually ships in 5-7 business days

  • 64in/out at 96kHz with SRC
  • SRC settings available directly from the console GUI
  • Redundant connections are supported with primary and secondary connectors
  • Daisy chain connections also supported
  • Synchronous and asynchronous SRC options available, ensuring straightforward connections for complex systems and devices using different sample rates
Log in or register for YOUR best price

The Yamaha PY64-D expands the Dante connection on the DM7 Series with sample rate converter (SRC) functions, ensuring straightforward connections for complex systems, including devices using different sample rates. By connecting the DM7 Series’ built-in Dante connectors and those on the PY64-D card to different Dante networks, the DM7 console can be used as a bridge between them, providing a secure option. It features 64 inputs and 64 outputs at 96 kHz with both synchronous and asynchronous SRC modes available. The SRC setting is available from the console, and the redundant connections are supported with primary and secondary connectors.

View full details
  • Dante Clock 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz (-4%/-0.1%/+0.1%/+4.167%
  • Sampling Rate ConverterFrom 44.1 kHz -4% to 96 kHz +4.167%
  • Operating Temperature Range 32 to 104 degrees F (0 to 40 degrees C)
  • Storage Temperature Range-4 to 140 degrees F (-20 to 60 degrees C)
  • TerminalPRIMARY , SECONDARY
  • FormatDante
  • Data Length24-bit / 32-bit*1
  • Level1000BASE-T
  • Audio64x64
  • Connector etherCON CAT5e *2 *3
  • Power Consumption 5.5 W
  • Dimensions (W x H x D) 3.94 inches x 1.57 inches x 5.31 inches
  • Net Weight.66 lbs.
  • *1 Features a sampling rate converter. Supported data length: 24-bit only. Supported frequency: 44.1 kHz -4% to 96 kHz +4.167
  • *2 CAT5e or higher cable is used for connection
  • *3 STP cable is recommended for connection
