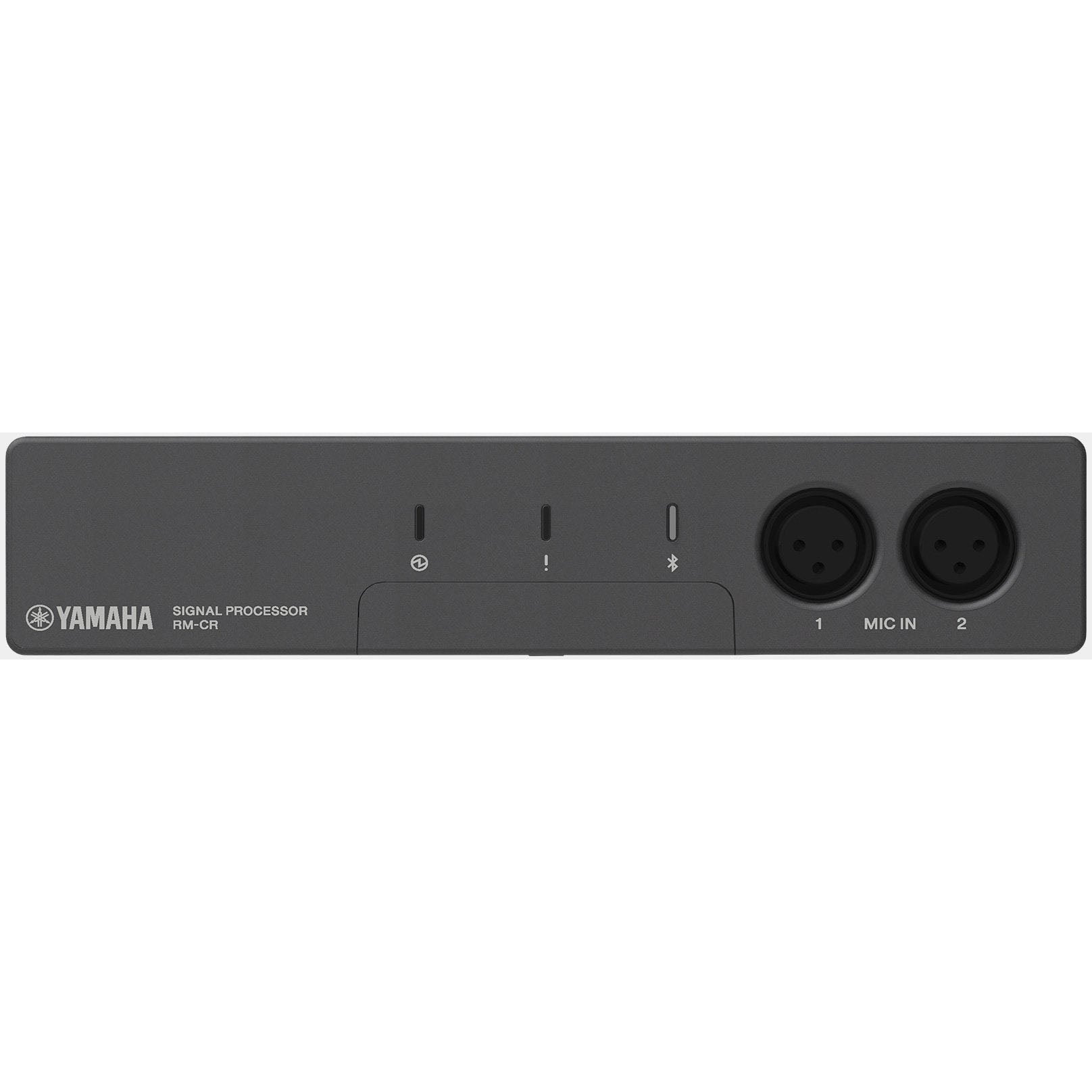

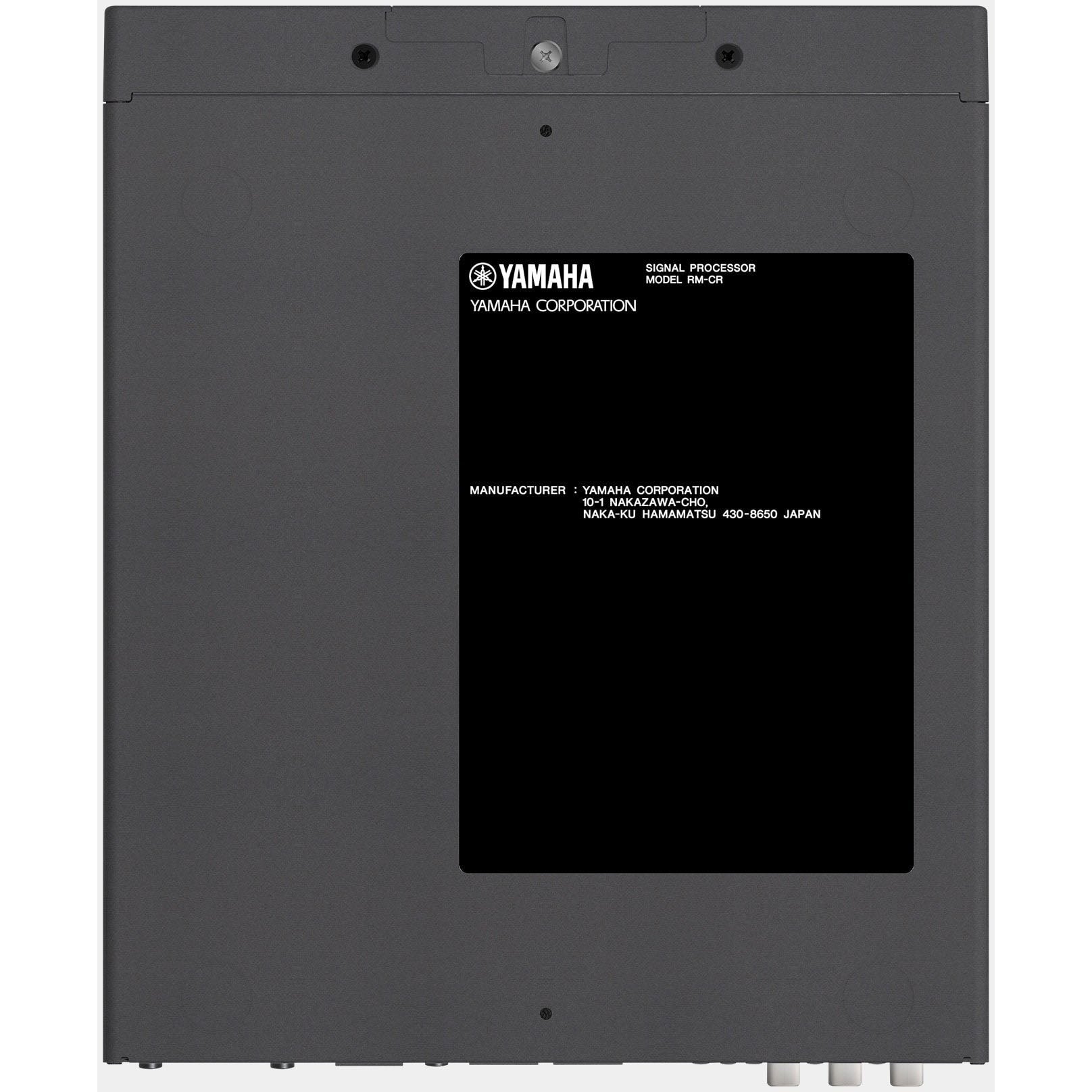

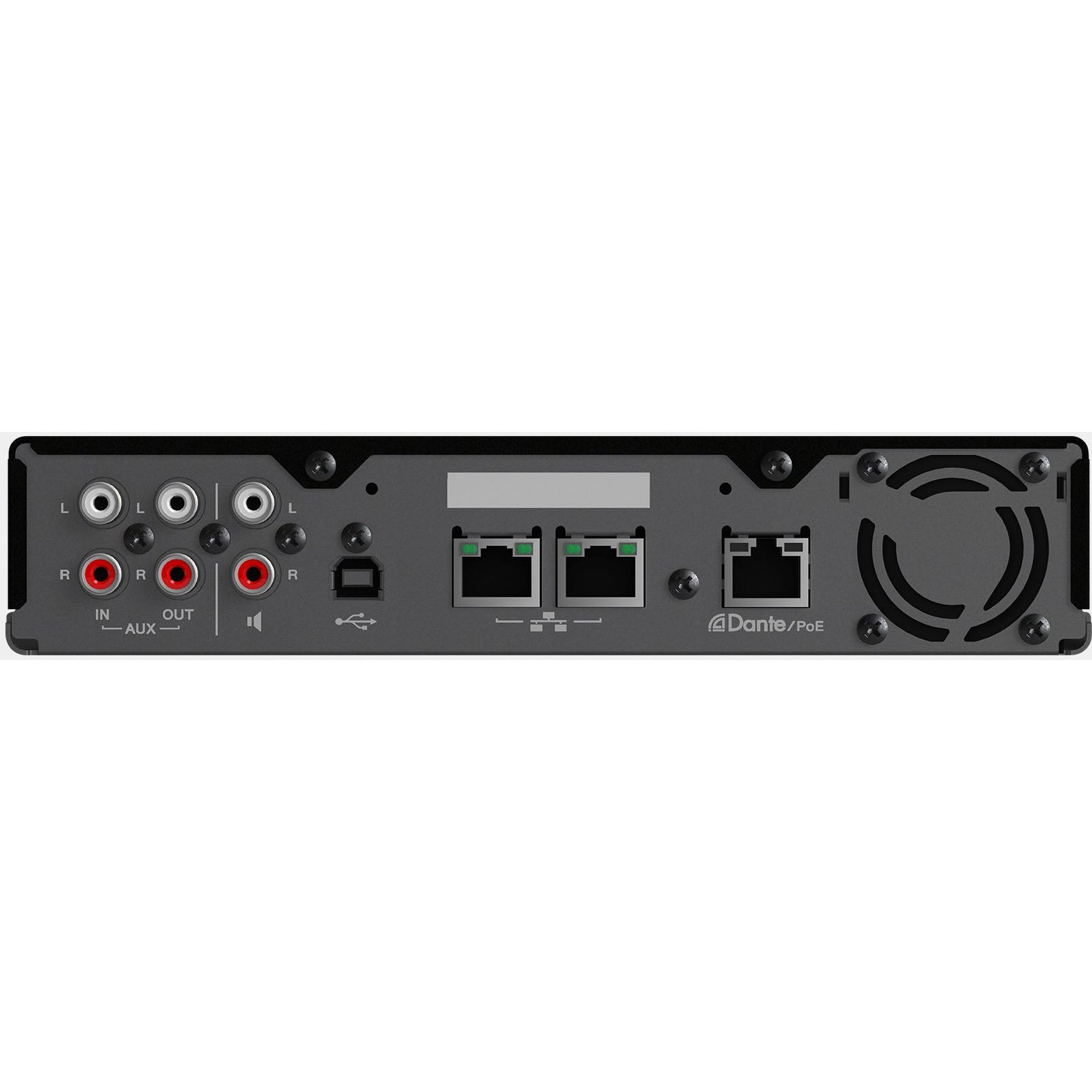

Yamaha RM-CR RM Audio Processor

Yamaha RM-CR RM Audio Processor

SoundPro Item: 138786 | Part Number: RM-CR

$2,199.99
$2,200.00 $2,199.99
Your Price Sold out
MSRP: $2,200.00 | MAP: $2,199.99

Usually ships in 5-7 business days

  • Standard network audio support for "Dante"; all compatible devices can be connected with single network cable
  • Automatically recognizes connected devices on the same network for audio routing
  • Equipped with the Auto Tuning functions that automatically measure and provide the optimum sound settings for the environment
  • Equipped with the Auto Mixer functions that automatically mix the audio of all connected microphones
  • Equipped with various Input/Output connections such as USB, VoIP,, analog, and Bluetooth
Log in or register for YOUR best price

Signal processor at the heart of the ADECIA

View full details

Specifications

Dimensions
W 215 mm x D 260 mm x H 44 mm
Weight
1.6 kg
Supported OS
Windows 11, Windows 10 (32 bit/64 bit), Windows 8.1 (32 bit/64 bit), macOS 12, macOS 11, macOS 10.15
Power Requirements
PoE+ (IEEE 802.3at, LLDP), DC 48 V
Maximum Power Consumption
15.0 W
Connector
RJ 45, USB, XLR balanced, RCA
In Operation
Temperature
0 - 40°
Humidity
30 % - 90 % (No condensation)
Storage
Temperature
-20 - 60°
Humidity
20 % - 90 % (No condensation)
Indicator
Power Indicator, Status Indicator, Bluetooth Indicator, Network Port Indicator (x3)
Mount
Table Mount, Rack Mount
Maximum Device Number with RM-CR
-
Accessories
Installation Manual, USB Cable (A-B) 5 m (16.4 ft), USB Cable (A-micro B) 1 m (3.3 ft), 4x Rubber foot, Access Panel
Options
RM-MTL: Table Mount Kit, RM-MRK: Rack Mount Kit
Network Specifications
Ether1
Dante Audio/Dante Control, Remote Control, WebUI, PoE+
Ether2/Ether3
Corporate Network, Remote Control, SIP, Web UI
USB
USB2.0, Network Class, Web UI, Fixed IP
Audio Specifications
Audio I/O (Dante)
16in/16out
USB
USB2.0, Audio Class 1.0, Input: 2 ch, Output: 2 ch @48 kHz
Mic Input
XLR balanced, Input 2 ch
AUX
RCA unbalanced (Line Level), Input: 2 ch, Output: 2 ch
Speaker Out
RCA unbalanced (Line Level), Output: 2 ch
Bluetooth
Version
Bluetooth 4.2
Supported Profiles
HFP (1.6), A2DP, AVRCP
Supported Codec
CVSD, SBC, mSBC
Wireless Output
Class2
Maximum Communication Distance
10 m (32.8 ft) (no obstacles)
Radio Frequency (Operational Frequency)
2,402 to 2,480 MHz
Maximum Output Power (EIRP)
4.0 dBm (2.5 mW)
SIP
Call Handling
Dial, Answer, Hold, Resume, Forwarding, Do not disturb, Call ID, Voice Mail Notifications (switch configured)
Call Bridging
Supports Bridging SIP, USB, BT and AUX Calls. Join, Split, Hold, Resume, 5+1 Lines: Up to 2 SIP calls, 1 USB call, 1 Bluetooth Call, 1 AUX, plus the user
Codecs
G.711, G.722HD, G.729ab, G.726
DTMF Support
RTP event, SIP in-band, SIP info package
Security
SRTP Support (RFC 1889), IETF SIP support(RFC 3261 and companion RFCs)
Sampling Rate
48 kHz
Bit Depth
24 bit
Latency
8 [ms] (Dante In to USB Out, includes signal processing)
Frequency Response
20 Hz - 20 kHz
