Specifications
Audio
Frequency Response
160 Hz - 16 kHz (-10 dB)
Sampling Rate
48 kHz
Bit Depth
24 bit
Audio I/O
1in x 2out, In1=AEC reference signal/Out1=output of beam mix, Out2=output of beam mix (simple processed)
Maximum Input Level of SPL (0dBFS)
106.8 dB SPL
Self Noise
6.3 dBA SPL
SN Ratio (Ref. 94 dB SPL at 1 kHz)
87.7 dBA
Sensitivity
-12.8 dBFS/Pa
Dynamic Range
100.5 dBA
Latency
46 ms (except toroidal directivity), 50 ms (toroidal directivity), 20 ms (low-latency mode except toroidal directivity), 23 ms (low-latency mode toroidal directivity)
Signal Processing
Auto Voice Tracking, Selectable Polar Pattern (Cardioid, Hyper-cardioid, Super-cardioid, Omnidirectional, Bidirectional, Toroid), Adaptive Echo Canceller, Noise Reduction, Dereverberation, Auto Mixer, Auto Gain Control, Parametric EQ, Output Gain Adjustment
Connectivity
Ether1
Dante Audio/Dante Control, Remote Control, Web UI, PoE
Cable Requirements
Cat 5e or higher (STP)
Maximum Device Number with RM-CR
14 (without VXL1-16P, up to 16)
Electrical
Power Requirements
PoE (IEEE 802.3af)
Maximum Power Consumption
4.5 W
Dimensions
Dimensions
W140 mm x D140 mm x H41.5 mm
Weight
Weight
310 g
Environmental
Operating Temperature
0 - 40 degrees C
Operating Humidity
30% - 90% (No condensation)
Storage Temperature
-20 - 60 degrees C
Storage Humidity
20% - 90% (No condensation)
Construction
Color
Black
Indicator
Mute Indicator (Mute/Unmute), Status Indicator (Ring), Network Port Indicator
Included Items
Accessories

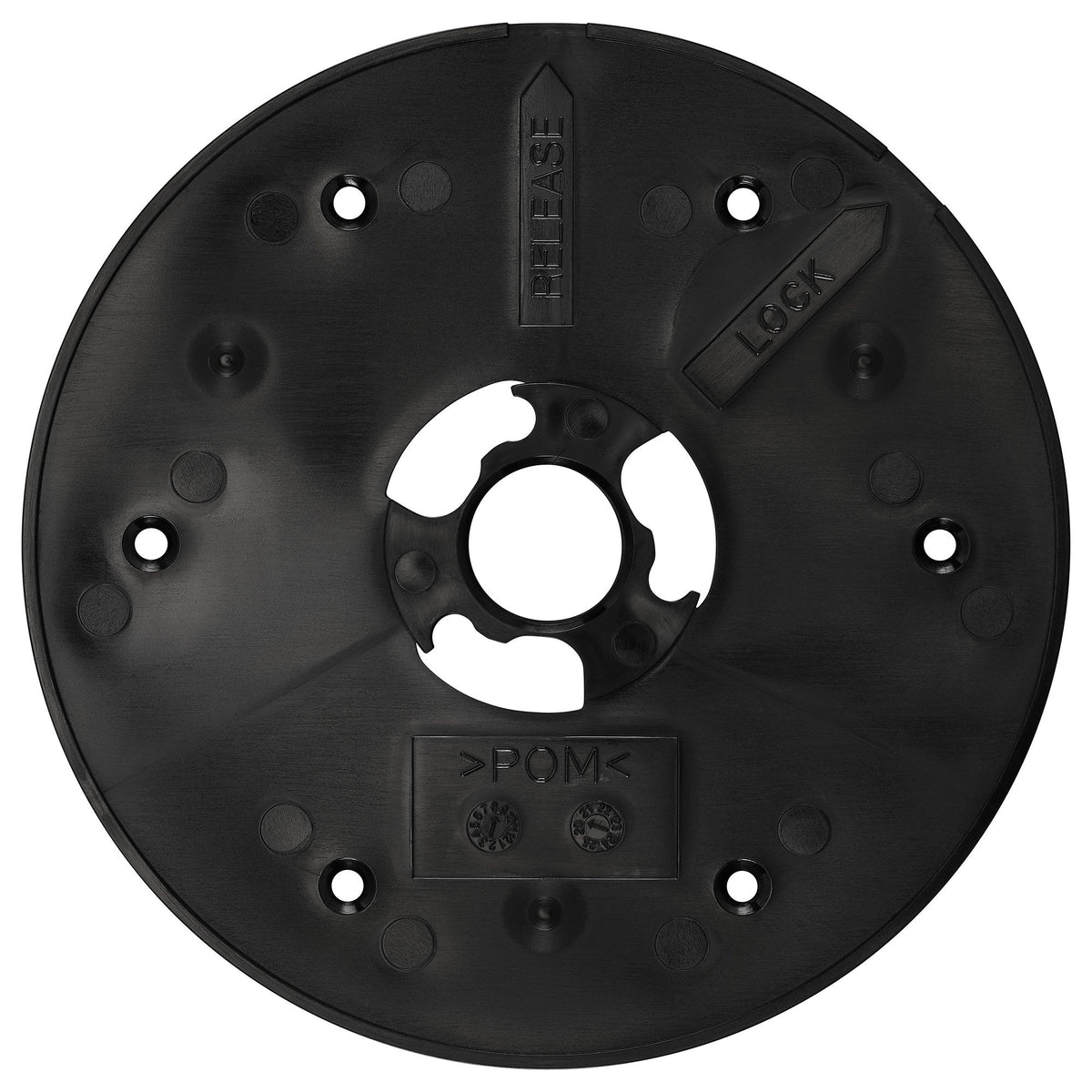

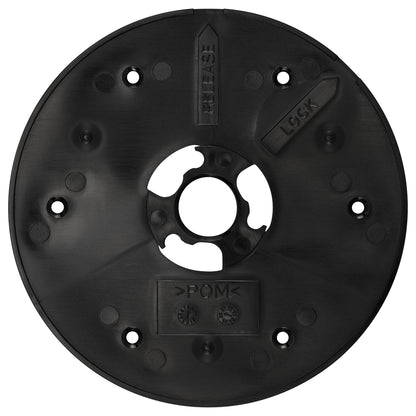

Installation Manual, Table-top mounting adapter, 3 x Screw for mounting, 3 x spacer
