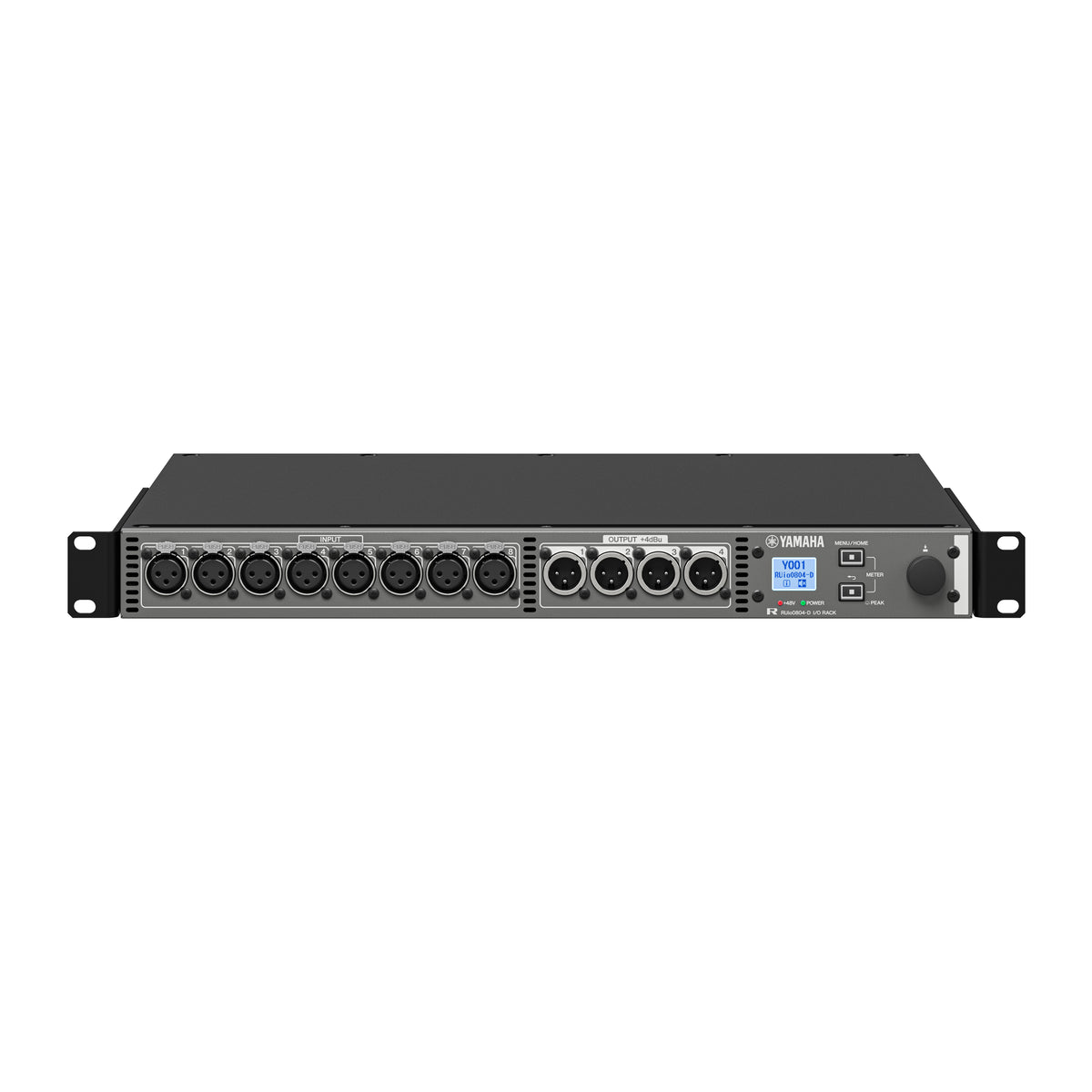

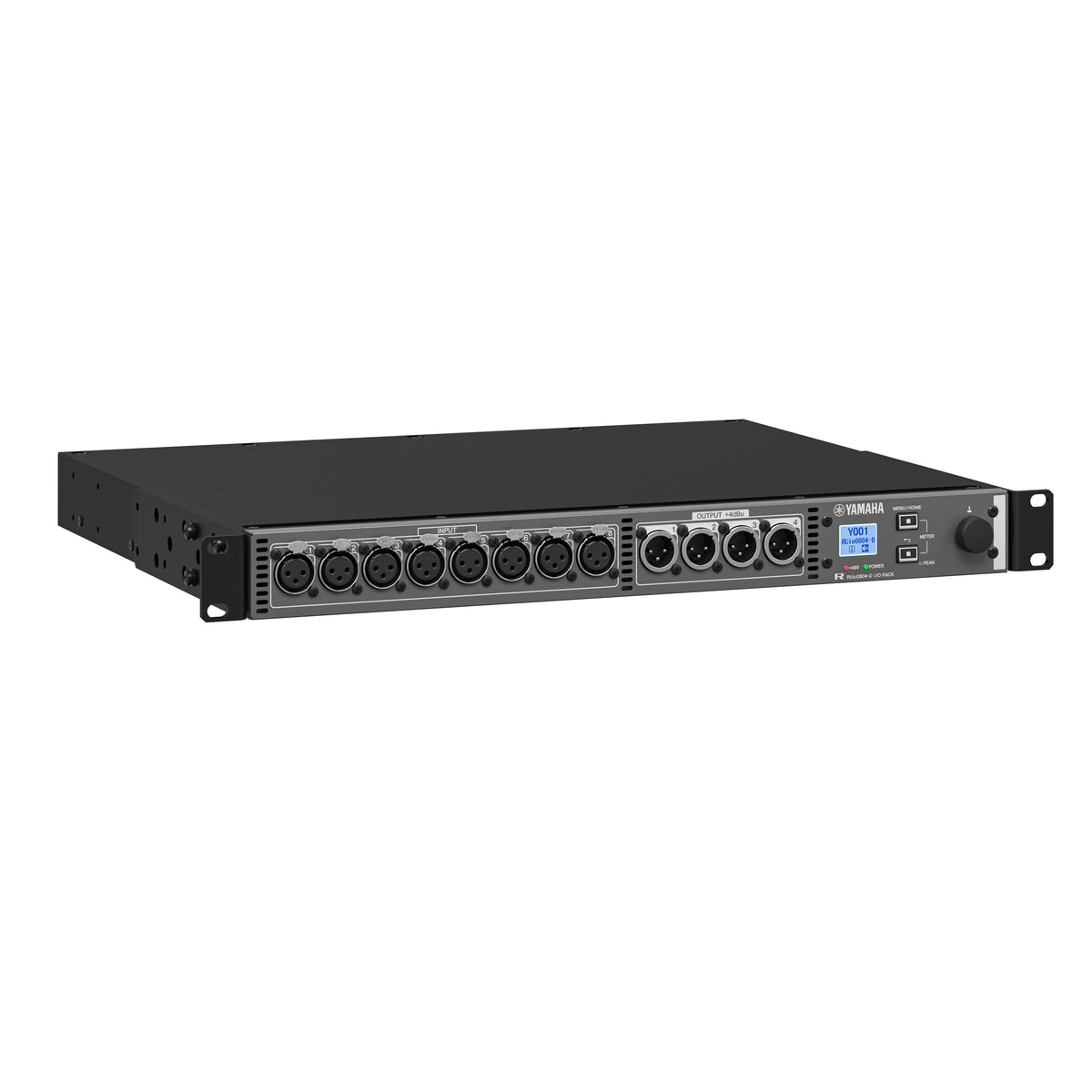

Yamaha RUio0804-D 8x4 Audio Interface Rackmount I/O

Yamaha RUio0804-D 8x4 Audio Interface Rackmount I/O

SoundPro Item: 207018 | Part Number: RUio0804-D

$1,499.99
$1,799.00 $1,499.99
Your Price Sold out
MSRP: $1,799.00 | MAP: $1,499.99
  • Adds Local Analog I/O For Flexible System Expansion
  • Supports Live, Event, And Installed Audio Workflows
  • Works Well In Medium-To-Large Dante Setups
  • Can Serve As A Dedicated Talkback Input Path
  • 1U Rack Format Saves Space In Production Racks
Log in or register for YOUR best price

Estimated shipping October 2026 Limited Supply

**Priority Pre-Order Now**

The Yamaha RUio0804-D is a rackmount 8-in/4-out audio interface built for professional audio systems that need additional analog I/O without adding unnecessary bulk. It is well suited to live sound, event production, and installed applications where system designers need to place extra inputs and outputs exactly where they are required. In medium-to-large Dante-based environments, it can support more efficient signal distribution while helping maintain an organized workflow.

This model is positioned as a flexible expansion option for setups using Yamaha RPio or Rio units as primary I/O. It can also be used as a dedicated talkback input path, offering another way to manage communication in production systems. With support for multiple sampling frequencies and low signal delay figures, it fits applications where responsive routing and dependable integration matter.

Its 1U rackmount format makes it practical for touring racks, control rooms, and permanent installations where space matters. The RUio0804-D is a straightforward choice for teams that need a compact Yamaha utility I/O device to extend system reach, add localized connectivity, or support evolving show and facility requirements.

View full details

Specifications

I/O
Analog Input
8
Analog Output
4
AES/EBU Output
0
Sampling Frequency
Sampling Frequency
44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz ±200 ppm
Variation
+4.1667%, +0.1%, –0.1%, –4.0% ±200 ppm
Signal Delay
Signal Delay
Less than 1.7 ms @Fs=96 kHz, 2.0 ms @Fs=48 kHz
Condition
INPUT to OUTPUT connect with DM5 using Dante
Dante Receive Latency
0.25 ms
Power
Power Requirements
100–240V, 50 Hz/60 Hz
Power Consumption
30 W
Heat Dissipation
26 kcal/h
Physical
Dimensions (W x H x D)
18.9 x 1.7 x 14.5 in
Weight
8.15 lbs.
NC Value
Fan Speed LOW
20
Fan Speed HIGH
25
Exterior
Approximate Munsell Value Of Exterior Color
N5 (front panel only)
Environmental
Operating Temperature Range
32°F – 104°F
Storage Temperature Range
-4°F – 140°F
Included Accessories
Read This First
x 1
Power Cord
x 1 *2
