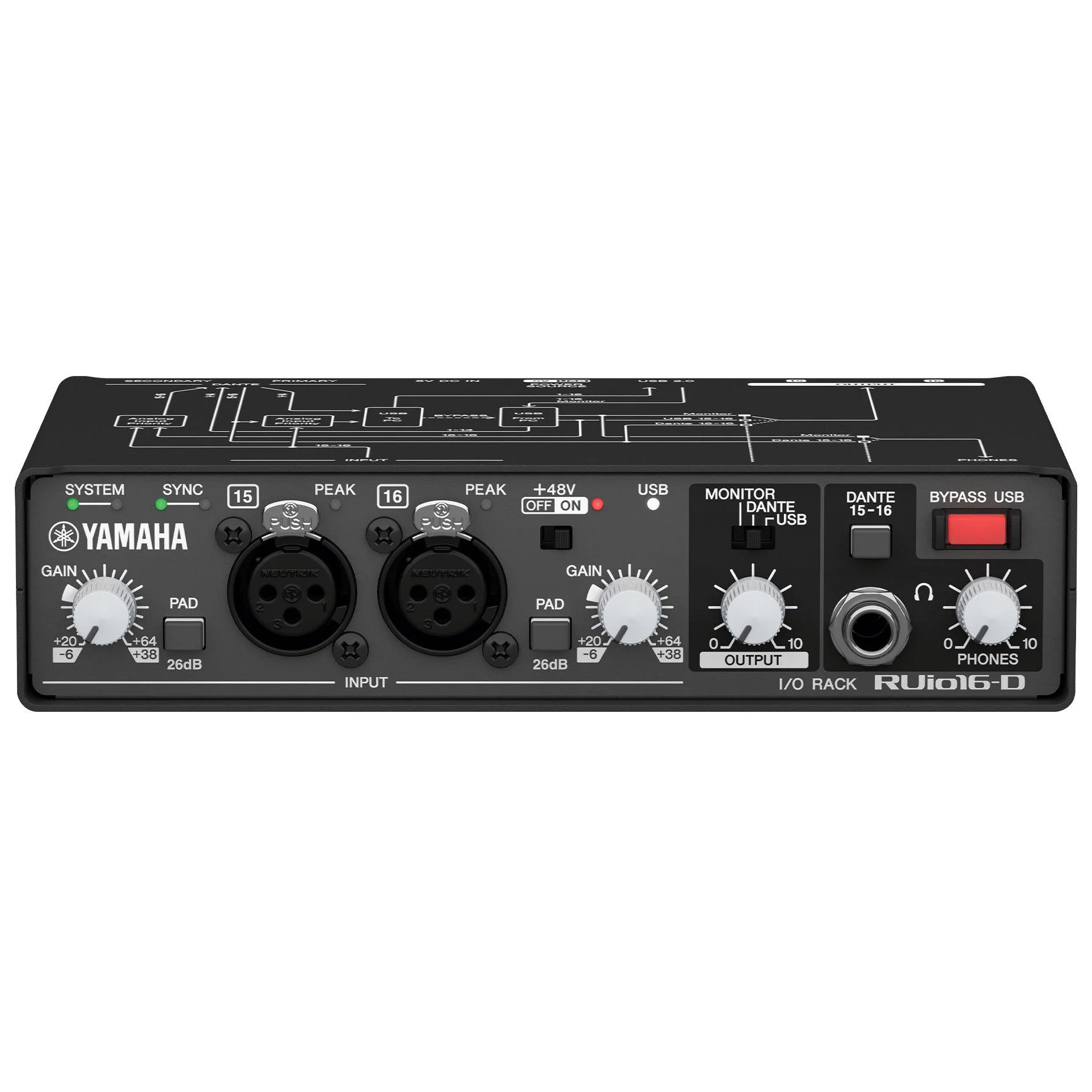

• Yamaha RUio16-D Dante/Analog/USB Audio Interface front

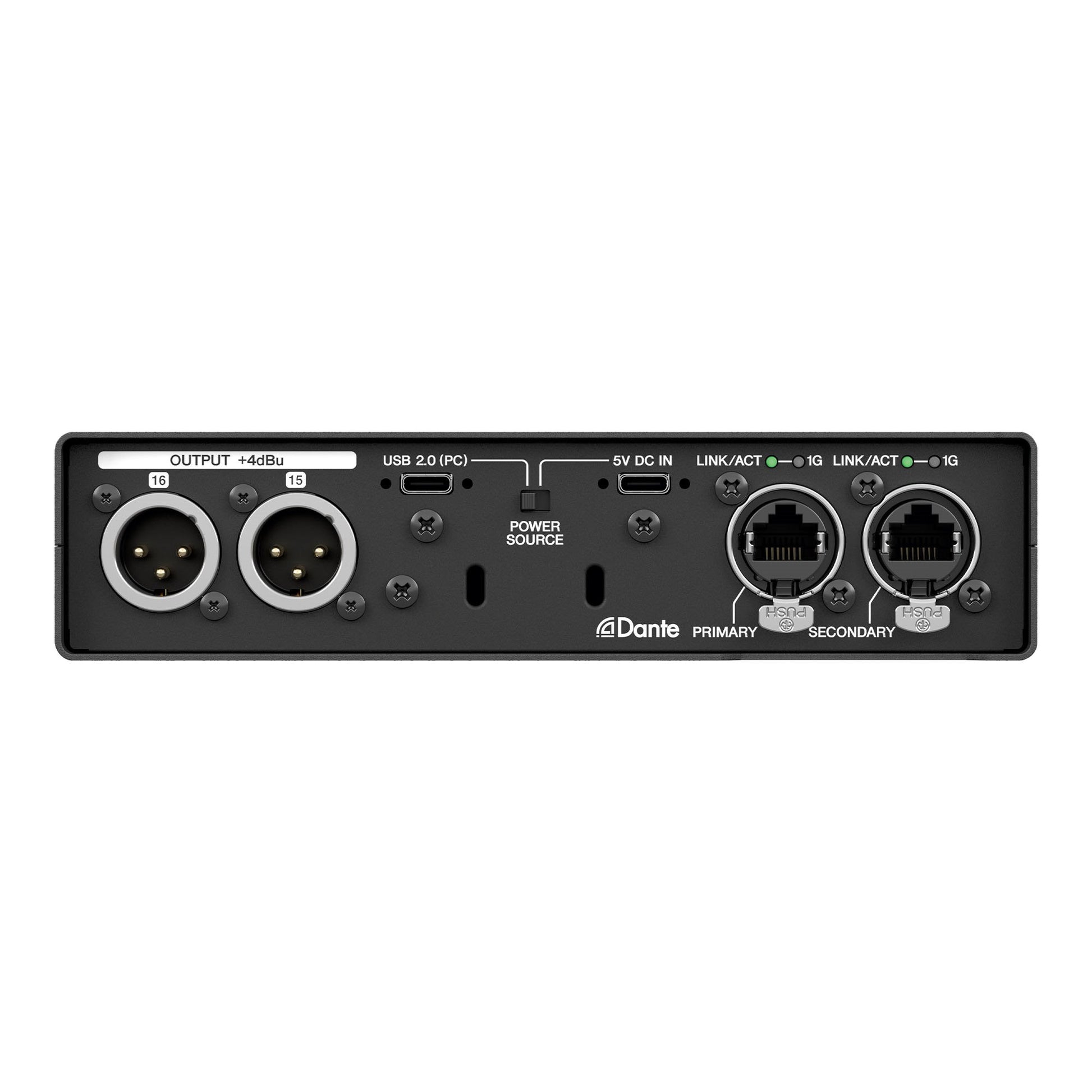

  • Yamaha RUio16-D Dante/Analog/USB Audio Interface back

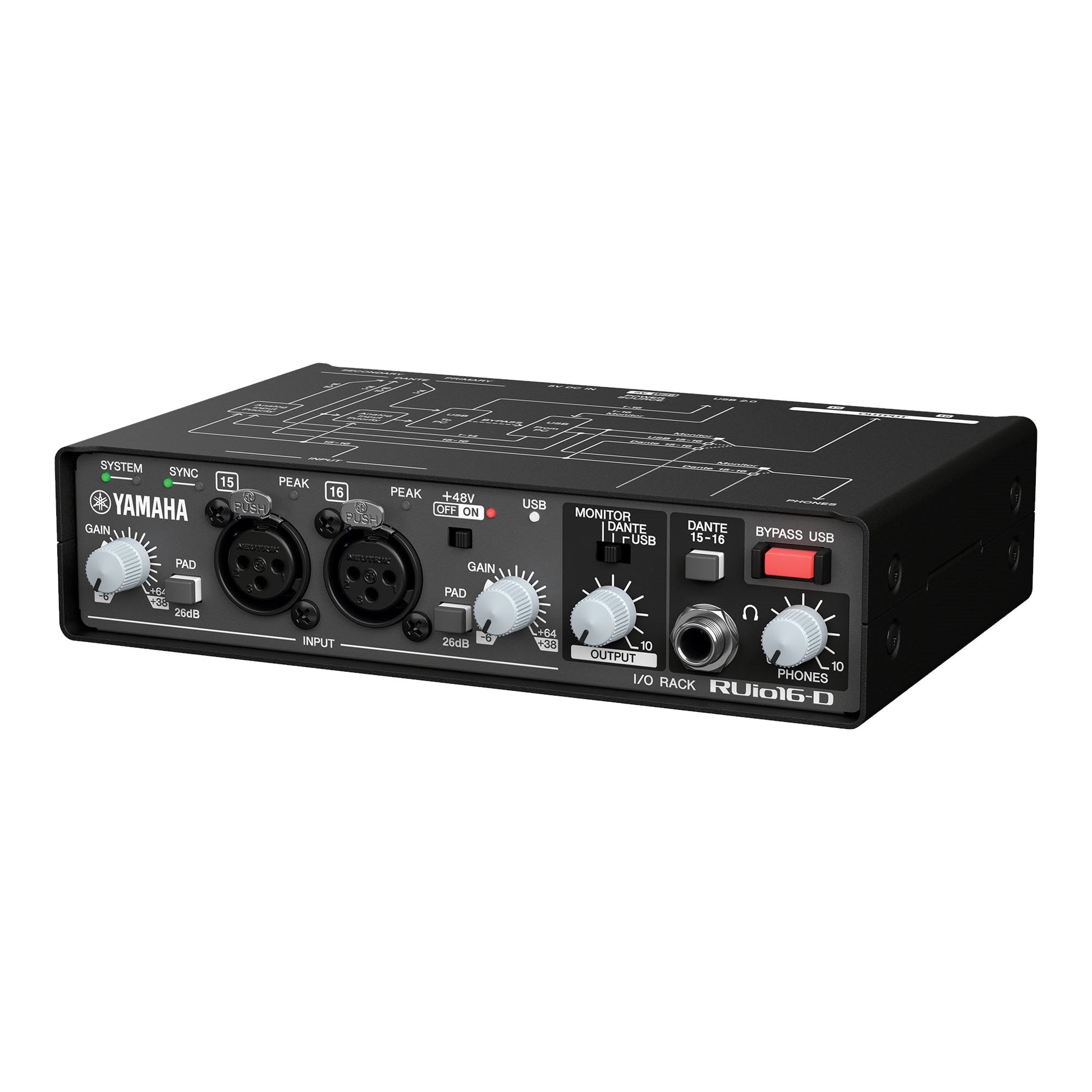

  • Yamaha RUio16-D Dante/Analog/USB Audio Interface

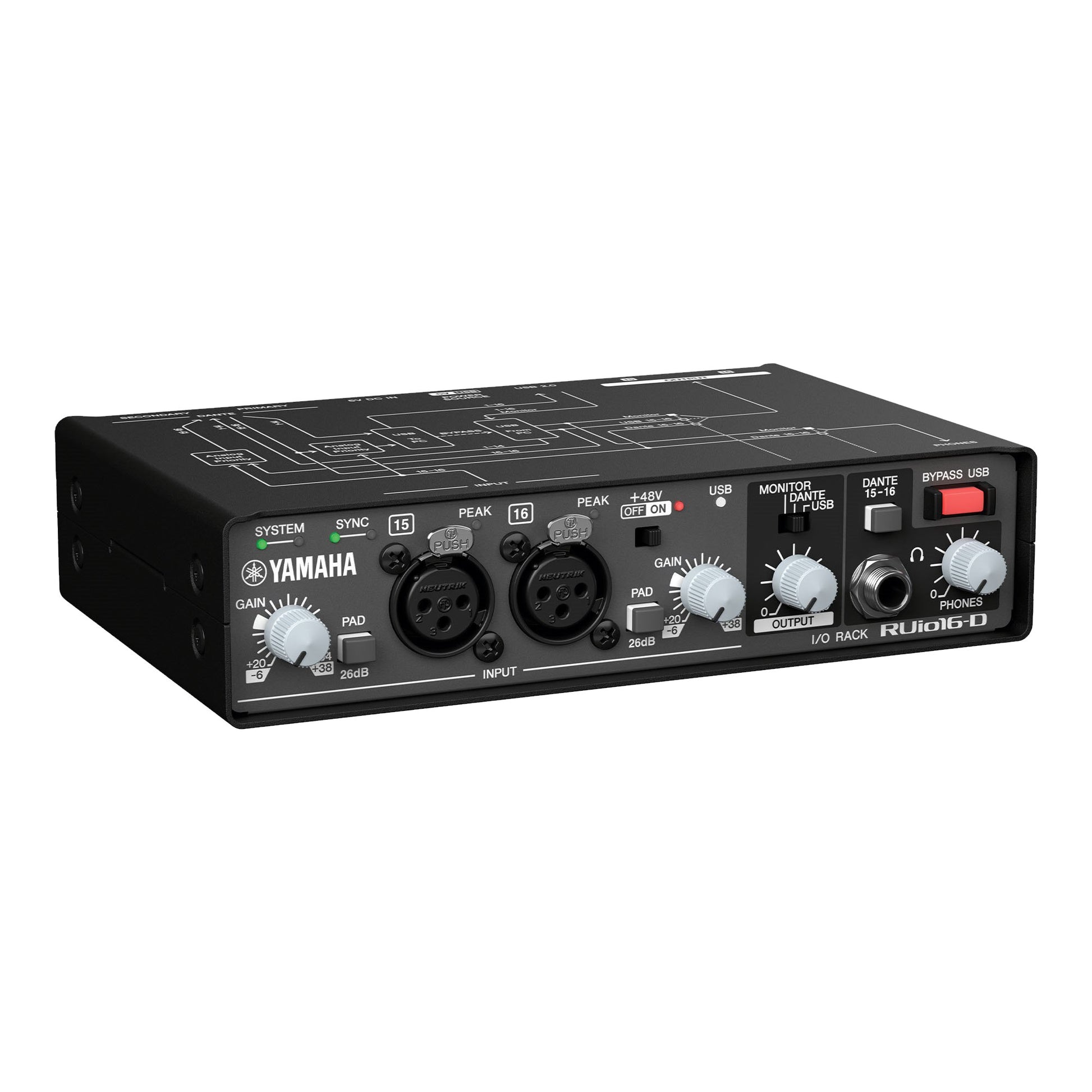

  • Yamaha RUio16-D Dante/Analog/USB Audio Interface right

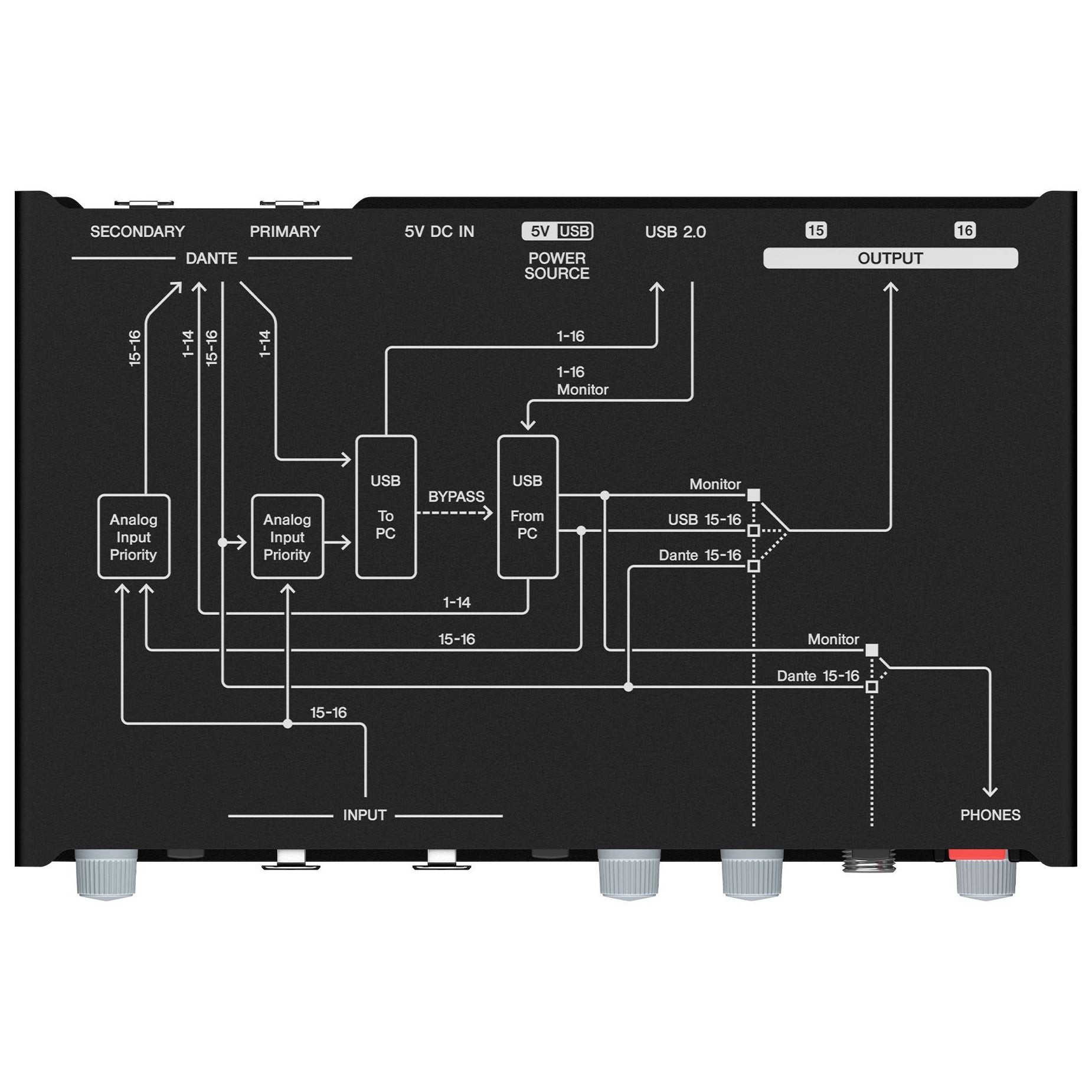

  • Yamaha RUio16-D Dante/Analog/USB Audio Interface top

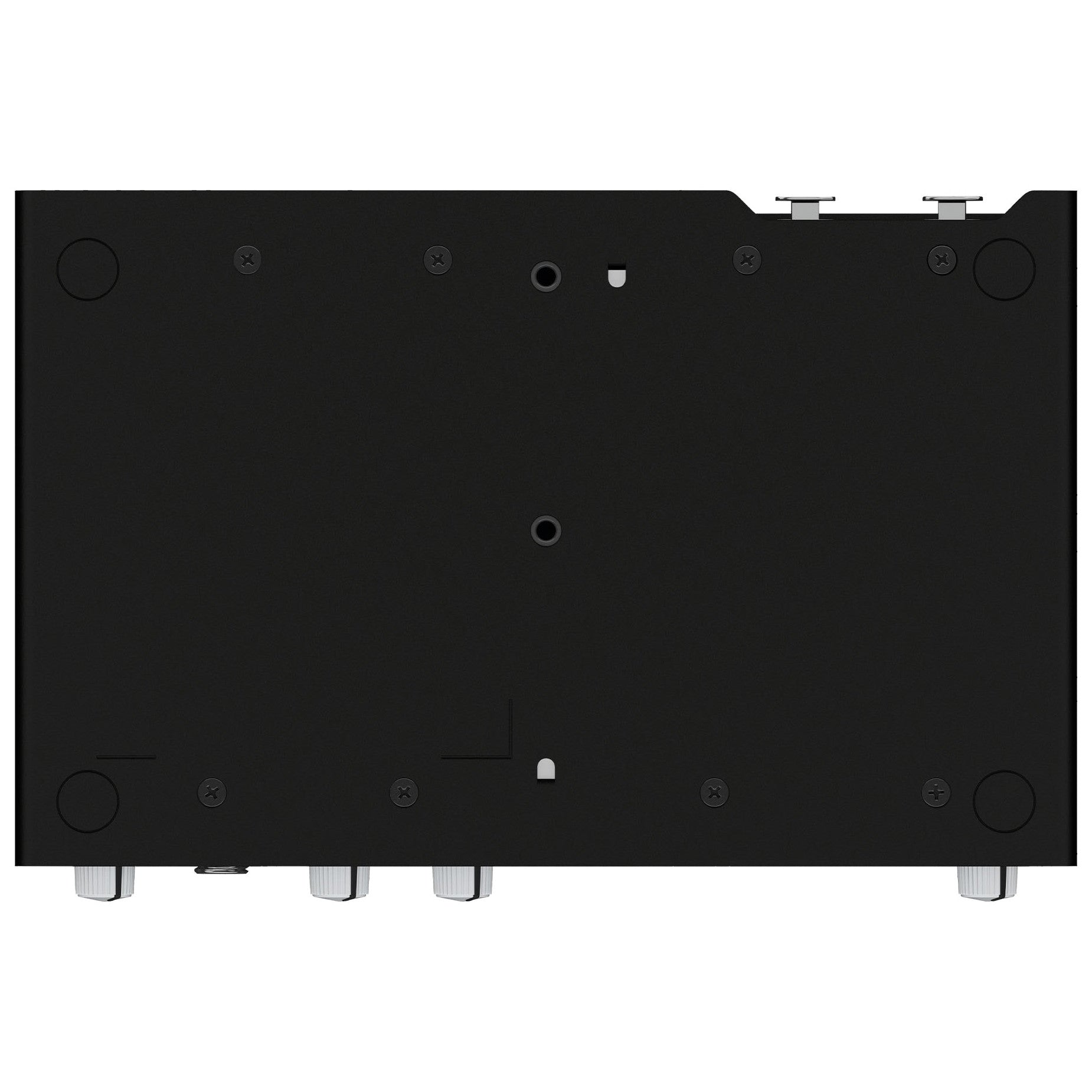

  • Yamaha RUio16-D Dante/Analog/USB Audio Interface bottome
1 6

Yamaha RUio16-D Dante/Analog/USB Audio Interface

Yamaha RUio16-D Dante/Analog/USB Audio Interface

SoundPro Item: 131171 | Part Number: RUIO16-D

$1,399.99
$1,632.00 $1,399.99
Your Price Sold out
MSRP: $1,632.00 | MAP: $1,399.99

Usually ships in 5-7 business days

  • Analog: 2 inputs, 2 outputs
  • Dante: 16 inputs, 16 outputs
  • USB: 18 inputs, 16 outputs
  • Bypass switch for preventing unexpected issues
  • Rack-mountable (using the M4-size screw holes on the underside of the product)
Log in or register for YOUR best price

The RUio16-D is a revolutionary audio interface that features a compact form while still being rugged enough to withstand the needs of touring, serving as a bridge between Dante, analog, and USB signals. Combining this product with the bundled VST Rack Pro plug-in host software creates a plug-in environment that gives users a great deal of freedom and makes it easy to integrate the VST plug-ins you like into your system. This unit features a variety of input/output jacks, and is useful in a broad range of situations such as outputting computer-processed audio to a mixer via Dante, acoustic measurement, and much more.

This unit also offers a high level of stability in case a problem occurs with your computer, as the unit bypasses the audio processing on the plug-in side to prevent any trouble that might stop the sound on the entire system. We’re bringing a new kind of plug-in solution to our users that lets them freely use the VST plug-ins they like in a flexible and safe way.

This I/O rack offers Dante, USB and analog input/output jacks and ports, and is useful in a wide range of situations. Use this product in conjunction with the bundled VST Rack Pro software to create a flexible, stable plug-in environment.

View full details
  • I/O
      Inputs: Analog Inputs (Mic / Line) x 2 (XLR) Outputs: Analog Outputs x 2 (XLR) Dante: Primary / Secondary (etherCON) Phones: 1 (TRS) USB: USB 2.0 (PC/Mac) x 1 (USB Type-C), DC Power input x 1 (USB Type-C)
  • Dante - Number of I/O Channels 16 in / 16 out
  • USB - Number of I/O Channels 18 in / 16 out (USB 2.0)
  • Sampling frequency rate - External 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
  • Signal delay Less than 250 μs, Analog INPUT to Analog OUTPUT @Fs = 96 kHz Bypass USB mode
  • Power requirements 5V / 1.5 A
  • Power consumption 7.5 W
  • Dimensions
      W: 180 mm (7.1") H: 42 mm (1.7") (without rubber feet) D: 121 mm (4.8")
  • Net weight 1kg (2.2 lbs)
  • Others Operating temperature range: 0 - 40°C, Storage temperature range: -20 - 60°C
  • System requirements
    • Windows
      • OS: Windows 11 (64-bit), Windows 10 (64-bit)
      • CPU: Intel Core i-series multicore processor 2 GHz or faster, or AMD equivalent processor
      • Memory: 2 GB or more
      • Storage: Free disk space of 1.2 GB or more; high-speed hard disk
      • Interface: Equipped with a USB 2.0 connector
    • Mac
      • OS: macOS 10.15, macOS 11.x, macOS 12.x
      • CPU: Intel multicore processor (Intel Core i5 or faster recommended), or Apple silicon, with Rosetta 2 installed
      • Memory: 2 GB or more
      • Storage: Free disk space of 1.2 GB or more; high-speed hard disk
      • Interface: Equipped with a USB 2.0 connector
  • VST Rack Pro System Requirements
    • Windows
      • OS: Windows 11 (64-bit), Windows 10 (64-bit)
      • CPU: Intel Core i-series multicore processor 2 GHz or faster, or AMD equivalent processor
      • Memory: 8 GB RAM or more (4 GB minimum)
      • Storage: 20 GB free space
      • Display resolution: 1600 x 1050 display resolution at least (1920 x 1080 recommended)
    • Mac
      • OS: macOS 10.15, macOS 11.x, macOS 12.x
      • CPU: Intel multicore processor (Intel Core i5 or faster recommended), or Apple silicon, with Rosetta 2 installed
      • Memory: 8 GB RAM or more (4 GB minimum)
      • Storage: 20 GB free space
      • Display resolution: 1600 x 1050 display resolution at least (1920 x 1080 recommended)
