Yamaha RUio1608SB-D Dante Stage Box 16x8 Utility I/O

Yamaha RUio1608SB-D Dante Stage Box 16x8 Utility I/O

SoundPro Item: 207019 | Part Number: RUio1608SB-D

$2,199.99
$2,639.00 $2,199.99
Your Price Sold out
MSRP: $2,639.00 | MAP: $2,199.99

Usually ships in 5-7 business days

  • 96 KHz Operation For High-Quality Audio
  • 16 Inputs And 8 Outputs For System Expansion
  • Portable Format For Fast Event Deployment
  • Dante Connectivity For Flexible Audio Networking
  • Optional Rack Kit Supports Install Adaptability
Log in or register for YOUR best price

Estimated shipping October 2026 Limited Supply

**Priority Pre-Order Now**

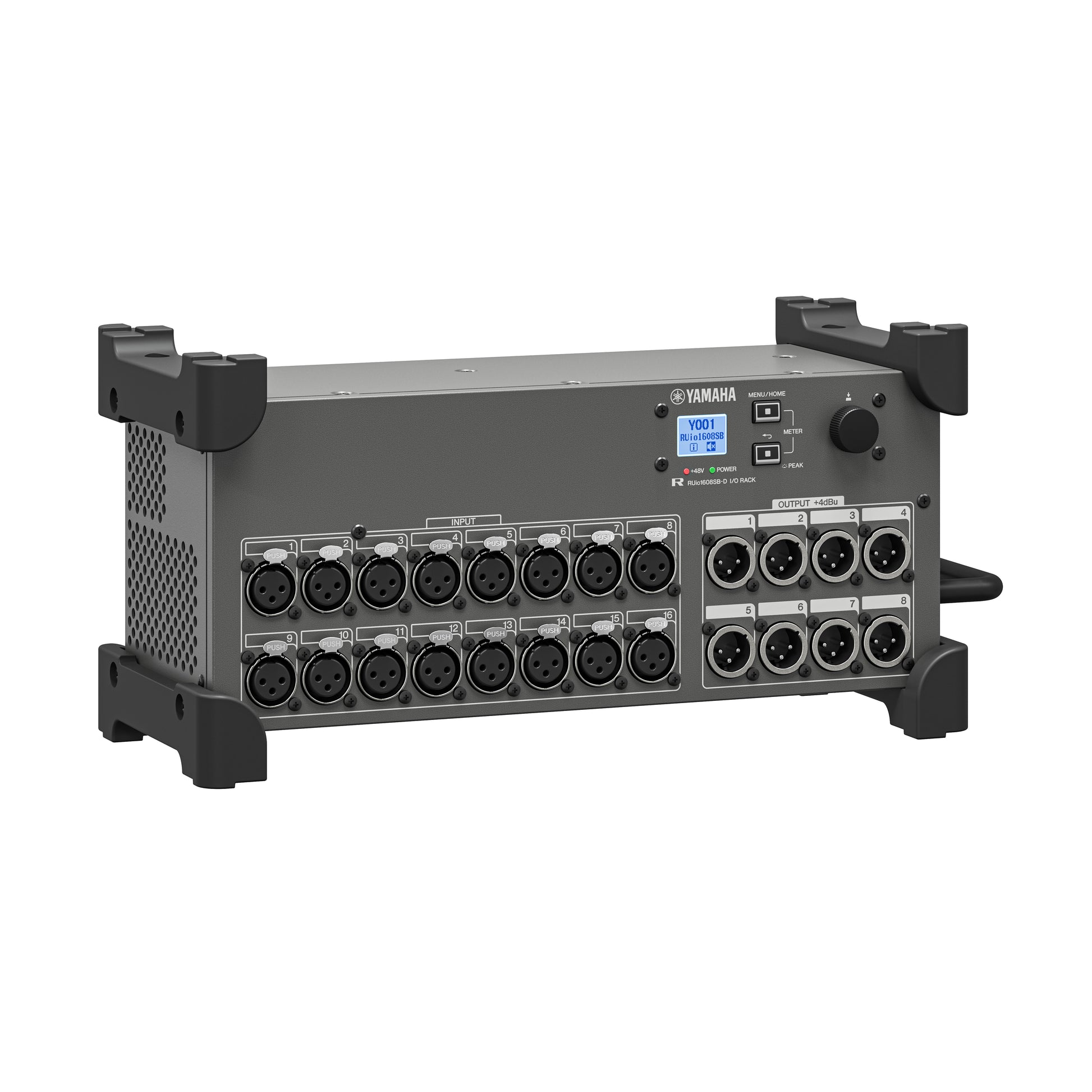

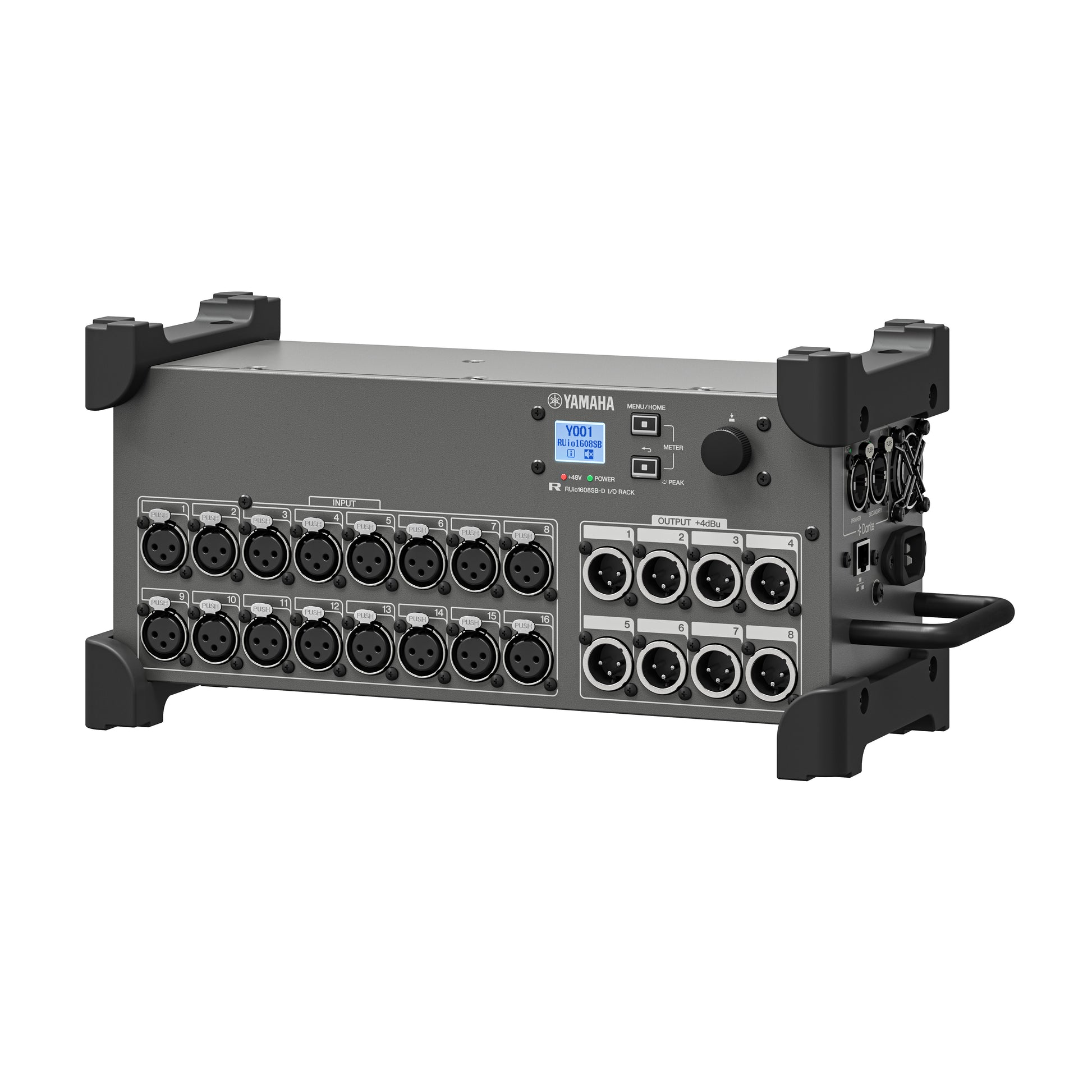

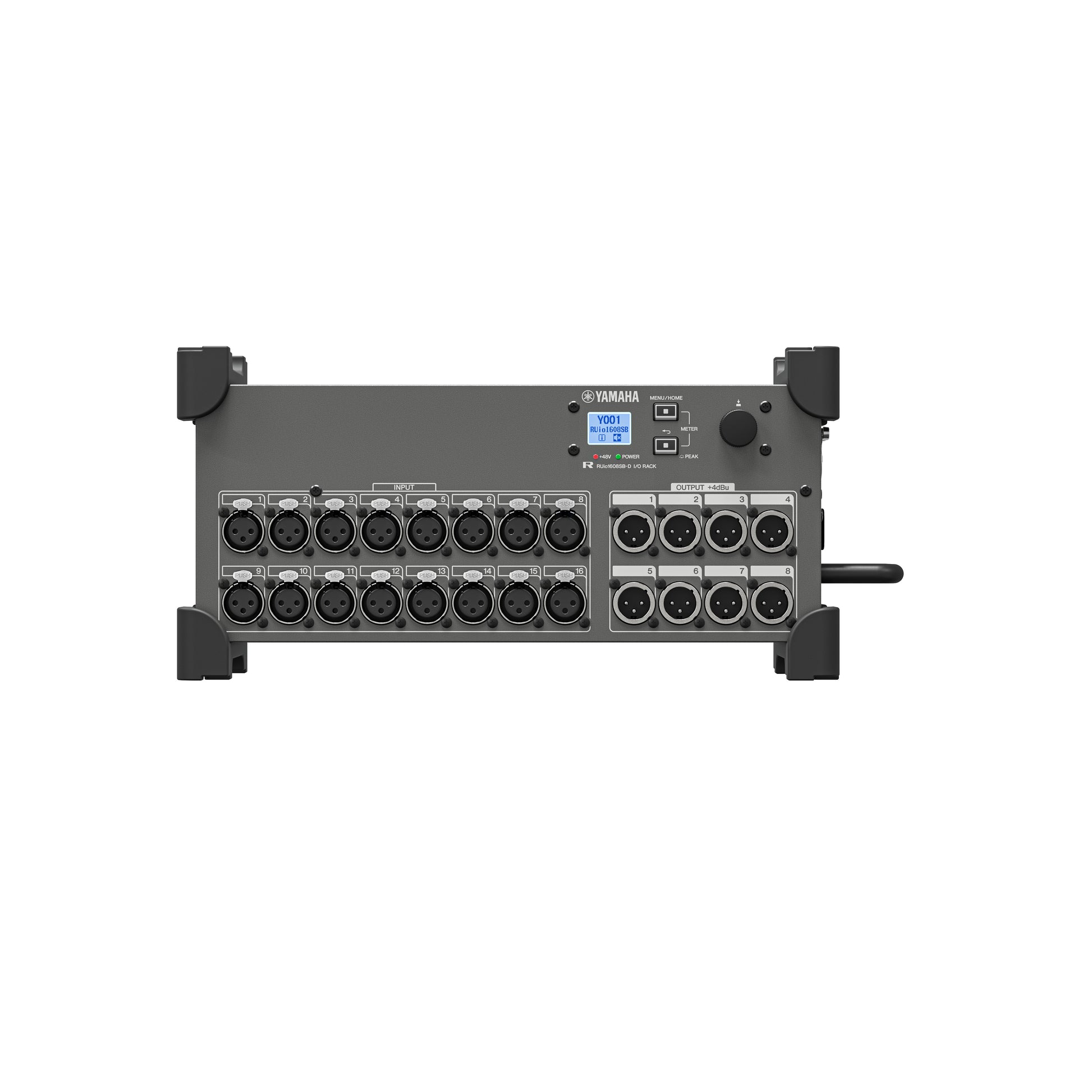

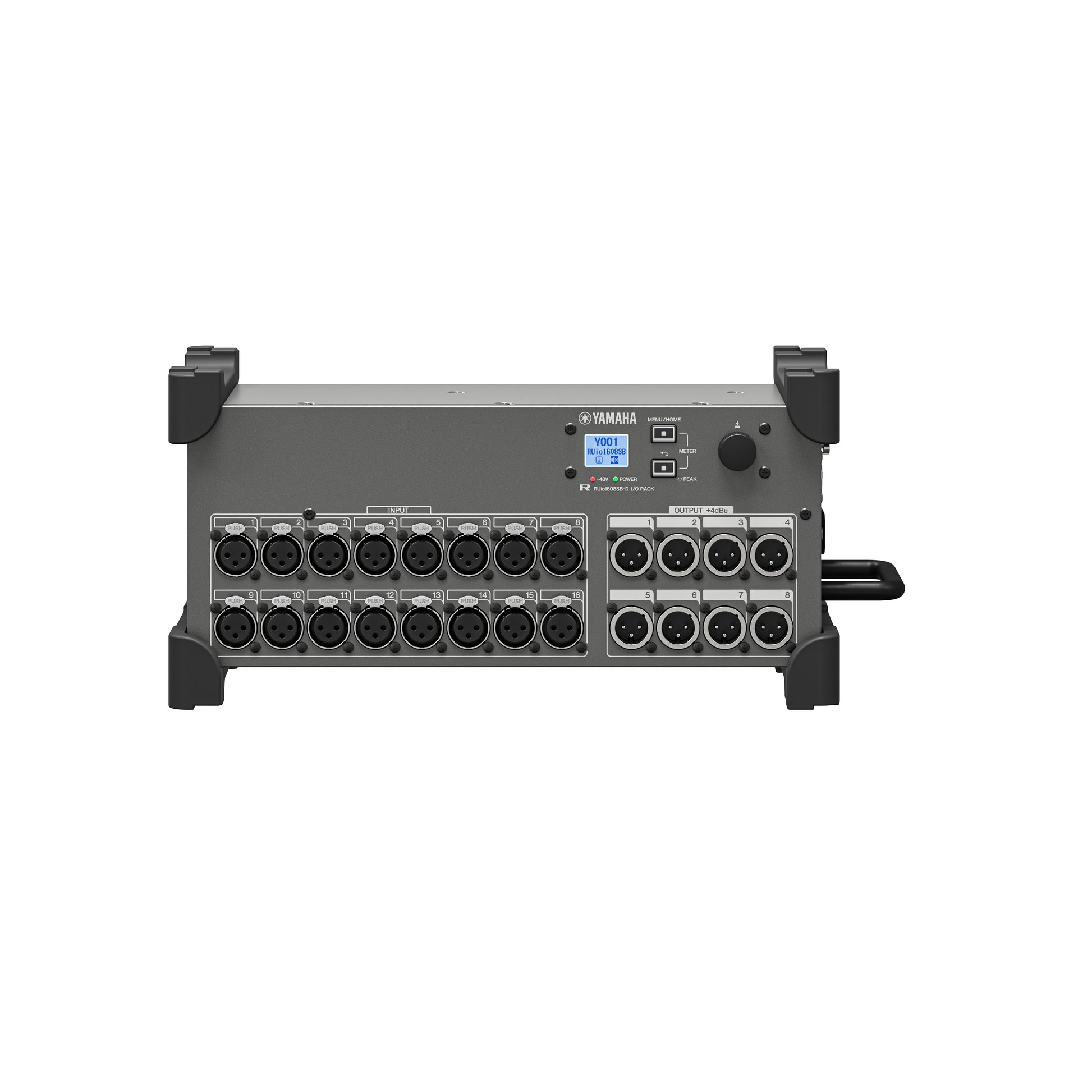

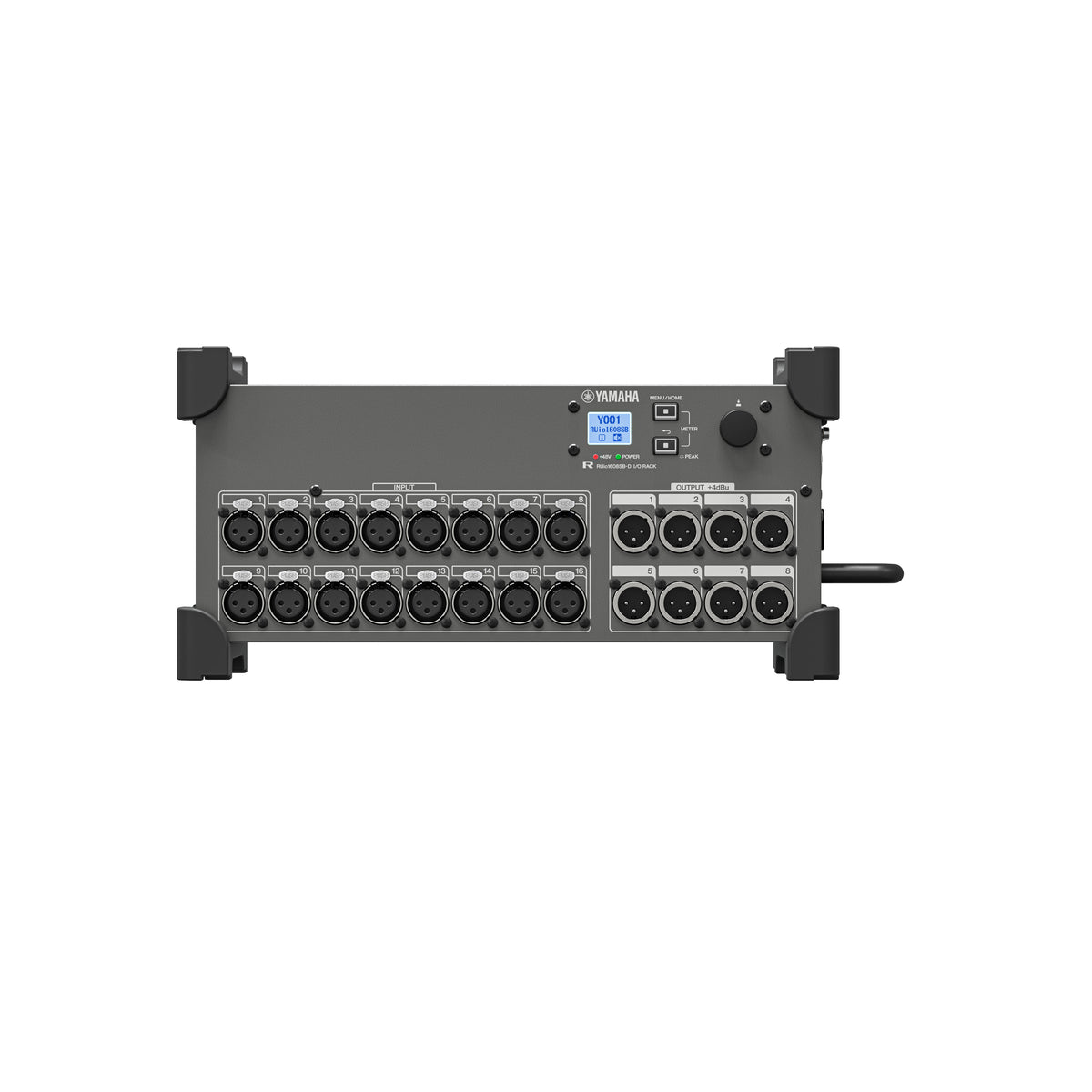

The Yamaha RUio1608SB-D is a portable Dante stage box built for professional audio teams that need dependable remote I/O for live sound and temporary event systems. With 16 analog inputs and 8 analog outputs, it provides a practical way to expand system capacity without committing to a fixed installation approach. Its utility I/O format supports fast deployment in production environments where flexibility and clean signal transport matter.

This model is designed as a digital snake-style solution for applications that require straightforward placement and efficient setup. It can be positioned on the floor for event use or adapted for rack installation with the optional RK-RUio1608SB mounting kit. Yamaha also emphasizes head amp performance comparable to the DM3, making it a strong option for users who want consistent audio quality across a broader Dante workflow.

Support for multiple sampling frequencies up to 96 kHz gives system designers and engineers room to match project requirements, while low signal delay helps maintain responsive performance in connected Dante systems. For production companies, houses of worship, corporate AV teams, and rental providers looking for a compact stage box from a recognized pro audio manufacturer, the RUio1608SB-D offers a focused balance of portability, utility, and professional integration.

View full details

Specifications

I/O
Analog Input
16
Analog Output
8
AES/EBU Output
0
Sampling Frequency
Sampling Frequency
44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz ±200 ppm
Variation
+4.1667%, +0.1%, –0.1%, –4.0% ±200 ppm
Signal Delay
Delay
Less than 1.7 ms @Fs=96 kHz, 2.0 ms @Fs=48 kHz
Connection Condition
INPUT to OUTPUT connect with DM5 using Dante
Dante Receive Latency
0.25 ms
Power
Power Requirements
100–240V, 50 Hz/60 Hz
Power Consumption
40 W
Heat Dissipation
35 kcal/h
Physical
Dimensions (W x H x D)
14.7 x 6.7 x 5.7 in
Weight
7.7 lbs.
NC Value
Fan Speed LOW
20
Fan Speed HIGH
25
Exterior
Approximate Munsell Value Of Exterior Color
N5
Environmental
Operating Temperature Range
32°F – 104°F
Storage Temperature Range
-4°F – 140°F
Included Accessories
Included Accessories
Read This First x 1; Power cord x 1 *2; Cable ties
