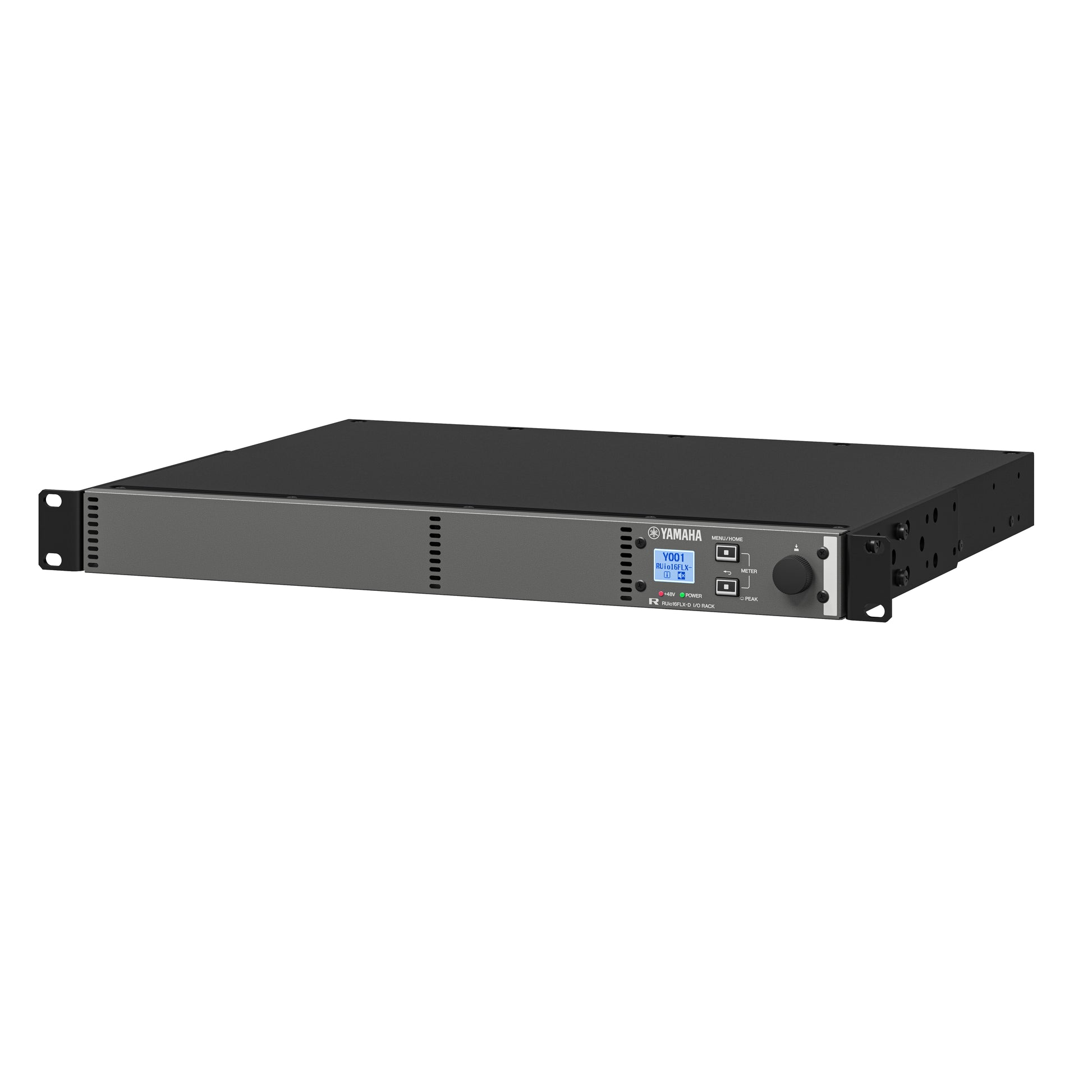

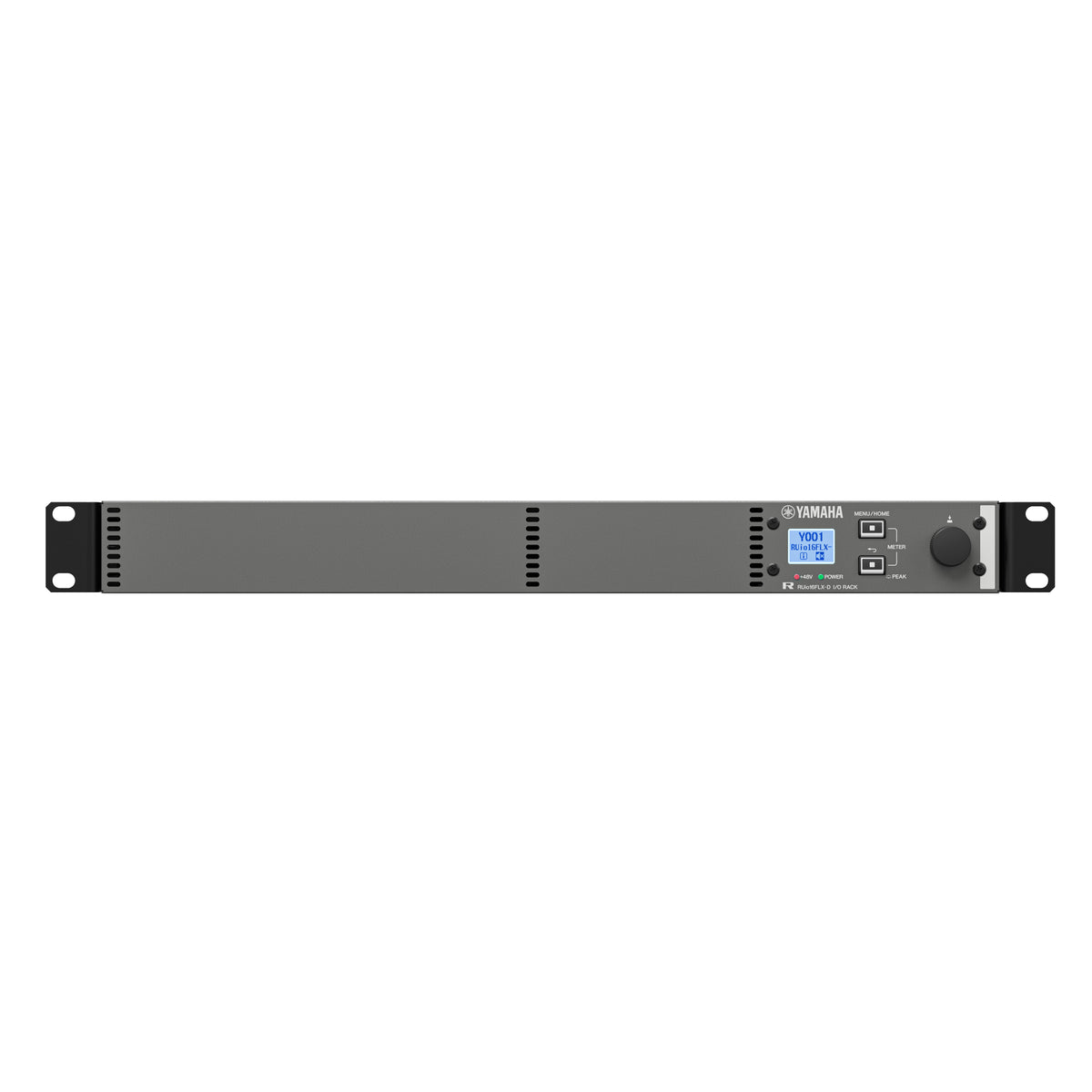

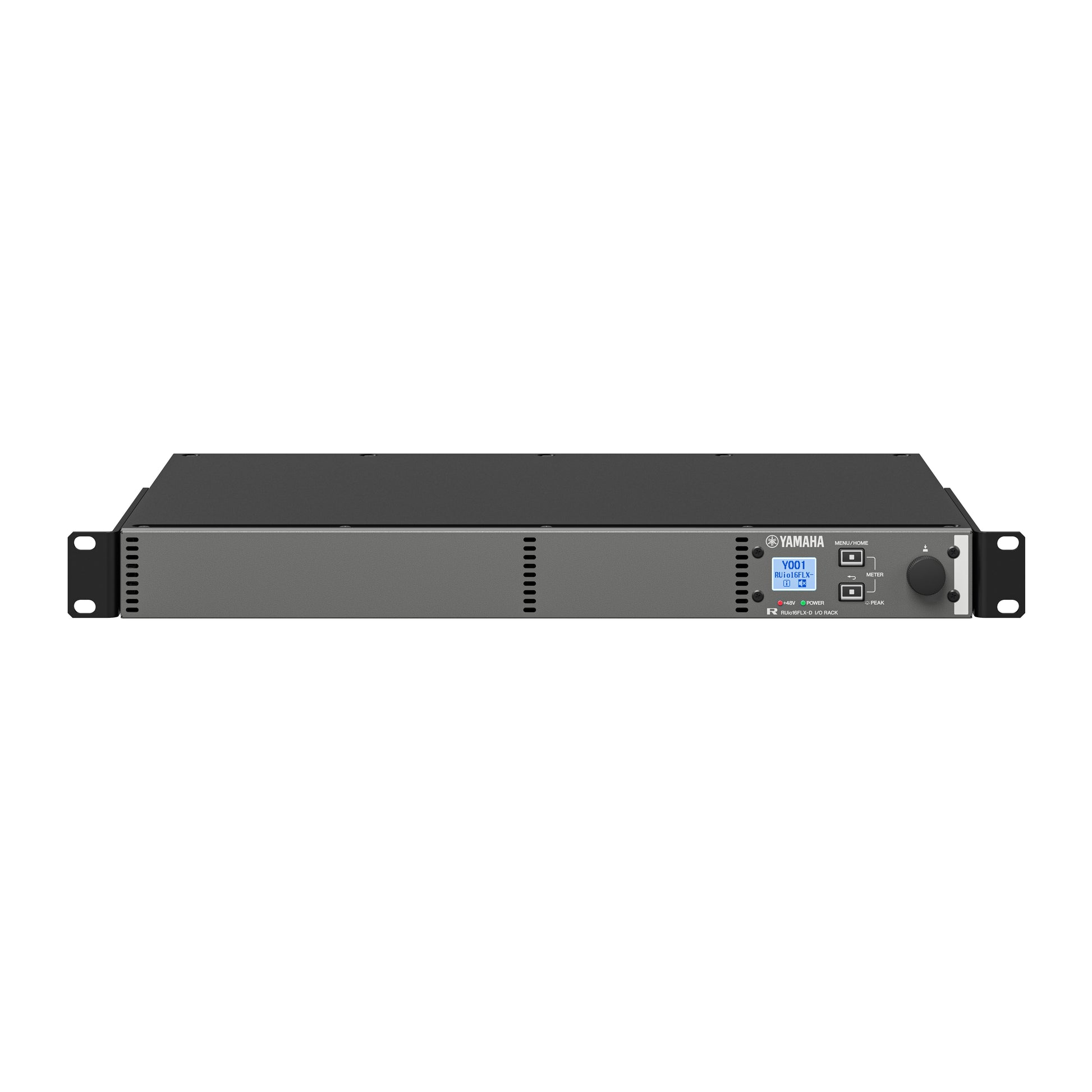

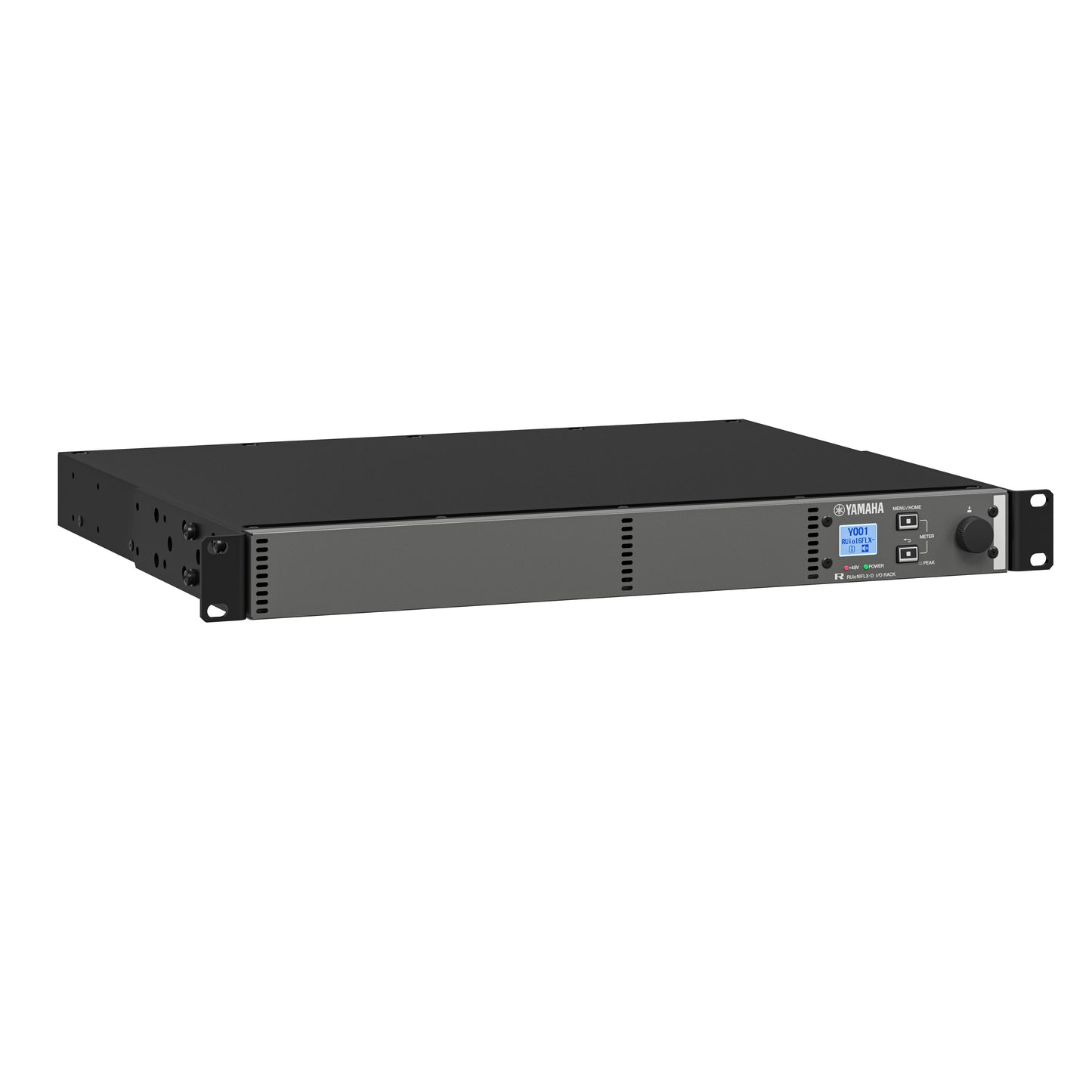

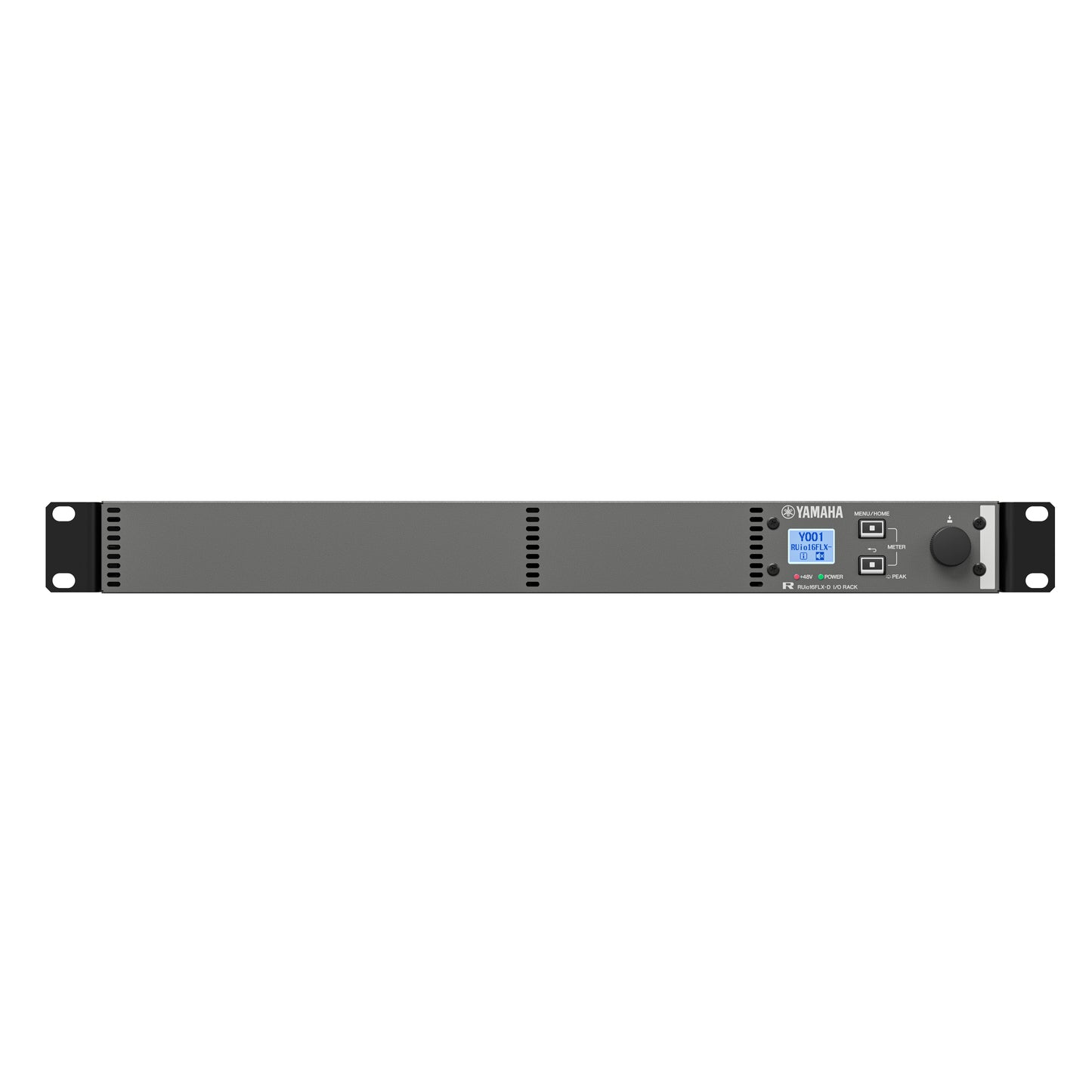

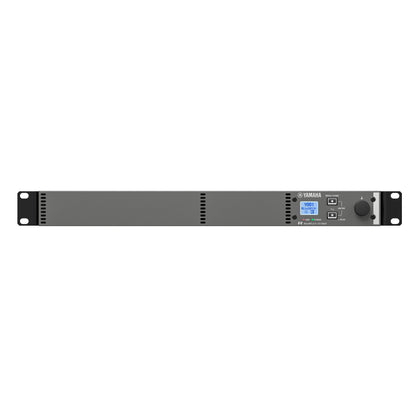

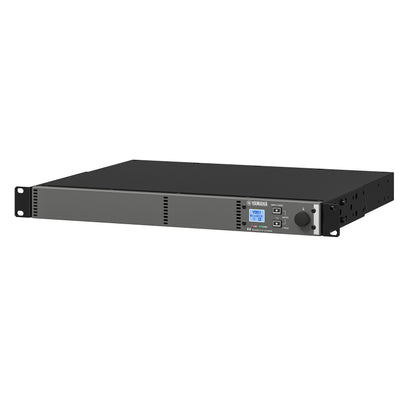

Yamaha RUio16FLX-D Dante I/O Rack With Phoenix Connectors

Yamaha RUio16FLX-D Dante I/O Rack With Phoenix Connectors

SoundPro Item: 207020 | Part Number: RUio16FLX-D

$2,199.99
$2,639.00 $2,199.99
Your Price Sold out
MSRP: $2,639.00 | MAP: $2,199.99

Usually ships in 5-7 business days

  • Flexible Channel Pair Assignment

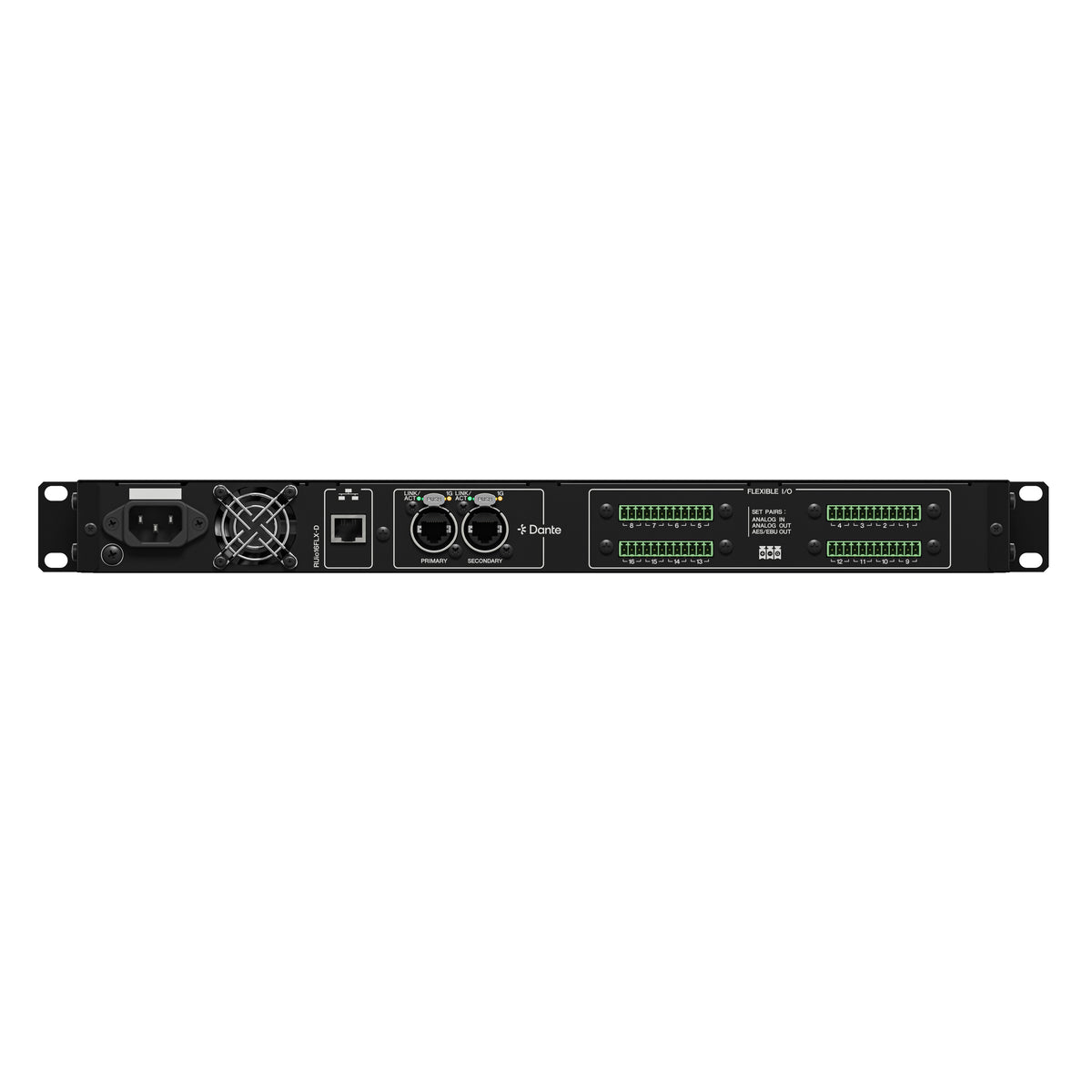

  • Phoenix Connectors For Secure Fixed Wiring
  • Designed For Dante System Expansion
  • Rackmount Format For Clean Integration
  • Supports Installed And Live Audio Workflows
Log in or register for YOUR best price

Estimated shipping October 2026 Limited Supply

**Priority Pre-Order Now**

The Yamaha RUio16FLX-D is built for audio systems that need configurable analog connectivity over Dante without adding unnecessary complexity. This 16-channel rackmount unit uses Phoenix connectors and supports flexible channel-pair assignment, making it a practical option for projects where signal routing requirements may change between microphone, loudspeaker, amplifier, or other line-level connections. It is well suited to professional environments that require dependable integration into networked audio workflows.

For system designers and operators working with Yamaha DME platforms, the RUio16FLX-D addresses expansion needs when onboard analog connectivity is limited or unavailable. Its rack form factor fits cleanly into equipment rooms, installed AV racks, and production infrastructure, while wide power compatibility supports deployment across varied venues and regions. The included Euroblock plugs simplify installation planning for fixed wiring applications where secure terminations matter.

This model is especially relevant for live sound, commercial audio, and permanent installations that rely on Dante transport but still need extensive analog interfacing at the edge of the system. By combining networked audio integration with field-friendly Phoenix connections, it gives integrators and technical teams a flexible way to extend system capacity while maintaining organized rack layouts and clear signal management.

View full details

Specifications

I/O
Analog Input
16
Analog Output
16
AES/EBU Output
0
Sampling Frequency
Sampling Frequency
44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz ±200 ppm
Variation
+4.1667%, +0.1%, –0.1%, –4.0% ±200 ppm
Signal Delay
Signal Delay
Less than 1.7 ms @Fs=96 kHz, 2.0 ms @Fs=48 kHz
Connection Condition
INPUT to OUTPUT connect with DM5 using Dante
Dante Receive Latency
0.25 ms
Power
Power Requirements
100–240V, 50 Hz/60 Hz
Power Consumption
45 W
Heat Dissipation
39 kcal/h
Physical
Dimensions (W x H x D)
18.9 x 1.7 x 14.5 in
Weight
8.8 lbs.
NC Value
Fan Speed LOW
20
Fan Speed HIGH
25
Exterior
Approximate Munsell Value Of Exterior Color
N5 (front panel only)
Environmental
Operating Temperature Range
32°F – 104°F
Storage Temperature Range
-4°F – 140°F
Included Accessories
Read This First
x 1
Power Cord
x 1 *2
3-Pin Euroblock Plugs
x 16
