Specifications
Dimensions
Dimensions (WxHxD)
16x1.7x10.2"
Electrical
Actual Load Impedance
10kΩ
Audio
Frequency Response
Fs=44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz @ 20 Hz – 20 kHz, reference to the nominal output level (-20dBFS) @ 1 kHz
THD
max 0.05%
Crosstalk
-90dB (@1 kHz Fs=44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz)
Connectivity

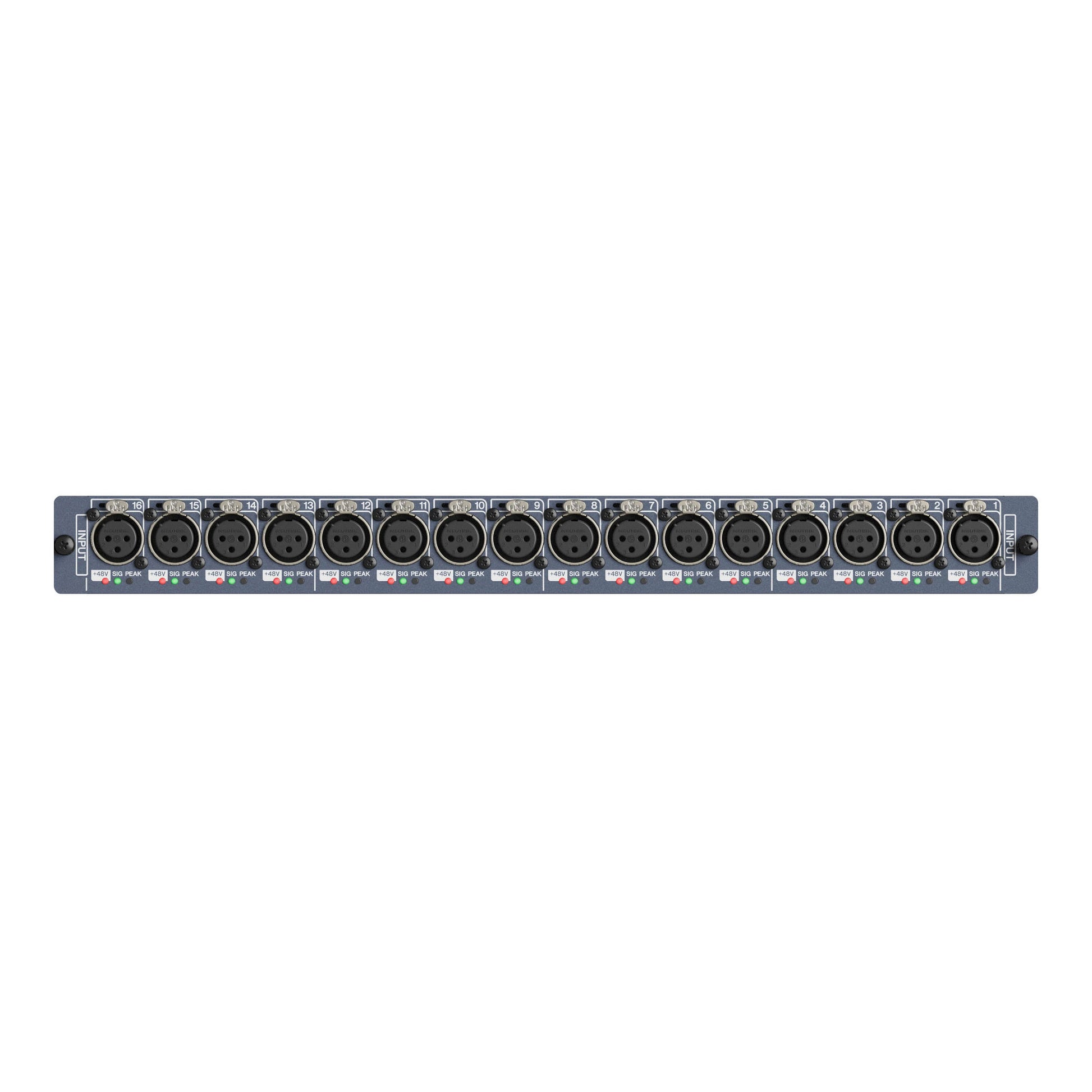

Input Terminals
CH 1 - 16
Nominal (-20dBFS) Input Level
-62dBu (616 uV), +10dBu (2.45V)
Max (0dBFS) Input Level
-42dBu (6.16 mV), +30dBu (24.5V)
Connector
XLR-3-31 type
Construction
Gain
+66dB, -6dB
Environmental
Operating Temperature Range
32°F to 104°F (0°C to 40°C)
Shipping
Weight
3.5 lbs (1.6 kg)
General
Specifications Measured on
RPio622
For Use with Nominal
50-600Ω mics and 600Ω lines
