Specifications
Dimensions
Dimensions (WxHxD)
11.8x12.1x11.9" (300x308x301mm)
Electrical
Power Consumption
10 W (Idle), 20 W (1/8 power)
Power Requirements
100-240 V 50/60 Hz, or 29.6 Vdc *2
Audio
Speaker Type
Coaxial speaker with compression driver
Crossover
2.0 kHz
Connectivity

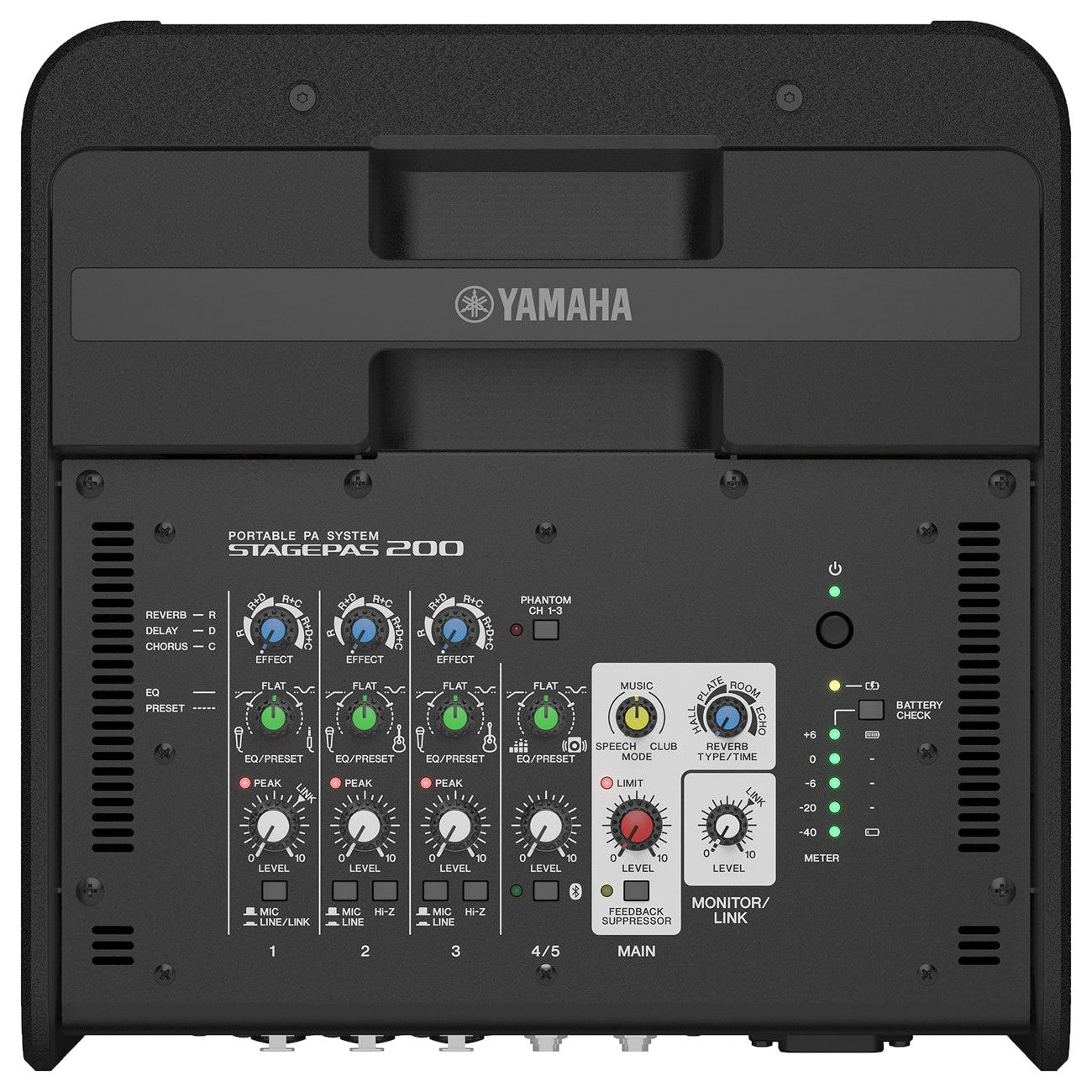

Input Channel Functions
Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST
Output Channel Functions
MODE (SPEECH/MUSIC/CLUB)

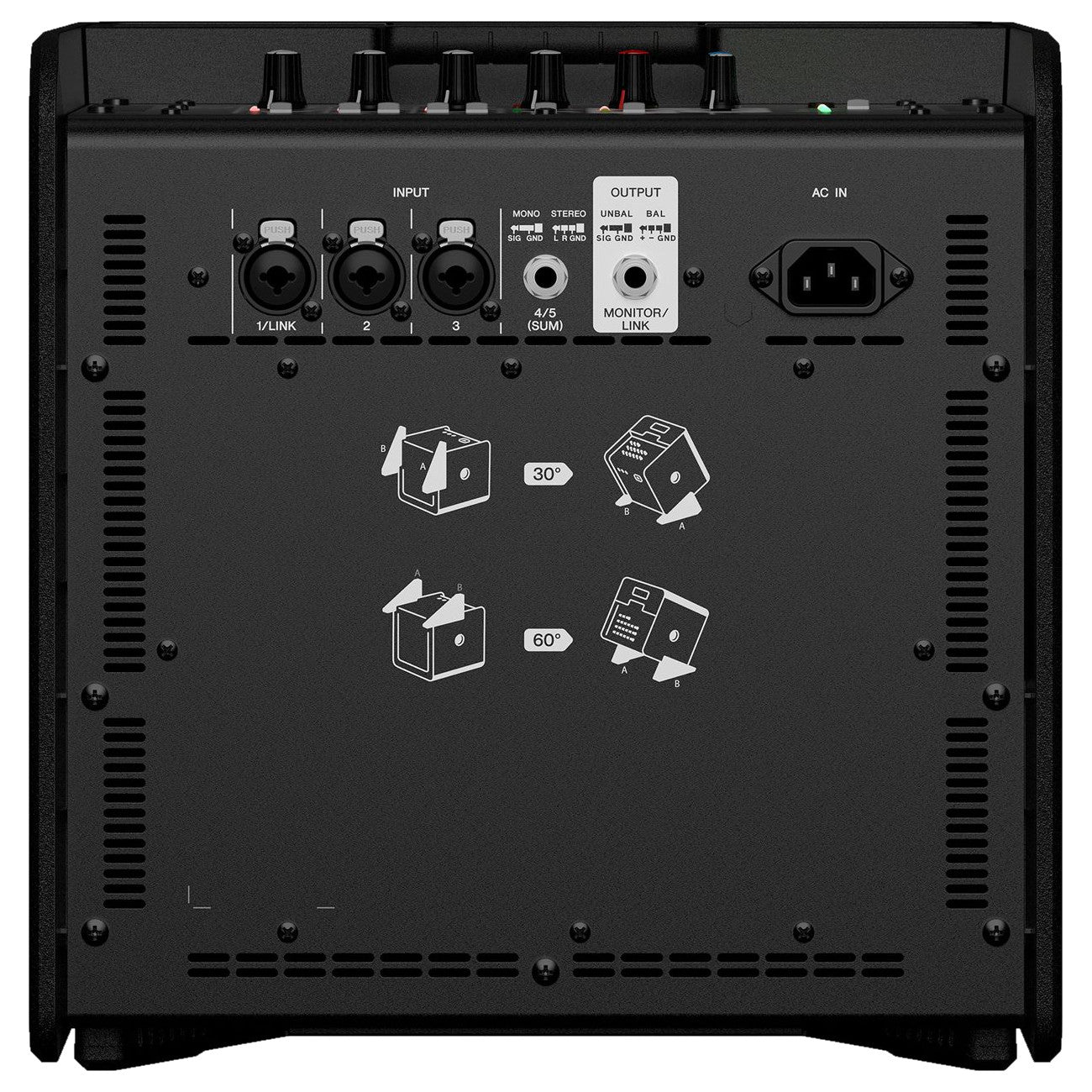

Inputs
Mono x3 (mic/line) + Stereo/Mono x1 (line)
Outputs
Monitor/Link out x1
Bluetooth
Ver.5.0, A2DP (SBC, AAC), Class 1
Maximum Output Level (1m; on axis)
125 dB SPL *1
Pole Socket
Φ35 mm x1 (Side)
Construction
Amplifier Class
Class-D
Cabinet Material
Plastic (ABS)
Shipping
Weight
26.5 lbs (12kg)
General
Type
2-way Bi-amp Powered Speaker with mixer
Mixing Channels
5 (Mono x3 + Stereo x1)
Control and Others
STAGEPAS Controller (iOS/Android app)
Onboard Processors (DSP)
SPX digital reverb (4 program, parameter control), delay, chorus
Frequency Range (-10dB)
60 Hz – 20 kHz
LF
8" Cone, 2.0" voice coil
HF
1" throat compression driver, 1.4" voice coil
Power Rating (Dynamic)
180 W (LF: 150 W, HF: 30 W)
Cooling
Natural convection (no fan)
Handle
Top x1

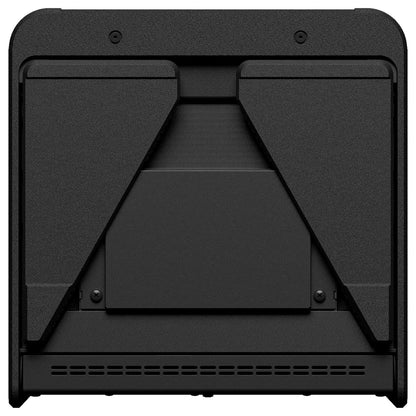

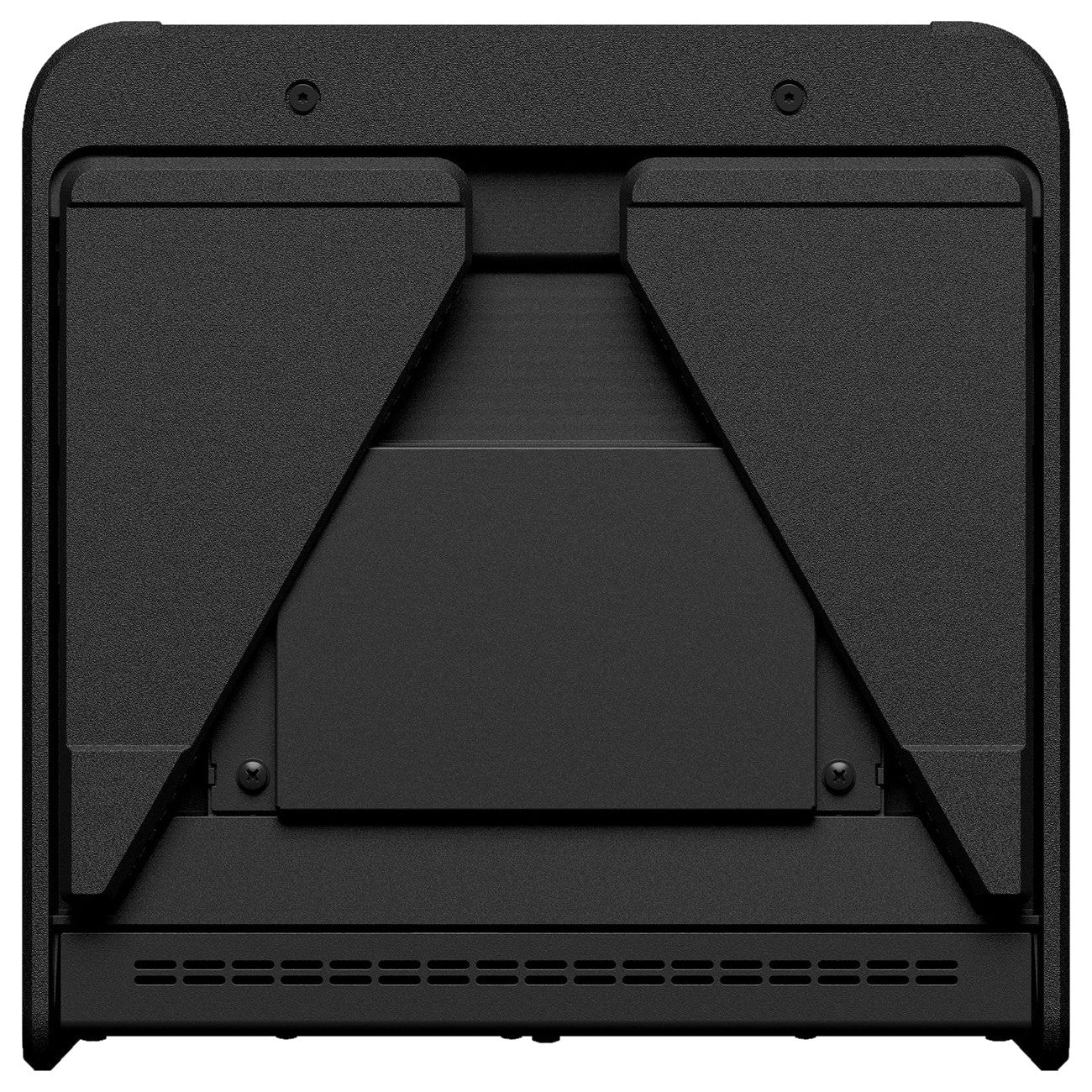

Floor Monitor Angle
30° or 60°
IR
Coverage Area
H90° x V90°
