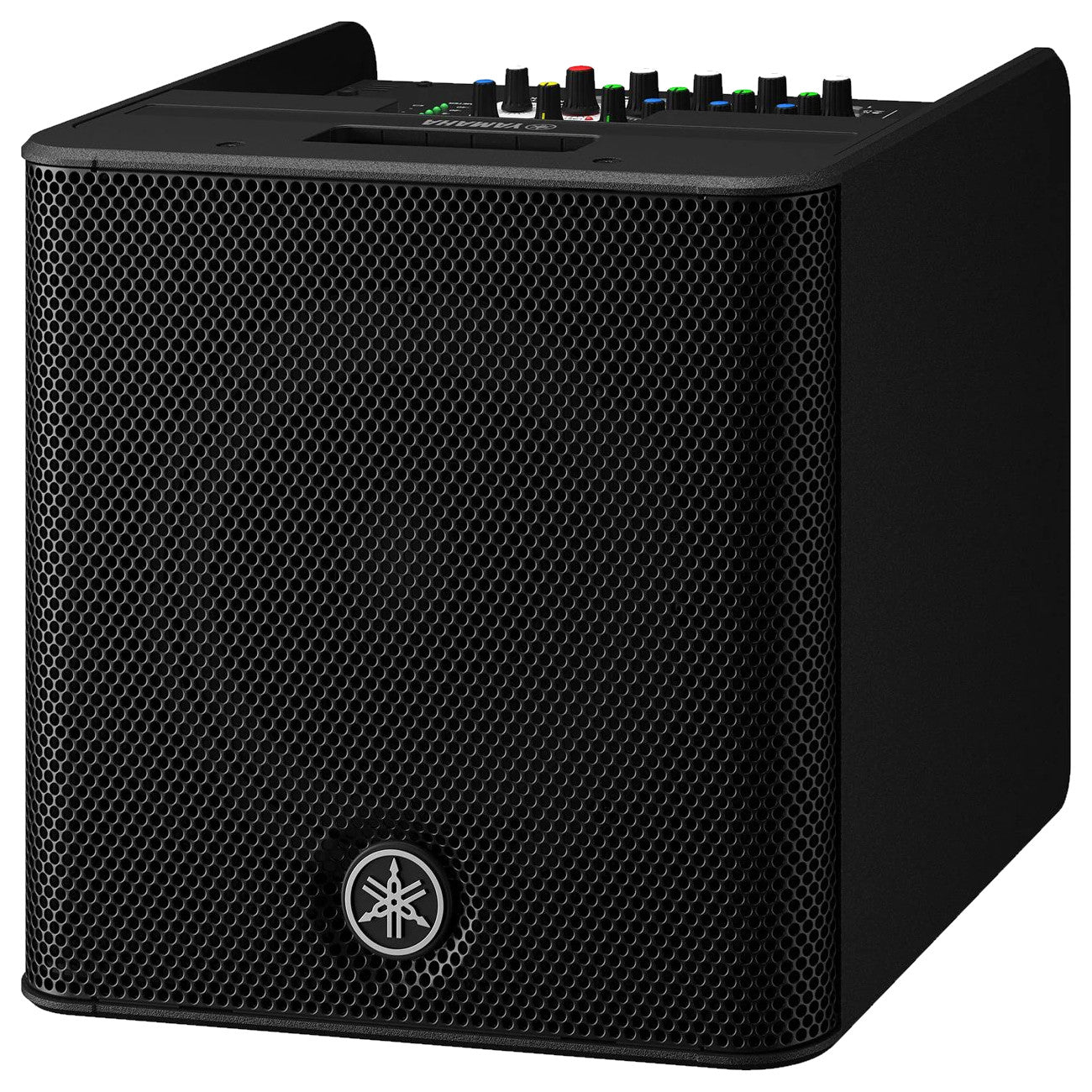

Yamaha STAGEPAS200BTR Portable Battery Powered PA Speaker System
Yamaha STAGEPAS200BTR Portable Battery Powered PA Speaker System
SoundPro Item: 140009 | Part Number: STAGEPAS200BTR
Usually ships in 5-7 business days
- Portable Battery Powered PA Speaker System for live sound
- Great for special events, outdoor performances, or venues that need versatile speaker positioning
- Ideal for setting up a temporary sound setup that requires professional polish
- For gigging musicians, duo or trio groups, touring performers, public speakers, and more
- 180W (HF: 30W + LF: 150W) Class-D amplifier
- 1.4” HF + 8” LF high-quality coaxial compression driver

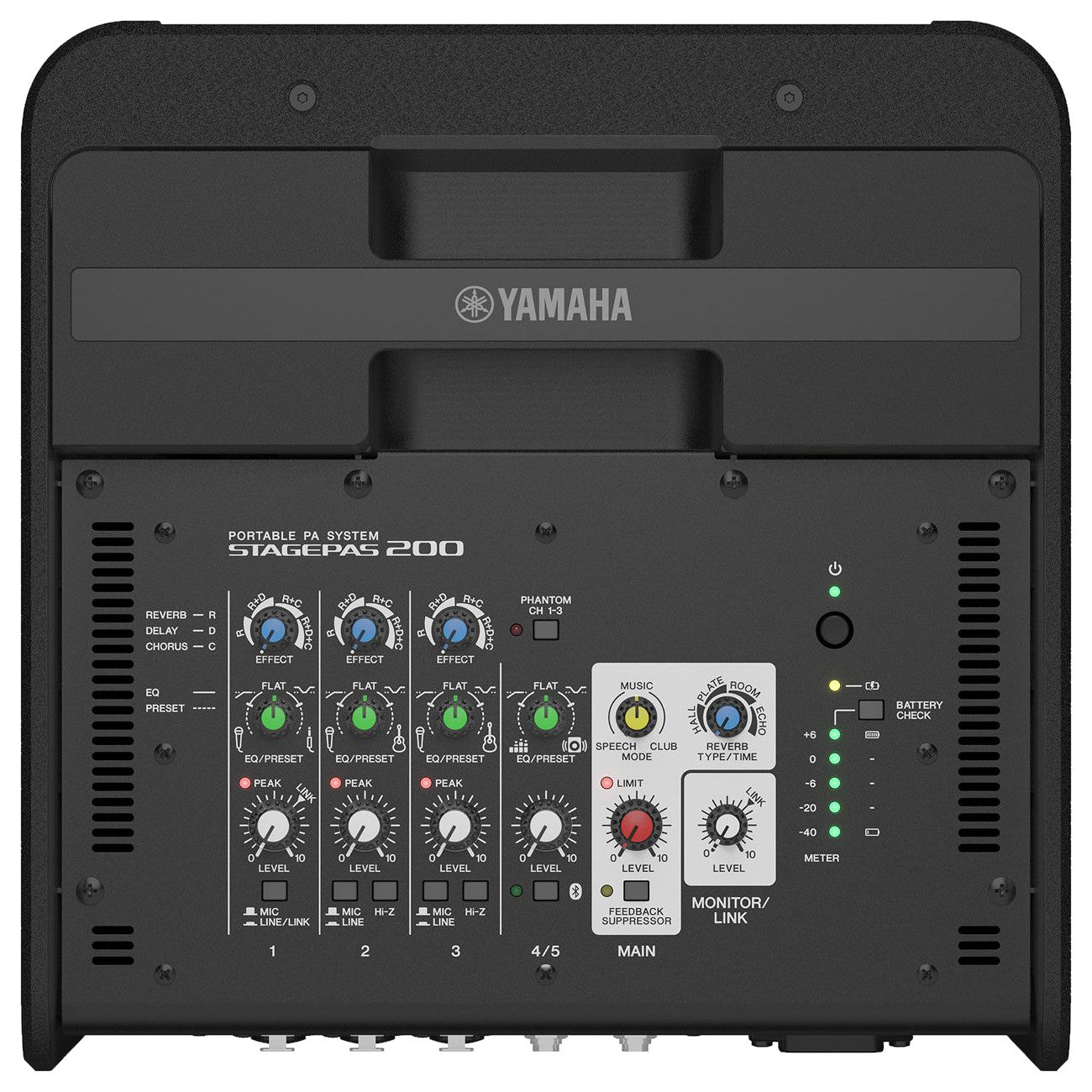

- 5-channel digital mixer (3 monaural mic/line + 1 stereo line)
- Main output multi-band compressor “MODE”
- 1-knob EQ/preset for each channel
- High-grade SPX digital reverb (4 program, parameter control), delay, chorus
- Hi-Z input
- Equipped with link-out/monitor out

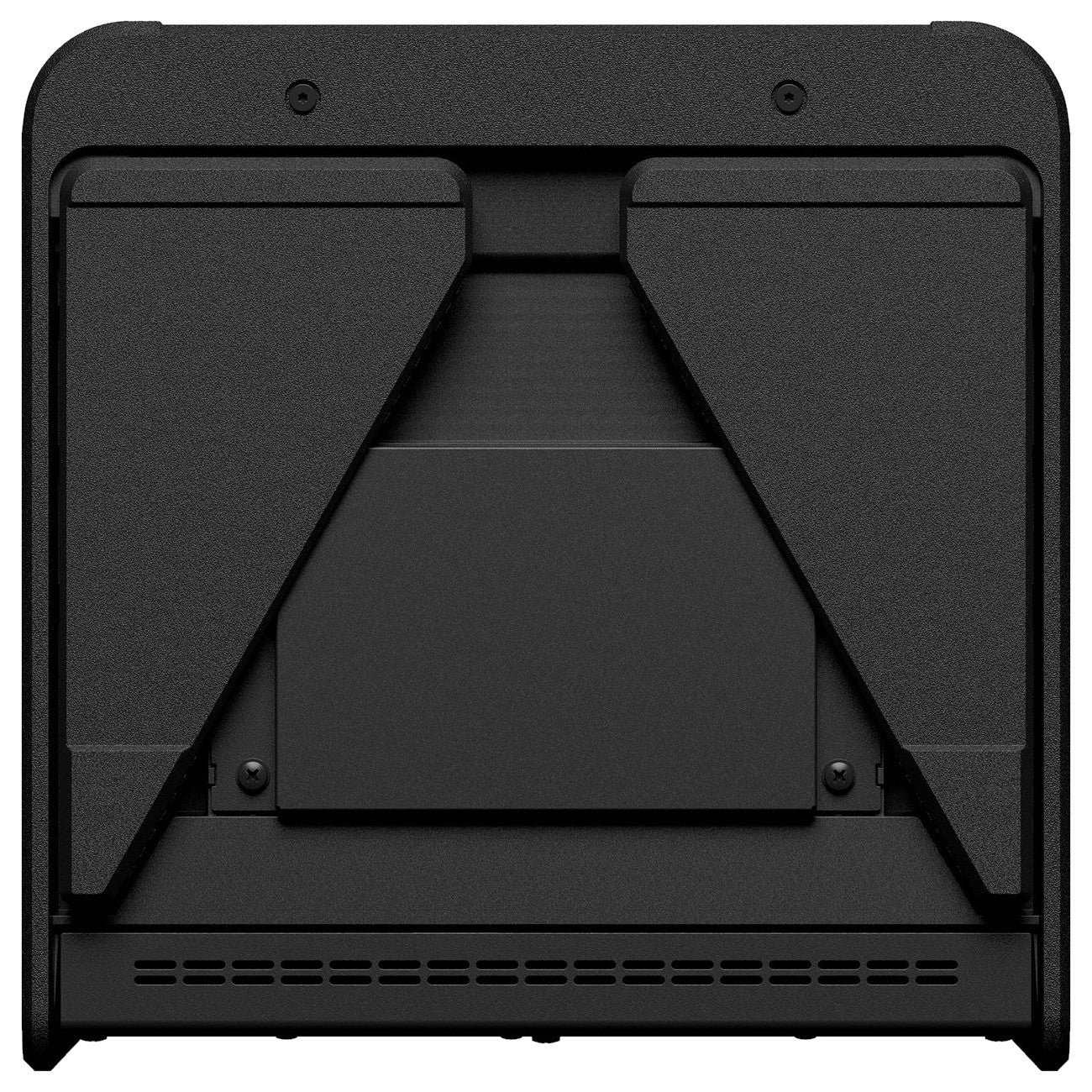

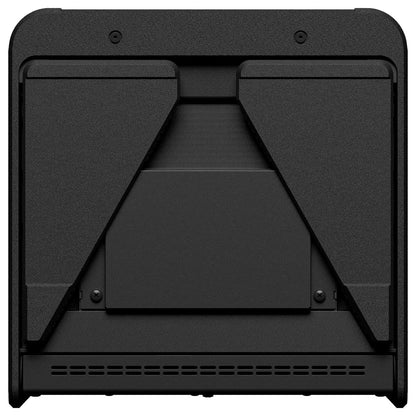

- Supplied rubber stand allows inclining at 30 or 60 degrees
- Compatible with audio streaming via Bluetooth
- Can be controlled remotely via an iOS or Android device using the dedicated STAGEPAS Controller app
- Optional BTR-STP200 battery included
The STAGEPAS200BTR from Yamaha is a portable, battery-powered PA speaker system that allows you to set up your sound wherever you need it. It boasts high-caliber sound quality with live sound features such as mixing capability for gigging musicians, duo or trio groups, touring performers, public speakers, and more. It’s ideal for setting up a temporary sound setup that requires professional polish, such as special events, outdoor performances, or venues that need versatile speaker positioning.
PLEASE NOTE: This model includes a high-capacity lithium-ion battery. If you’re looking for the standard model (without a battery), see the STAGEPAS200.
- Type2-way Bi-amp Powered Speaker with mixer
- Mixing Capability
- Mixing channels: 5 (Mono x3 + Stereo x1)
- Input channel functions: Hi-Z: CH2/3, 1-knob EQ/Preset: CH1-3/ST
- Output channel functions: MODE (SPEECH/MUSIC/CLUB)

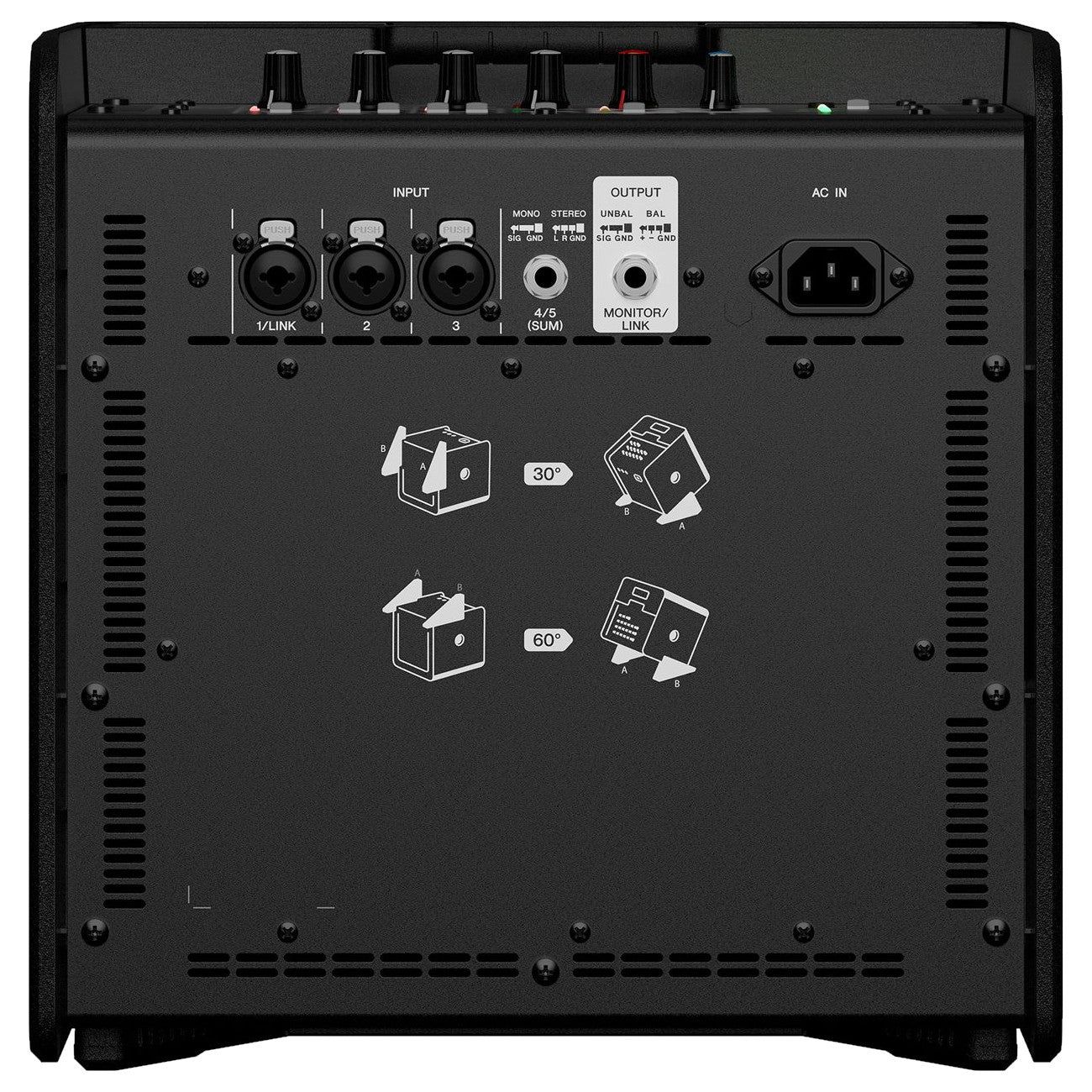

- I/O
- Inputs: Mono x3 (mic/line) + Stereo/Mono x1 (line)
- Outputs: Monitor/Link out x1
- Bluetooth: Ver.5.0, A2DP (SBC, AAC), Class 1
- Control and others: STAGEPAS Controller (iOS/Android app)
- Onboard Processors (DSP)SPX digital reverb (4 program, parameter control), delay, chorus
- Speaker typeCoaxial speaker with compression driver
- Frequency range (-10dB)60 Hz – 20 kHz
- Coverage areaH90° x V90°
- Crossover2.0 kHz
- Maximum output level (1m; on axis)125 dB SPL *1
- Components
- LF: 8" Cone, 2.0" voice coil
- HF: 1" throat compression driver, 1.4" voice coil
- Amplifier classClass-D
- Power rating (Dynamic)180 W (LF: 150 W, HF: 30 W)
- CoolingNatural convection (no fan)
- Power consumption10 W (Idle), 20 W (1/8 power)
- Power requirements100-240 V 50/60 Hz, or 29.6 Vdc *2
- Cabinet materialPlastic (ABS)
- HandleTop x1
- Pole socketΦ35 mm x1 (Side)
- Floor Monitor Angle30° or 60°
- Dimensions (WxHxD)11.8x12.1x11.9" (300x308x301mm)
- Weight27.6 lbs (12.5 kg), including battery
- Battery
- Type: Rechargeable Lithium ion battery pack
- Capacity: 79.92 Wh (2700 mAh, 29.6 V)
- Operating Time: Maximum 10 hours, 1/16 power continuous 8 hours
- Charging Time: Approx. 4 hrs
