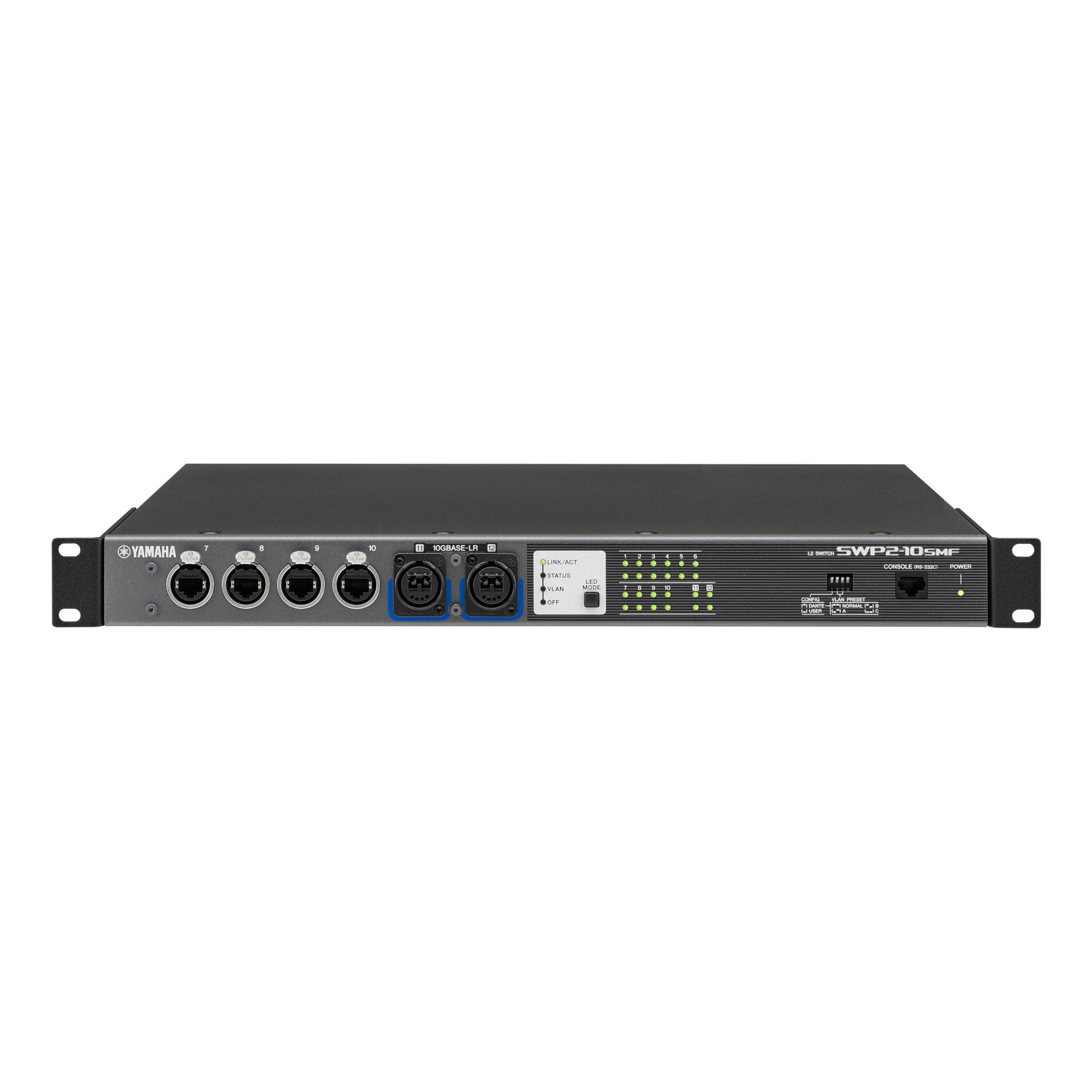

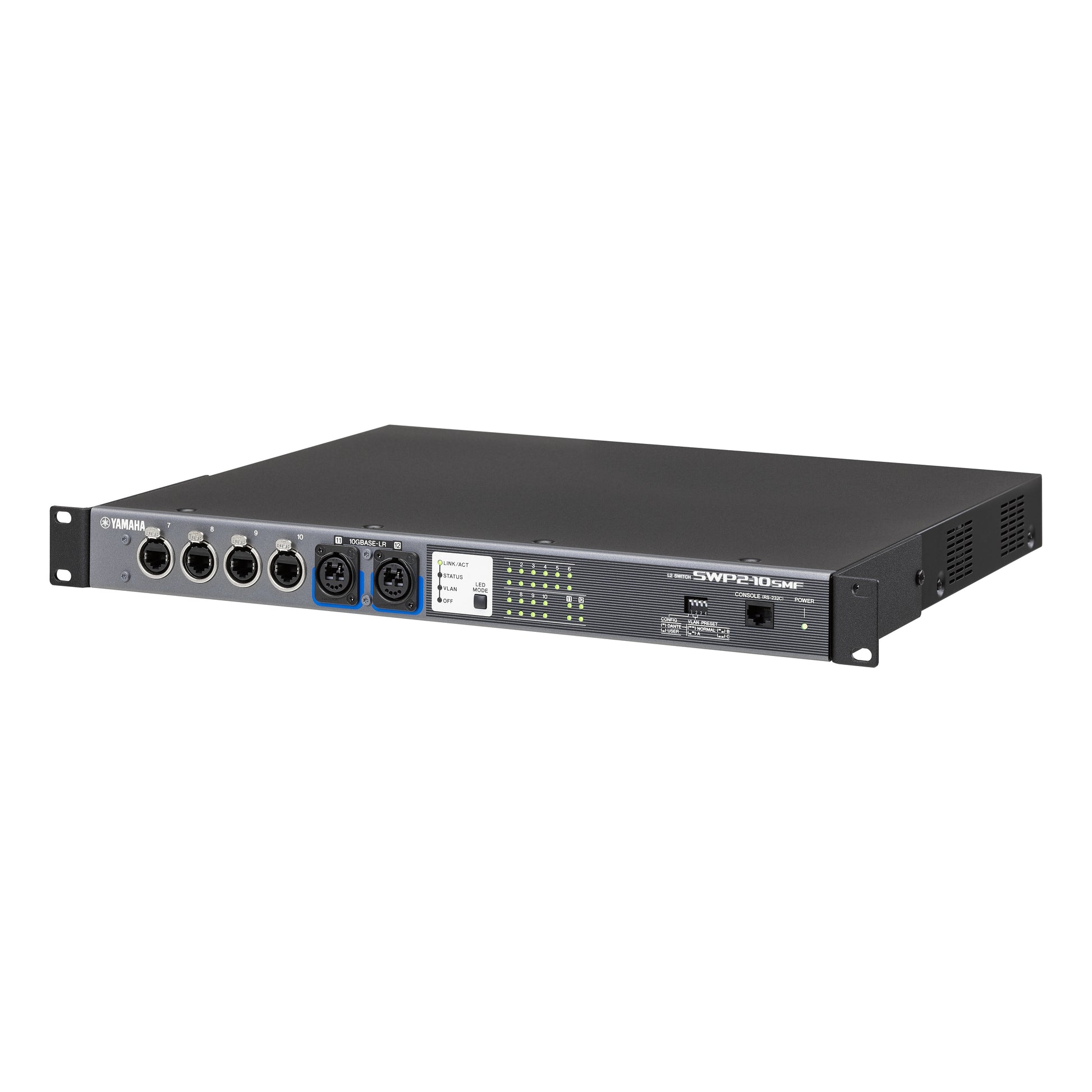

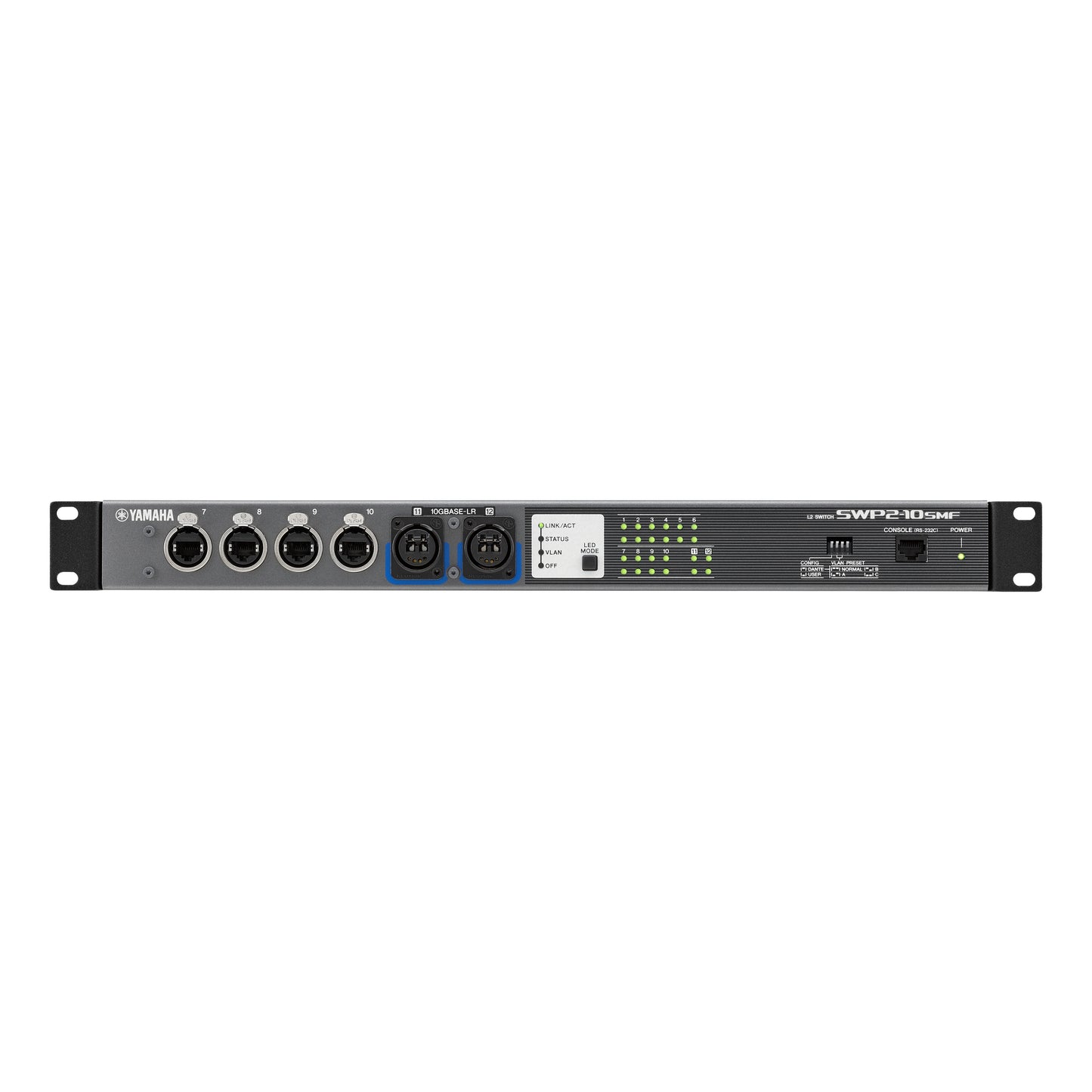

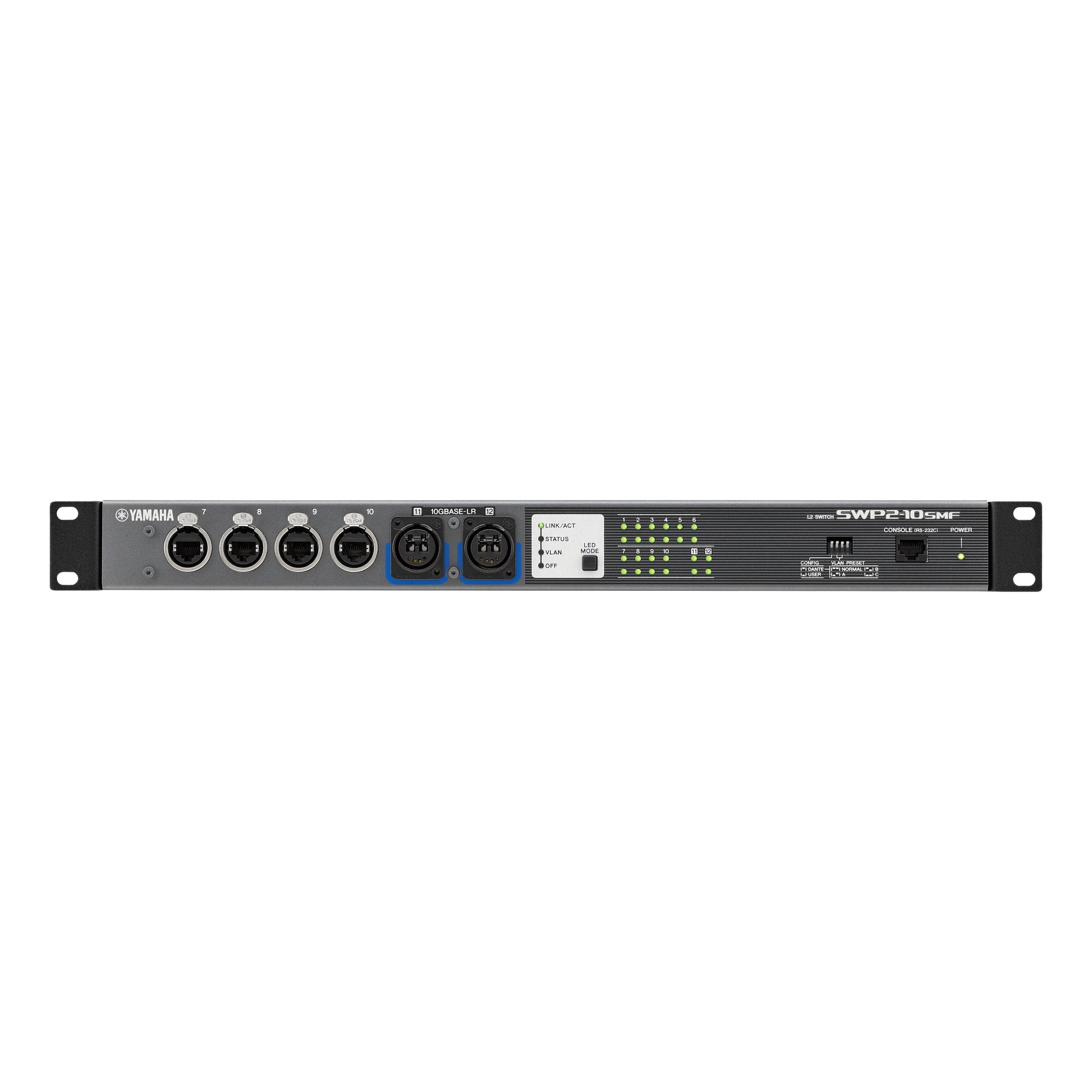

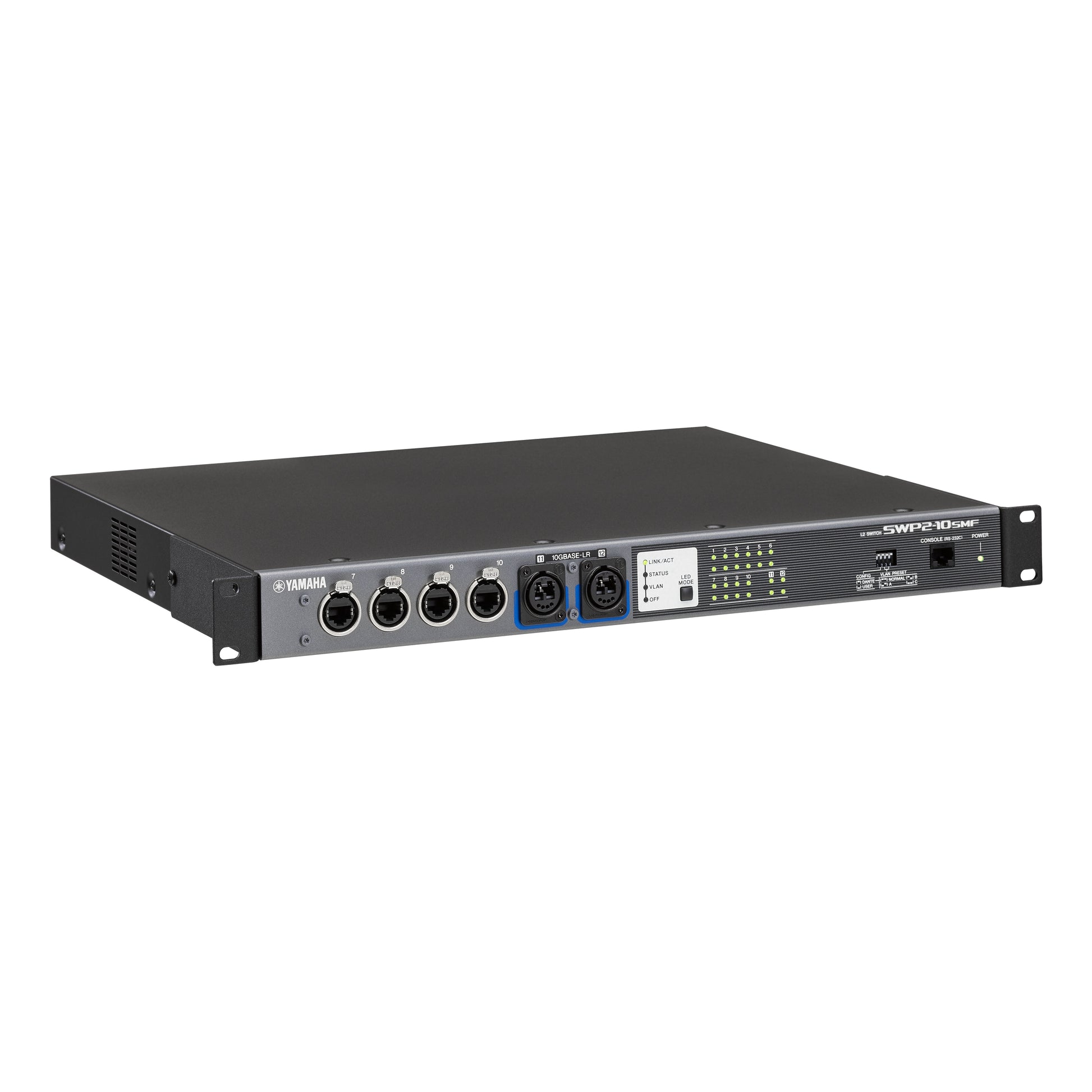

Yamaha SWP2-10SMF 10-Port L2 Network Switch

Yamaha SWP2-10SMF 10-Port L2 Network Switch

SoundPro Item: 41735 | Part Number: SWP2-10SMF

$4,079.00
$4,079.00 $4,079.00
Your Price Sold out
MSRP: $4,079.00 | MAP: $4,079.00

Usually ships in 5-7 business days

  • Network Switch with 10 etherCON ports and 2 single-mode fiber opticalCON ports
  • Designed specifically for sound installation and live audio networking

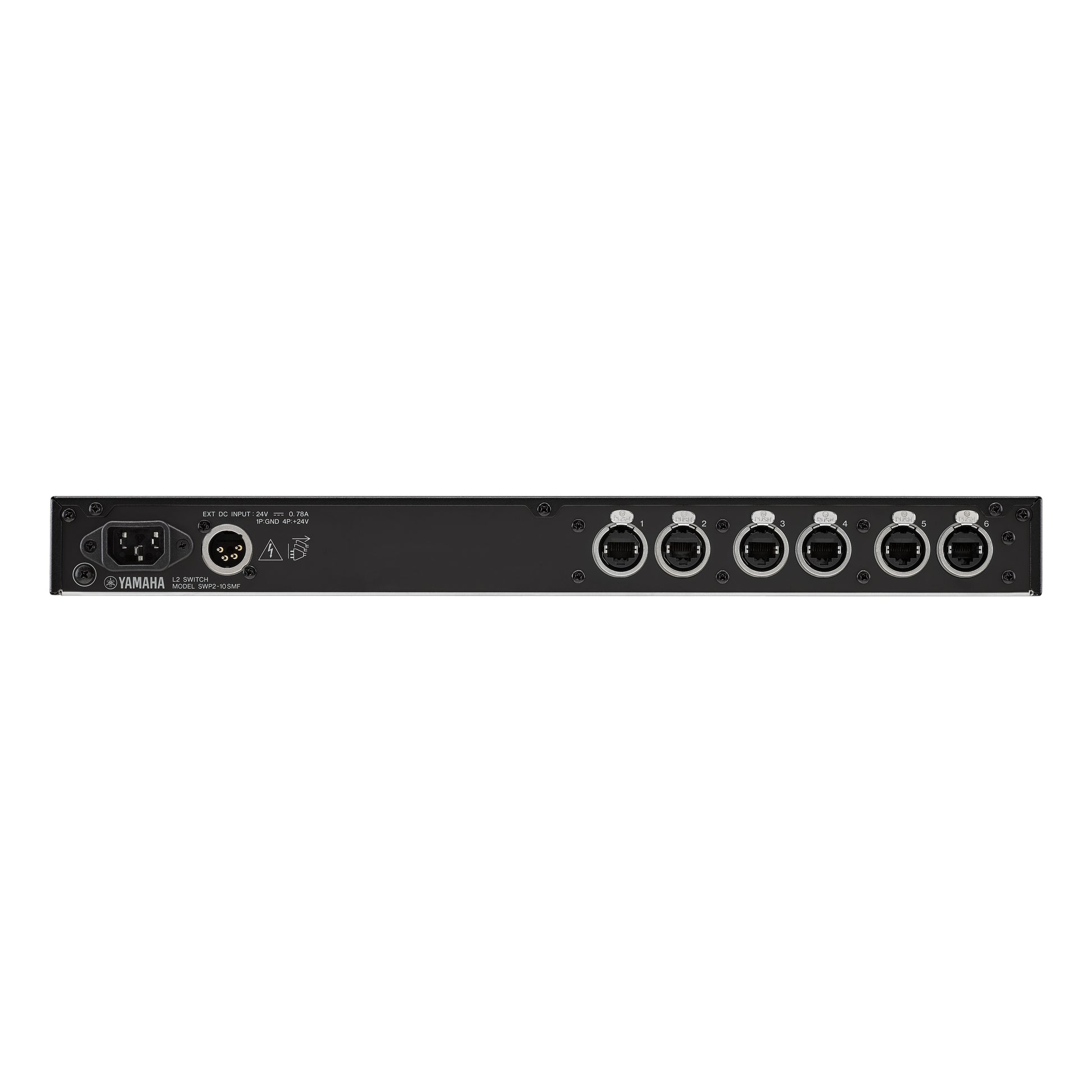

  • etherCON Connectors: 4 front / 6 rear
  • opticalCON Connectors: 2 front
Log in or register for YOUR best price

The SWP2-10SMF L2 Switch from Yamaha features 10 etherCON ports and two single-mode fiber opticalCON ports.

Designed specifically for sound installation and live audio networking, SWP2 series switches boast a simple DIP switch, 10 GB optimization for Dante 96kHz network systems, and comprehensive graphical interfacing via an integrated computer application.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
18.9x1.7x14.3” (480x44x362mm)
Weight
Weight (excluding accessories)
9.9 lbs (4.5 kg)
Electrical
Power Supply (AC IN inlet)
AC100V-240V, 50/60Hz, Internal power supply (no power switch), Power supply inlet: locking type
Power Supply (EXT DC INPUT inlet)
24VDC±2V, 0.78A, XLR-4-32 type Connector
Maximum Power Consumption
21W, 0.35A
Connectivity
Number of LAN Ports (1000BASE-T/100BASE-TX/10BASE-T, etherCON connector)
10
Number of SFP+ Ports (10GBASE-SR, opticalCON DUO connector)
2
Console Port
1 (RJ-45)
Construction
Body Material
Metal case, no fan
Environmental
Operating Temperature
0 to 40°C
Storage Temperature
-20 to 60°C
General
Automatic Negotiation
Available
Auto MDI/MDI-X
Available
DIP Switches
CONFIG, VLAN PRESET
Indicators
Front: POWER, LED MODE×4, PORT×10×2*, SFP+ ×2×2
Heat Dissipation
18.5 kcal/h
Hazardous Substances Management
RoHS compliant
