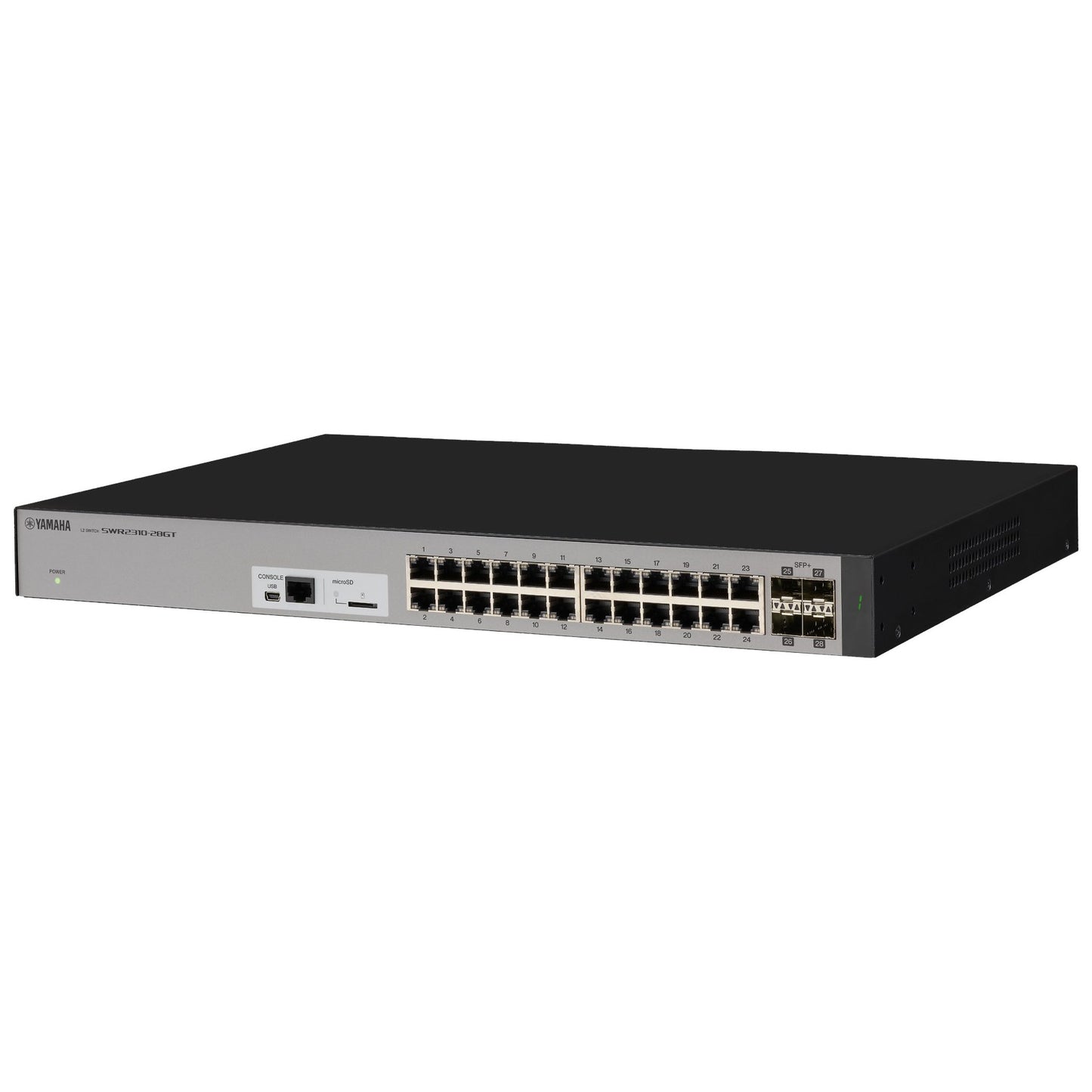

Yamaha SWR2310-28GT 28-Port L2 Intelligent Network Switch

Yamaha SWR2310-28GT 28-Port L2 Intelligent Network Switch

SoundPro Item: 79423 | Part Number: SWR2310-28GT

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Available ports: 24 LAN ports and 4 SFP+ slots
  • In-build RADIUS server for advanced security management
  • Yamaha LAN Monitor supported

The SWR2310-28GT from Yamaha is an L2 intelligent RJ45 switch with 28 ports.

The Yamaha SWR switch lineup, featuring high-performance L2 switches for fixed installations, has been expanded to provide a wider range of models for a wider range of applications. In addition to VLAN functionality, the new SWR2310-28GT and SWR2310-18GT offer high port counts and features such as 10G uplink ports for long-distance transmission of multichannel 96 kHz data, making them ideal choices for safe, stable backbone operation in large-scale systems. As with other SWR/SWP switches, Yamaha LAN Monitor software provides clear visual system status monitoring that makes Dante system setup easy.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
440x44x300mm
Electrical
Power Supply Voltage, Frequency
AC100 – 240V, 50/60 Hz
Maximum Power Consumption
25.2W
Performance
Standard
IEEE 802.3 (10BASE-T/100BASE-TX/1000BASE-T)
Connectivity
Number of Ports
24
Connector Type
RJ-45
Shipping
Weight
3.9kg
General
Communication Mode
Auto negotiation
Polarity
Automatic detection of straight/cross, or fixed at straight
Data Transmission Speed
9600 bit/s
File System
FAT/FAT32
Indicators
POWER, microSD, STACK ID, LAN port (LINK/ACT, SPEED), SFP+ port (LINK/ACT, SPEED)
MAC Address
Indicated in product label on top panel of unit
Operating Environment
Ambient temperature: 0–50 °C, Ambient humidity 15–80% (non-condensing)
Storage Environment
Ambient temperature: -20–60 °C, Ambient humidity 10–90% (non-condensing)
