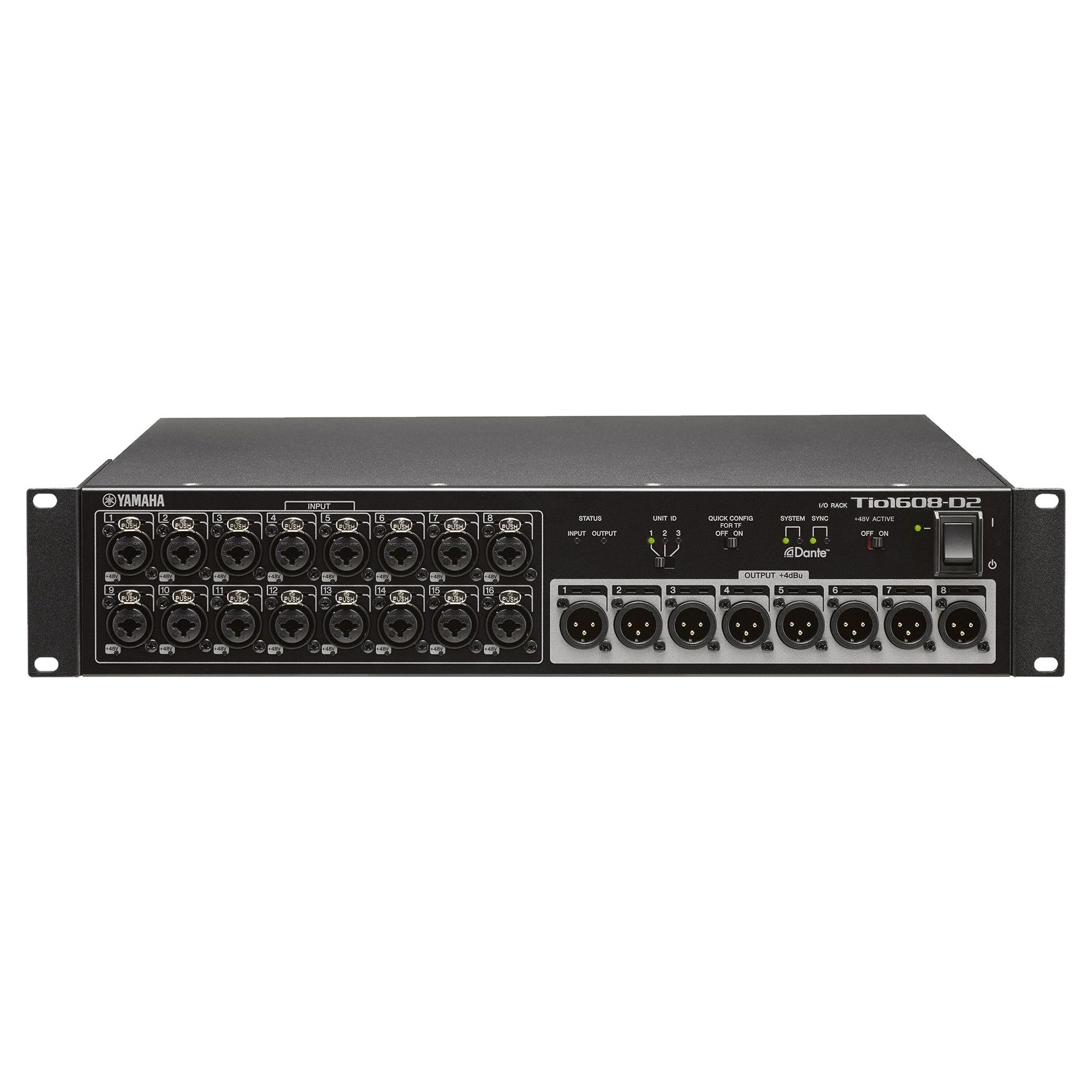

• Yamaha TIO1608-D2 16-In 8-Out Dante Digital Stage Box

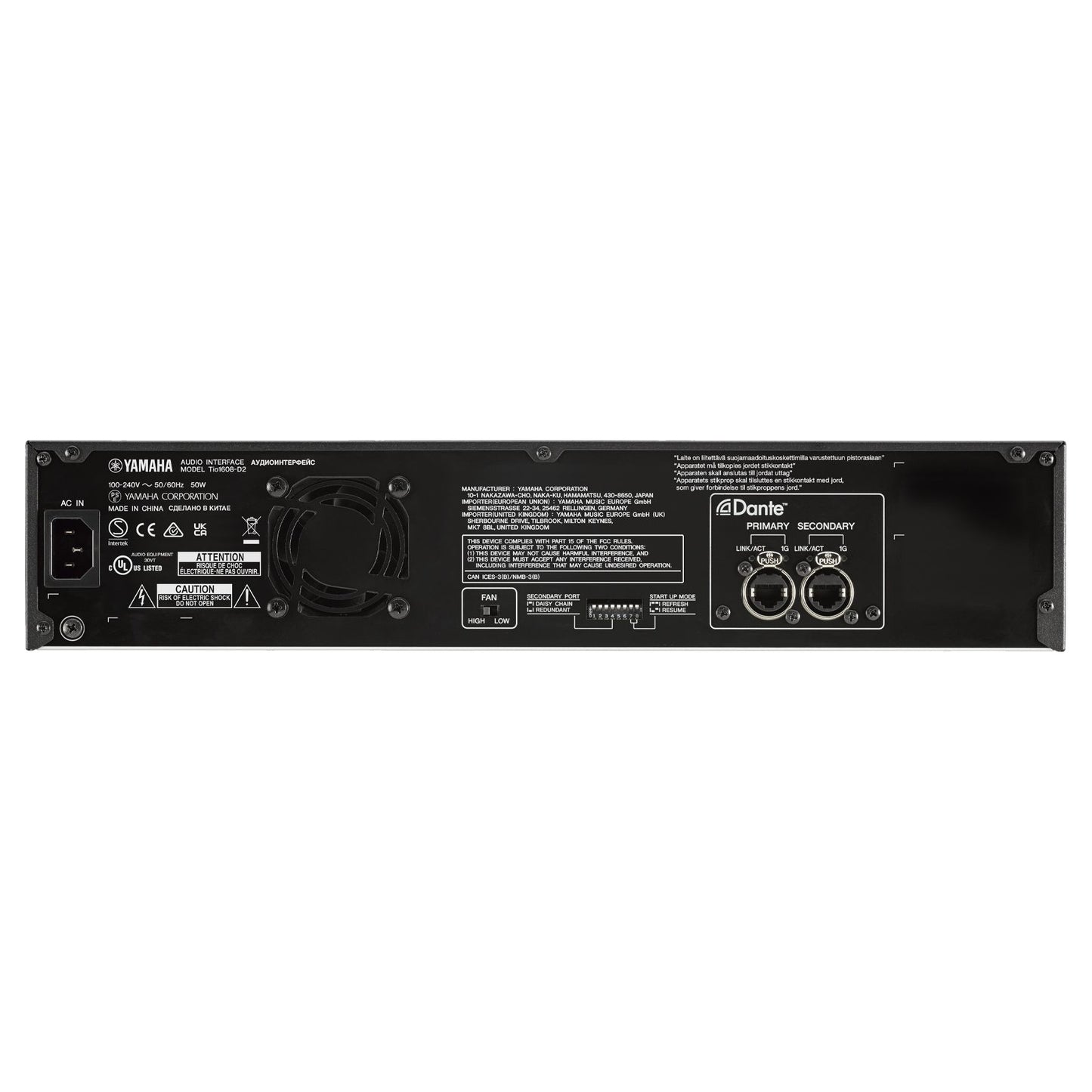

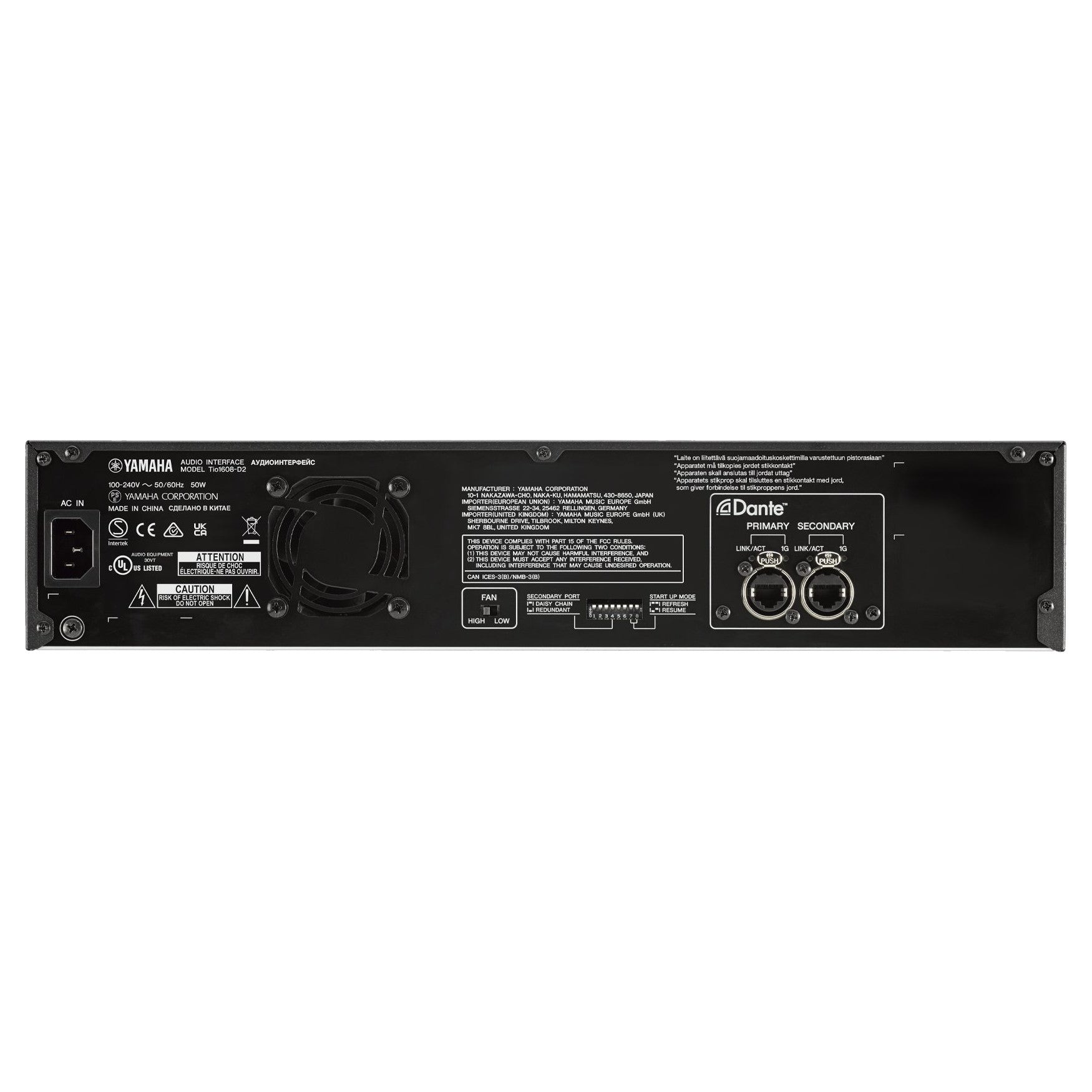

  • Yamaha TIO1608-D2 16-In 8-Out Dante Digital Stage Box back
1 2

Yamaha TIO1608-D2 16-In 8-Out Dante Digital Stage Box

Yamaha TIO1608-D2 16-In 8-Out Dante Digital Stage Box

SoundPro Item: 141142 | Part Number: TIO1608-D2

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • A stagebox that enhances the convenience of your console
  • Dante High Reliability Network Audio Protocol
  • Fast, easy configuration
  • Simple and Flexible Input Selection
  • Recallable D-PRE preamplifiers
  • System example with DM3
Log in or register for YOUR best price

The Tio1608-D2 is a Dante-compatible I/O rack equipped with 16 mic/line inputs and 8 line outputs. It can control gain from TF Series and DM3 consoles remotely, allowing the construction of a simple stagebox system. The versatile Tio1608-D2 also supports 96k, making it perfect for use as an I/O rack in large installations with products such as the RIVAGE PM or DME7.

The Dante audio network standard is utilized in the DM3 and TF series, as well as in the CL and QL digital mixers. These consoles can be freely combined with the Tio1608-D2 or an R series I/O rack to create a system that matches the required scale and budget. Patching can be enabled via “Dante Controller” while Remote HA can be controlled by “R Remote” software.

*Please note that Remote HA on the Tio1608-D2 can be implemented only via the Primary port. Remote HA control of the Tio1608D2 is not available on the secondary network, even when using the product in combination with a TF or CL/QL console.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
18.9x3.5x14.4” (480x88x364mm)
Weight
Net Weight
5.7kg (12.6lbs)
Electrical
Power Requirements
100-240V, 50/60Hz
Power Consumption
50W
Audio
Total Harmonic Distortion
Less than 0.2% +4 dBu@20Hz-20kHz into 600Ω, Gain=+66 dB / Less than 0.05% +4 dBU@20Hz-20kHz into 600Ω, Gain=-6 dB, INPUT to OUTPUT, Fs=88.2kHz, 96kHz; Less than 0.1% +4 dBu@20Hz-20kHz into 600Ω, Gain=+66 dB / Less than 0.05% +4 dBU@20Hz-20kHz into 600Ω, Gain=-6 dB, INPUT to OUTPUT, Fs=44.1kHz, 48kHz *Measured with a -18 dB/octave filter @80kHz
Frequency Response
+0.5, -1.5 dB 20Hz-20kHz, refer to the nominal output level @1kHz, INPUT to OUTPUT
Crosstalk
-100 dB, adjacent INPUT/OUTPUT channels, Input Gain = -6 dB *Measured with a -30 dB/octave filter @22kHz
Connectivity
Equivalent Input Noise
-128 dBu, Gain=+66 dB, Fs 96kHz, 48kHz *Measured with A-weighting filter
Residual Output Noise
-86 dBu, Fs 96kHz / -88 dBu, Fs 48kHz, ST main off *Measured with A-weighting filter
General
Sampling Frequency Rate (External)
44.1kHz, 48kHz, 88.2kHz, 96kHz
Signal Delay
Less than 1.3ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25ms (one way), Fs=96kHz; Less than 2.6ms INPUT to OUTPUT, connect with DM3, Dante Receive Latency set to 0.25ms (one way), Fs=48kHz
Dynamic Range
108 dB, INPUT to OUTPUT, Gain=-6 dB / 110 dB, DA Converter, Fs 96kHz; 108 dB, INPUT to OUTPUT, Gain=-6 dB / 112 dB, DA Converter, Fs 48kHz
Heat Dissipation
100-240V, 50/60Hz, 43.5kcal/h
Others
Temperature Range: Operating temperature range: 0 - 40°C, Storage temperature range: -20 - 60°C
