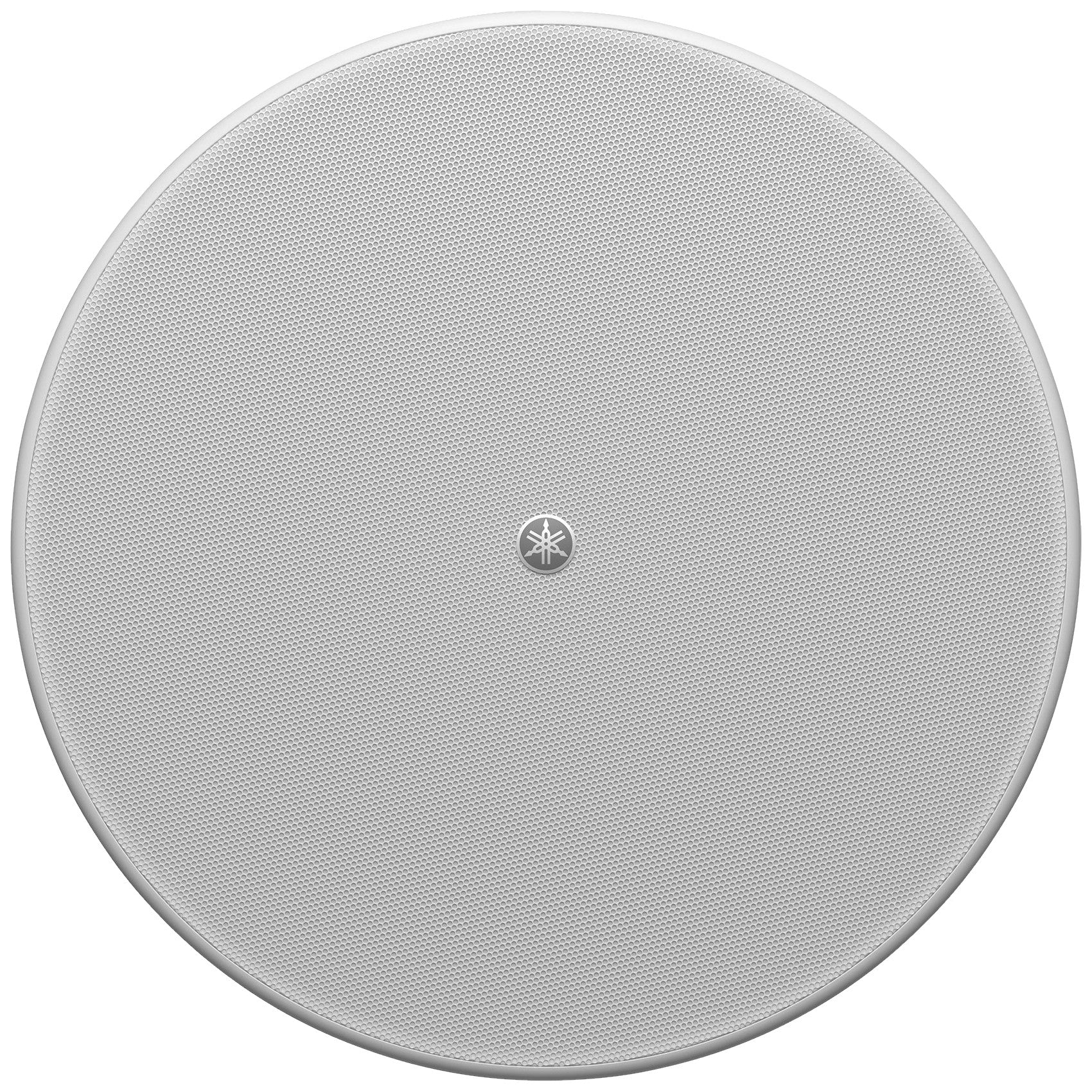

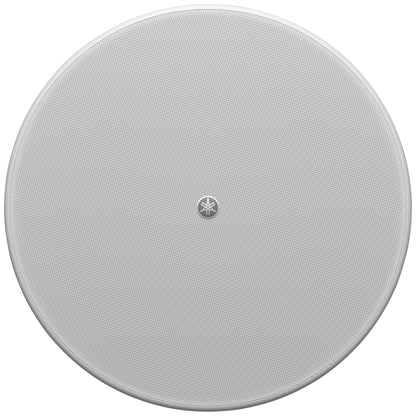

• Yamaha VC8N 8" 2-Way Ceiling Speaker without Back Can front black

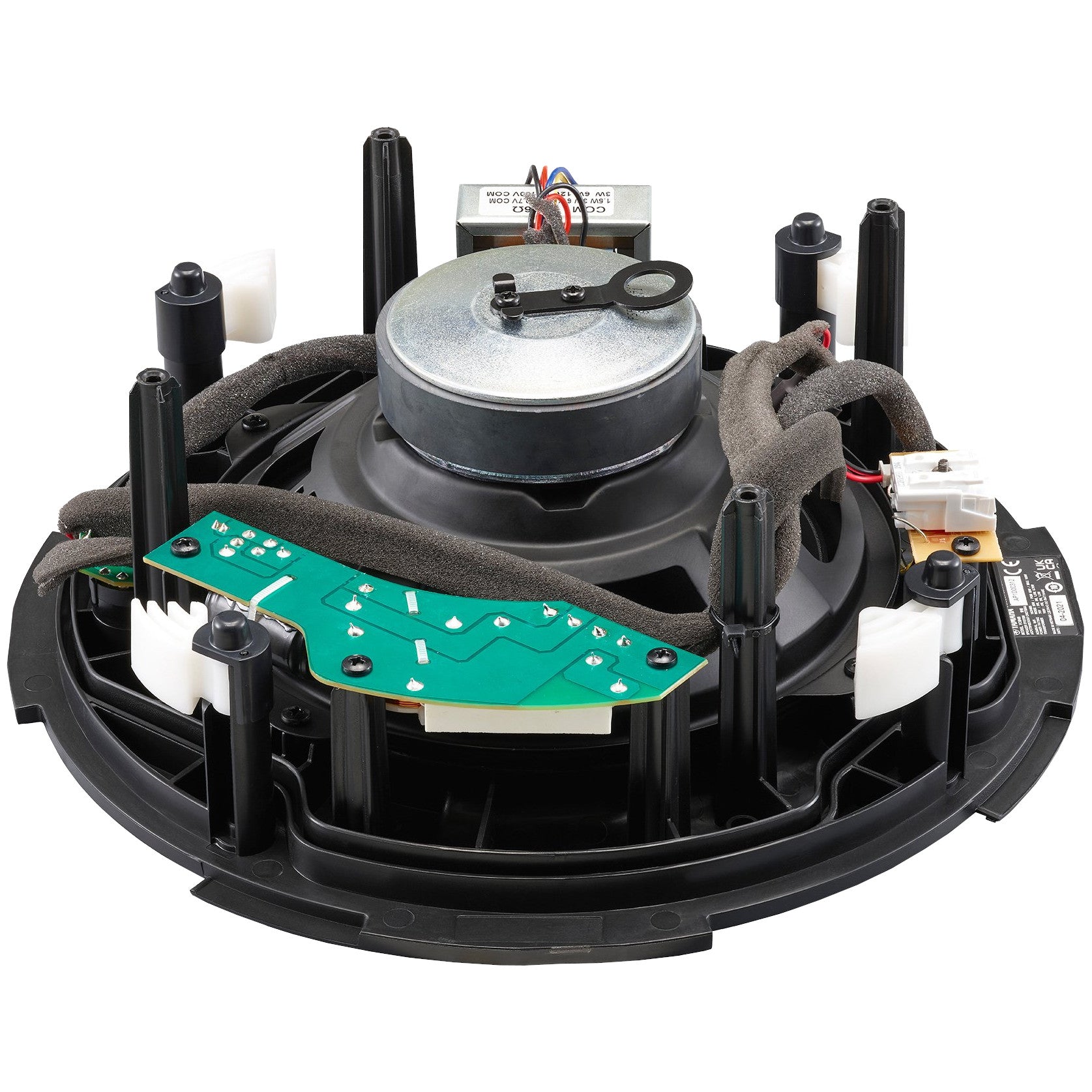

  • Yamaha VC8N 8 2-Way Ceiling Speaker without Back Can side

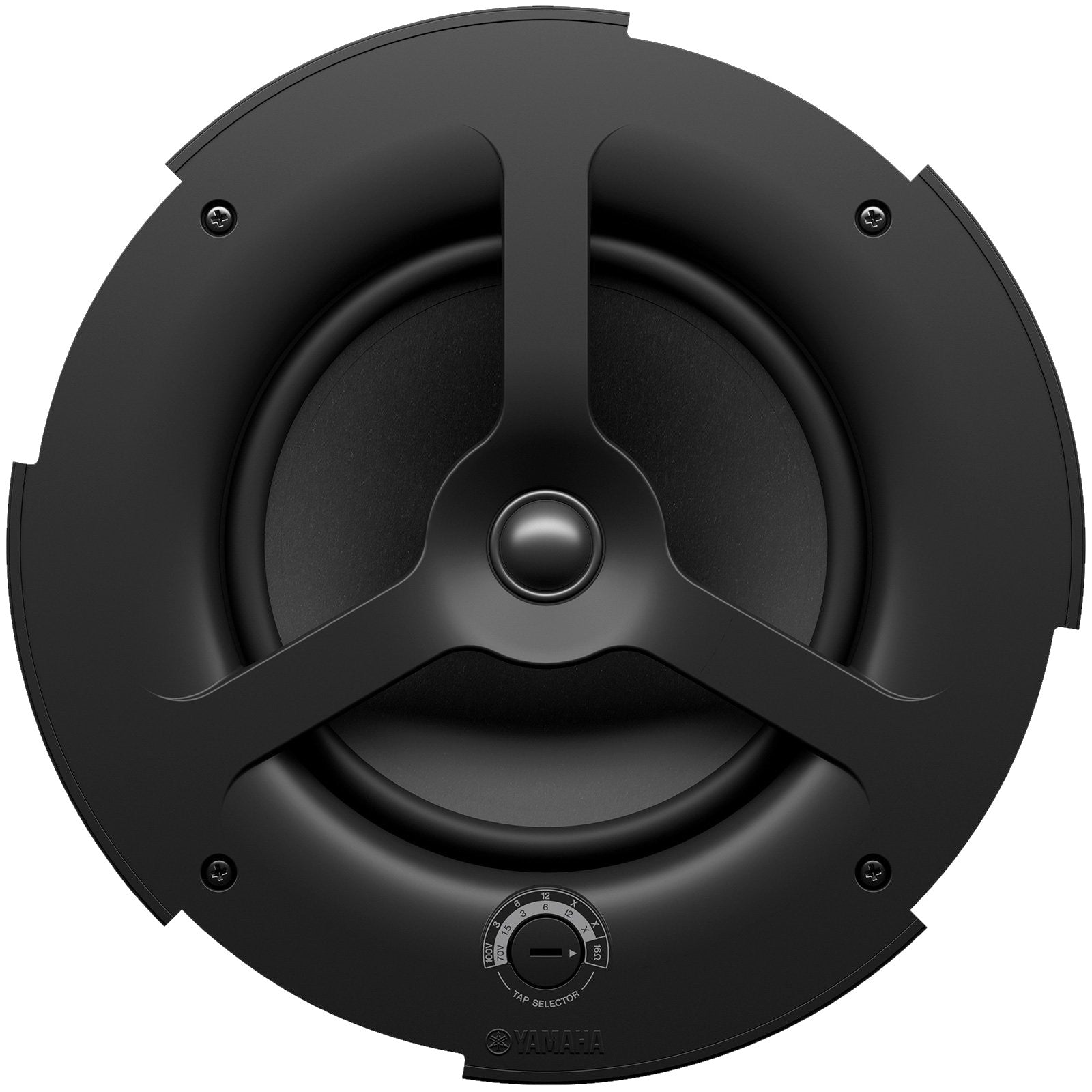

  • Yamaha VC8N 8 2-Way Ceiling Speaker without Back Can without grille

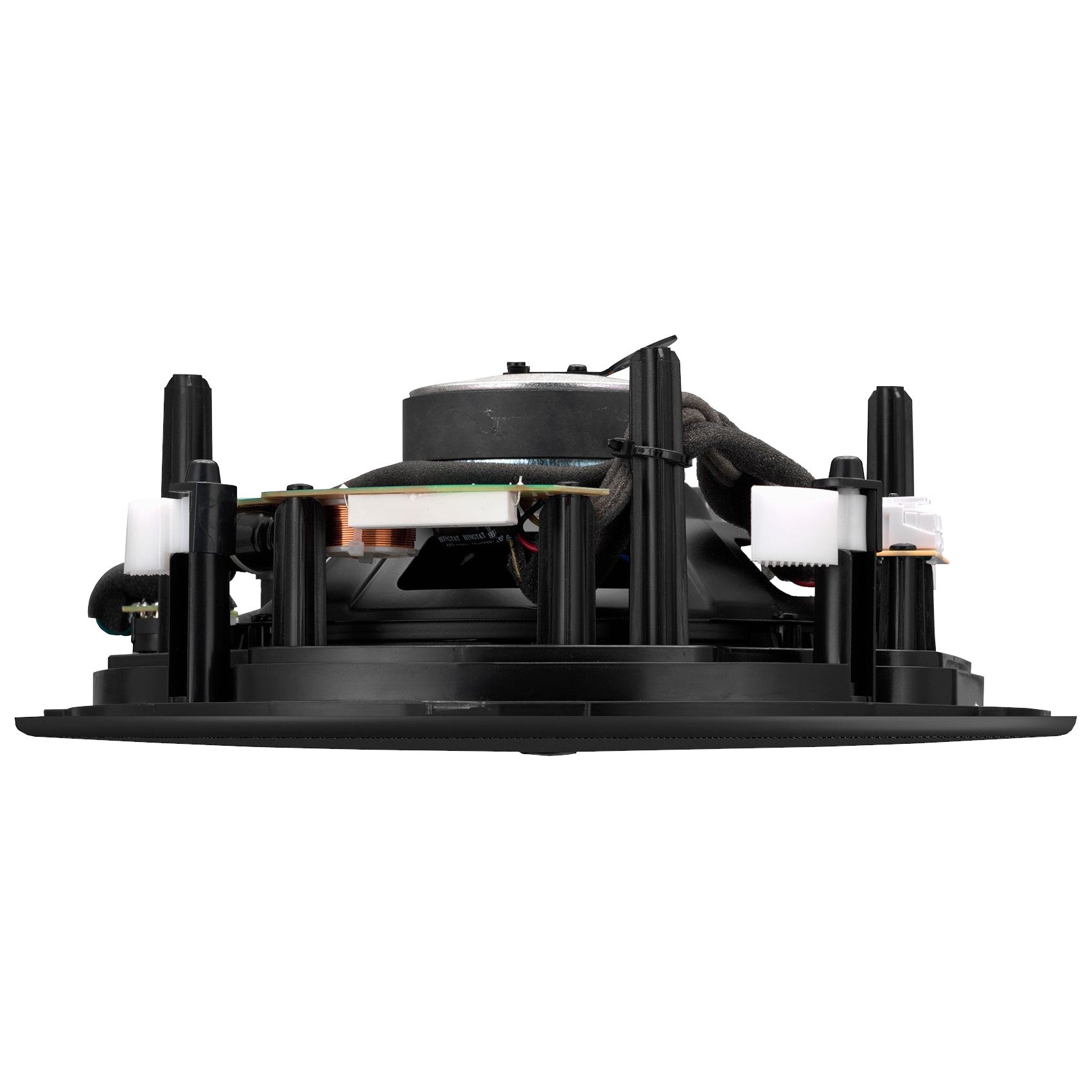

  • Yamaha VC8N 8 2-Way Ceiling Speaker without Back Can profile

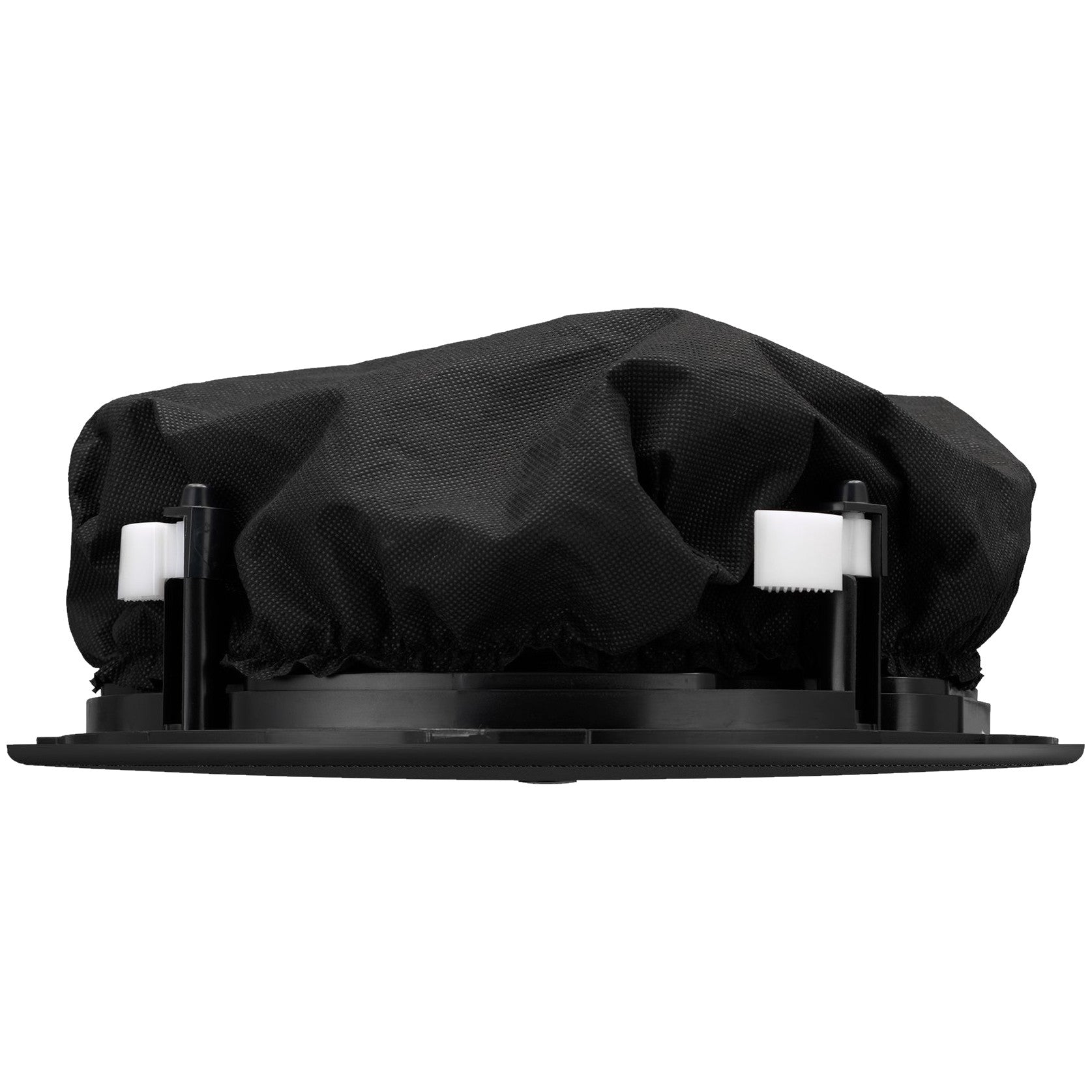

  • Yamaha VC8N 8 2-Way Ceiling Speaker without Back Can profile cover

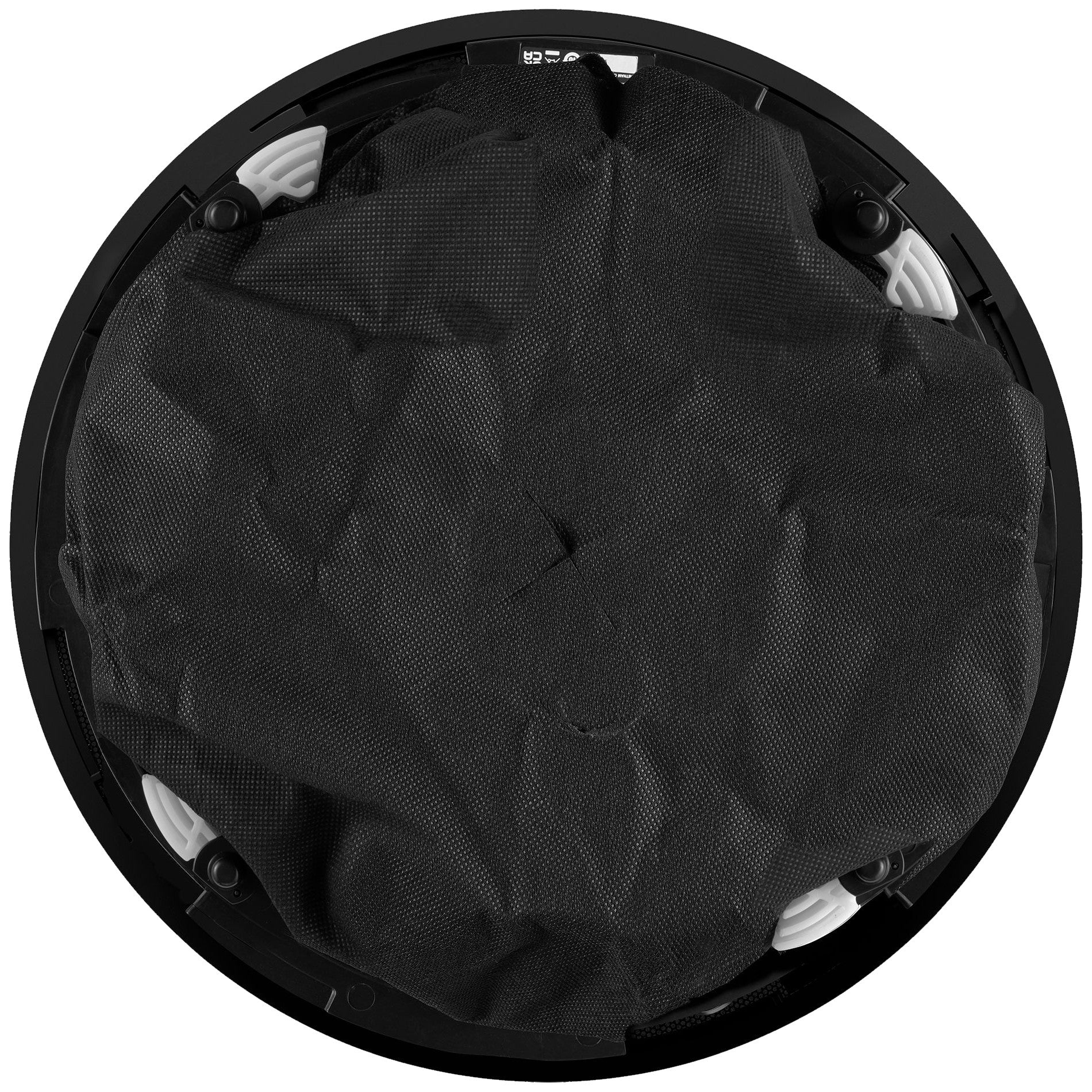

  • Yamaha VC8N 8 2-Way Ceiling Speaker without Back Can covered back

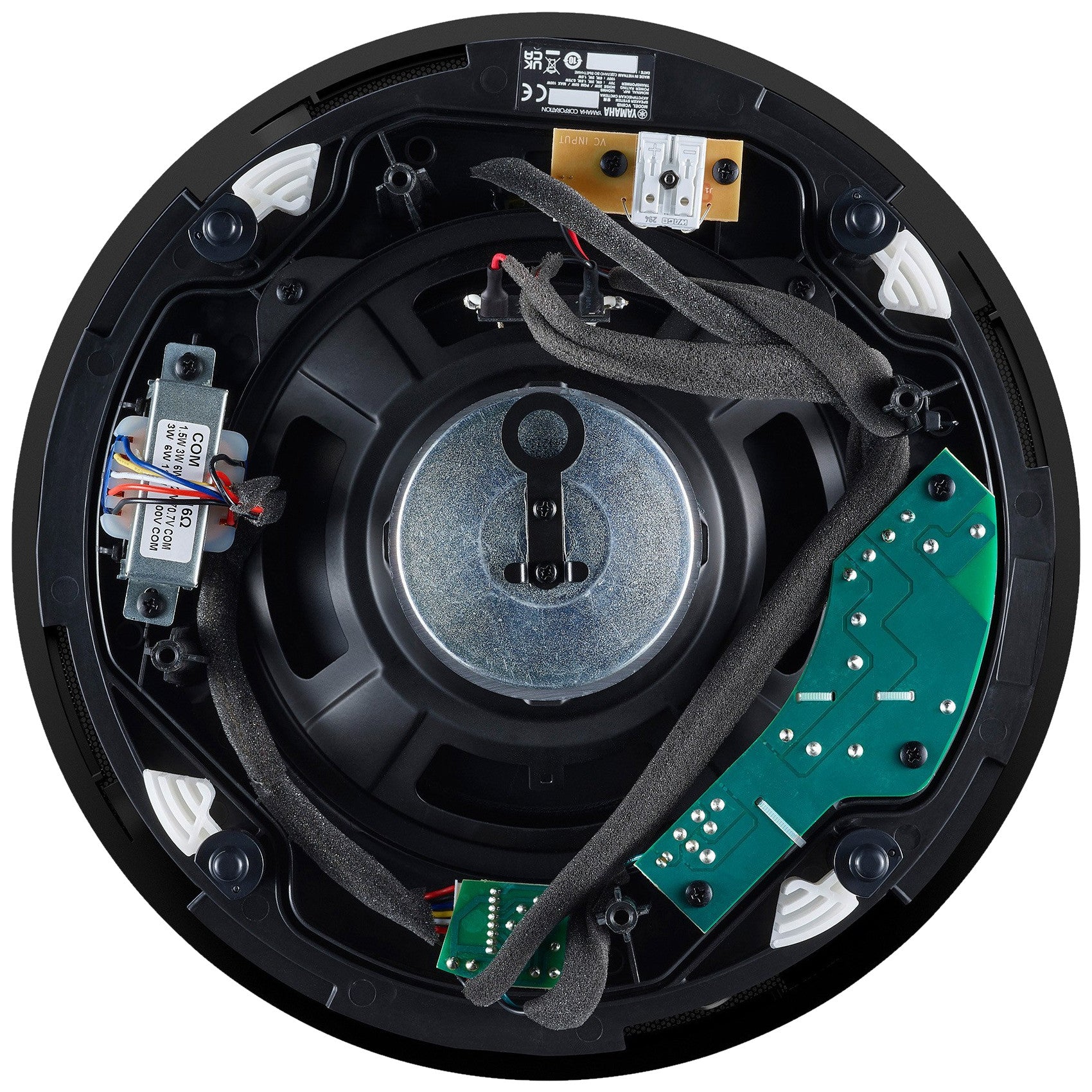

  • Yamaha VC8N 8 2-Way Ceiling Speaker without Back Can interior back
1 7

Yamaha VC8N 8-Inch Ceiling Speaker without Back Can | Color: White

Yamaha VC8N 8-Inch Ceiling Speaker without Back Can | Color: White

SoundPro Item: 132286 | Part Number: VC8NW

$175.99
$193.00 $175.99
Your Price Sold out
MSRP: $193.00 | MAP: $175.99

Usually ships in 5-7 business days

  • Engineered for optimum BGM and voice reproduction
  • No back can low-profile design allows installation in limited ceiling spaces
  • Direct support for low-impedance or high-impedance connections
  • 16Ω in low-impedance is advantageous when connecting multiple speakers in low impedance system
  • Double-threaded speaker clamp screws for speedy tightening
  • Paintable grilles with magnetic catches
  • Black and white versions available
  • 2.8 kg (6.2 lbs), Ø325 x D131 mm (Ø12-3/4” x D5-1/8”)
  • Single unit package
Log in or register for YOUR best price

The VC8N from Yamaha is an 8-inch ceiling speaker without a back can. It is designed to give budget-conscious commercial venues high-quality sound coverage.

View full details
  • Speaker Type2way Coaxial type (without backcan)
  • Frequency Range (-10dB) 52 Hz - 20 kHz (Half-space: 2π)
  • Nominal Coverage110° conical (Half-space: 2π)
  • Components
    • LF: 8” Cone
    • HF: 1” Soft Dome
  • Power Rating
    • NOISE: 25W
    • PGM: 50W
    • PEAK: 100W
  • Nominal Impedance16Ω
  • Transformer Taps
    • 100V: 12W, 6W, 3W
    • 70V: 12W, 6W, 3W, 1.5W
  • SPL
    • Sensitivity (1W; 1m on axis): 91 dB SPL (Half-space 2π)
    • Peak (Calculated): 111 dB SPL (Calculated, 1 m)
  • I/O ConnectorsPush terminal (WAGO 294 /2 pin) × 1, Wire size : Solid conductor Min. AWG18 (0.75 sq) / Max. AWG12 (3.5 sq), Standard conductor Min. AWG18 (0.75 sq) / Max. AWG14 (2 sq)
  • Protection Circuit (Load Protection)Full-range power limiting to protect network and transducers
  • FinishVC8NB: Black (approx. Munsell N3), VC8NW: White (approx. Munsell N9.3)
  • Dimensions
    • Diameter: 325 mm (12 - 3/4")
    • D: 131 mm (5 - 1/8")
  • Net Weight2.8 kg (6.2 lbs)
  • Cutout SizeØ285 mm (Ø11 - 1/4")
  • Required Ceiling Board Thickness2 mm – 37 mm
  • CertificationCE, RoHS
