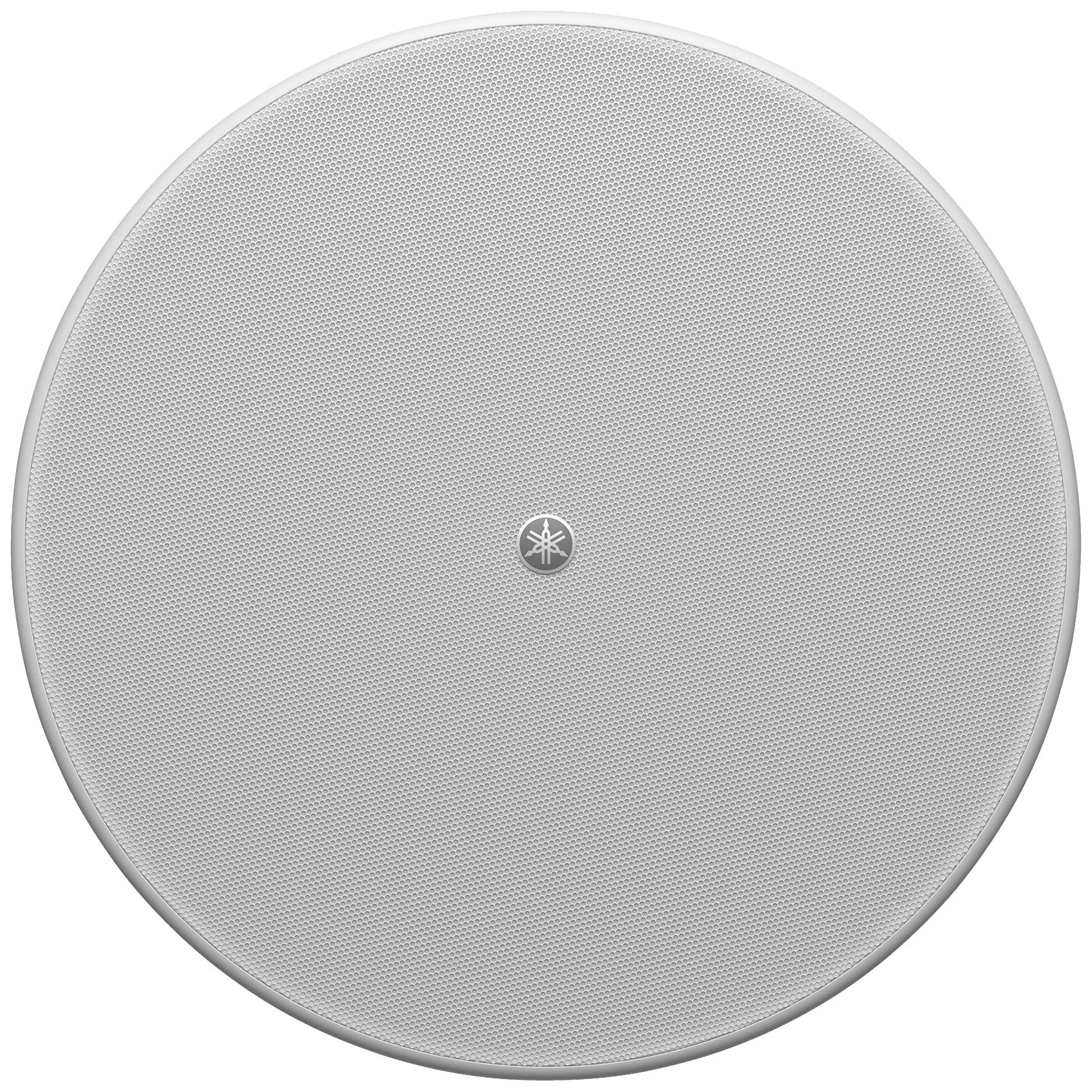

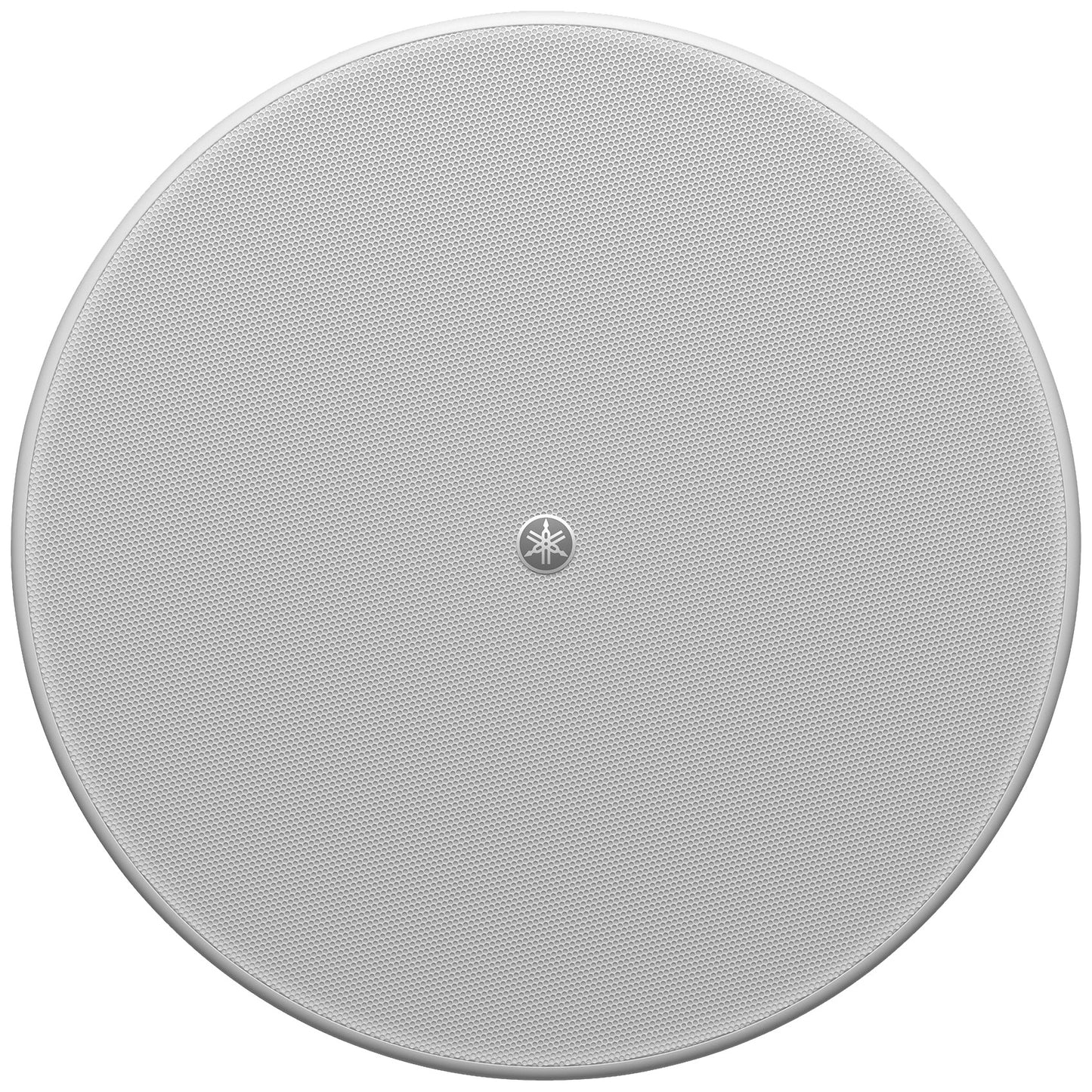

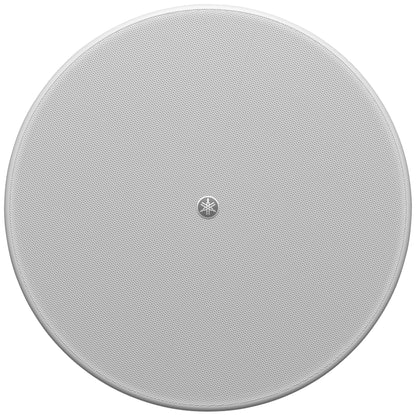

• Yamaha VC8 8" 2-Way Ceiling Speaker front black

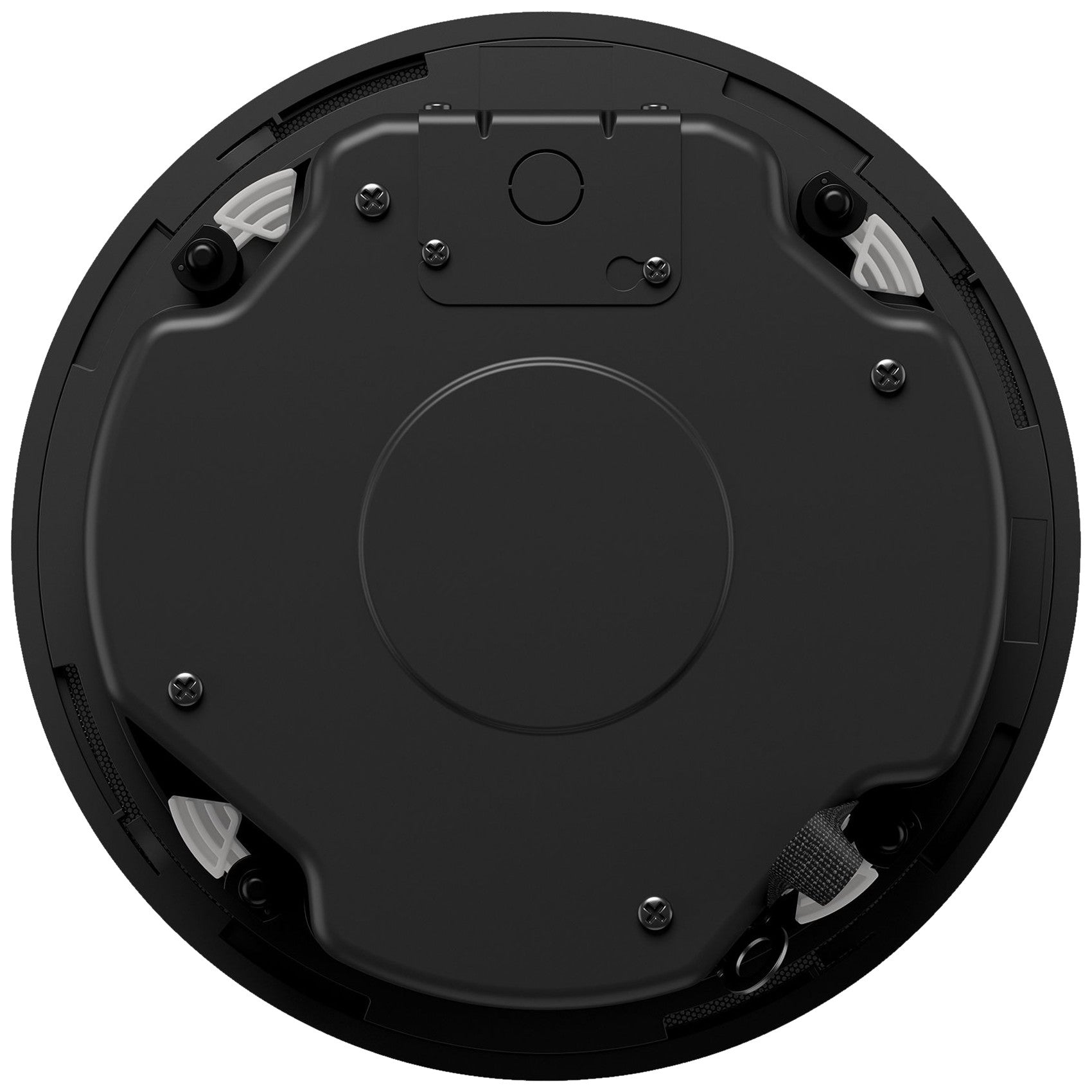

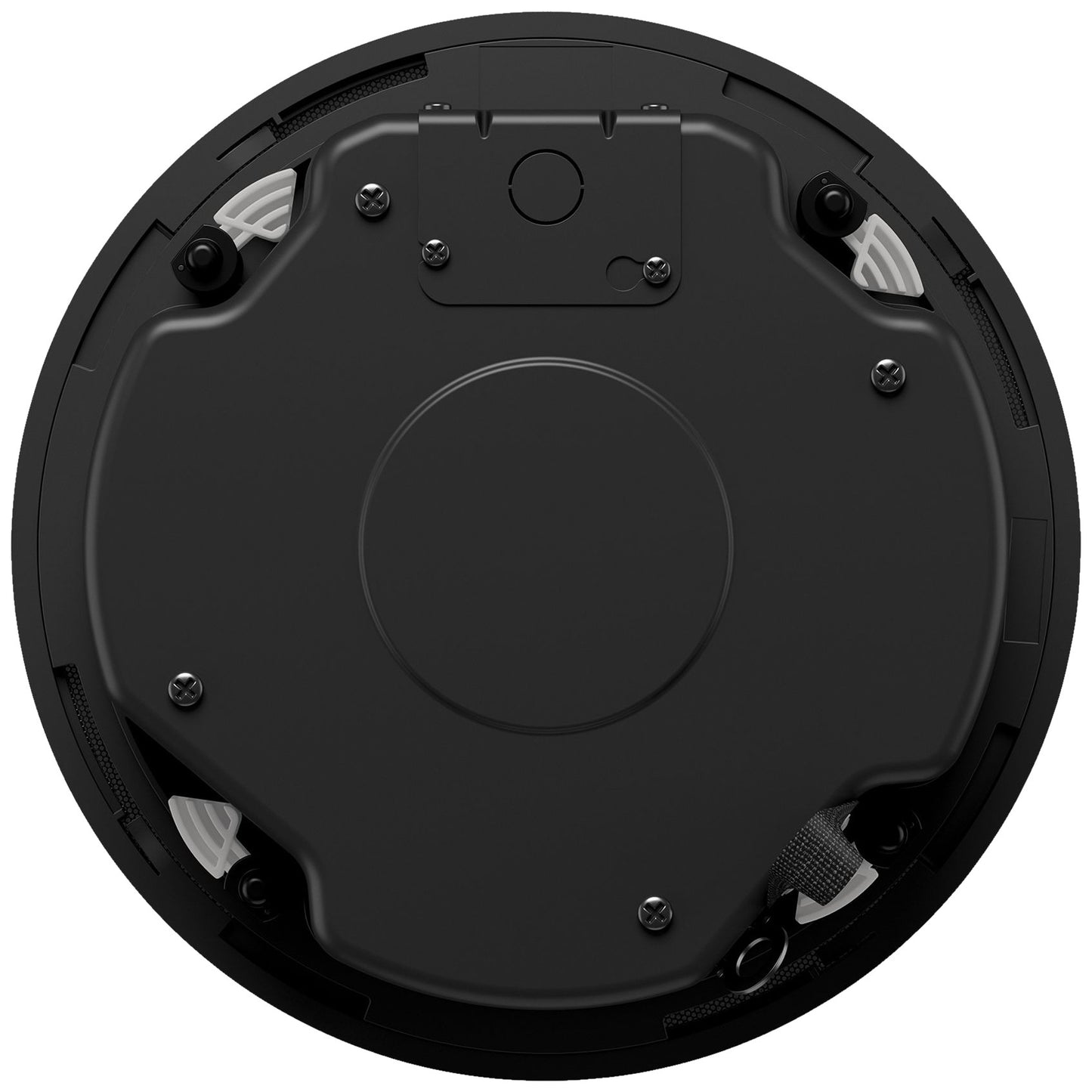

  • Yamaha VC8 8 2-Way Ceiling Speaker back

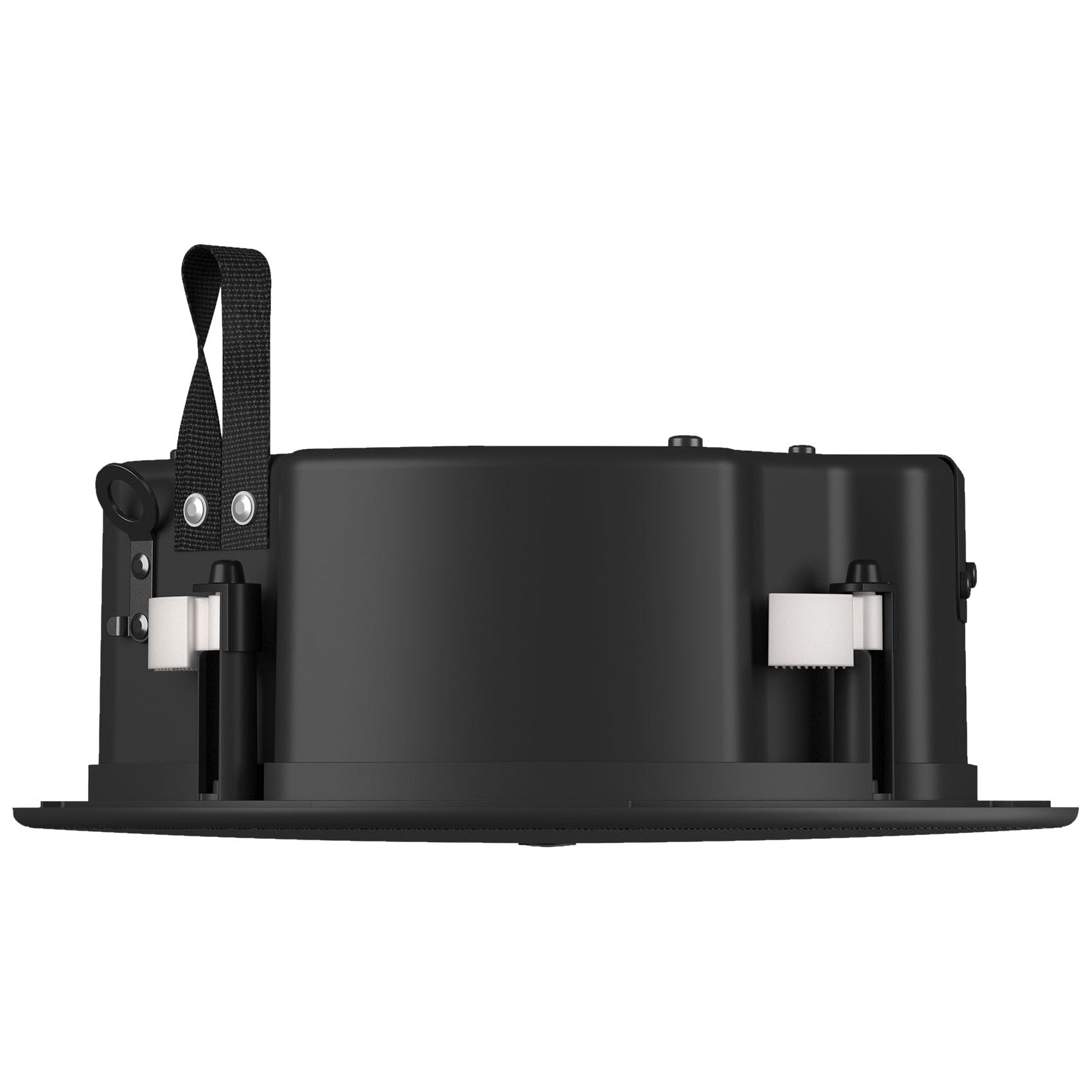

  • Yamaha VC8 8 2-Way Ceiling Speaker profile
1 3

Yamaha VC8 8-Inch Ceiling Speaker | Color: White

Yamaha VC8 8-Inch Ceiling Speaker | Color: White

SoundPro Item: 132287 | Part Number: VC8W

$198.99
$218.00 $198.99
Your Price Sold out
MSRP: $218.00 | MAP: $198.99

Usually ships in 5-7 business days

  • Engineered for optimum BGM and voice reproduction
  • Low-profile design allows installation in limited ceiling spaces
  • Direct support for low-impedance or high-impedance connections
  • 16Ω in low-impedance is advantageous when connecting multiple speakers in low impedance system
  • Built-in carrying band increases safety during installation
  • Double-threaded speaker clamp screws for speedy tightening
  • Paintable grilles with magnetic catches
  • Black and white versions available
  • 4.2 kg (9.3 lbs), Ø325 x D122 mm (Ø12-3/4” x D4-6/8”)
  • Single unit package
Log in or register for YOUR best price

The VC8 from Yamaha is an 8-inch ceiling speaker designed to give budget-conscious commercial venues high-quality sound coverage.

View full details
  • Speaker Type2way Coaxial type, Acoustic Suspension
  • Frequency Range (-10dB) 96 Hz - 20 kHz (Half-space: 2π)
  • Nominal Coverage110° conical (Half-space: 2π)
  • Components
    • LF: 8” Cone
    • HF: 1” Soft Dome
  • Power Rating
    • NOISE: 25W
    • PGM: 50W
    • PEAK: 100W
  • Nominal Impedance16Ω
  • Transformer Taps
    • 100V: 12W, 6W, 3W
    • 70V: 12W, 6W, 3W, 1.5W
  • SPL
    • Sensitivity (1W; 1m on axis): 91 dB SPL (Half-space 2π)
    • Peak (Calculated): 111 dB SPL (Calculated, 1 m)
  • I/O ConnectorsEuroblock (4 pin) ×1 (input: +/ - , loop - thru: +/ - ), Wire size : Min. AWG24 (0.2 sq), Max. AWG12 (3.5 sq)
  • Protection Circuit (Load Protection)Full-range power limiting to protect network and transducers
  • FinishVC8B: Black (approx. Munsell N3), VC8W: White (approx. Munsell N9.3)
  • Dimensions
    • Diameter: 325 mm (12 - 3/4")
    • D: 122 mm (4 - 6/8")
  • Net Weight4.2 kg (9.3 lbs)
  • Cutout SizeØ285 mm (Ø11 - 1/4")
  • Required Ceiling Board Thickness2 mm – 37 mm
  • CertificationUL1480A, UL2043, NFPA70, CE, RoHS
