Specifications
Dimensions
Cutout Size
Ø7.31"
Dimensions
8.88" diameter x 3.5" depth
Audio
Speaker Type
full range, bass reflex
Sensitivity (1W; 1m on axis)
86 dB SPL (Half-space 2π)
Connectivity

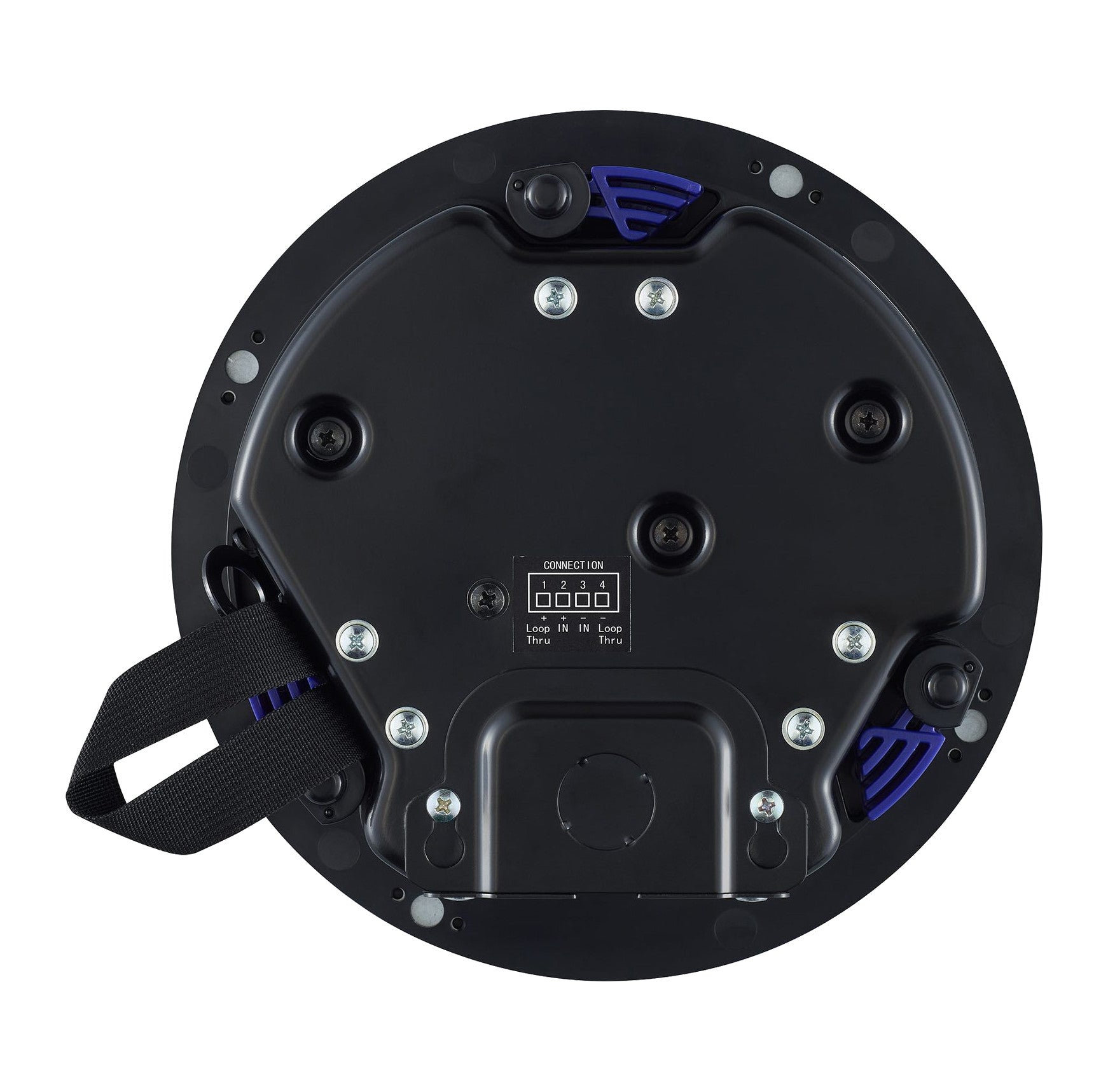

I/O Connectors
Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)
Shipping
Weight
3.7 lbs
General
Frequency Range (-10dB)
67Hz - 20,000Hz (Half-space 2π)
Nominal Coverage
160° conical (Half-space 2π)
Components (LF-HF)
2.5" full range unit
Noise
15W
PGM
30W
Peak
60W
Nominal Impedance
8Ω
100V
15W, 7.5W, 3.8W, 1.9W
70V
15W, 7.5W, 3.8W, 1.9W, 1W
Peak (calculated)
104 dB SPL (Calculated, 1m)
Load Protection
full-range power limiting to protect network and transducers
Certificate
UL1480, UL2043, NFPA70, CE, EAC, RoHS
Conduit Tube
Ø15.4 mm - Ø21.3 mm
Required Ceiling Board Thickness
5mm - 37mm
