Specifications
Dimensions
Cutout Size
Ø9.75"
Dimensions
11.25" diameter x 4.44" depth
Audio
Speaker Type
full range, bass reflex
Sensitivity (1W; 1m on axis)
87 dB SPL (Half-space:2π)
Connectivity

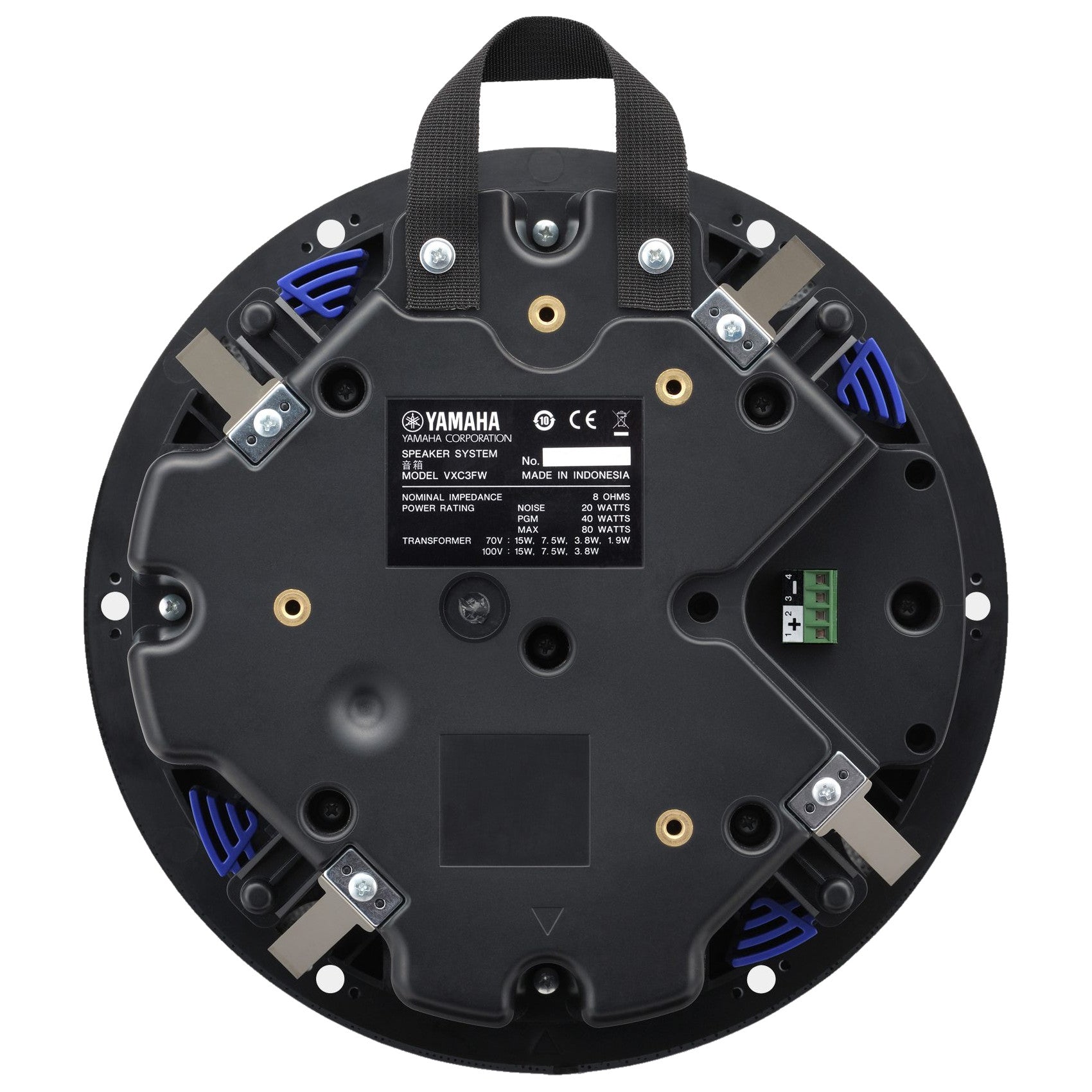

I/O Connectors
Euroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)
Shipping
Weight
5.5 pounds
General
Frequency Range (-10dB)
71Hz - 20,000Hz (Half-space 2π)
Nominal Coverage
140° conical (Half-space 2π)
Components (LF-HF)
3.5" full range unit
Noise
20W
PGM
40W
Peak
80W
Nominal Impedance
8Ω

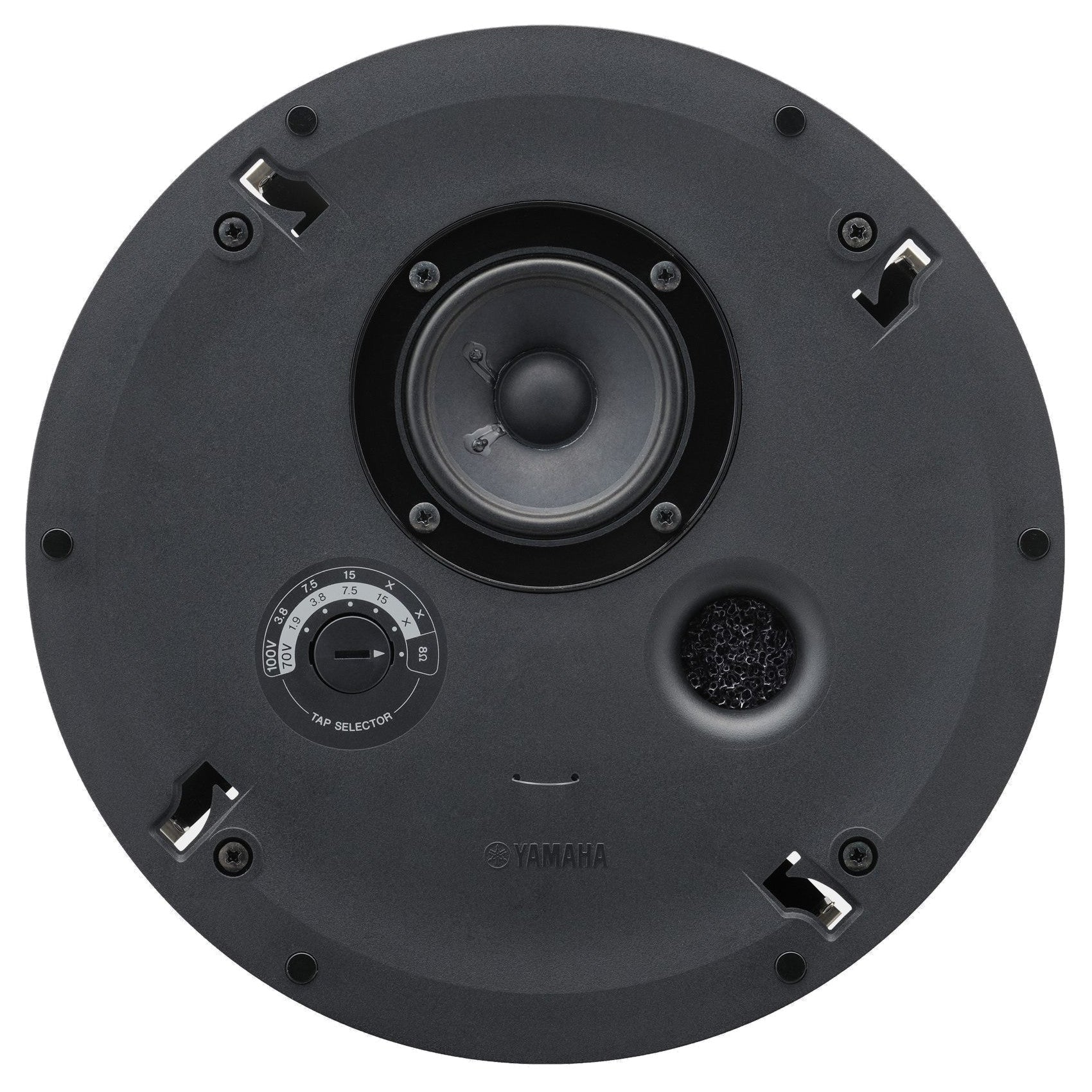

100V
15W, 7.5W, 3.8W
70V
15 W, 7.5W, 3.8W, 1.9W
Peak (calculated)
106 dB SPL (Calculated, 1m)
Load Protection
full-range power limiting to protect network and transducers
Certificate
UL1480, NFPA70, CE, EAC, RoHS
Conduit Tube
Ø15.4 mm - Ø21.3 mm
Required Ceiling Board Thickness
5mm - 37mm
