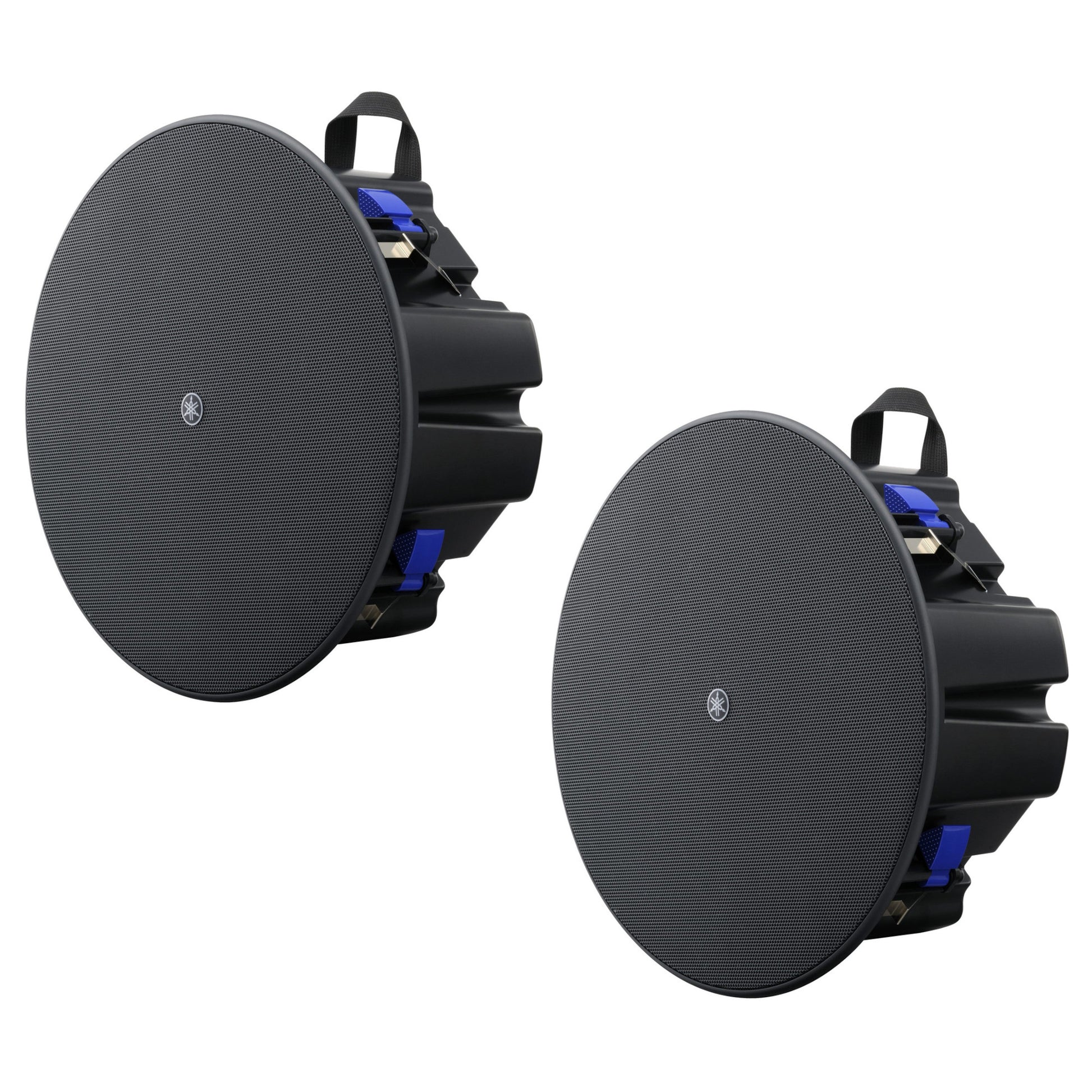

• Yamaha VXC5F 4.5-Inch Low-Profile Ceiling Speakers

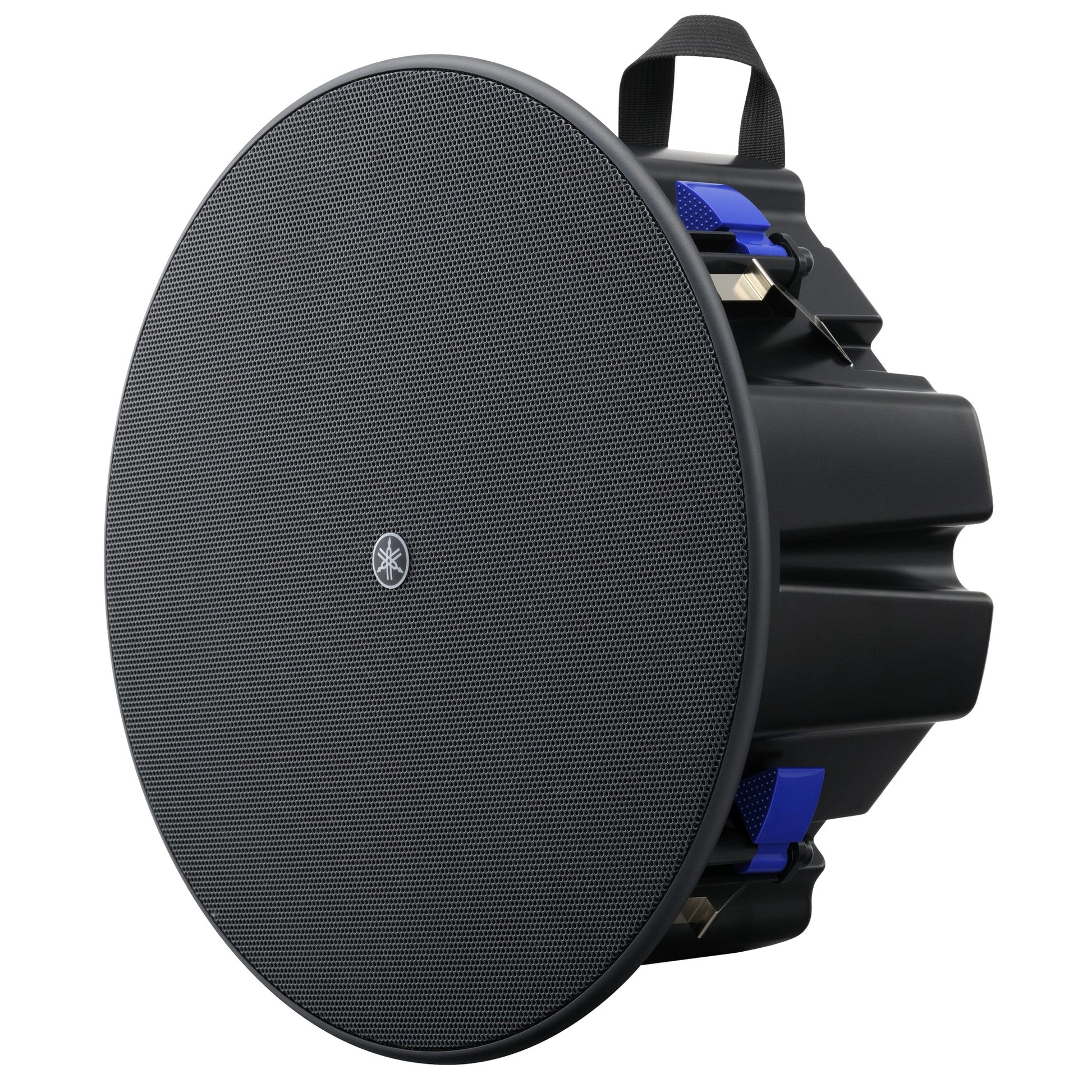

  • Yamaha VXC5F 4.5-Inch Low-Profile Ceiling Speakers black

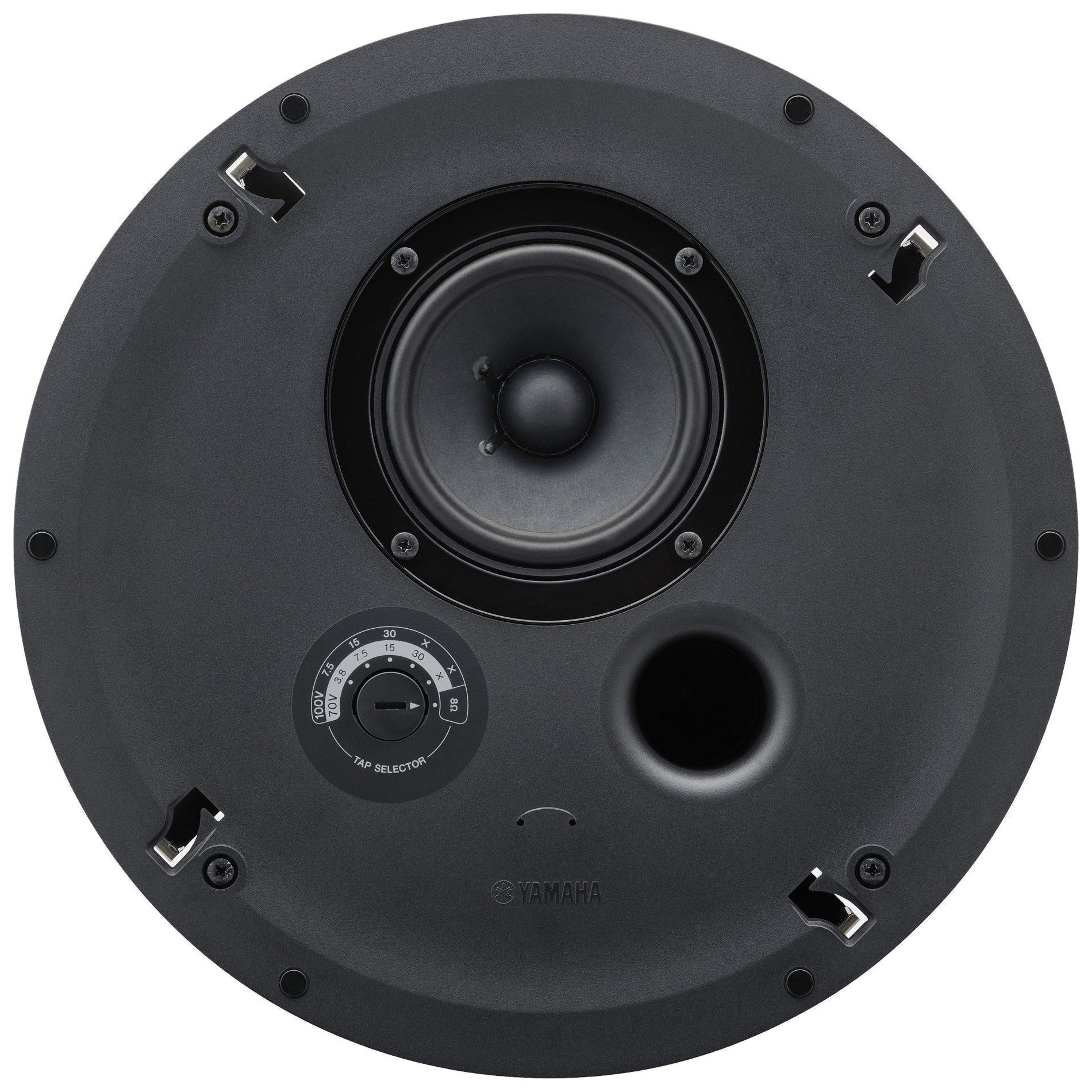

  • Yamaha VXC5F 4.5-Inch Low-Profile Ceiling Speakers without grille

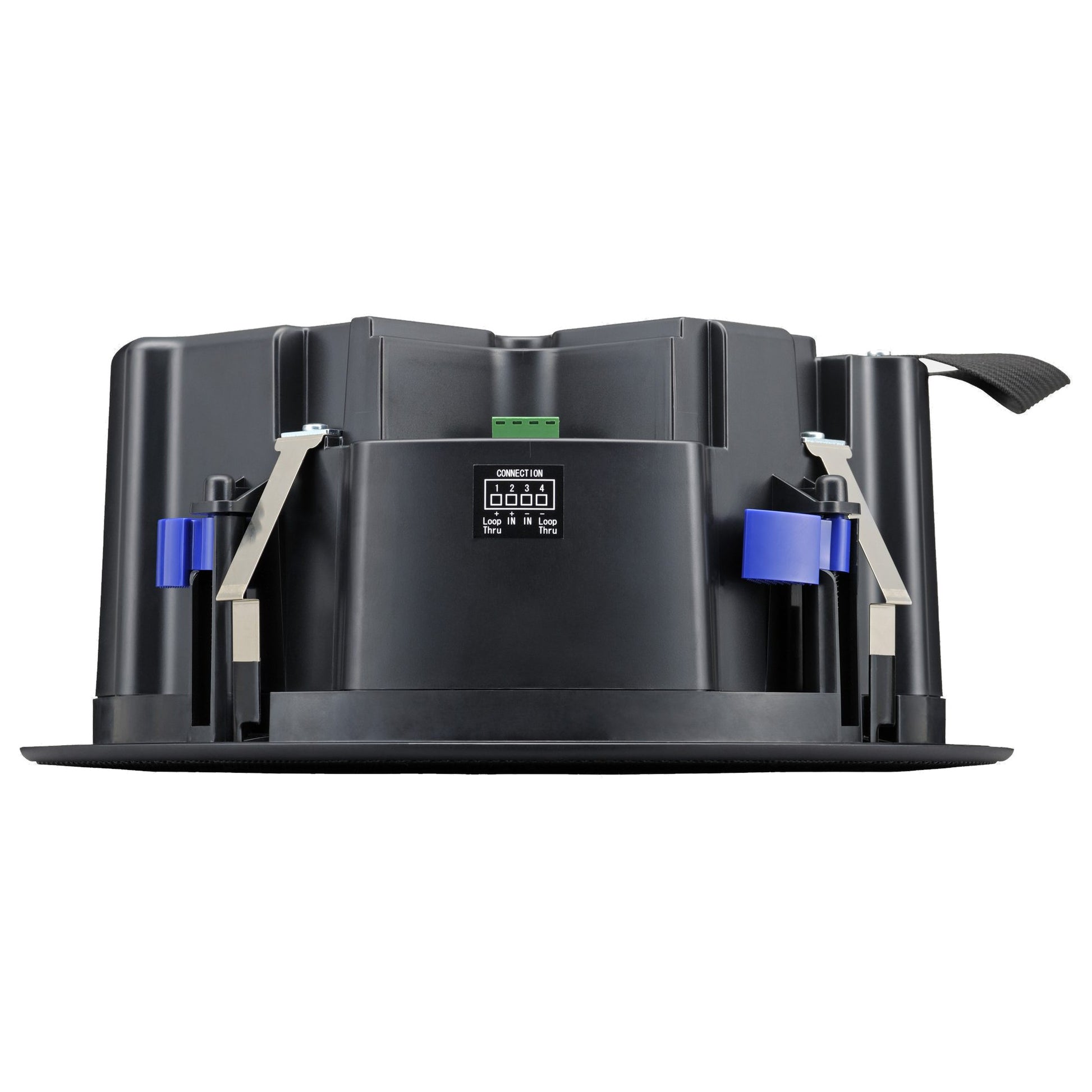

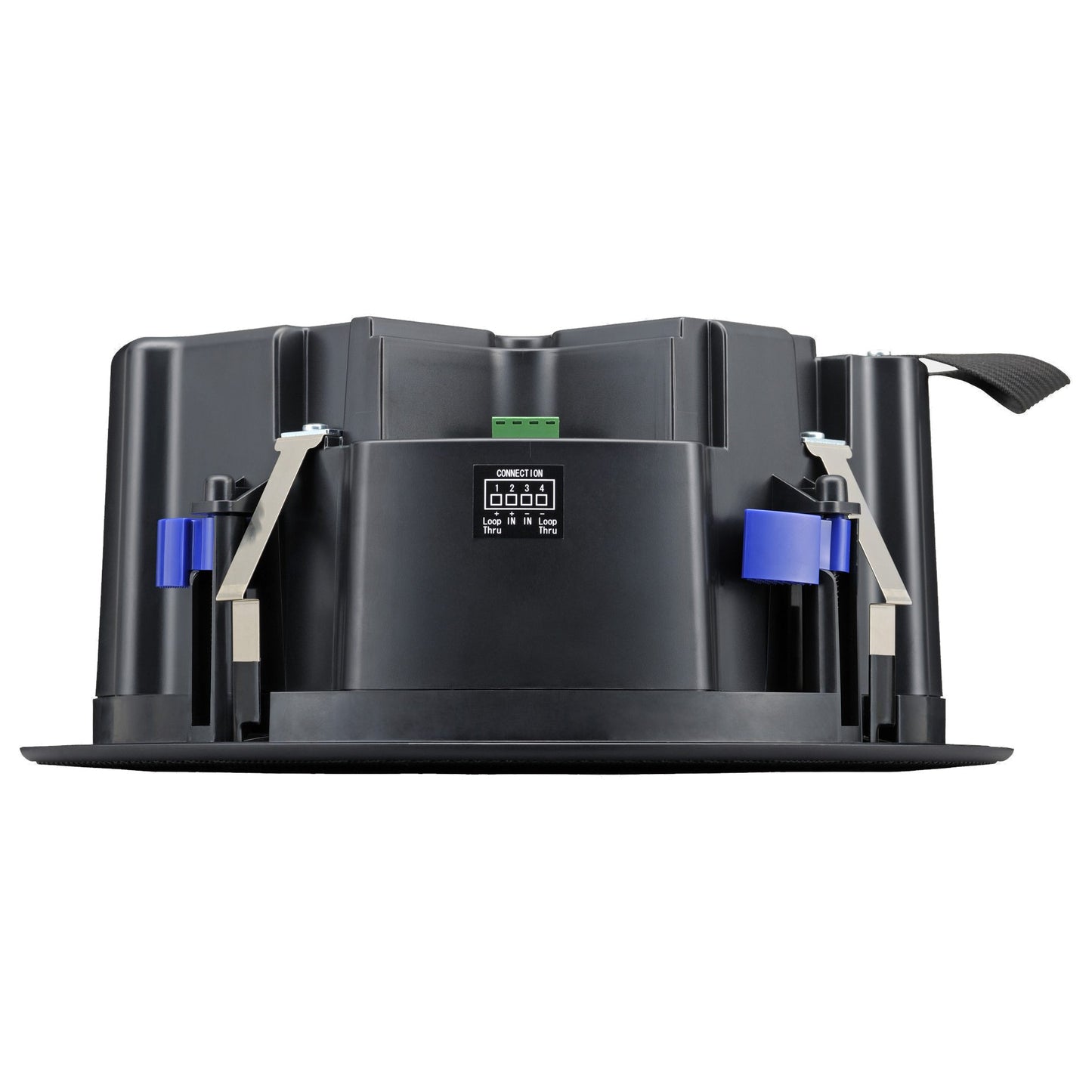

  • Yamaha VXC5F 4.5-Inch Low-Profile Ceiling Speakers side

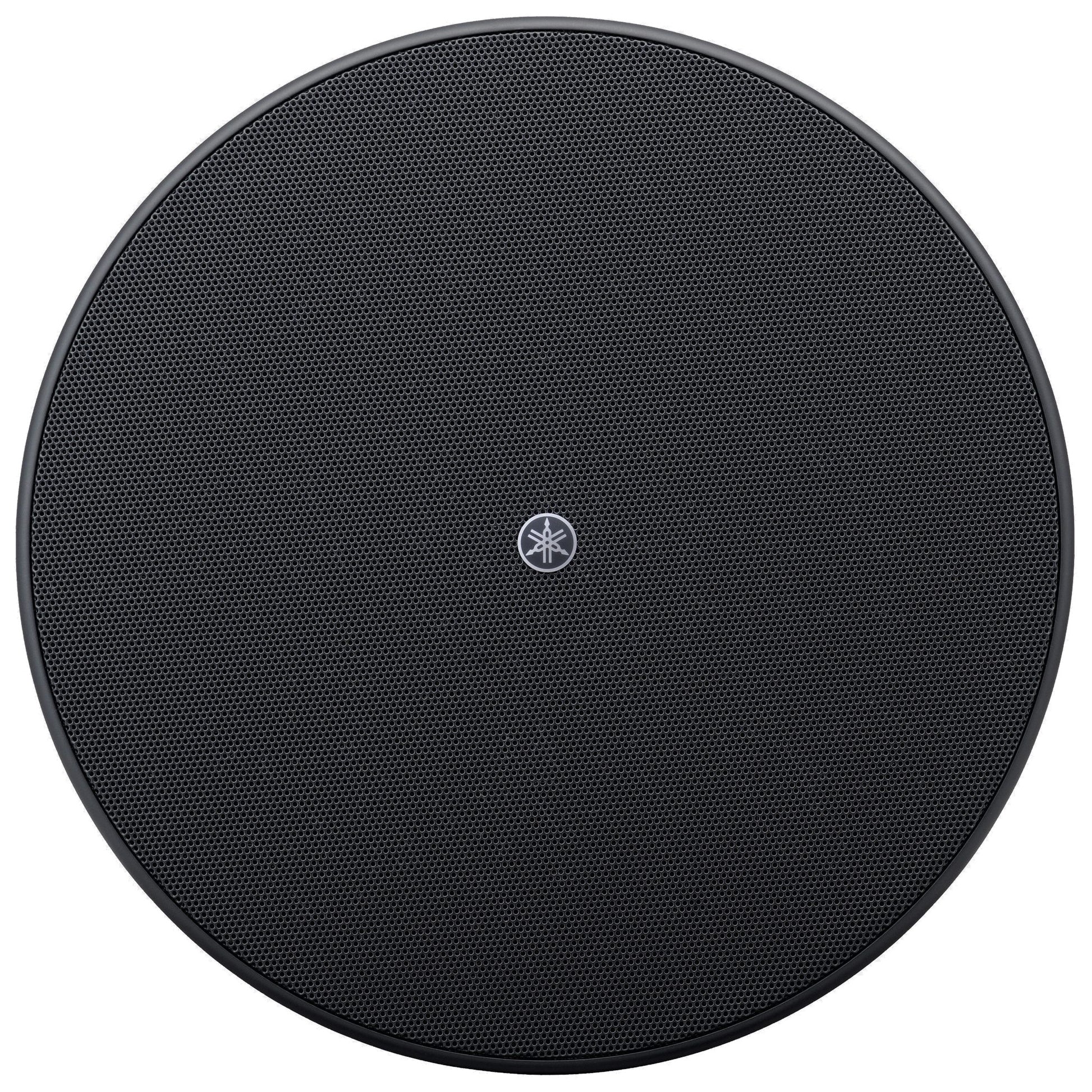

  • Yamaha VXC5F 4.5-Inch Low-Profile Ceiling Speakers front

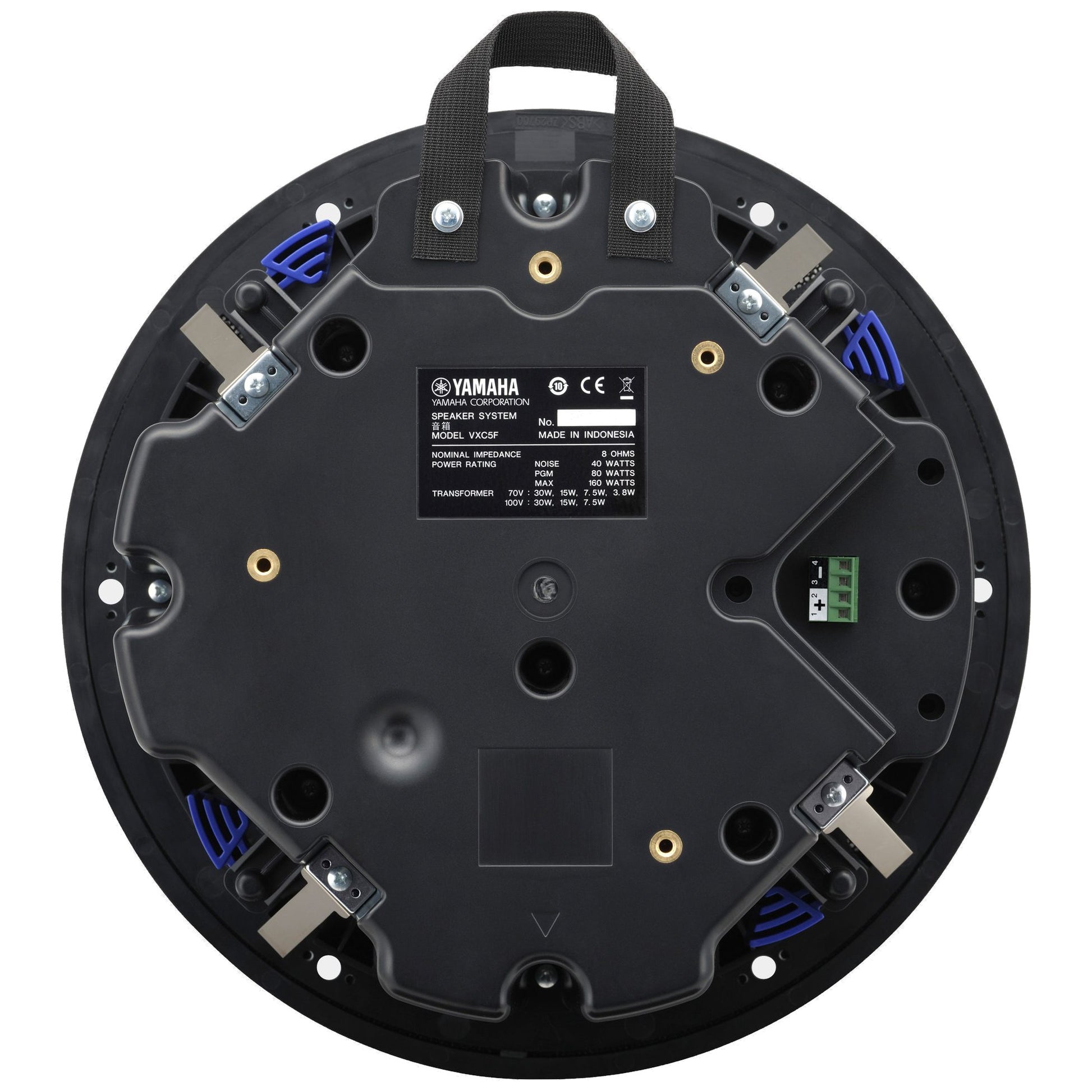

  • Yamaha VXC5F 4.5-Inch Low-Profile Ceiling Speakers back
1 6

Yamaha VXC5F 4.5-Inch Low-Profile Ceiling Speakers (Pair) | Color: Black

Yamaha VXC5F 4.5-Inch Low-Profile Ceiling Speakers (Pair) | Color: Black

SoundPro Item: 76128 | Part Number: VXC5F

$509.99
$601.00 $509.99
Your Price Sold out
MSRP: $601.00 | MAP: $509.99

Usually ships in 5-7 business days

  • Priced and sold as pairs
  • 4.5” full-range speaker unit
  • Engineered for optimum BGM reproduction
  • Low-profile design facilitates installation in limited ceiling spaces
  • Direct support for low-impedance or high-impedance connections
  • Built-in carrying band increases safety during installation
  • Anti-drop tab mechanism provide secure temporary positioning during installation
  • Double-threaded speaker clamp screws for speedy tightening
  • Paintable grilles with magnetic catches
  • Black and white versions available
  • 3.1kg (6.8lbs), Ø324 x D143 mm (Ø12-13/16" x D5-11/16")
Log in or register for YOUR best price

Priced and sold as pairs

The VXC5F from Yamaha is a 4.5”, low-profile ceiling speaker specifically intended for music playback in installed sound environments.

View full details
  • Speaker TypeFull range, Bass reflex
  • Frequency Range (-10dB) 60Hz – 20kHz (Half-space:2π)
  • Nominal Coverage130° conical (Half-space :2π)
  • Components (LF-HF) 4.5” Full range unit
  • Power Rating
    • NOISE: 40W
    • PGM: 80W
    • PEAK: 160W
  • Nominal Impedance8Ω
  • Transformer Taps
    • 100V: 30W, 15W, 7.5W
    • 70v: 30W, 15W, 7.5W, 3.8W
  • SPL
    • Sensitivity (1W; 1m on axis): 89 dB SPL (Half-space:2π)
    • Peak (Calculated): 111 dB SPL (Calculated, 1m)
  • I/O ConnectorsEuroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)
  • Protection Circuit (Load protection) Full-range power limiting to protect network and transducers
  • FinishBlack or white
  • Dimensions
    • Diameter: 324 mm (12-13/16")
    • D: 143 mm (5-11/16”)
  • Net Weight3.1 kg (6.8 lbs)
  • Cutout SizeØ285 mm (Ø11-1/4")
  • Required Ceiling Board Thickness5 mm – 37 mm
  • CertificateUL1480, NFPA70, CE, EAC, RoHS
  • OtherConduit tube: Ø15.4 mm - Ø21.3 mm
