Specifications
Dimensions
Diameter
325mm (12.8")
Cutout Size
Ø285 mm (Ø11 1/4")
Weight
Net Weight
6.6kg (14.6lbs)
Audio
Speaker Type
2-way, Acoustic suspension
Sensitivity (1W; 1m on axis)
90 dB SPL (Half-space 2π)
Connectivity
I/O Connectors
1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -)
Construction
Finish
Black or white
Included Items
Components

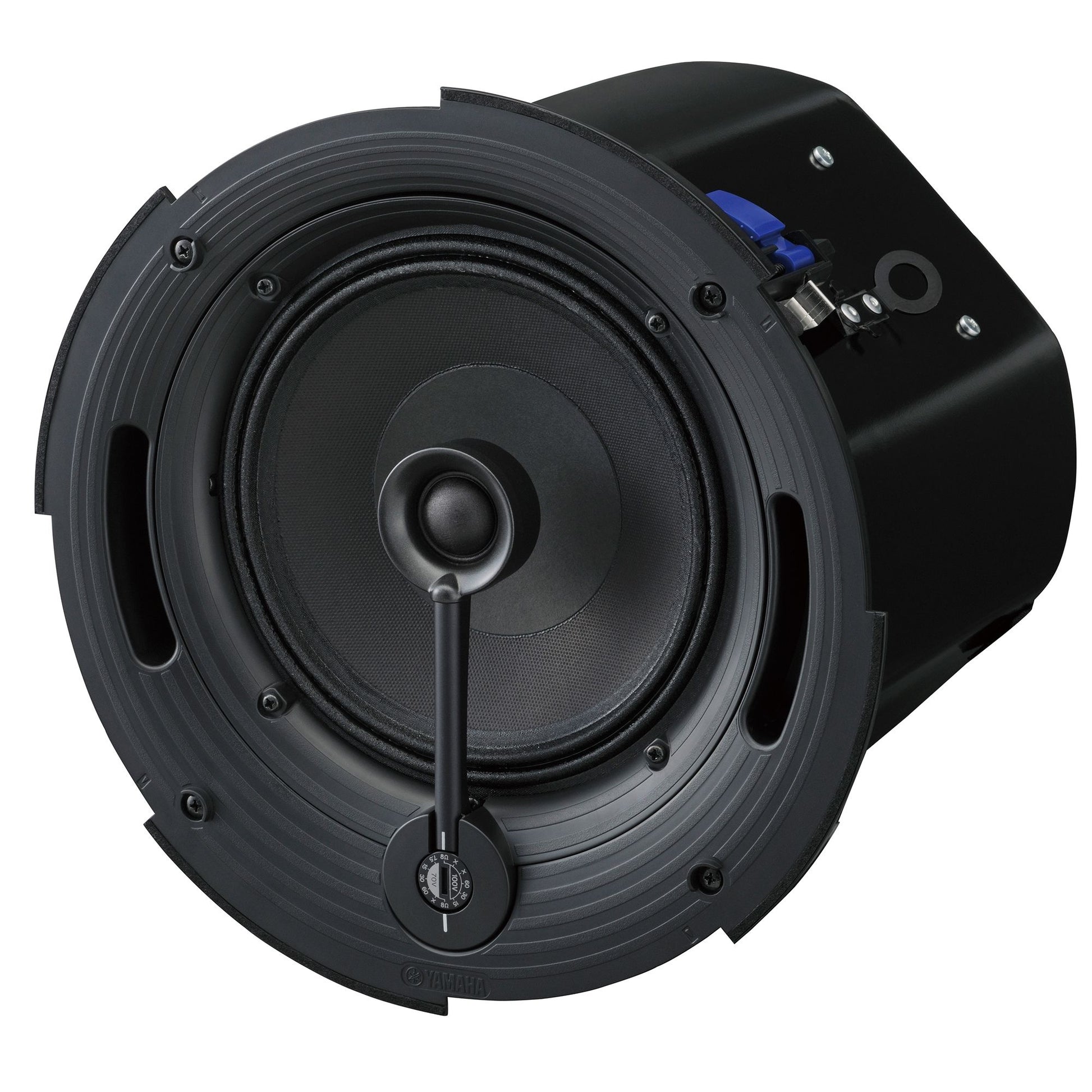

8" Cone LF, 1” soft dome
General
Frequency Range (-10dB)
55Hz - 20kHz (Half-space:2π)
Nominal Coverage
100° conical (Half-space :2π)
NOISE
90W
PGM
180W
PEAK
360W
Nominal Impedance
8Ω
100V
60W (170Ω), 30W (330Ω), 15W (670Ω)
70V
60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω)
Peak (Calculated)
116dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)
D
259mm (10.2")
Required Ceiling Board Thickness
5 mm – 35 mm
Certificate
UL1480, NFPA70, CE, EAC, RoHS
