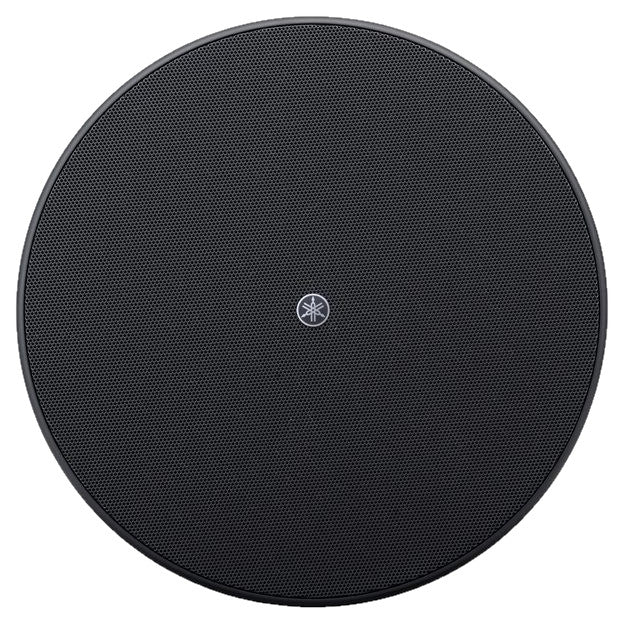

• Yamaha VXC8S 8" Ceiling Subwoofer black

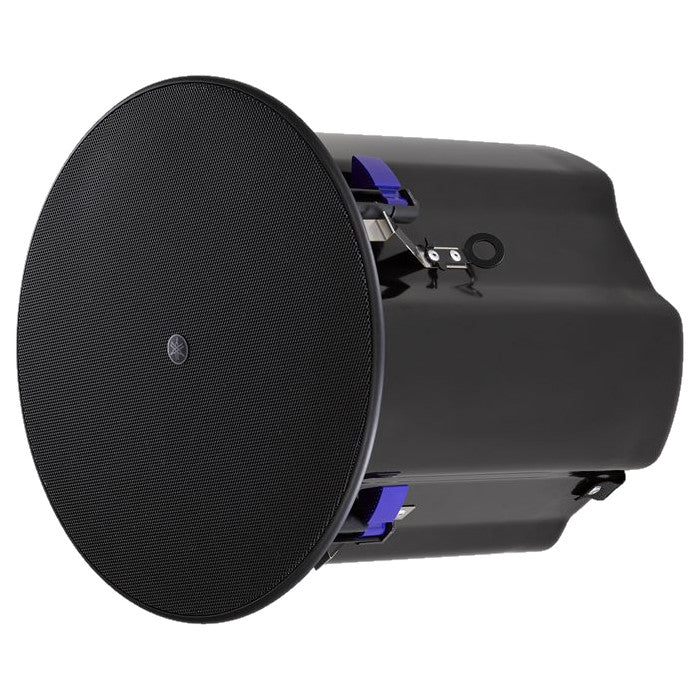

  • Yamaha VXC8S 8 Ceiling Subwoofer

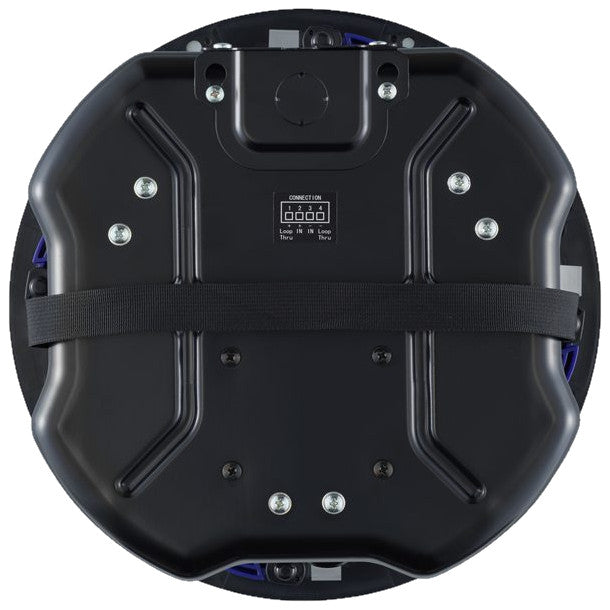

  • Yamaha VXC8S 8 Ceiling Subwoofer back

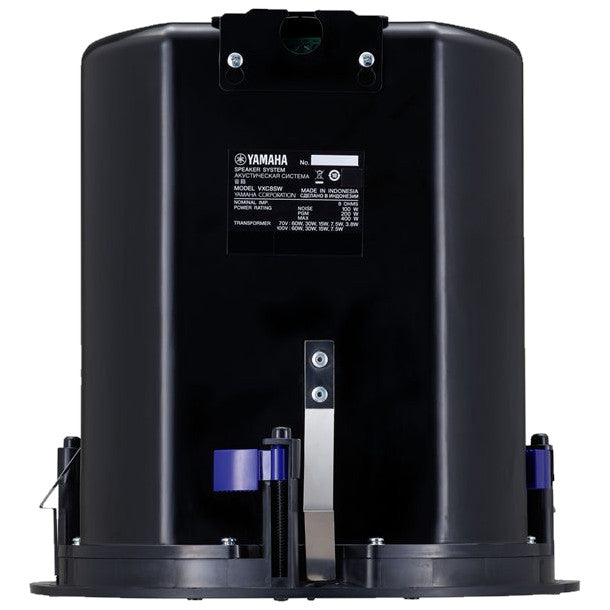

  • Yamaha VXC8S 8 Ceiling Subwoofer profile

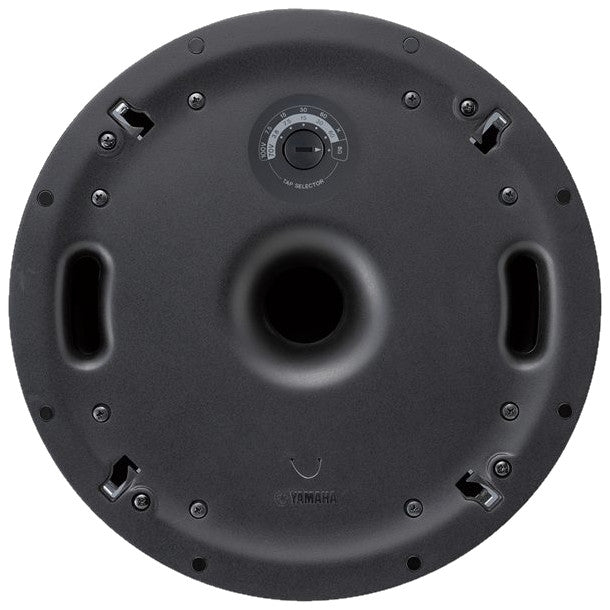

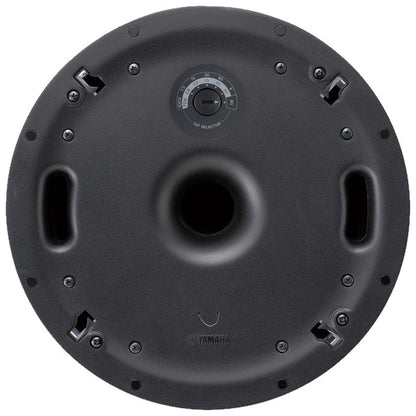

  • Yamaha VXC8S 8 Ceiling Subwoofer uncovered

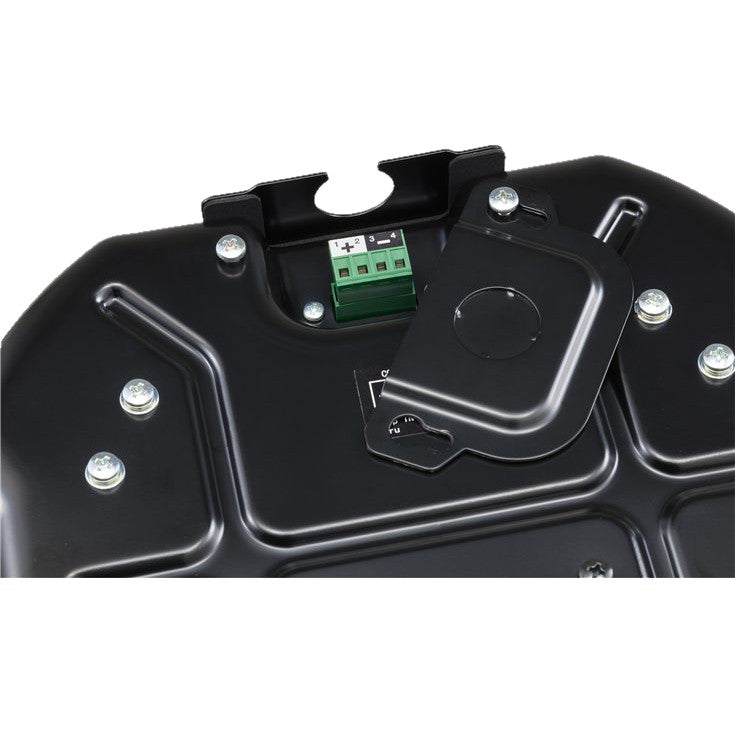

  • Yamaha VXC8S 8 Ceiling Subwoofer detail

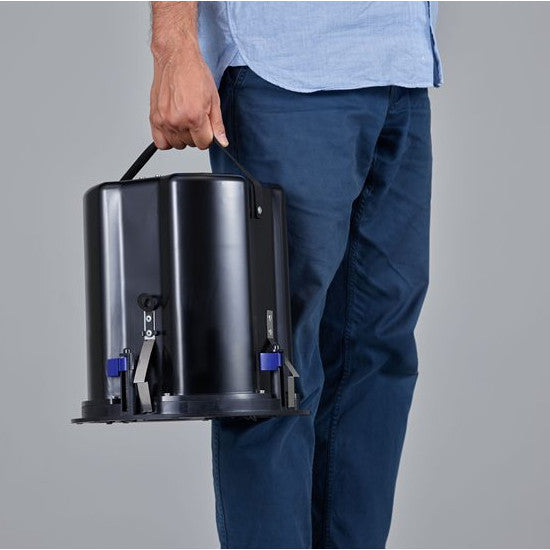

  • Yamaha VXC8S 8 Ceiling Subwoofer lifestyle
1 7

Yamaha VXC8S 8-Inch Ceiling Subwoofer | Color: Black

Yamaha VXC8S 8-Inch Ceiling Subwoofer | Color: Black

SoundPro Item: 114866 | Part Number: VXC8SB

$355.99
$417.00 $355.99
Your Price Sold out
MSRP: $417.00 | MAP: $355.99

Usually ships in 5-7 business days

  • 8" in-ceiling subwoofer providing realistic, well-rounded, and powerful sound reproduction
  • Great for installed music and speech applications
  • Sound and size ideally matched to the VXS and VXC series
  • Band-pass design ensures smooth, distortion-free low-frequency extension
  • Direct support for low-impedance or high-impedance connections
  • Built-in carrying band increases safety during installation
  • Anti-drop tab mechanism provide secure temporary positioning during installation
  • Double-threaded speaker clamp screws for speedy tightening
  • Paintable grilles with magnetic catches
  • Black and white versions available
  • 8.7kg (19.2lbs), Ø324 x D314 mm (Ø12-13/16" x D12-23/64")
  • AB-C8S (sold separately) is required to secure safe installation of VXC8S
Log in or register for YOUR best price

The VXC8S from Yamaha is an 8” in-ceiling subwoofer designed to complement VXS and VXC series speakers.

This in-ceiling sub extends the low-frequency range so you can achieve more realistic, well-rounded, and powerful acoustic reproduction for your installed music and speech needs.

View full details
  • Speaker TypeBand-pass type Subwoofer
  • Frequency Range (-10dB) 44 Hz - 200 Hz (Half-space 2π)
  • Nominal Coverage130° conical (Half-space :2π)
  • Components (LF) 8" Cone
  • Power Rating
    • NOISE: 100W
    • PGM: 200W
    • PEAK: 400W
  • Nominal Impedance8Ω
  • Transformer Taps
    • 100V: 60W, 30W, 15W, 7.5W
    • 70V: 60W, 30W, 15W, 7.5W, 3.8W
  • SPL
    • Sensitivity (1W; 1m on axis): 88 dB SPL (Half-space 2π)
    • Peak (Calculated): 114 dB SPL (Calculated, 1m)
  • I/O ConnectorsEuroblock (4 pin) × 1 (input: +/-, loop-thru: +/-)
  • Protection Circuit (Load protection) Full-range power limiting to protect network and transducers
  • FinishBlack or white
  • Dimensions
    • Diameter: 324 mm (12-13/16")
    • D: 314 mm (12-23/64")
  • Net Weight8.7 kg (19.2 lbs)
  • Cutout SizeØ285 mm (Ø11-1/4")
  • Required Ceiling Board Thickness5 mm – 37 mm
  • CertificateUL1480, NFPA70, CE, EAC, RoHS
  • OtherConduit tube: Ø15.4 mm - Ø21.3 mm
