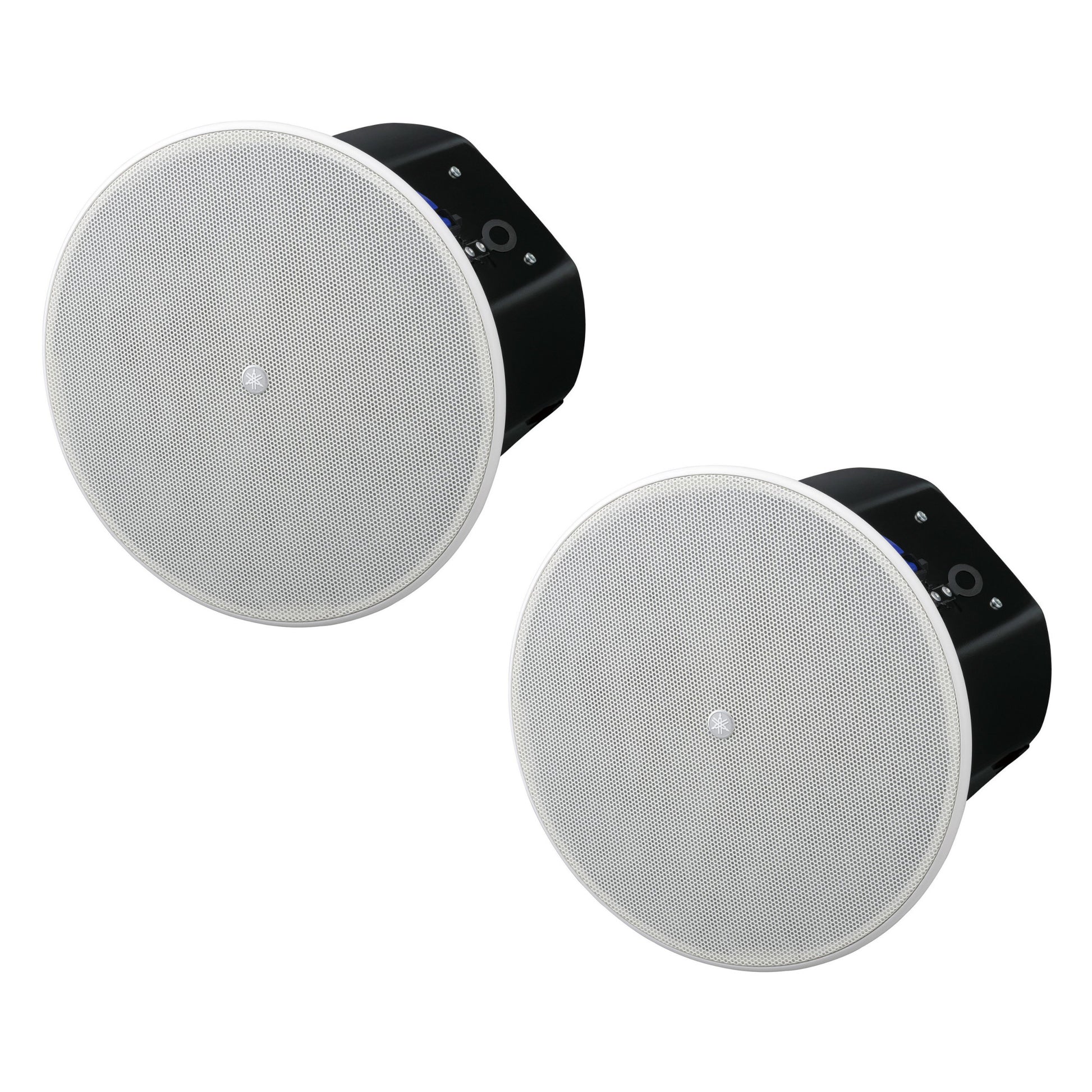

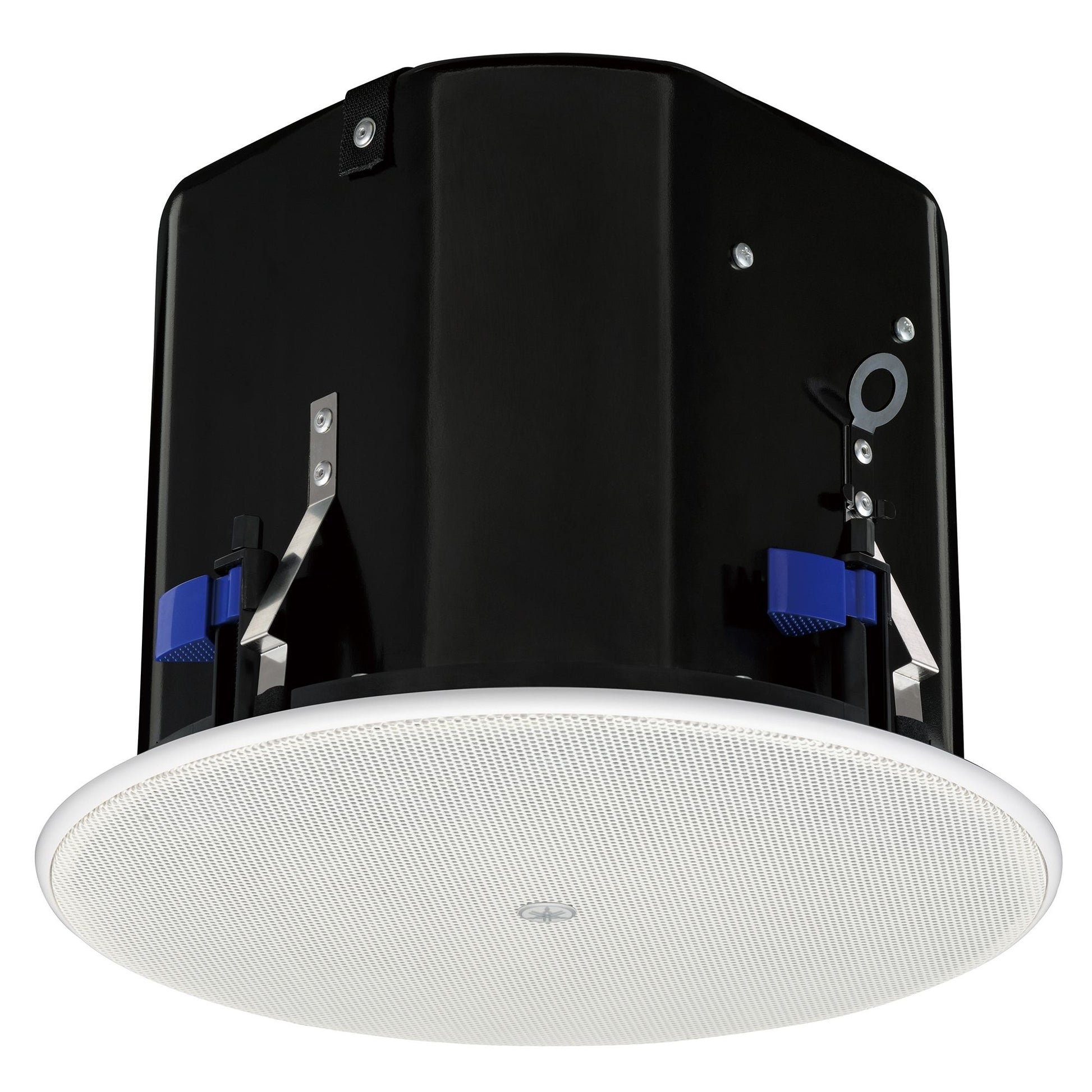

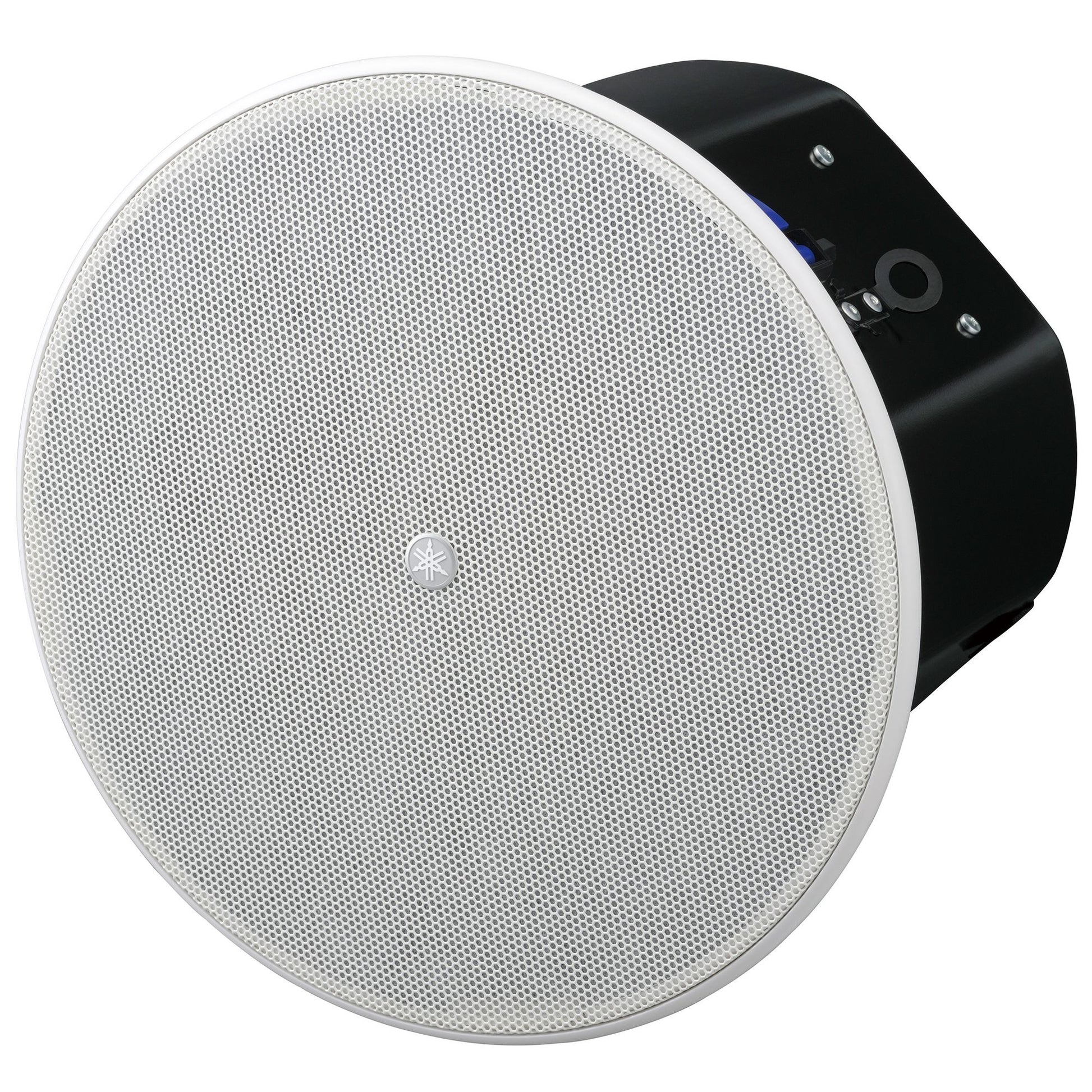

Yamaha VXC8 8-Inch Ceiling Speakers (Pair) | Color: White

Yamaha VXC8 8-Inch Ceiling Speakers (Pair) | Color: White

SoundPro Item: 66955 | Part Number: VXC8W

Regular price $619.99
Regular price $727.00 Sale price $619.99
Your Price Sold out
MSRP: $727.00 | MAP: $619.99

In stock and ready to ship

  • Priced and sold as pairs
  • Series offers three different woofer sizes in either black or white
  • Features newly customized transducers for superb music reproduction as well ascrystal clear announcements
  • Equipped with internal transformers that allow both high and low impedance drive, which can be selected by simply switching the tap on the baffle
  • Anti-Drop tab allows the speakers to be mounted temporarily in the ceiling for improved safety and ease of installation
  • A flexible carrying band makes the speakers very portable and allows carrying multiple speakers at once
  • Comes complete with O-rings and tile rails for safer and smoother installation
  • Overload protection circuit provided to protect speaker components
  • Comes with paintable speaker grilles for flexible design ideas

Priced and sold as pairs

The VXC8 from Yamaha is an 8” in-ceiling speaker designed for use in commercial installations that require stellar music reproduction and accurate vocals for overhead announcements.

View full details

Specifications

Dimensions
Diameter
325mm (12.8")
Cutout Size
Ø285 mm (Ø11 1/4")
Weight
Net Weight
6.6kg (14.6lbs)
Audio
Speaker Type
2-way, Acoustic suspension
Sensitivity (1W; 1m on axis)
90 dB SPL (Half-space 2π)
Connectivity
I/O Connectors
1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -)
Construction
Finish
Black or white
Included Items
Components
8" Cone LF, 1” soft dome
General
Frequency Range (-10dB)
55Hz - 20kHz (Half-space:2π)
Nominal Coverage
100° conical (Half-space :2π)
NOISE
90W
PGM
180W
PEAK
360W
Nominal Impedance
100V
60W (170Ω), 30W (330Ω), 15W (670Ω)
70V
60W (83Ω), 30W (170Ω), 15W (330Ω), 7.5W (670Ω)
Peak (Calculated)
116dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression)
D
259mm (10.2")
Required Ceiling Board Thickness
5 mm – 35 mm
Certificate
UL1480, NFPA70, CE, EAC, RoHS
